Year 2013
Make Hardinge
Model CHNC

Description

CNC Lathe
Reference # 8072801

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

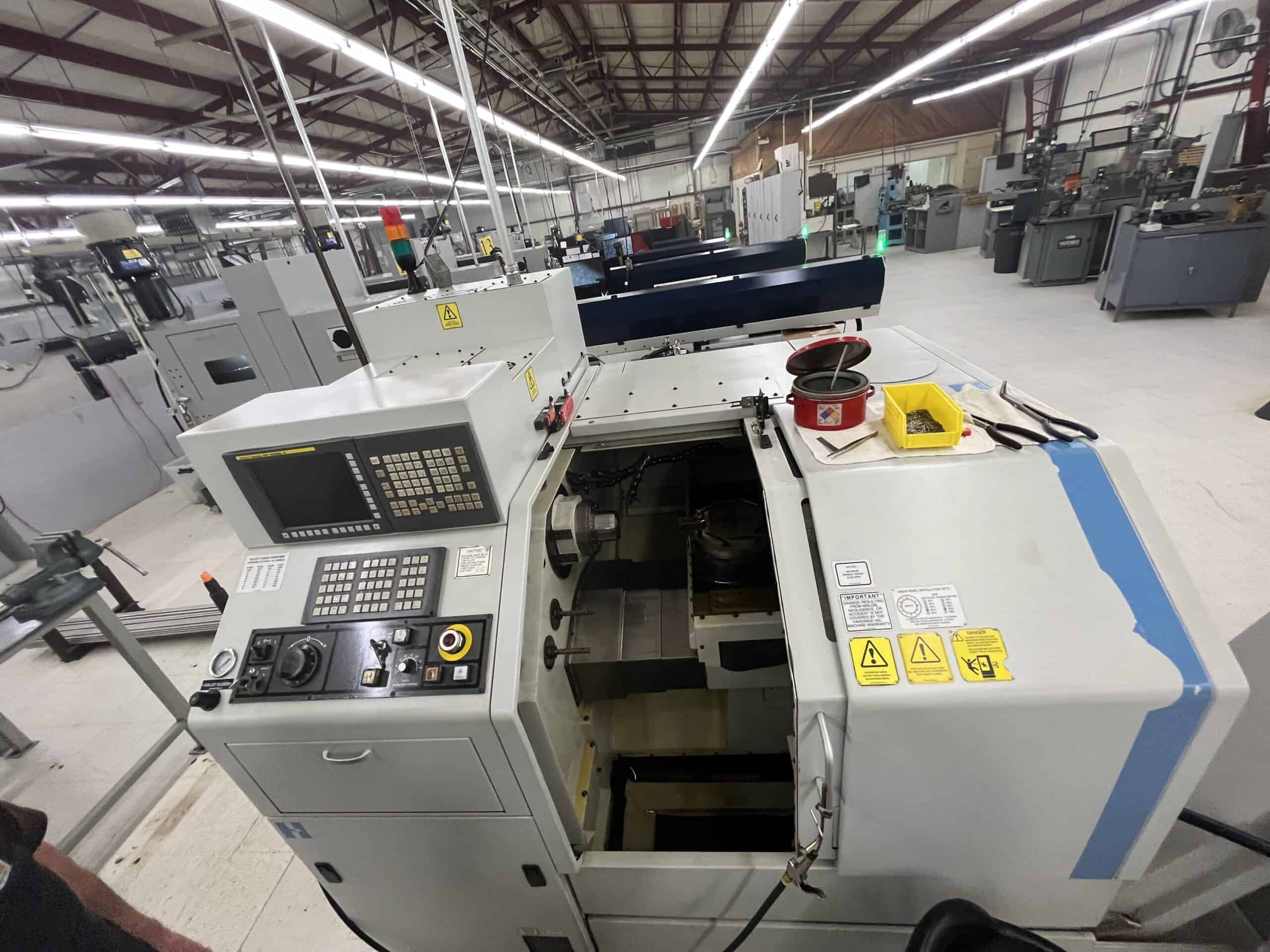

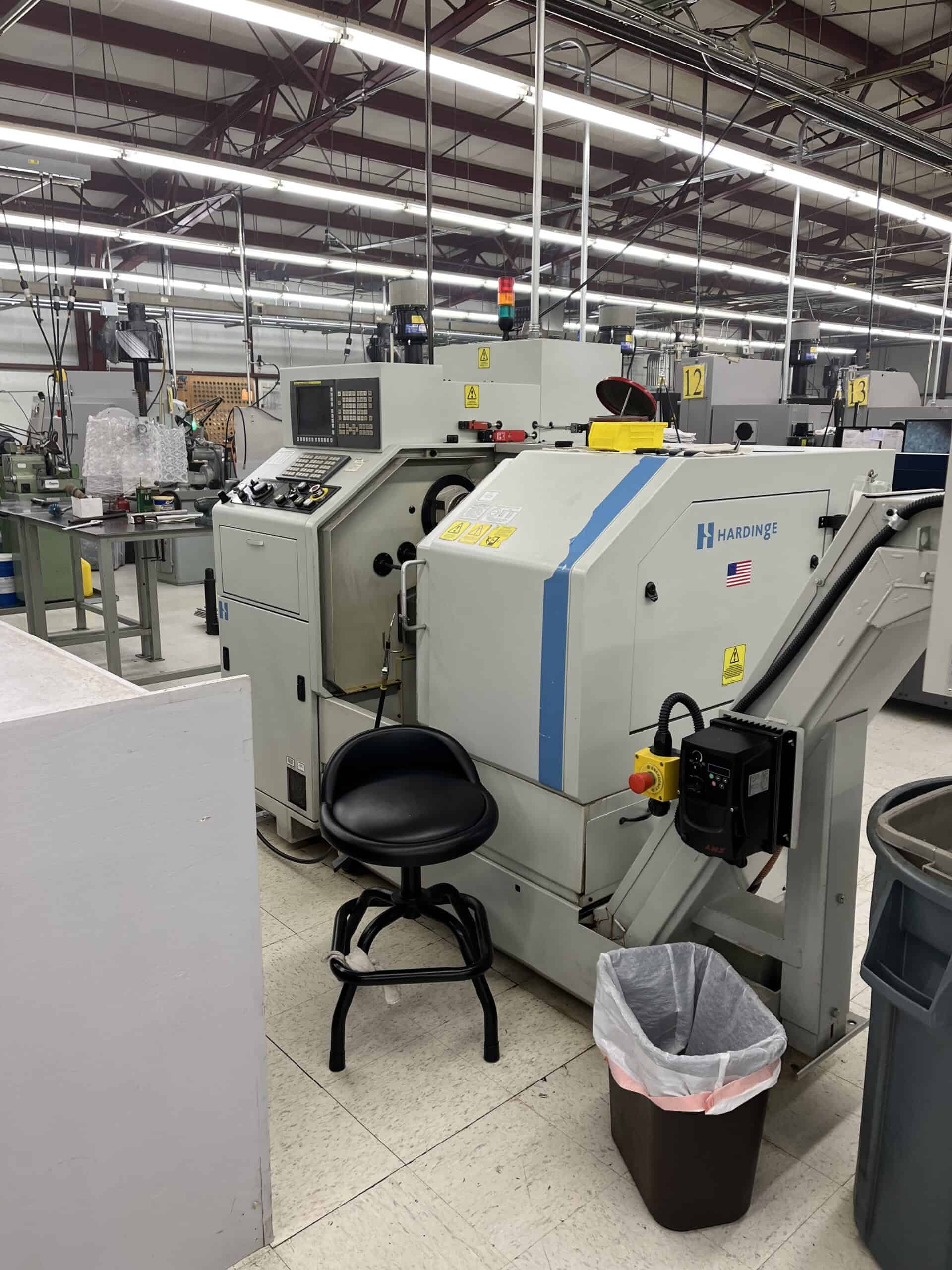

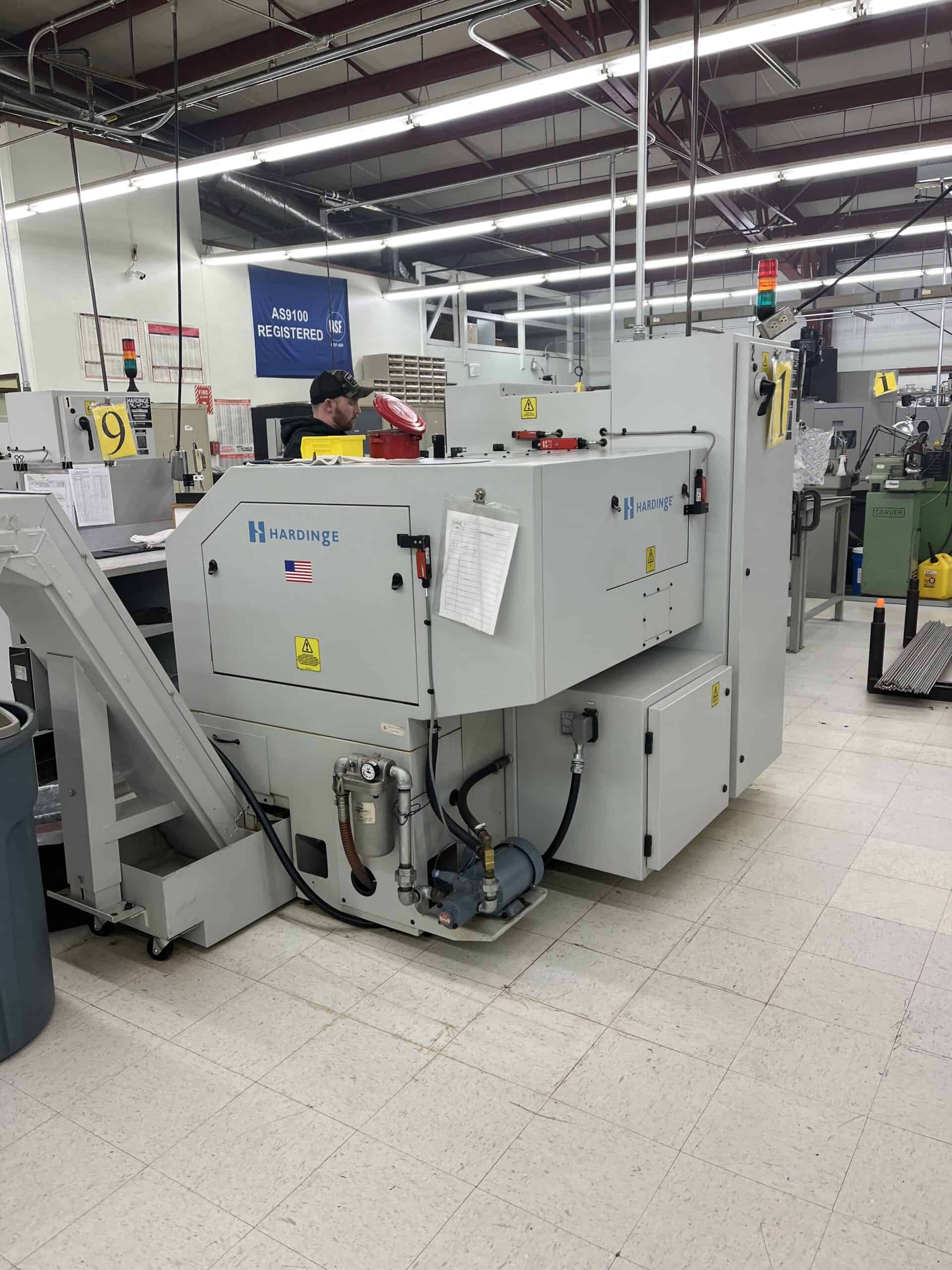

Used Hardinge CHNC (2013) CNC Lathe for Sale.  This pre-owned Hardinge CNC lathe is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this Hardinge Lathe, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Chuck Size

16"

Bar Capacity

1.65"

Swing

17.94"

Spindle Speed

5,000 RPM

Control

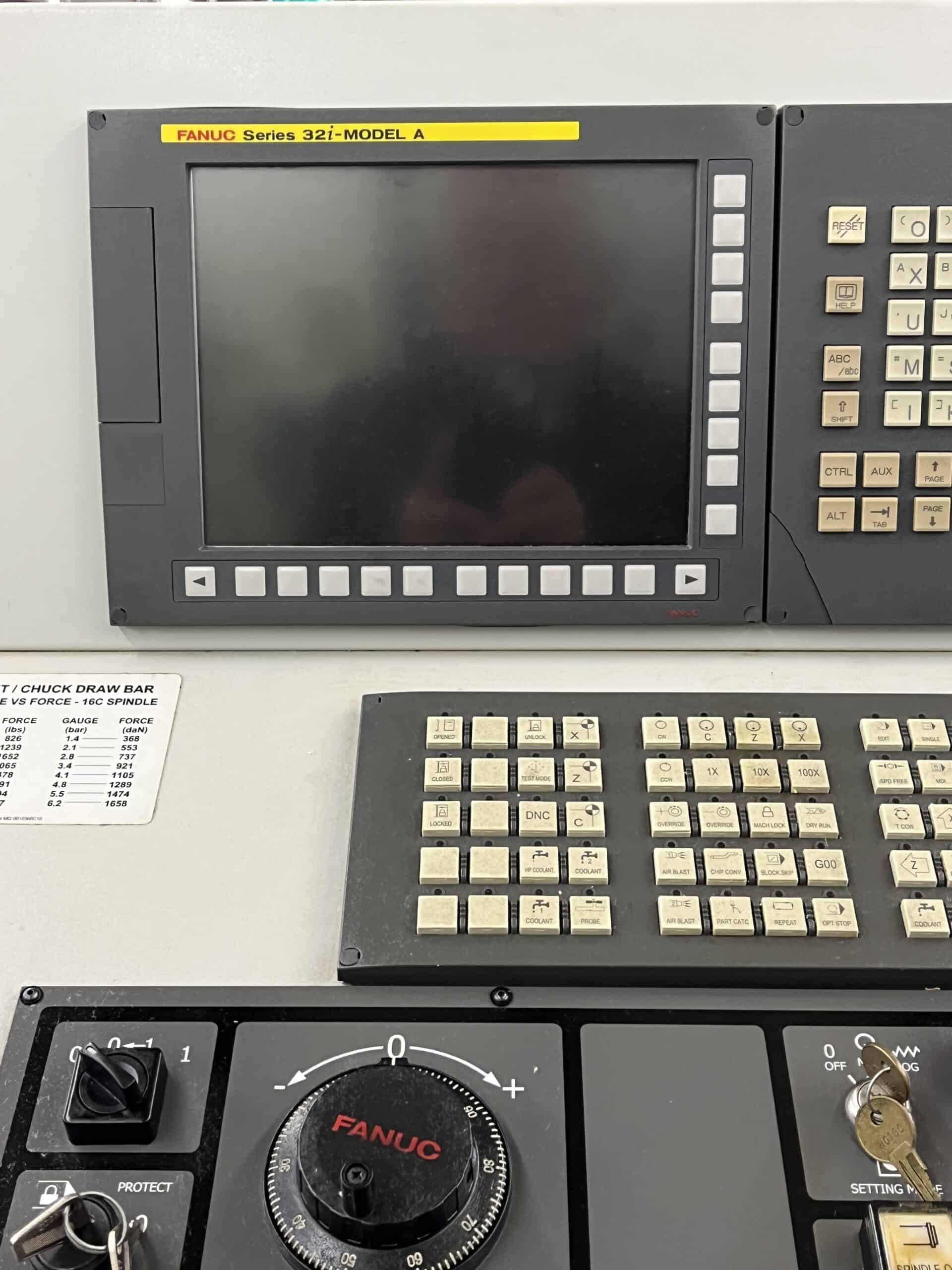

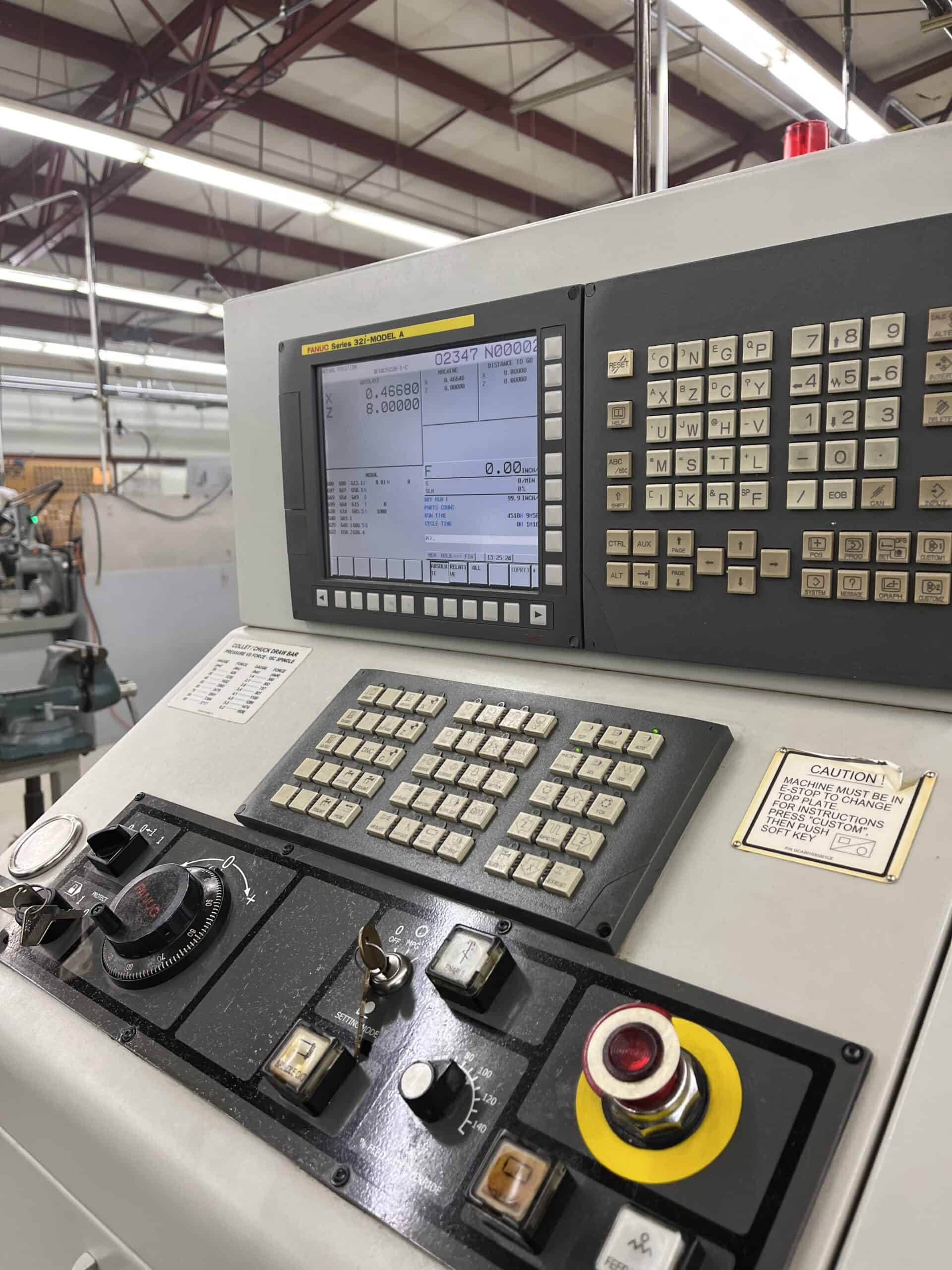

Fanuc 32i Model A

Turret Stations

8 Station

Chip Removal

Chip Conveyor

Power Requirement

230/3/60

X-Axis (Cross Travel)

12.24"

Z-Axis (Longitudinal Travel)

12.25"

X-Axis Feed Rates

0 - 472 IPM

X-Axis Rapid Traverse Rate

708 IPM

Z-Axis Feed Rates

0 - 630 IPM

Z-Axis Rapid Traverse Rate

945 IPM

Number of Tool Turrets

1

Spindle Horsepower

5 HP

Approximate Machine Dimensions

77" x 59"

Max Part Weight

75 Lbs

Approximate Machine Height

65"

Approximate Machine Weight

5,500 Lbs

Features

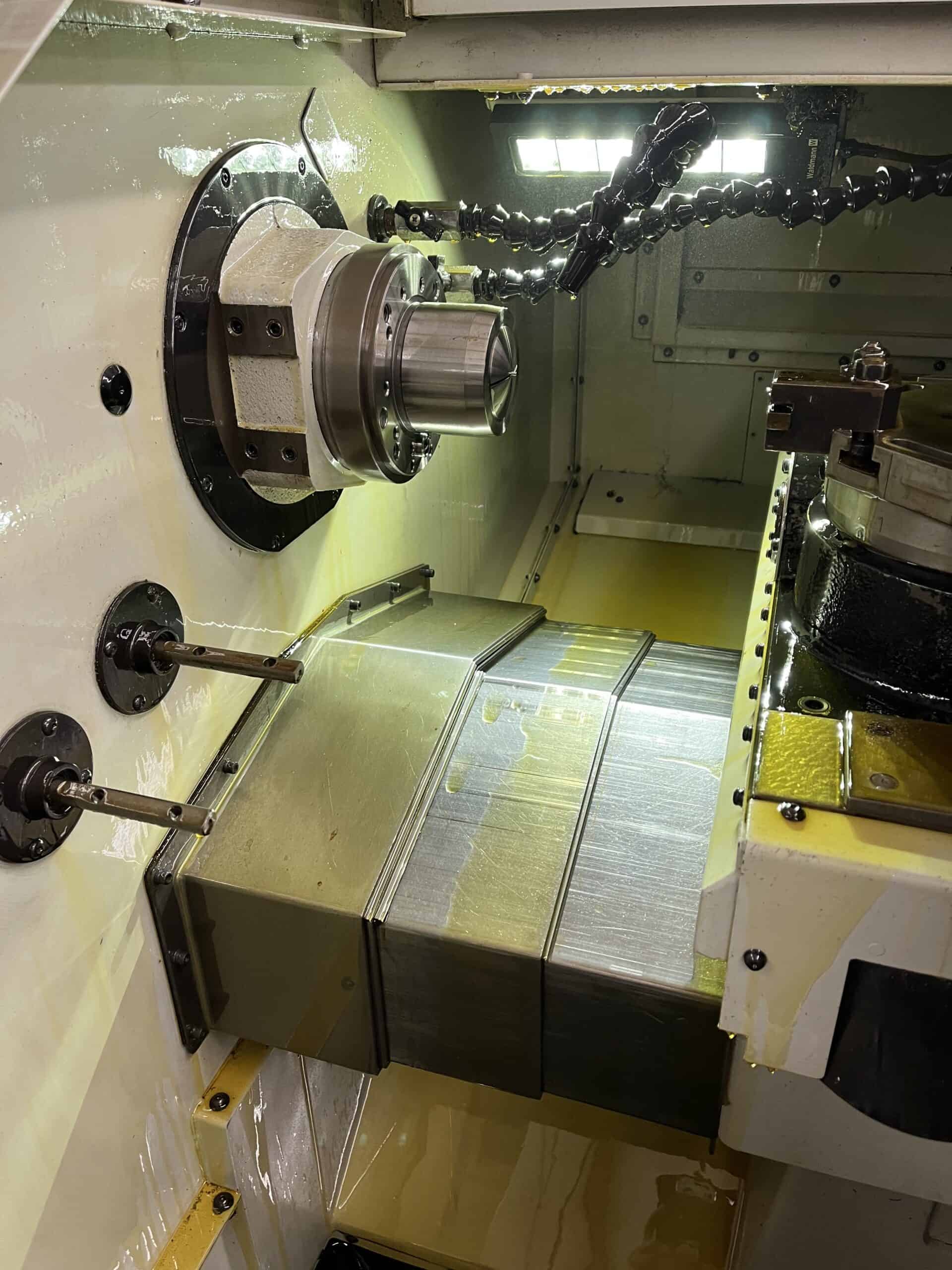

16C Collet Chuck

Parts Catcher

ANSI A2-5 Spindle Nose

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
