| Year | 2013 |
|---|---|
| Make | Trumpf |
| Model | TruLaser 3030 |
Description |
5' x 10' kW CNC Laser |
| Reference # | 8077256 |

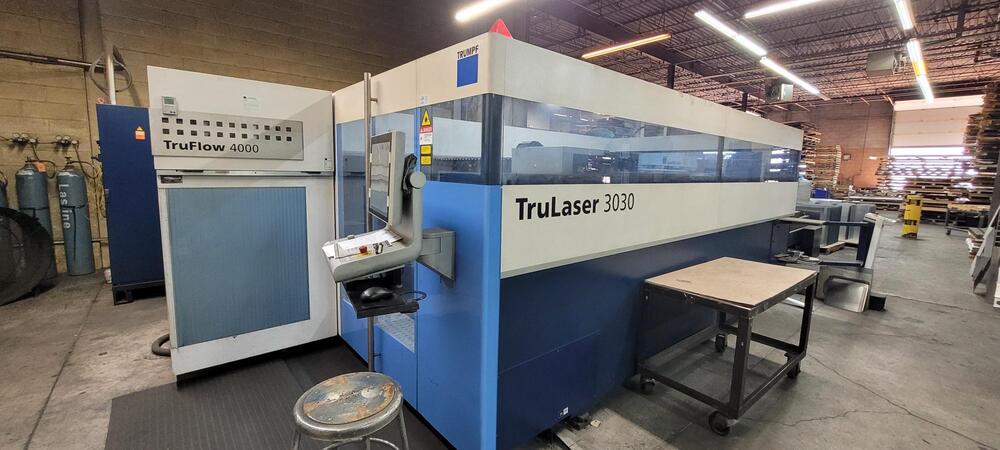

Used Trumpf TruLaser 3030 (2013) CNC Laser for Sale. This pre-owned Trumpf CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Trumpf Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
4000W |
| Control |
Siemens SINUMERIK CNC |
| Hours |
35,700 Hrs (Machine On), 16,100 Hrs (Beam On) |
| Power Requirement |
460V/3PH/60Hz |
| X-Axis |
118" |
| Y-Axis |
59" |
| Z-Axis |
4.5" |
| Max Material Thickness Mild Steel |
0.79" |
| Max Material Thickness Stainless Steel |
0.59" |
| Max Material Thickness Aluminum |
0.39" |
| Max Material Thickness Copper/Brass |
0.31" |
| Approx Machine Dimensions |
354" x 197" x 87" |
Features
|

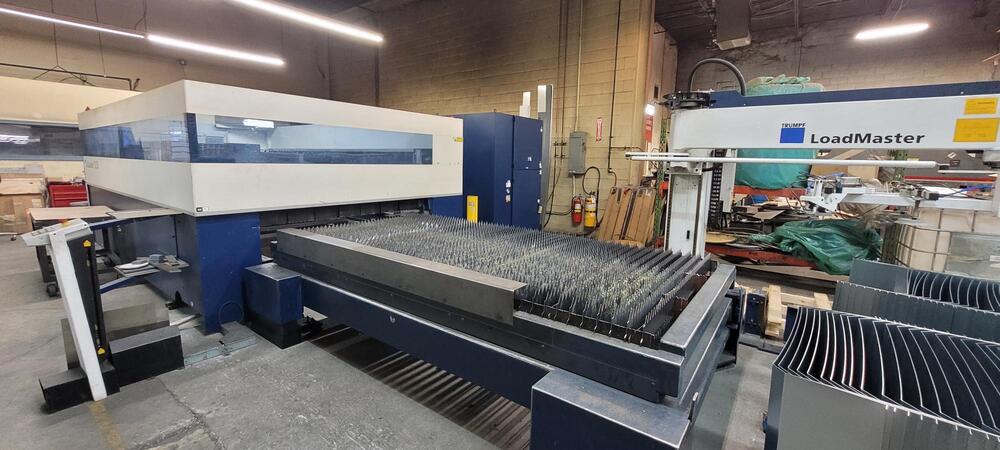

LoadMaster |

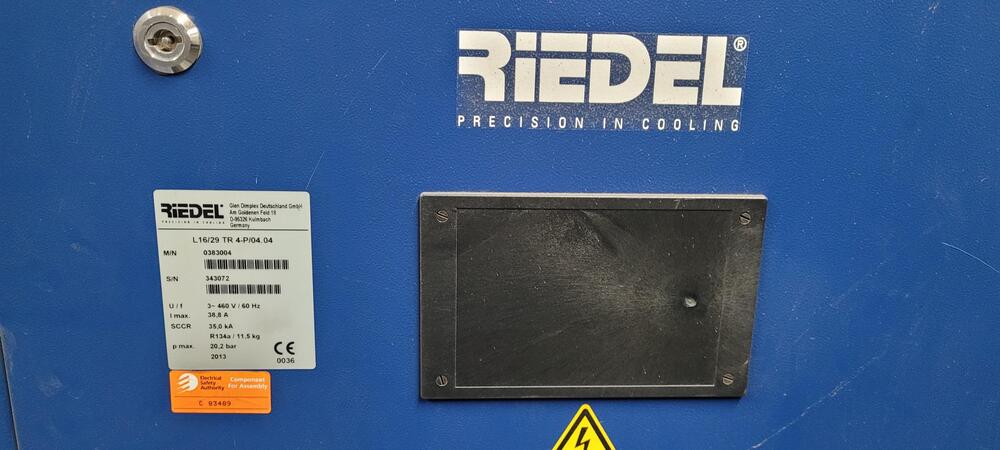

Riedel L 16/29 Water Cooling Unit |
|
TruFlow 4000 Resonator |
Co2 Laser |
|
Chiller Unit |
Dual Pallet Shuttle Tables |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
