Year 2013
Make Tsugami
Model SS26

Description

CNC Swiss Lathe
Reference # 8071351

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

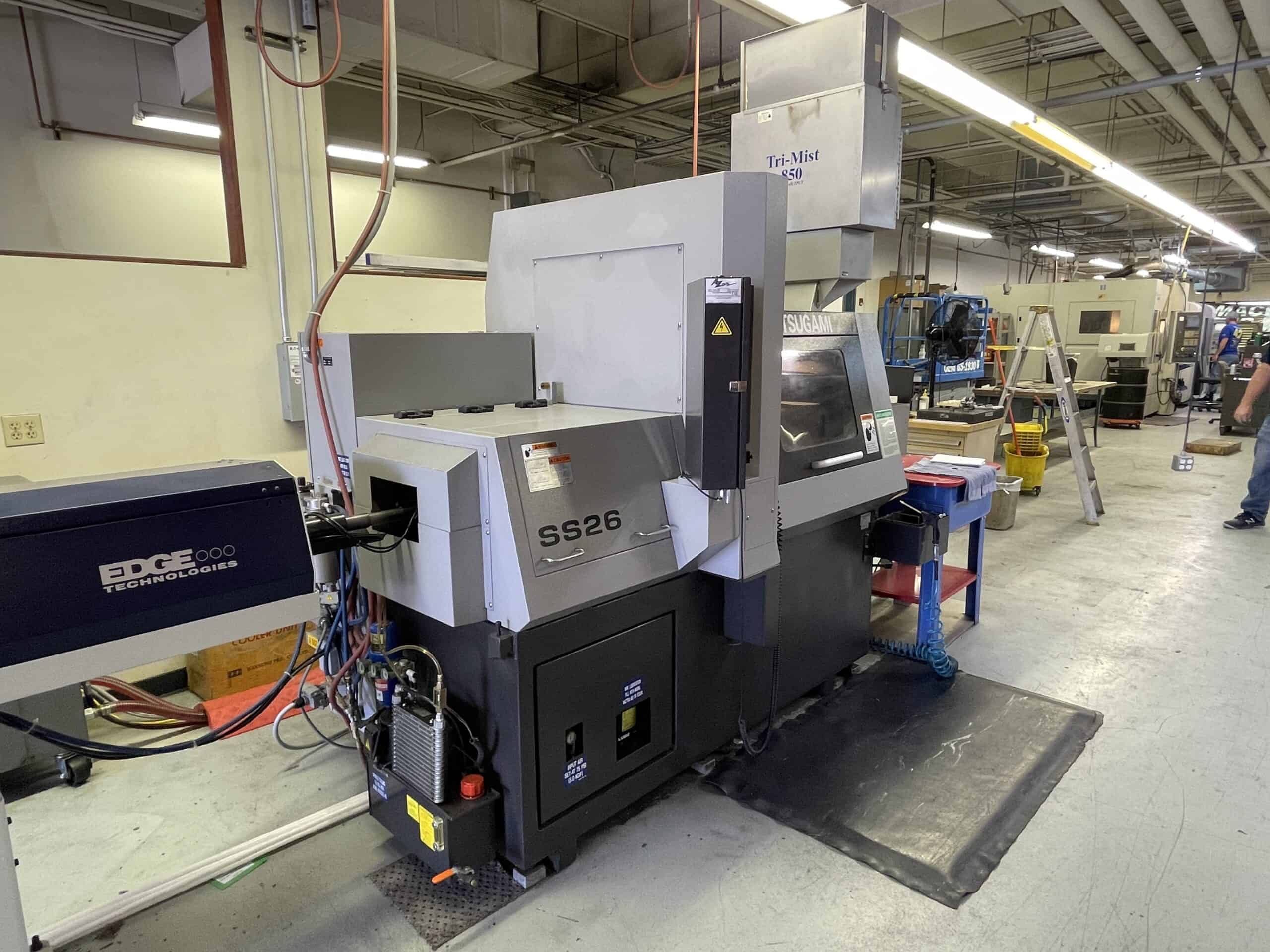

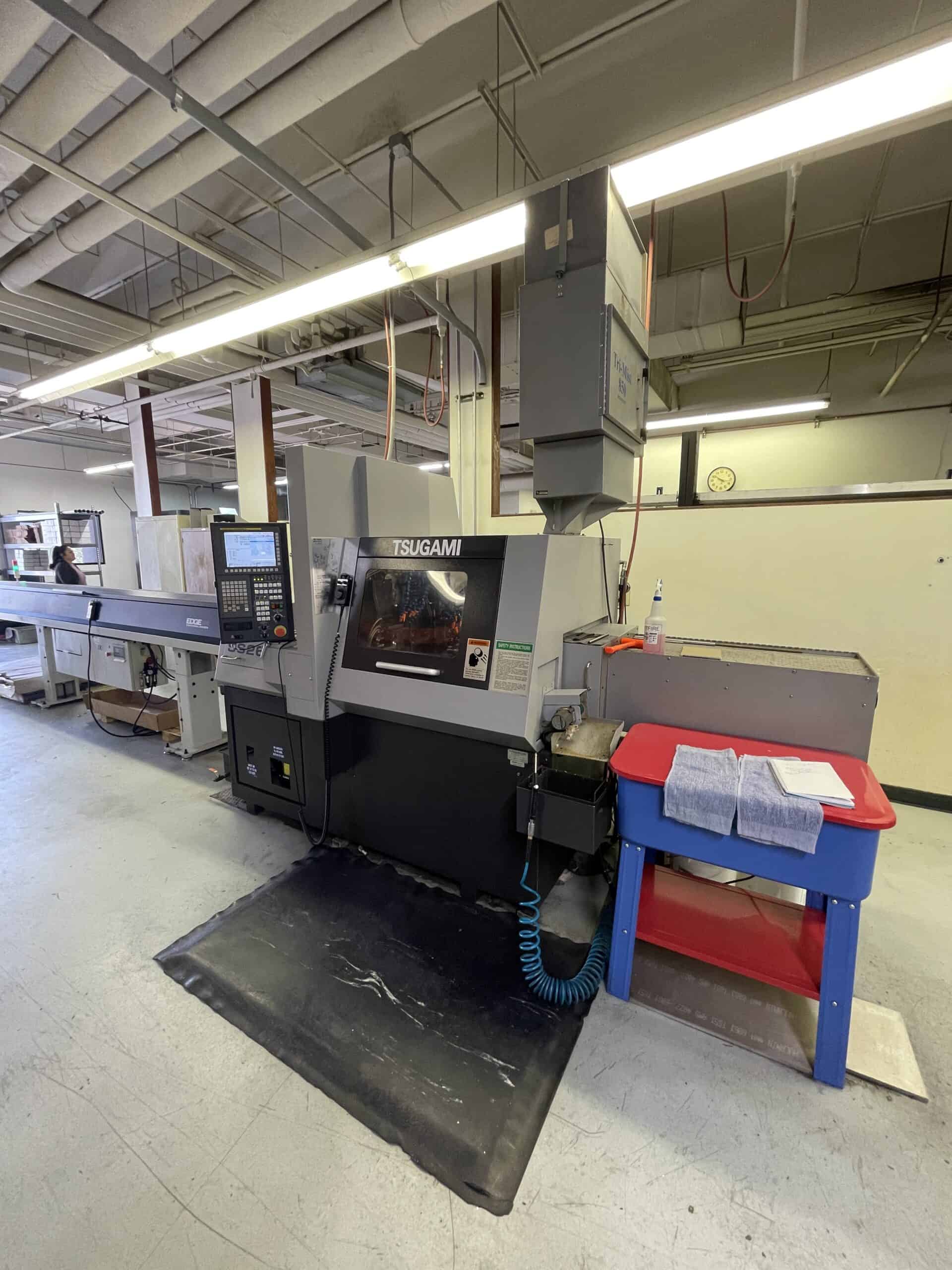

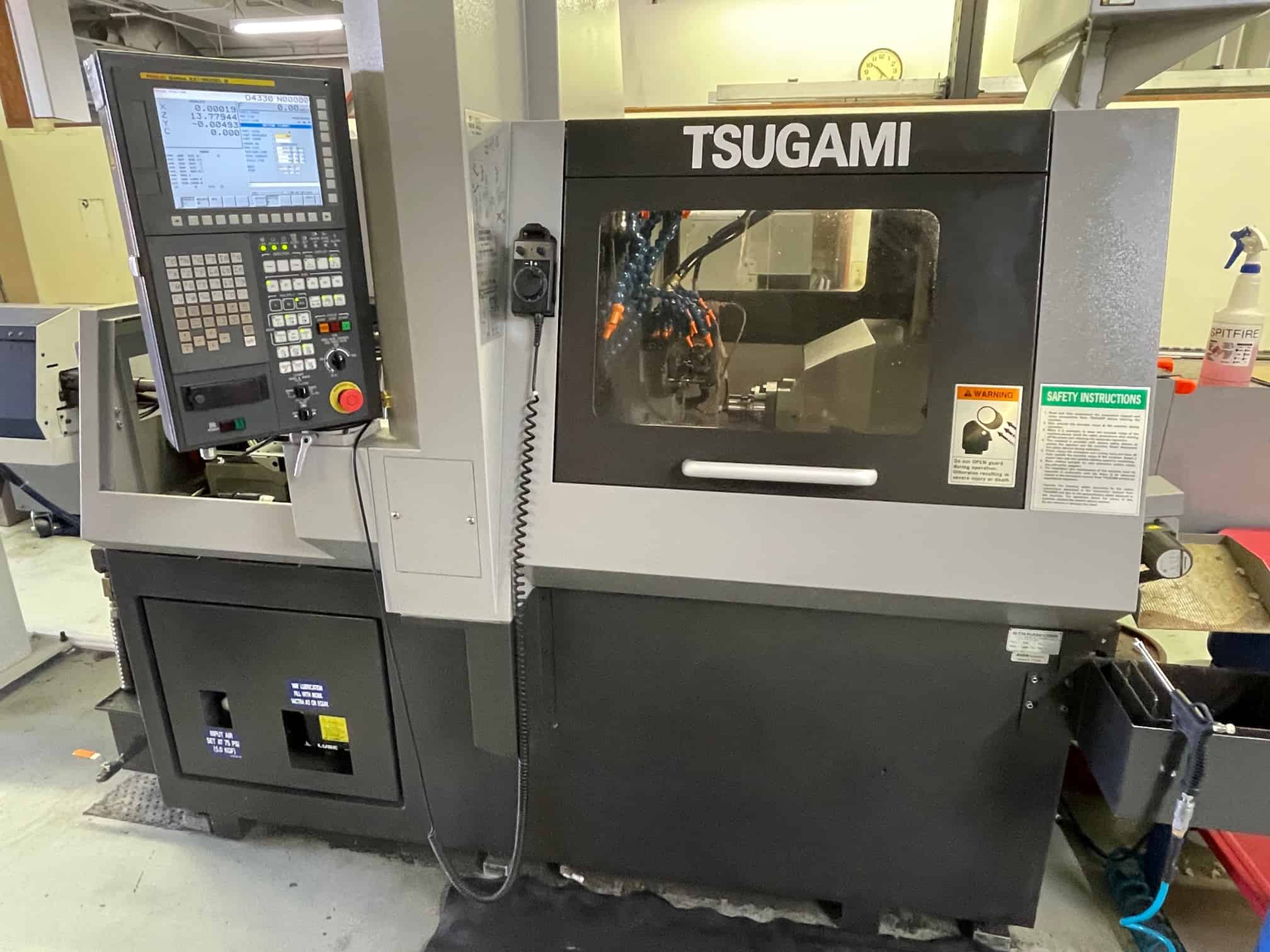

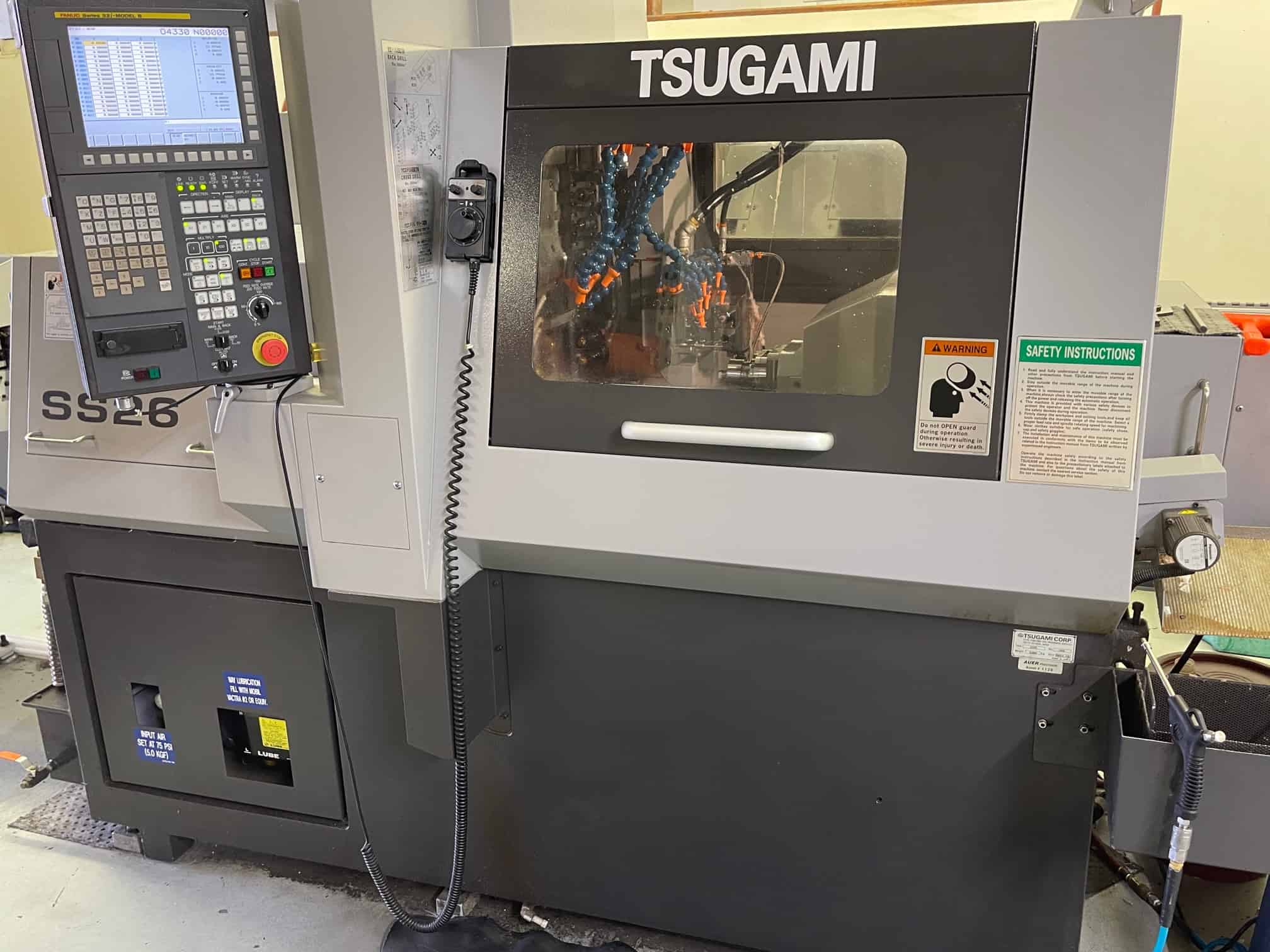

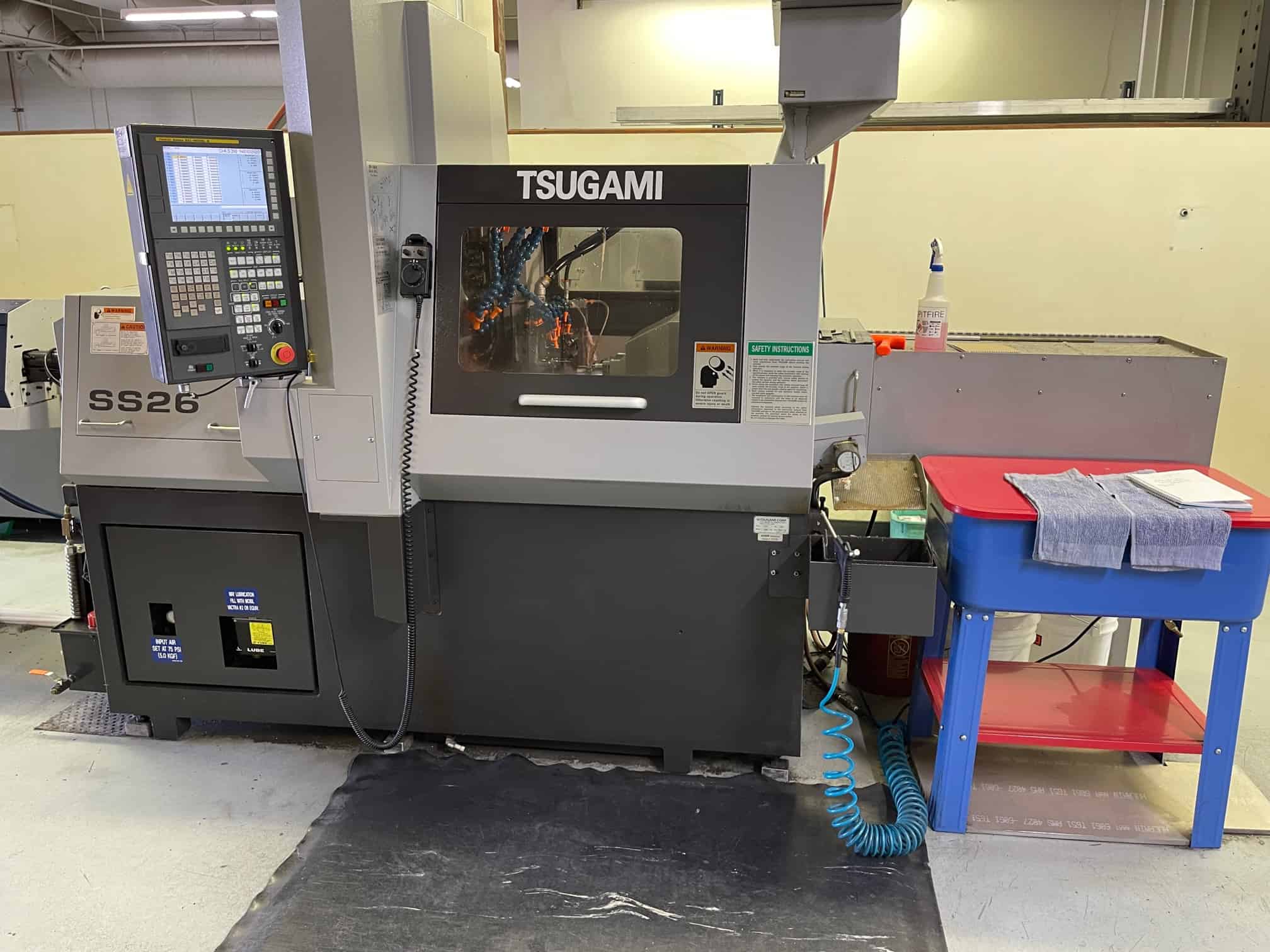

Used Tsugami SS26 (2013) CNC Swiss Lathe for Sale.  This pre-owned Tsugami CNC swiss lathe is located in Arizona and available to be seen under power for an inspection.  If you have any questions regarding this Tsugami Lathe, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Chuck Size

N/A

Bar Capacity

1.02"

Turning Diameter

N/A

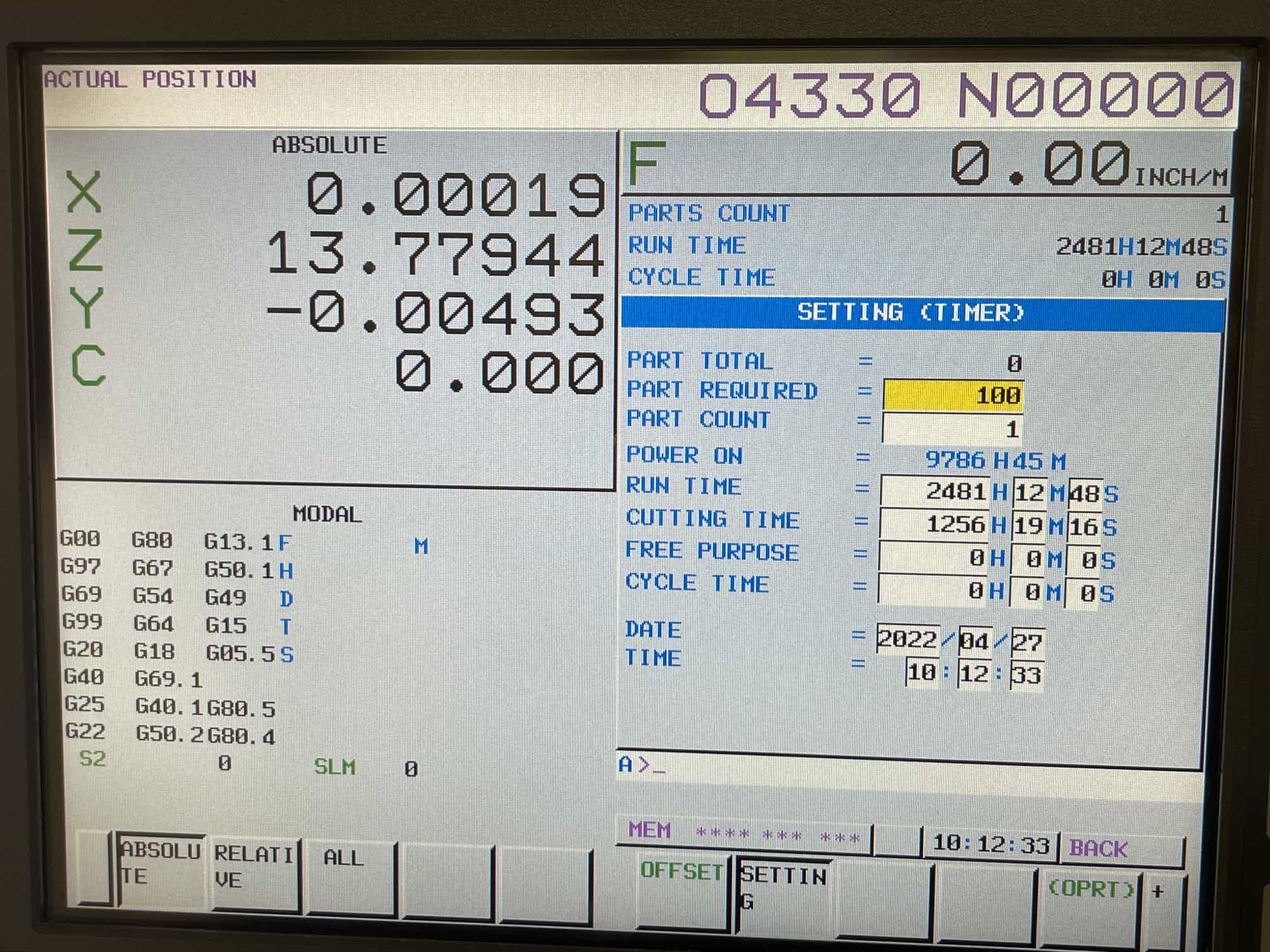

Control

Fanuc 32i-B

Distance Between Centers

N/A

Main/Sub Spindle

200-10,000 RPM

Max Length With Guide Bushing

10.62"

Max Length Without Guide Bushing

1.97"

Live Tool Speed

5,000 RPM

Main Spindle Motor

3.7/5.5Kw

Tool Positions Std/Max

24/40

Live Tool Positions Std/Max

10/13

Chip Removal

Chip Conveyor

Power Requirement

9Kva

Machine Weight

9,000 Lbs

Features

Rear Work Part Ejection

10.4" Color LCD

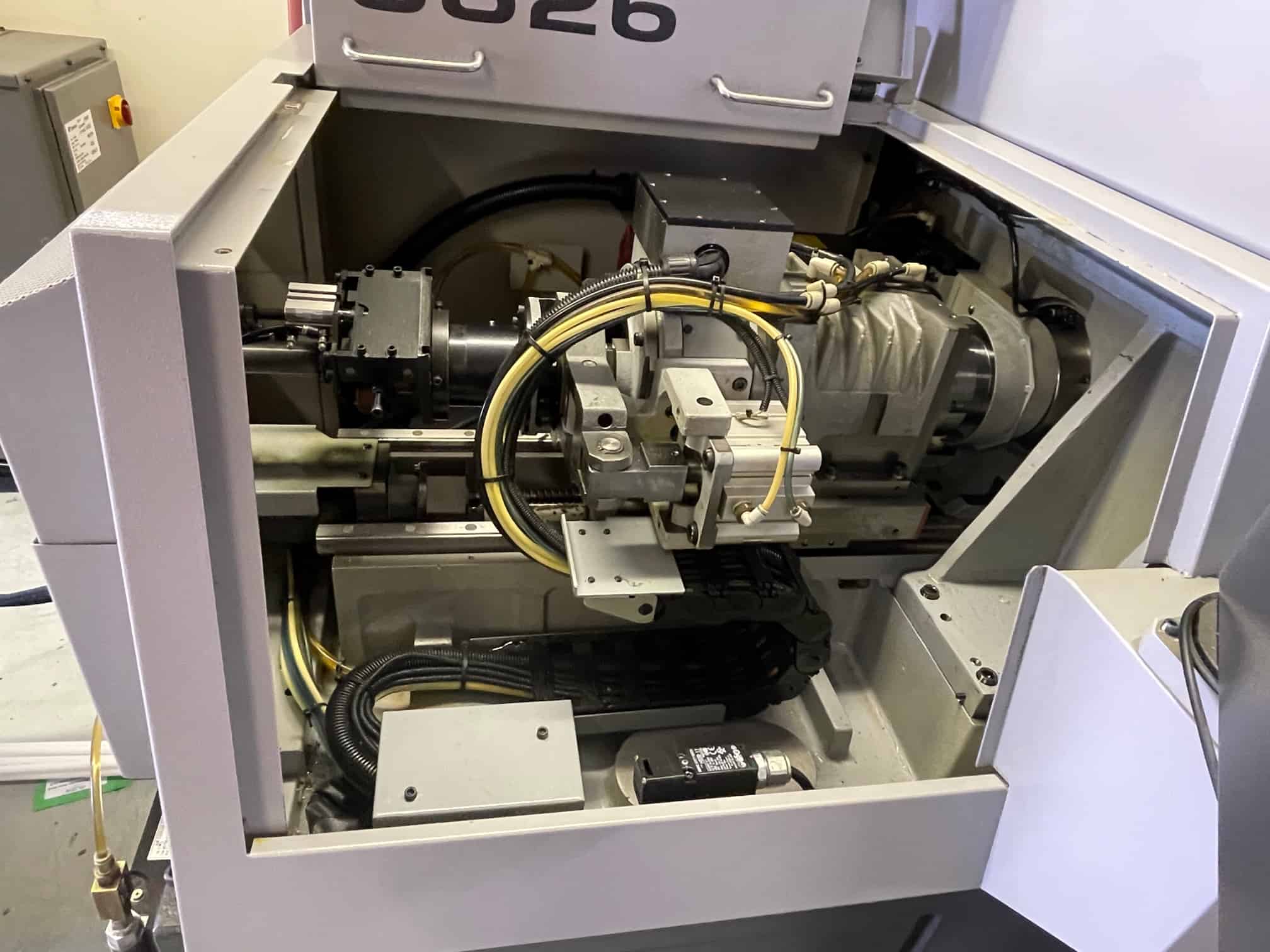

Sliding Headstock Guide Bushing

Thru Sub-Spindle Coolant

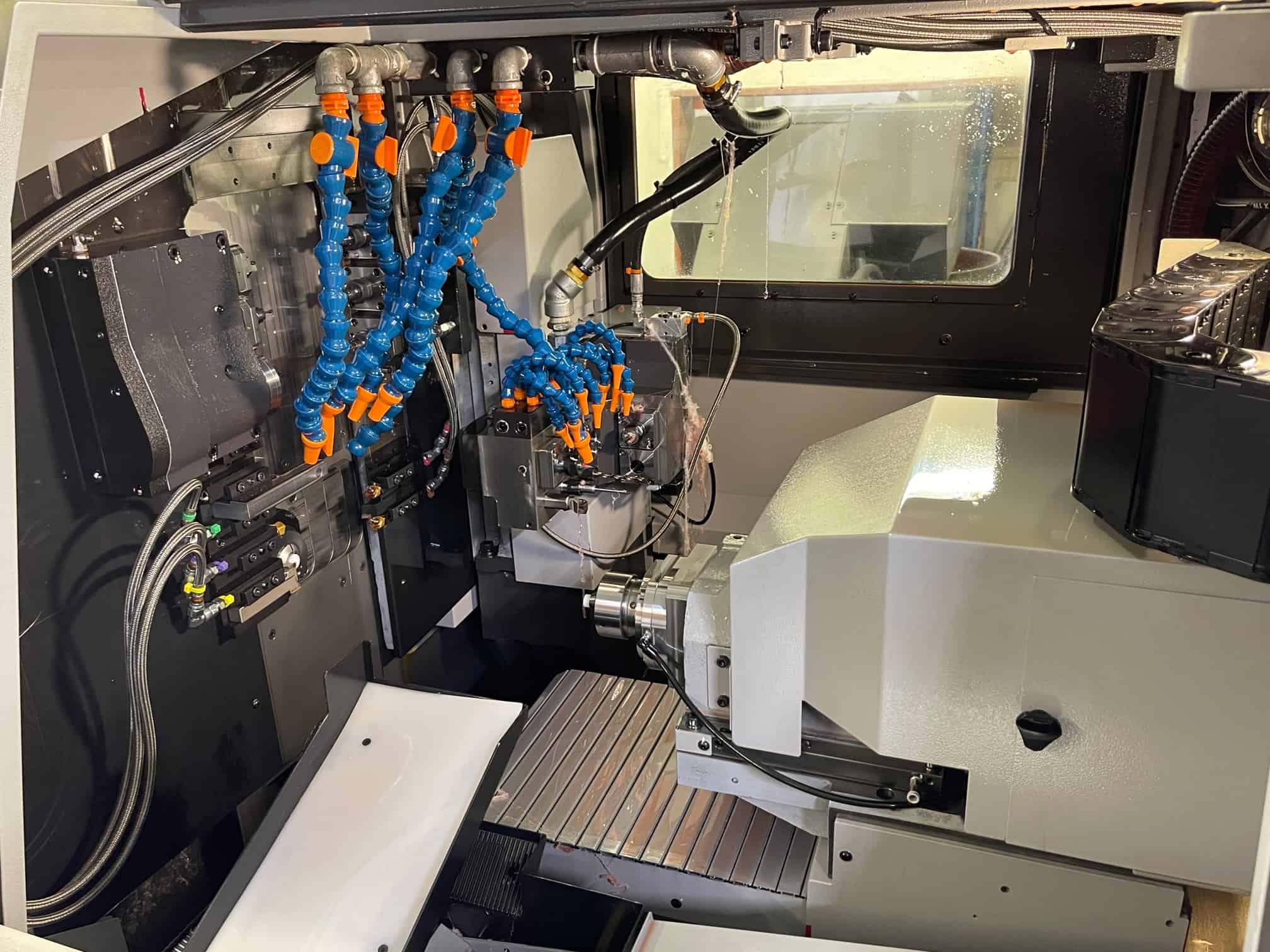

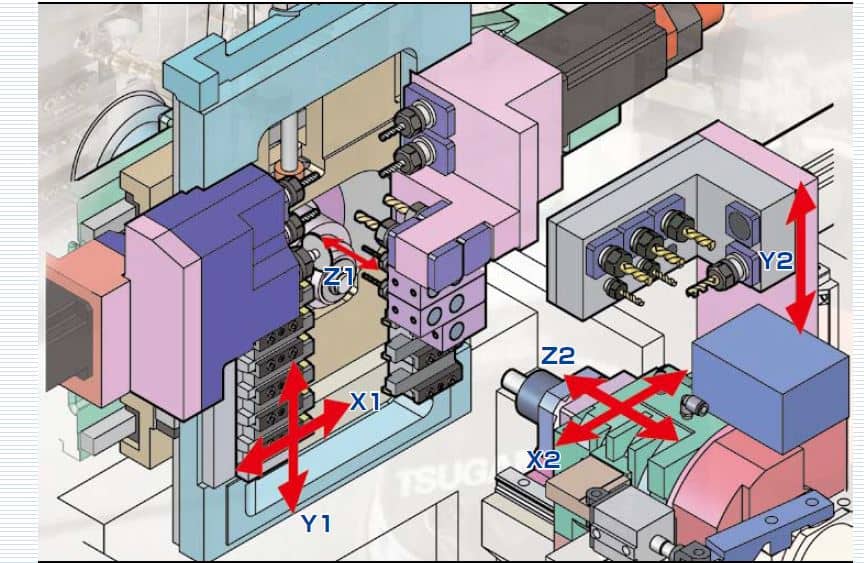

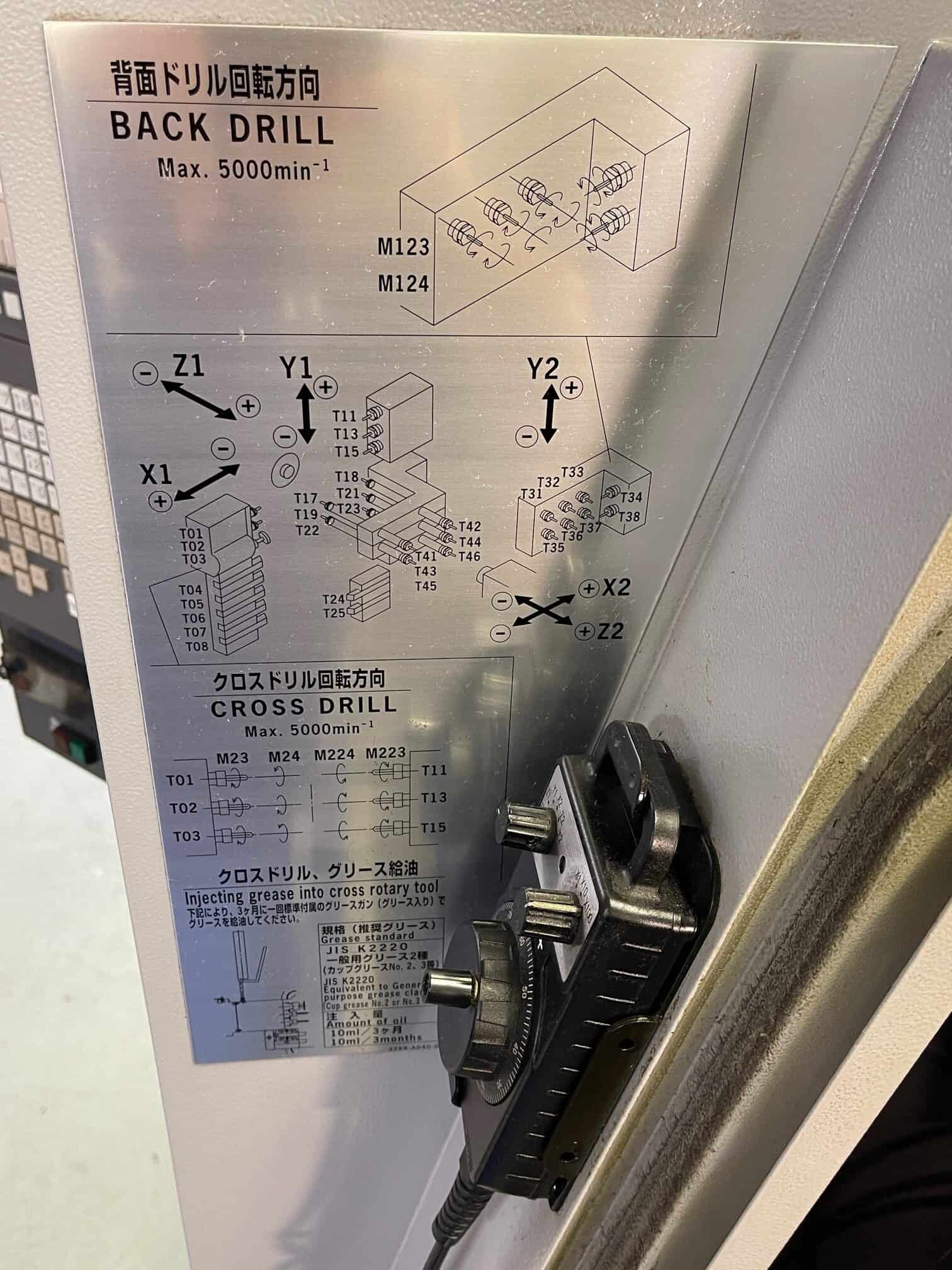

7-Axes (X1/Z1/Y1/X2/Z2/Y2/C1)

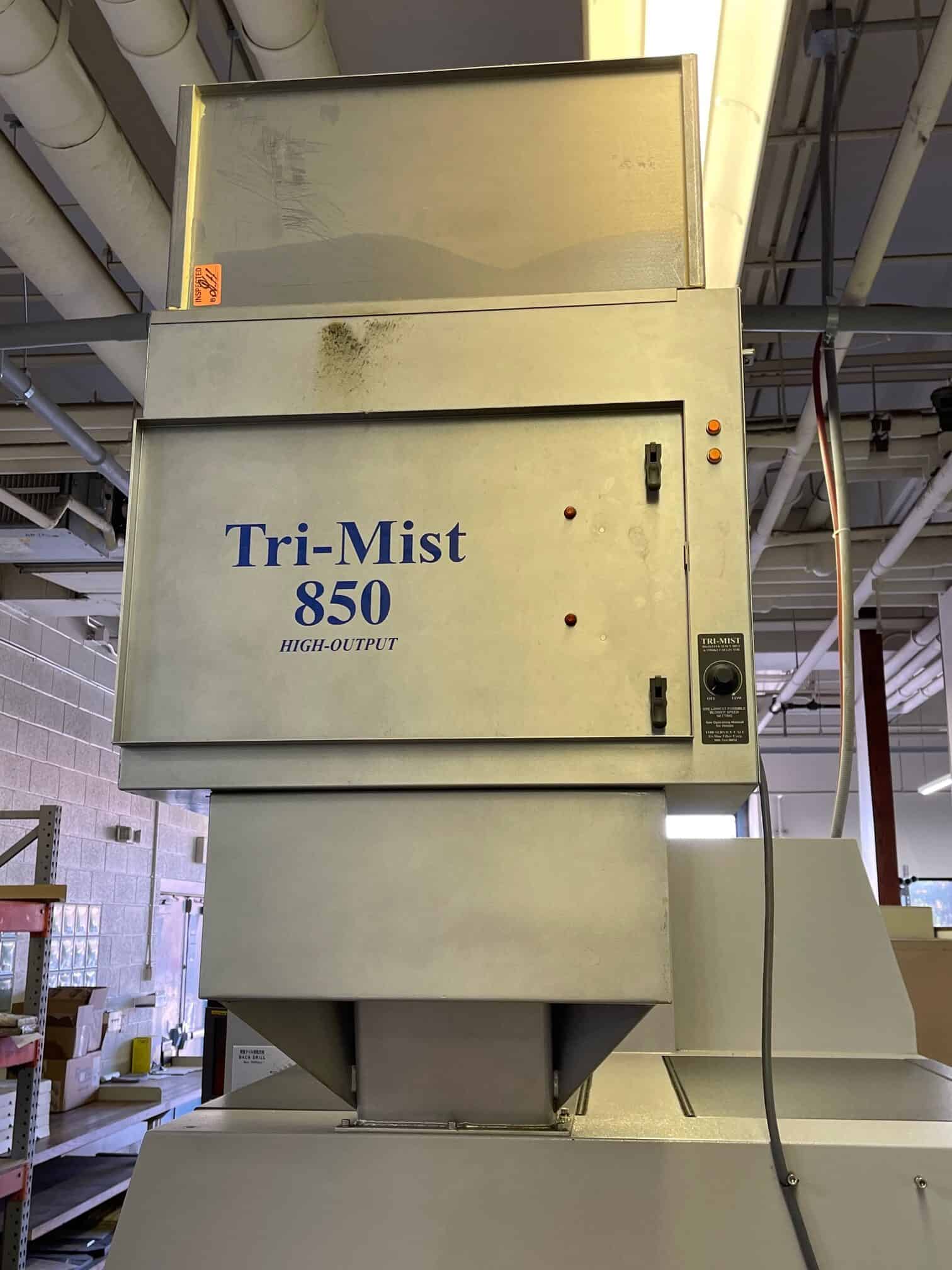

Tri-Mist Model 850 Mist Collector

Chucker Kit

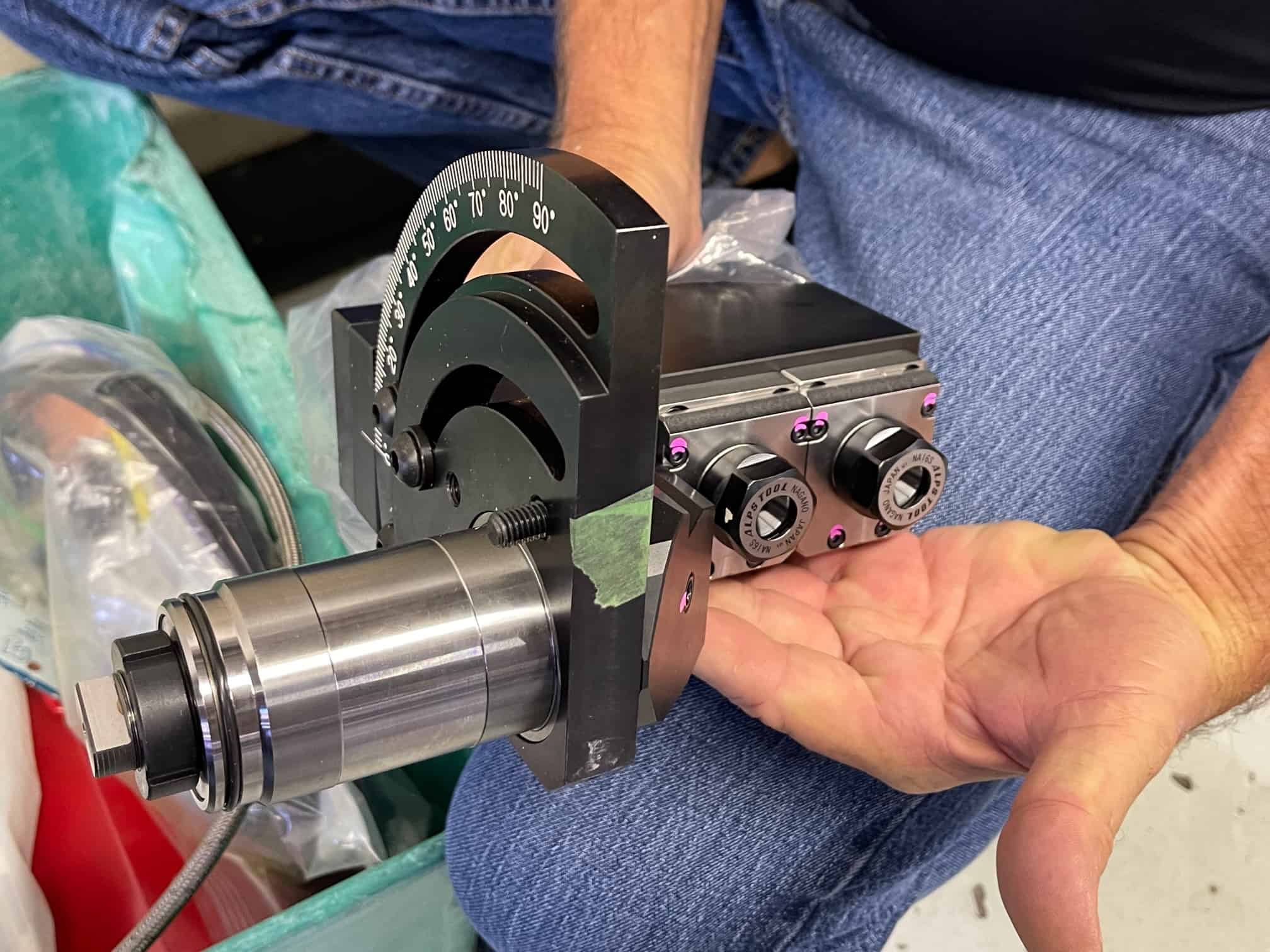

Double Off-Center Adjustable Face Drill

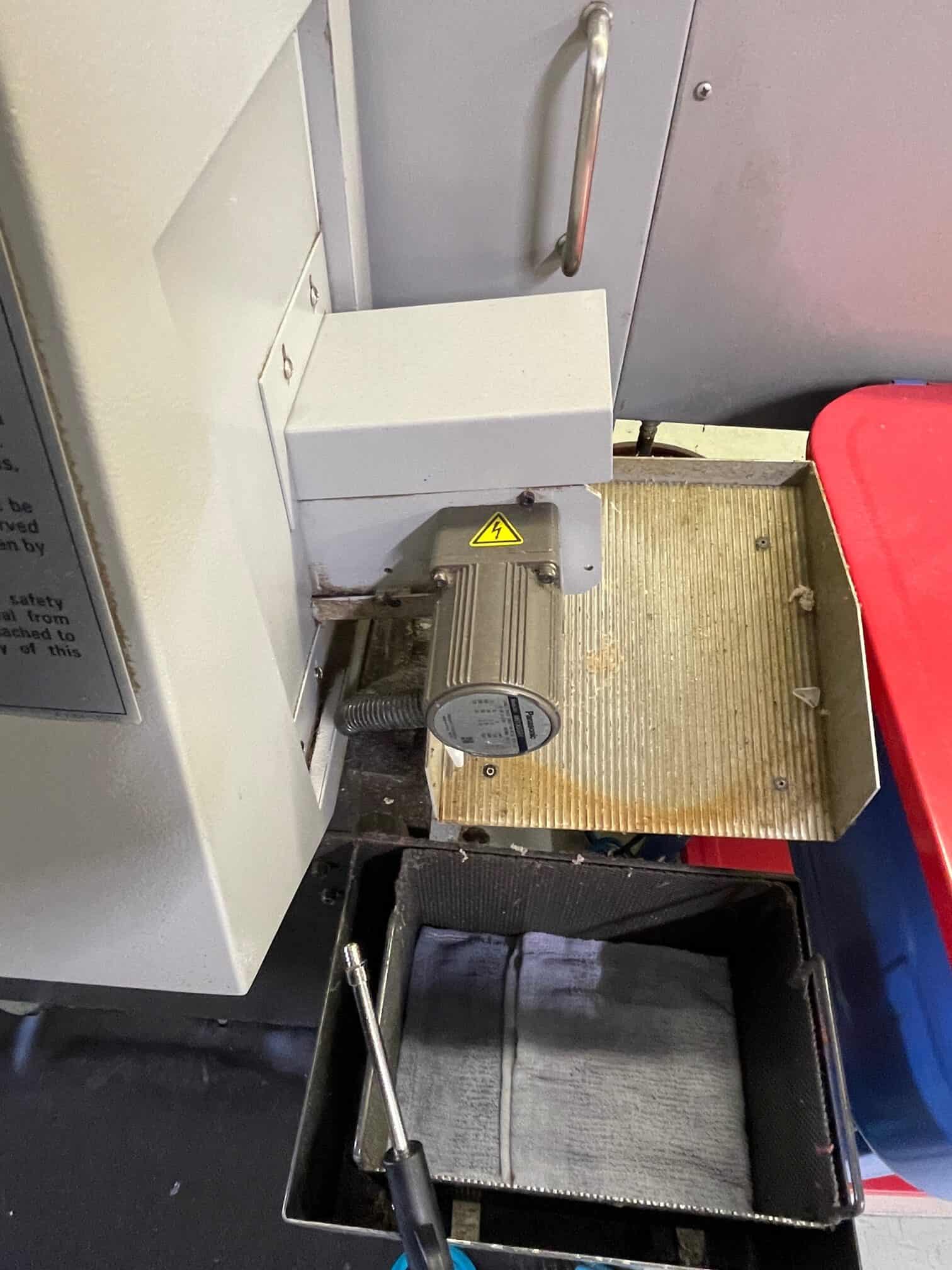

Dual Parts Catcher Front and Rear

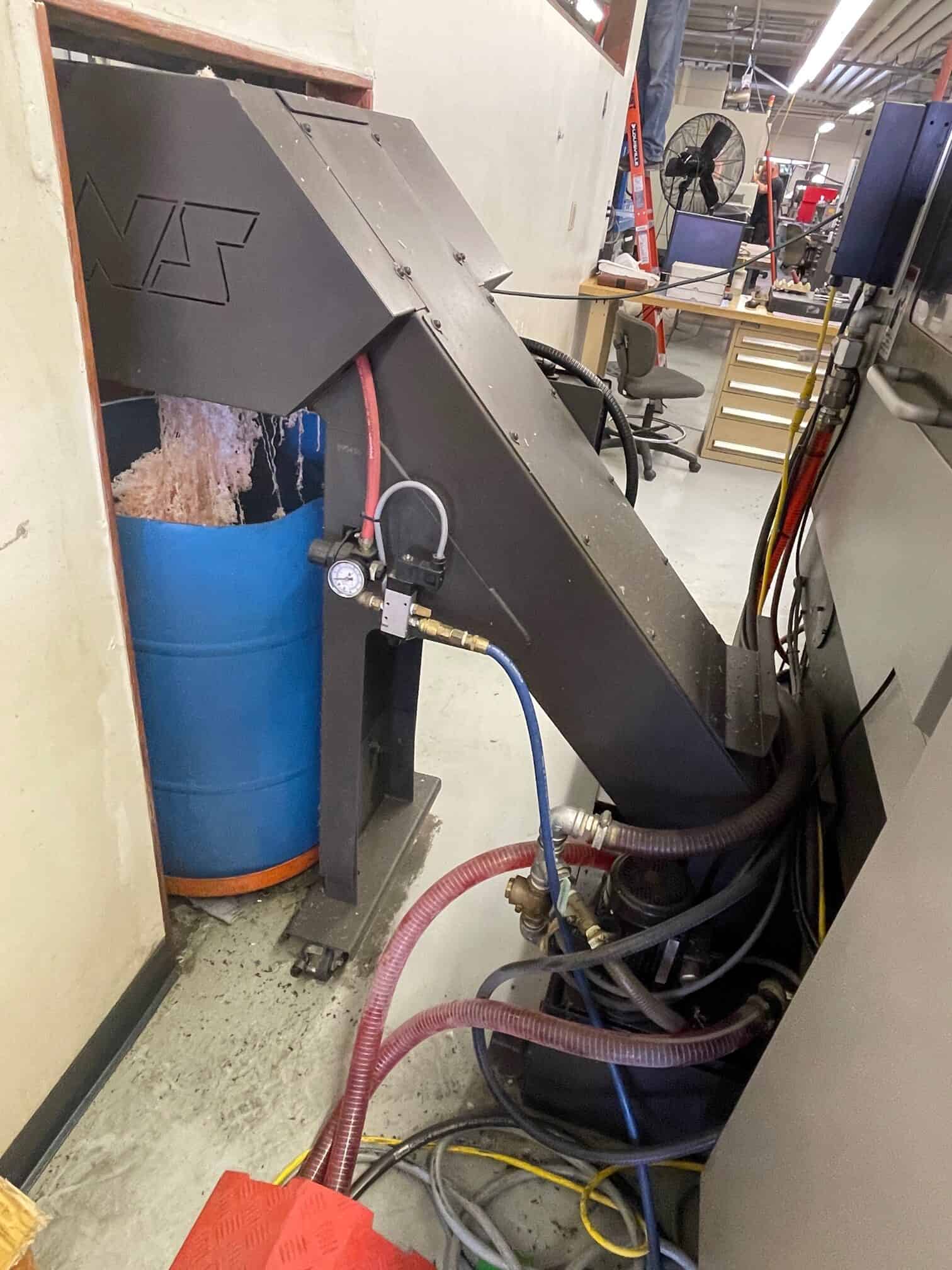

LNS Chip Conveyor and Coolant Tank

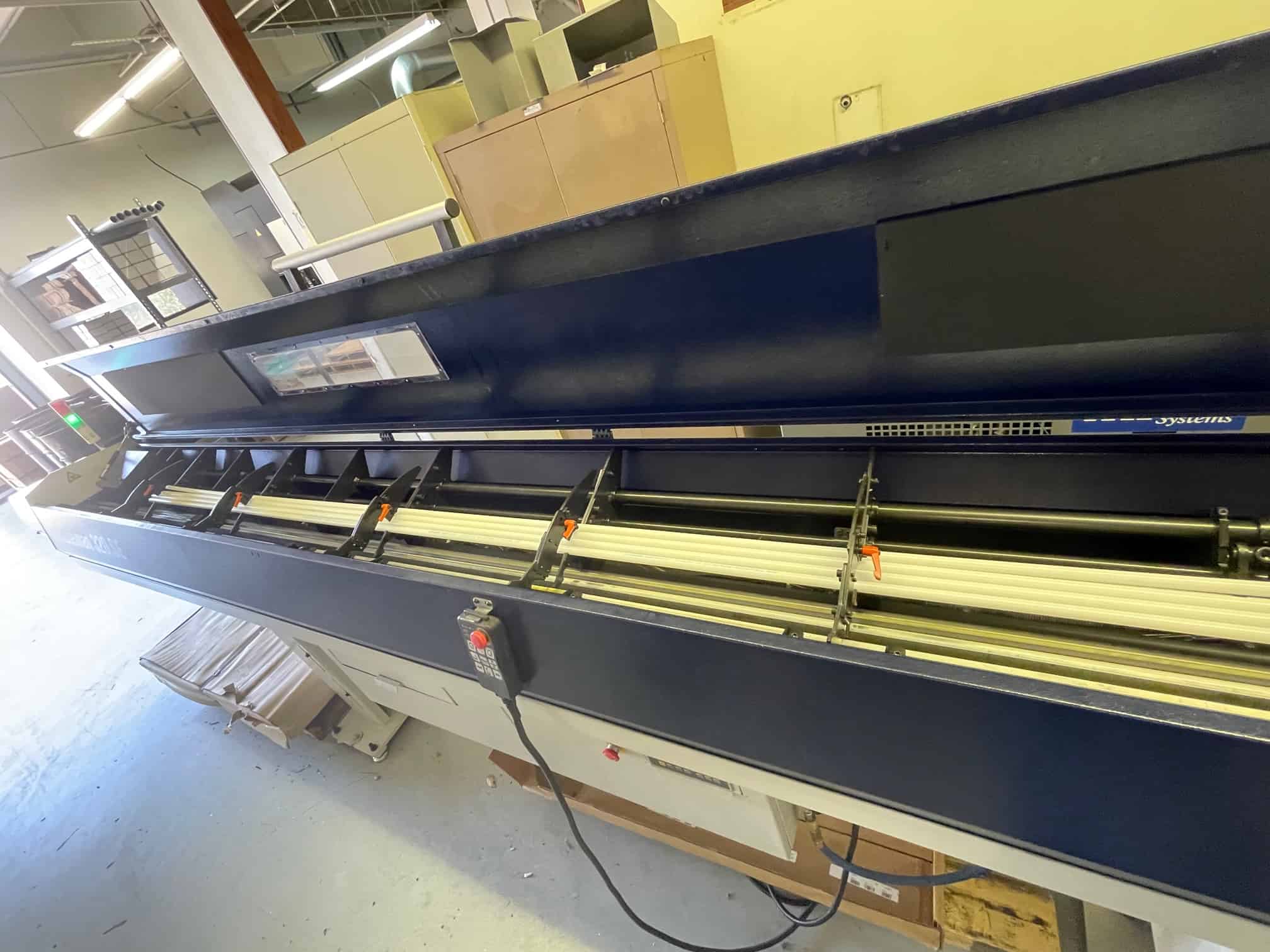

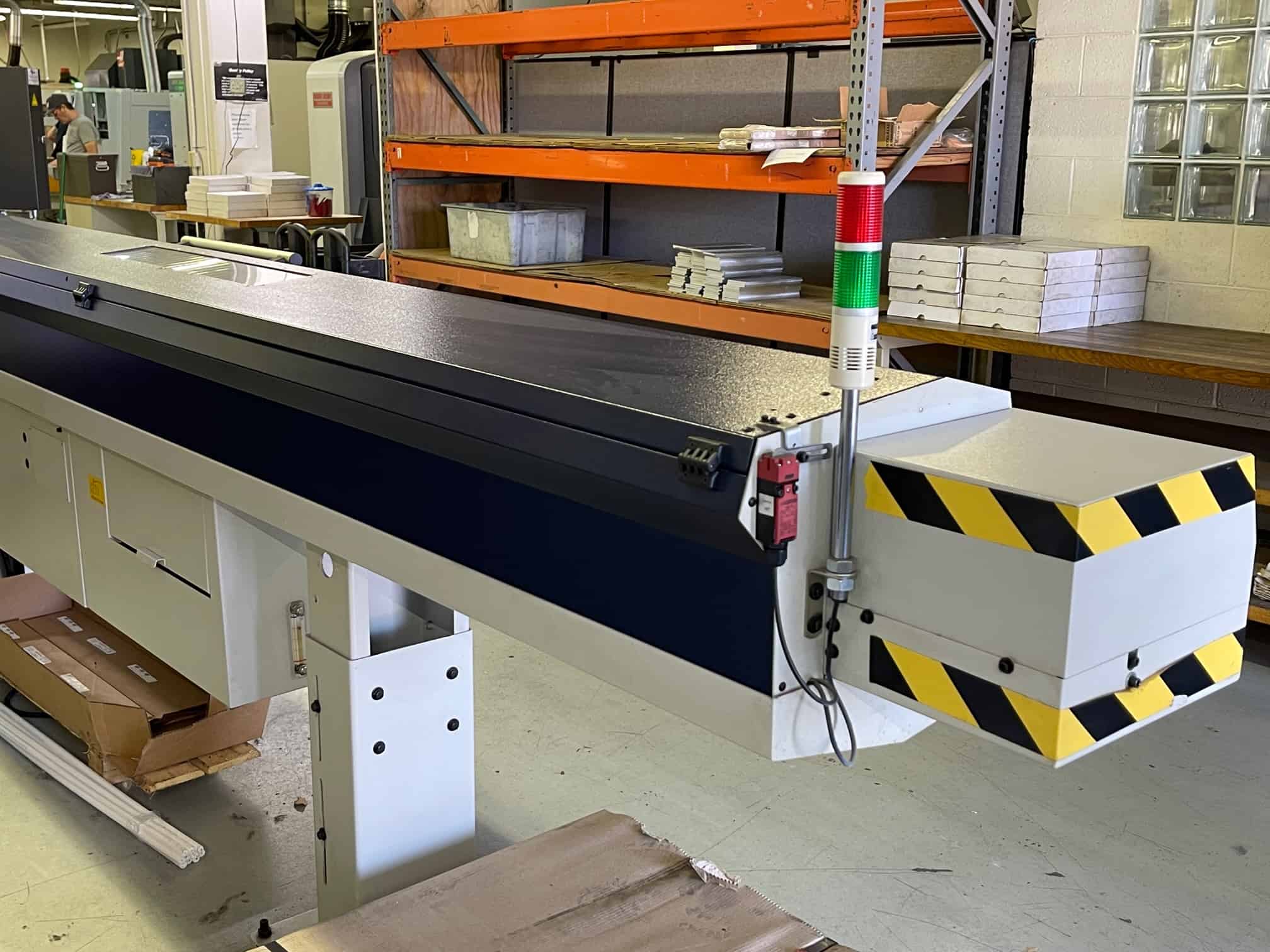

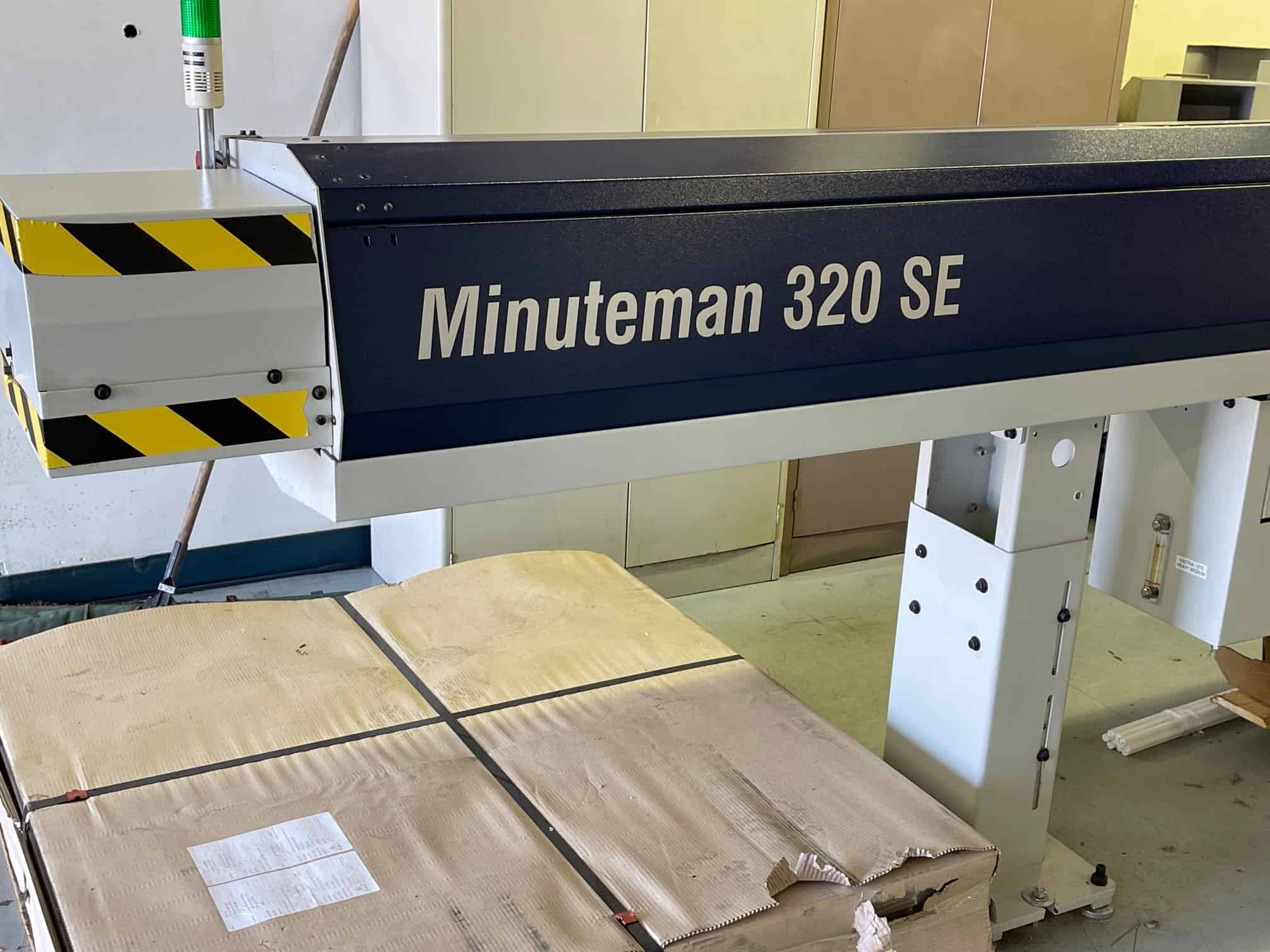

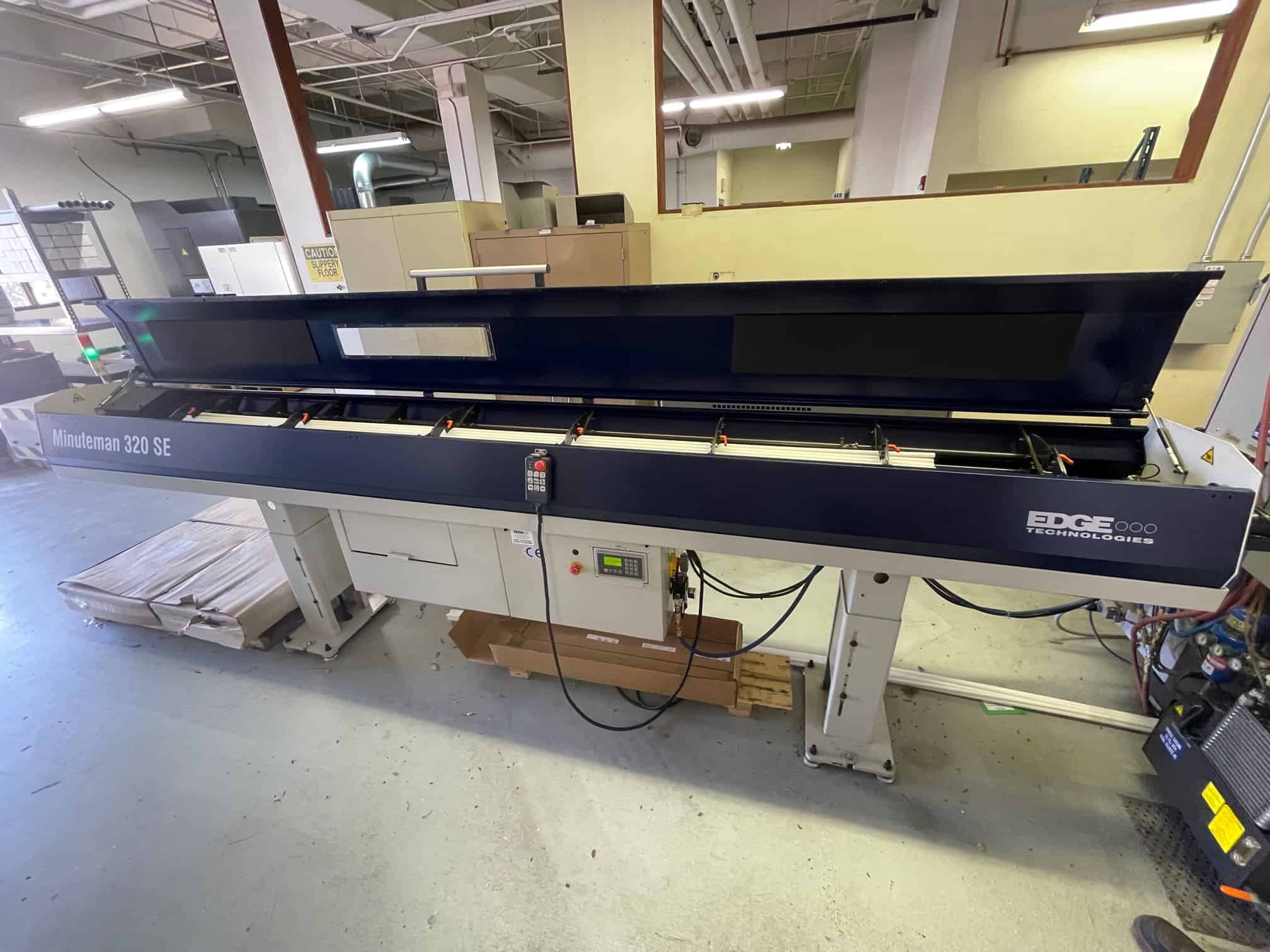

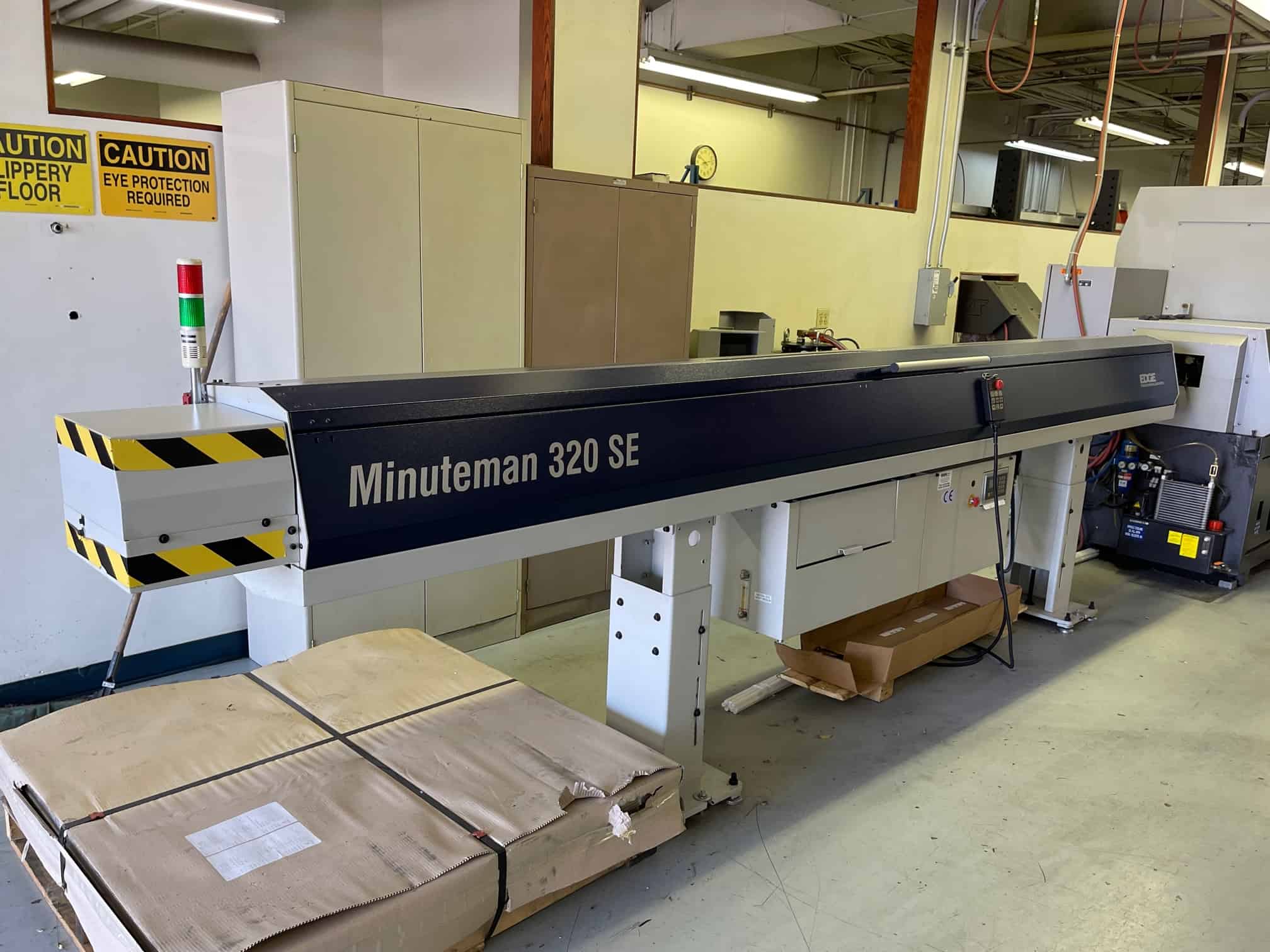

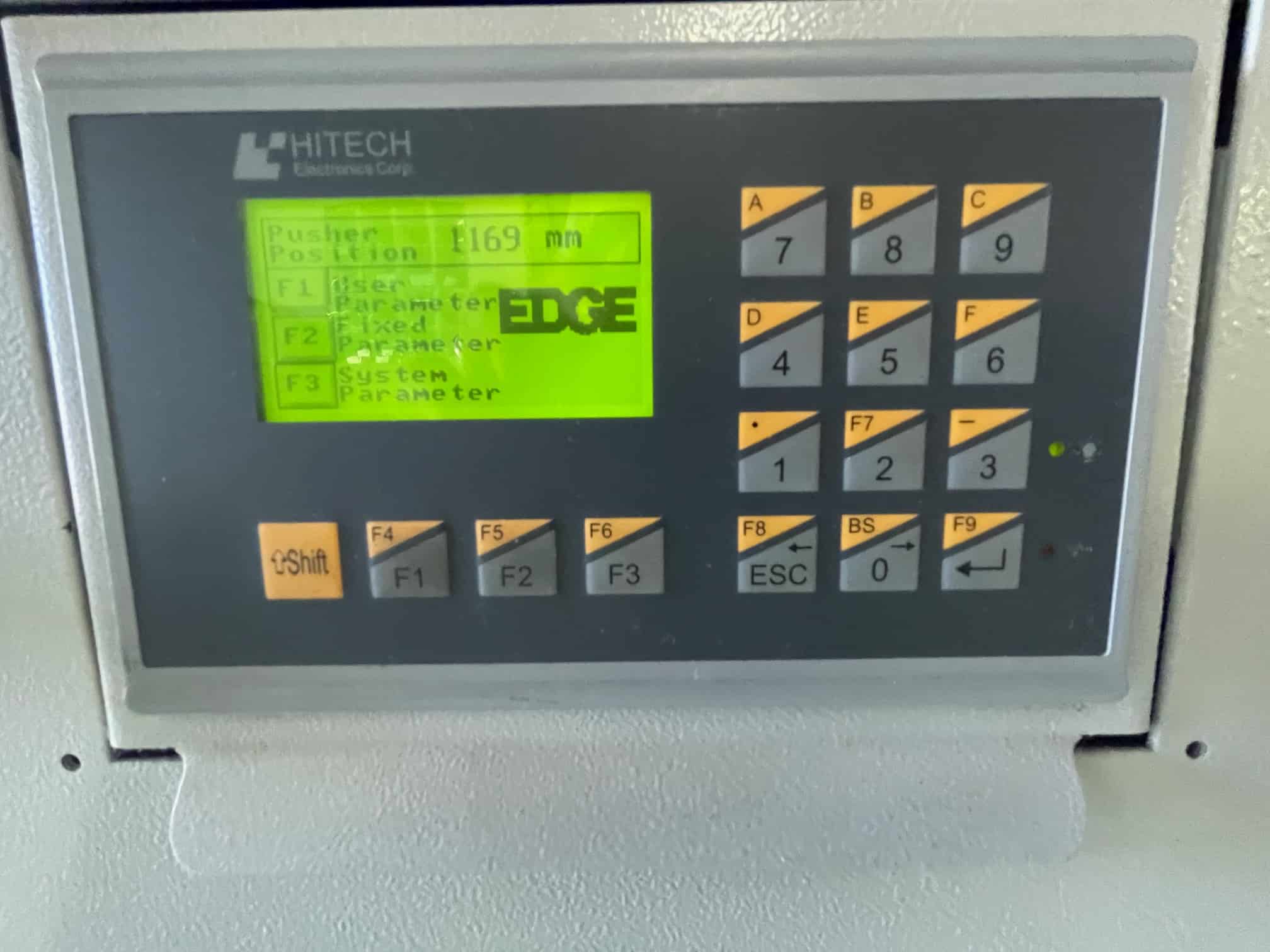

Magazine Loader Barfeeder Minuteman 320SE

Manuals Included

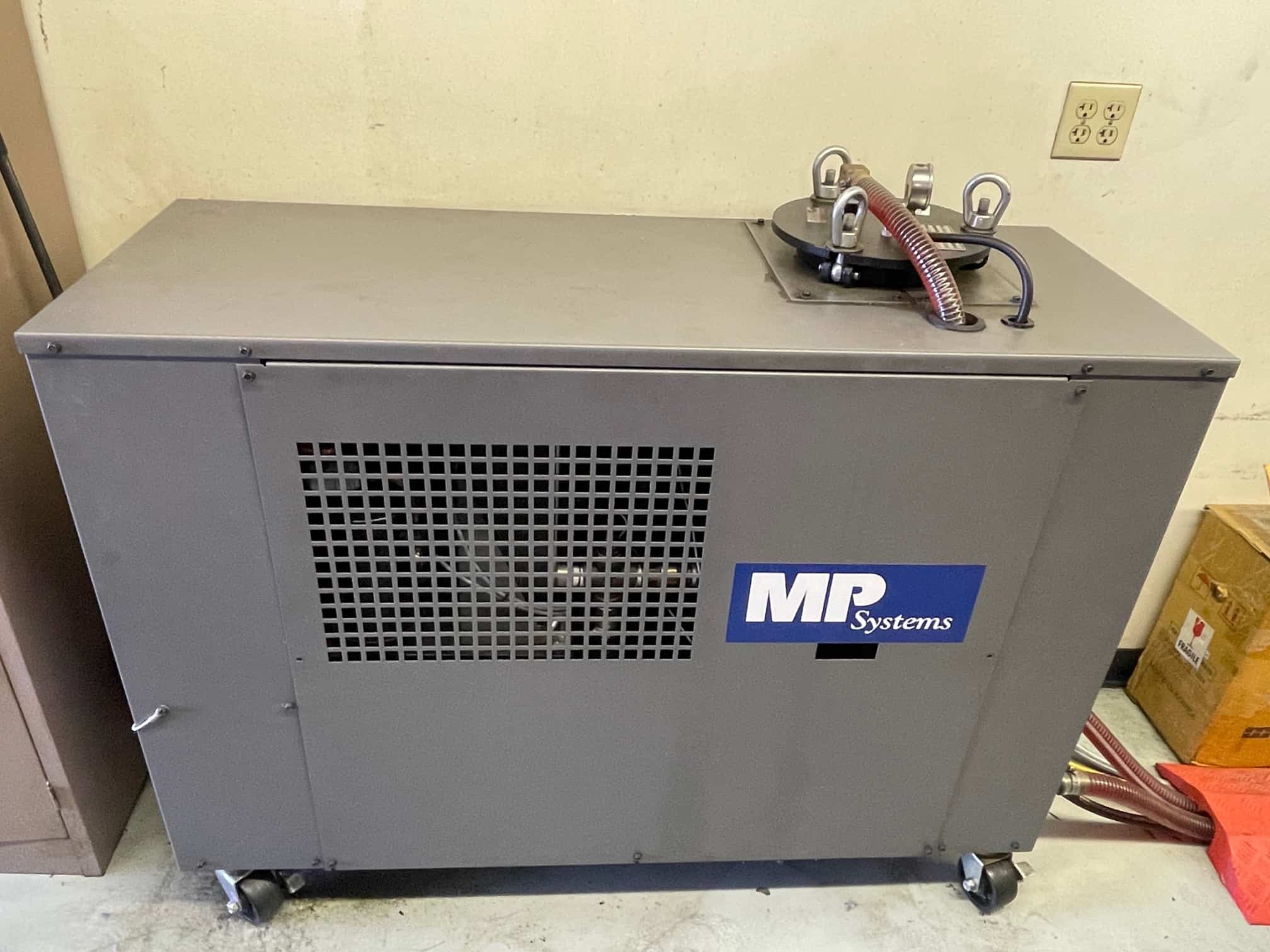

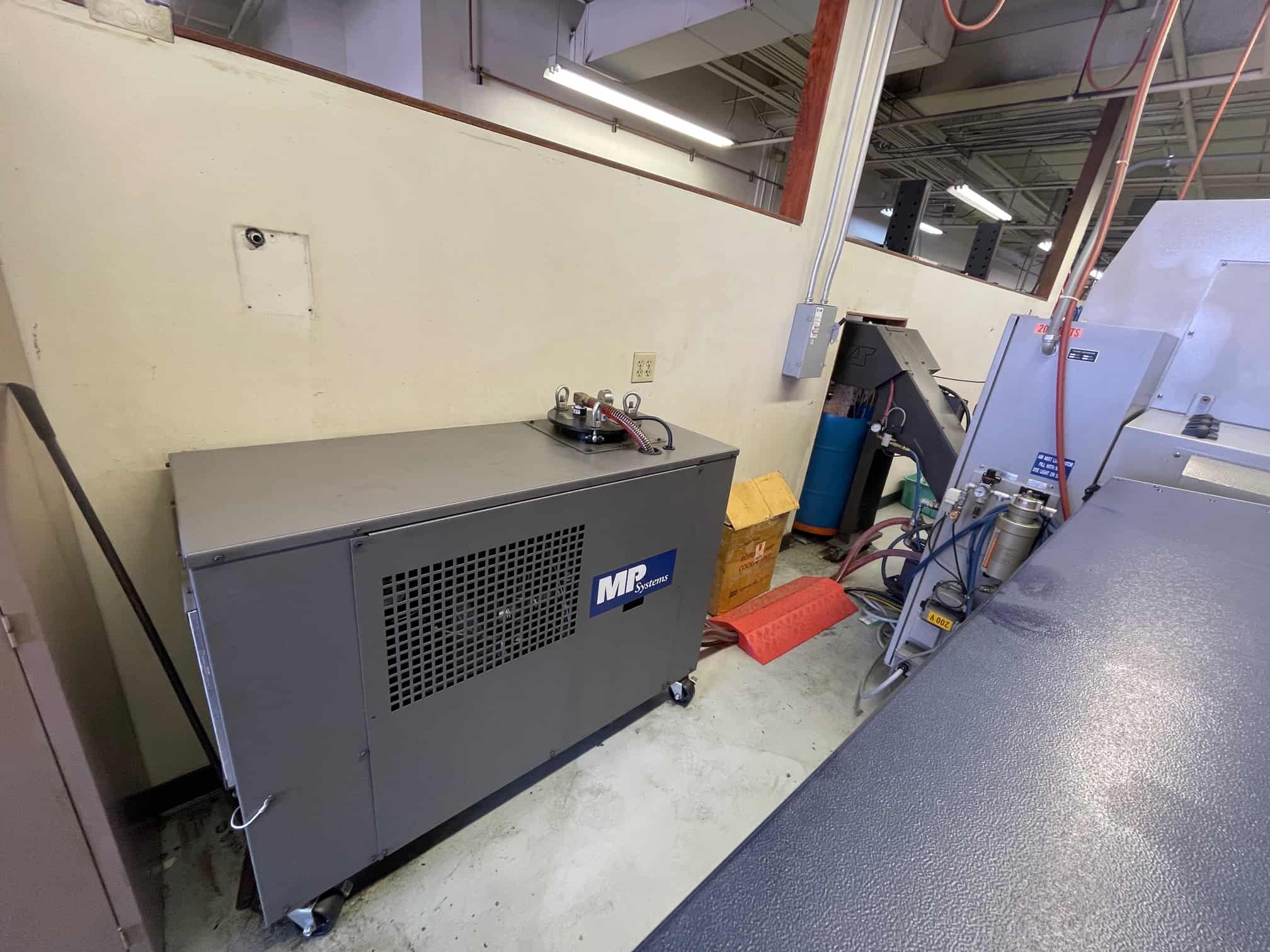

MP Systems Model S2 High Pressure Chiller (18000 BTU/2k PSI/5 GPM with Oil)

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
