Year 2013
Make Zimmerman
Model FZ-33c

Description

CNC Router
Reference # 8071633

Price

Activate PricingInquire Now

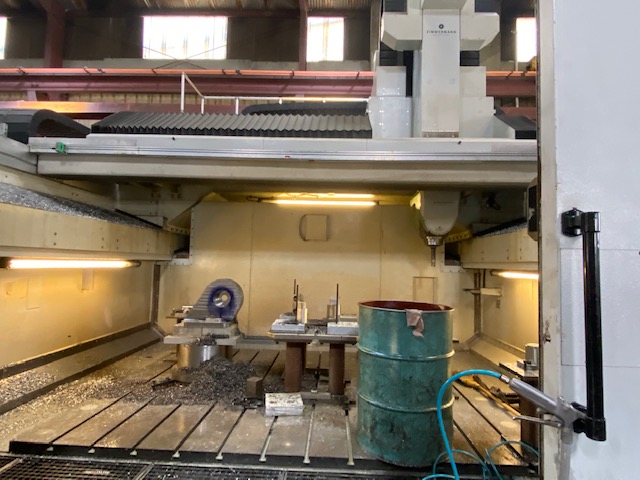

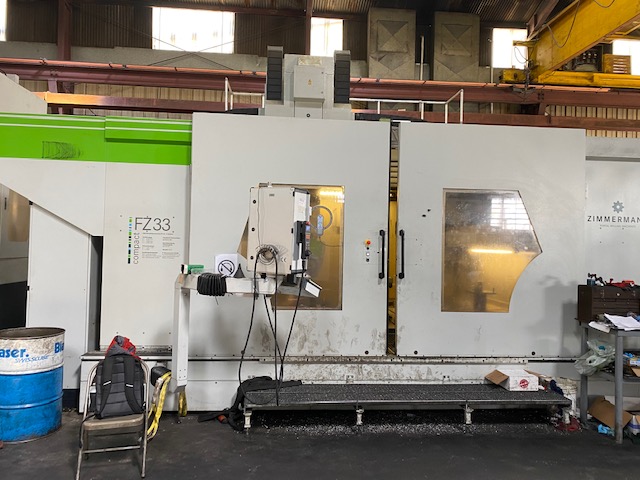

Used Zimmerman FZ-33c (2013) CNC Router for Sale.  This pre-owned Zimmerman cnc router is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this Zimmerman CNC Router, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Table Width

98"

Table Length

128"

Number of Axis

5

X-Axis Travel

98"

Y-Axis Travel

118"

Z-Axis Travel

49"

A-Axis

+/- 110

C-Axis

+/- 300

Spindle Motor

83HP / 60kW

Control

Heidenhain TNC 530

VH 30 Milling Head Size

26" x 20"

VH 30 Milling Head Holding torque A-, C-Achse

Clamped 3,000 Nm

Universal Spindle Power S1

60 kW / 83 HP

Universal Spindle Speed

22,000 RPM Max

Universal Spindle Max Torque

95 Nm

Universal Spindle Tool Holder

HSK 63 A

Universal Spindle Tool Clamping

Hydraulic

Distance Spindle Nose to Table

100 mm / 4.0"

X,Y,Z-Axis Max Feed Rate

Up to 60 m/Min, 2300 IPM

X,Y,Z-Axis Acceleration

Up to 5 m/s2

A/C-Axis Max Feed Rate

360 Deg. / sec

A/C-Axis Acceleration

700 Deg. / sec

Power Consumption

190 kW

Frequency

50 HV, 400 V

Fuse

300 A

Auto Tool Changer

50 ATC

Table Max Load

100,000 Lbs

Required Space

26' x 28'

Total Weight

55,000 kg / 125,000 Lbs

Features

Blum Laser (Micro)

Chip Conveyor Front

Coolant Unit for Flood Coolant

HR 520 Remote Hand Unit

Renishaw RMP 60 Radio-Controlled Probe

T-Slot Table Hold Down

Top Cover

Universal Spindle

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
