| Year | 2014 |
|---|---|
| Make | Amada |
| Model | AE2510NT |
Description |
22 Ton Turret Punch |
| Reference # | 8074797 |
Price |
Activate PricingInquire Now |

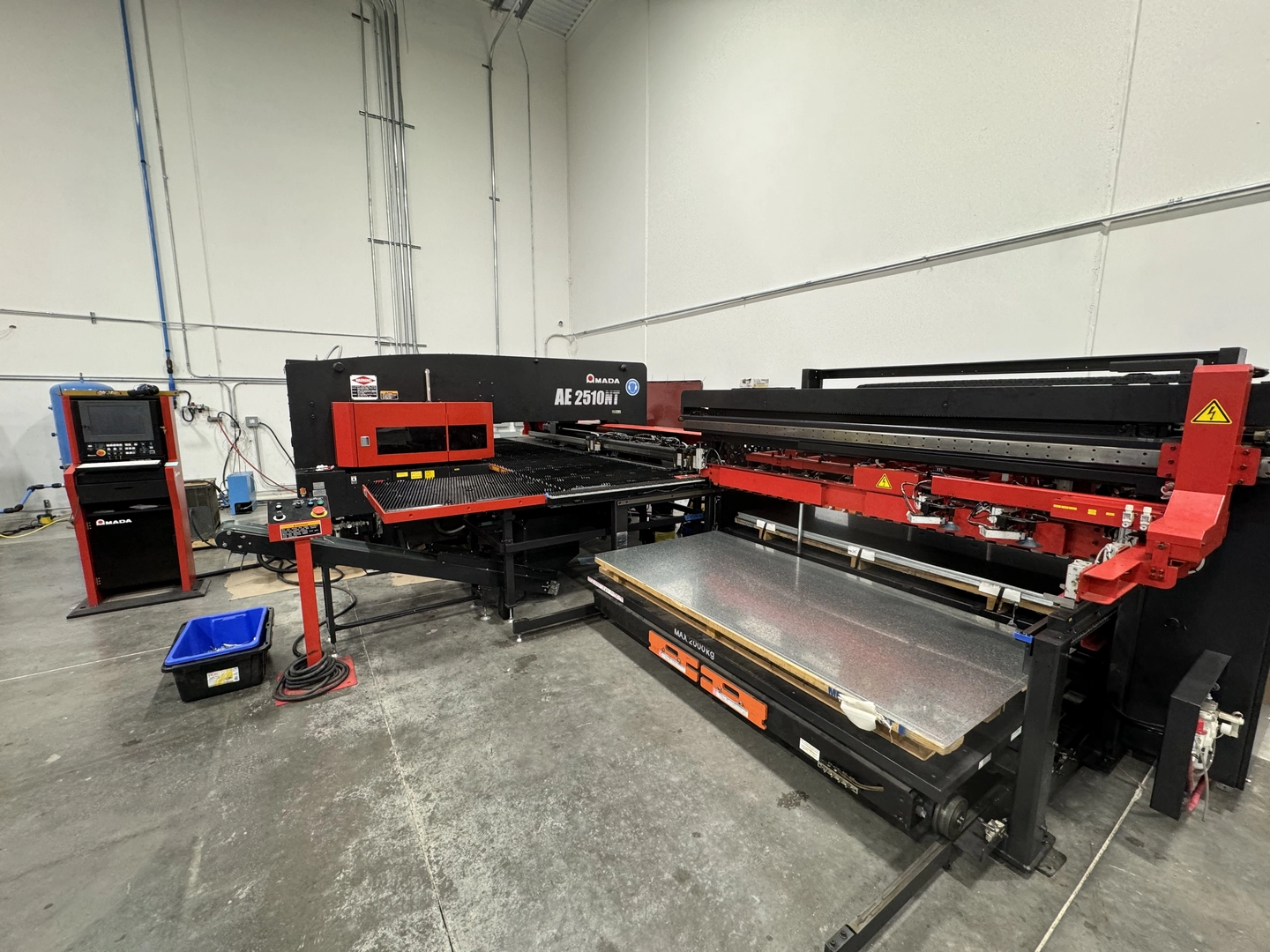

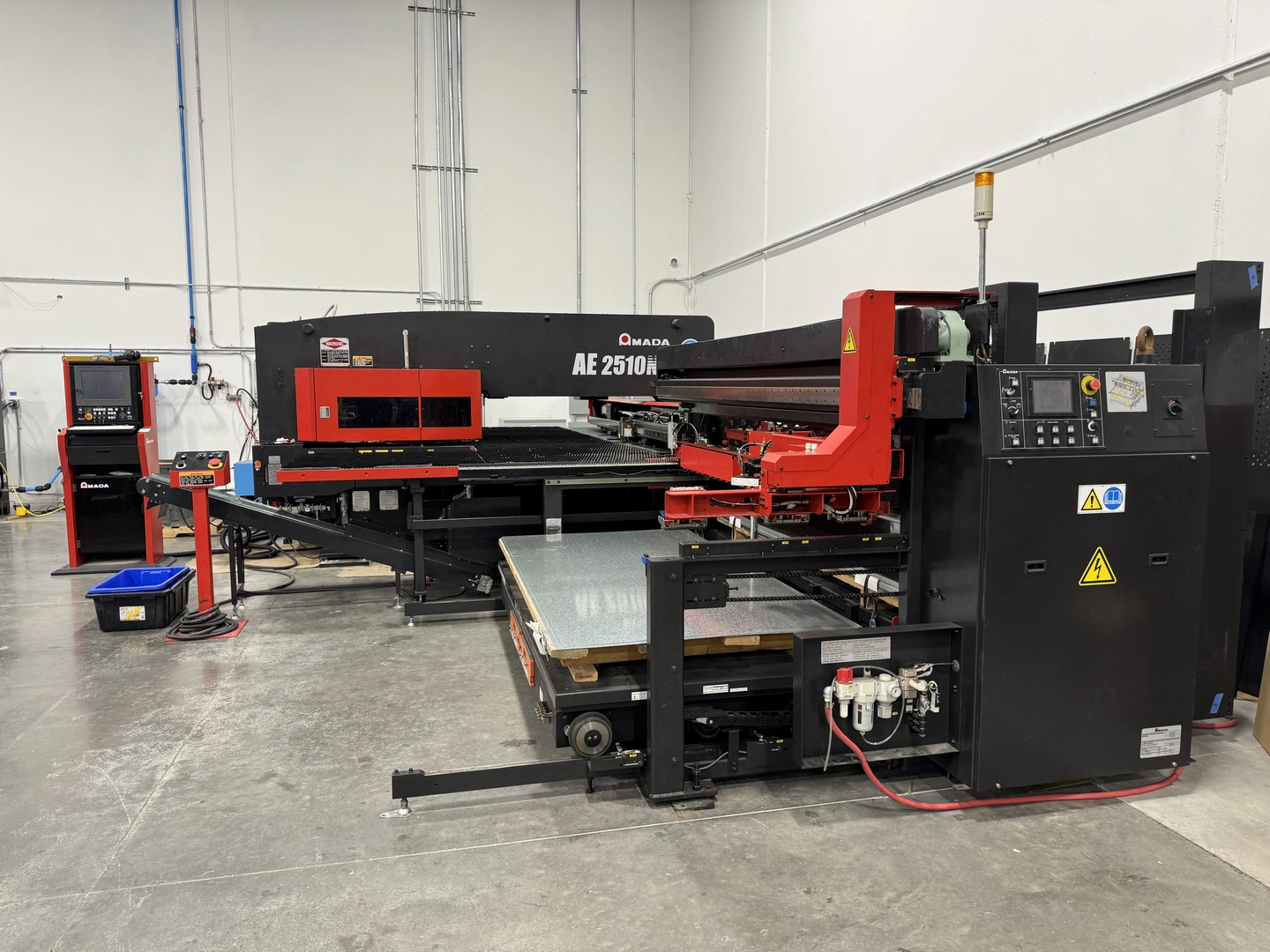

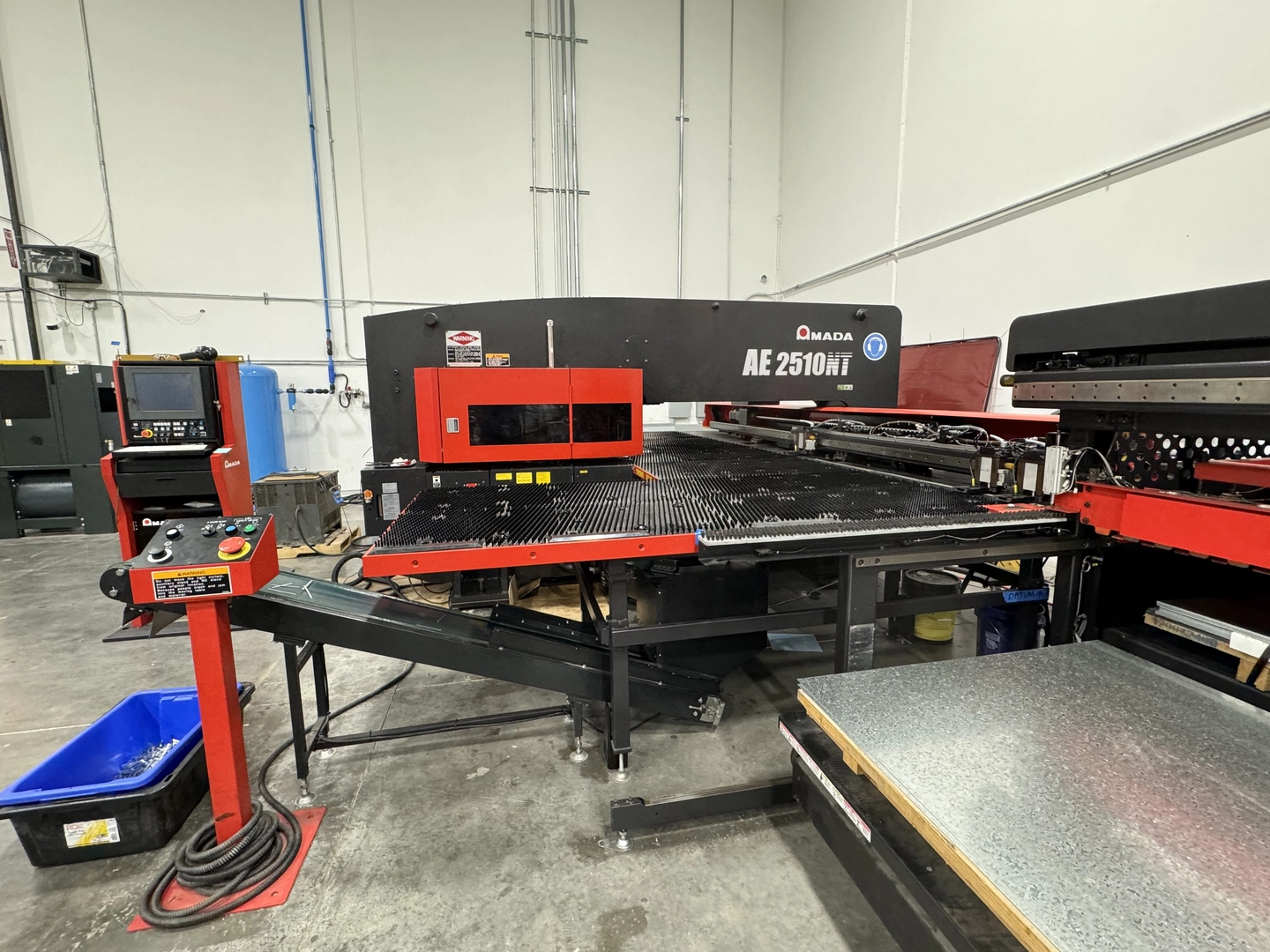

Used Amada AE2510NT (2014) Turret Punch for Sale. This pre-owned Amada turret punch is located in the United States. If you have any questions regarding this Amada Turret Punch, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
22 Ton |
|---|---|
| Sheet Width |
50" |
| Sheet Length |
98" |
| Y-Axis Travel |
98" |

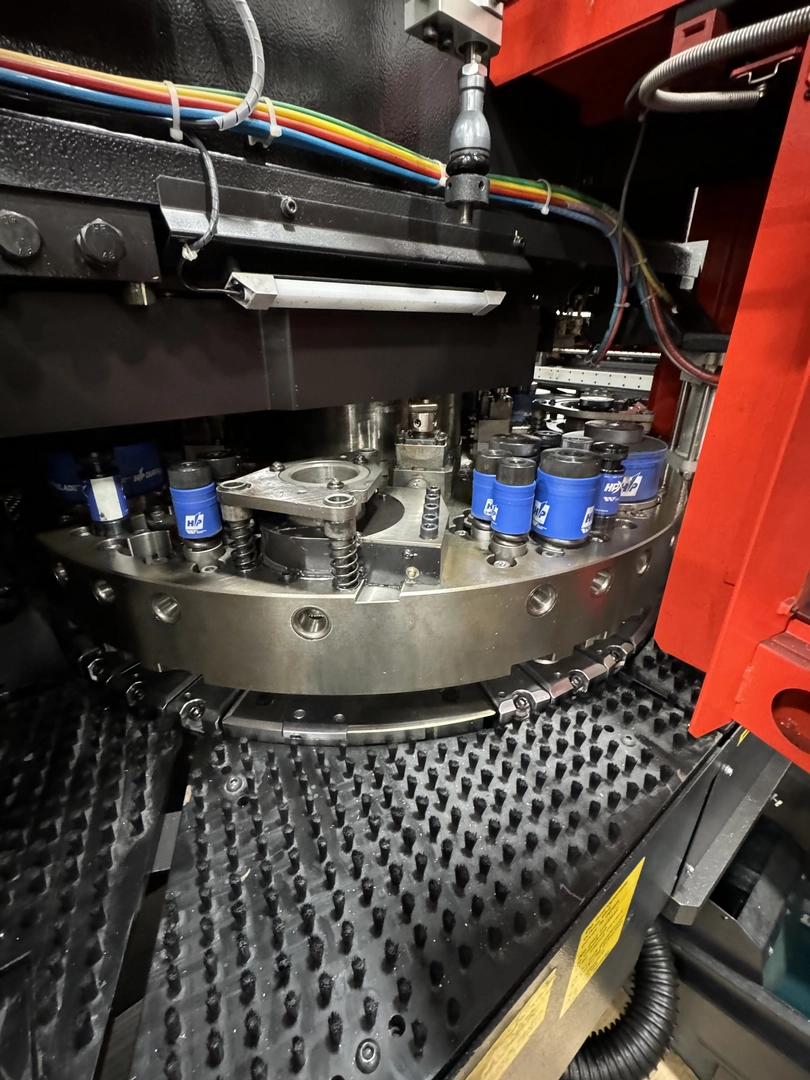

| Turret Stations |
51 Stations with 4 A/I |
| Throat Depth |
50" |
| Largest Punched Hole |
4-1/2" |
| Stroke Length |
1.65" (Increased Forming Capacity) |
| X/Y Hits Per Min |
1" centers / .197" stroke X=350 HPM, Y=280 HPM |
| X/Y Hit Rate Marking |
900 HPM |
| Linear Positioning Speed |
X=3,150 IMP, Y=2,362 IPM |
| Smallest Programmable Increment |
.001" |
| Control |

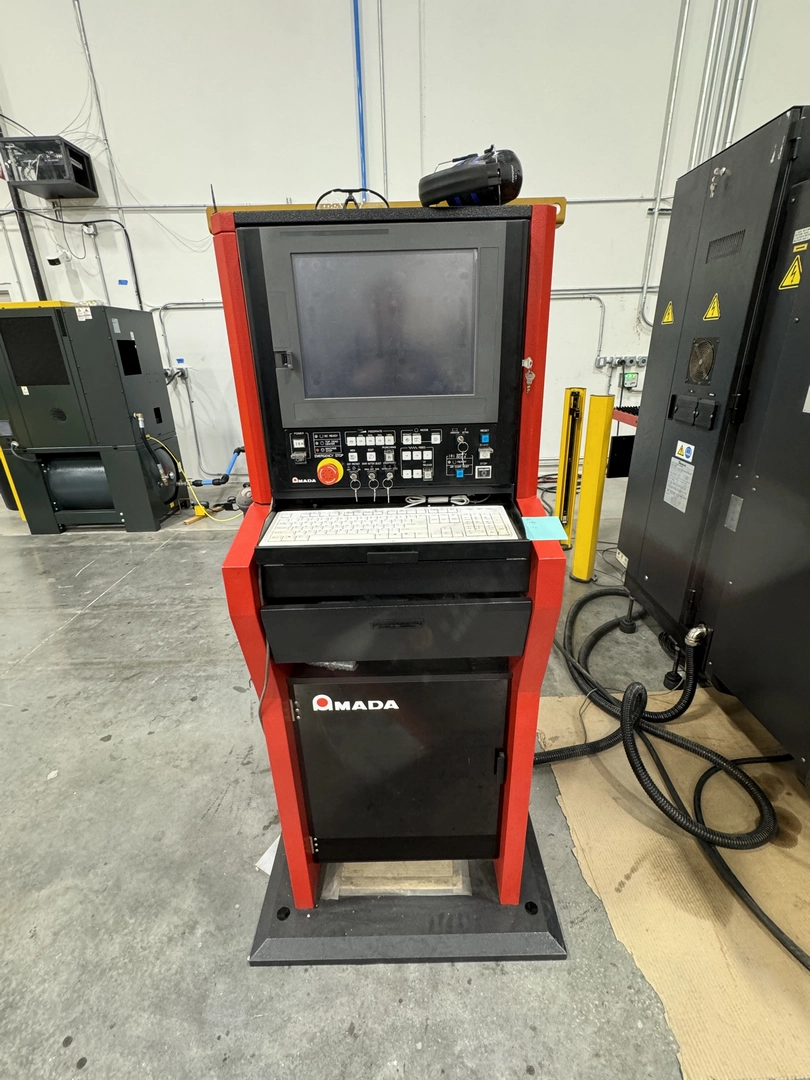

Fanuc AMNC/PC (NT) |
| Machine Weight |
28,660 Lbs |
| Note |
Machine Built in 2013 |
Features
|

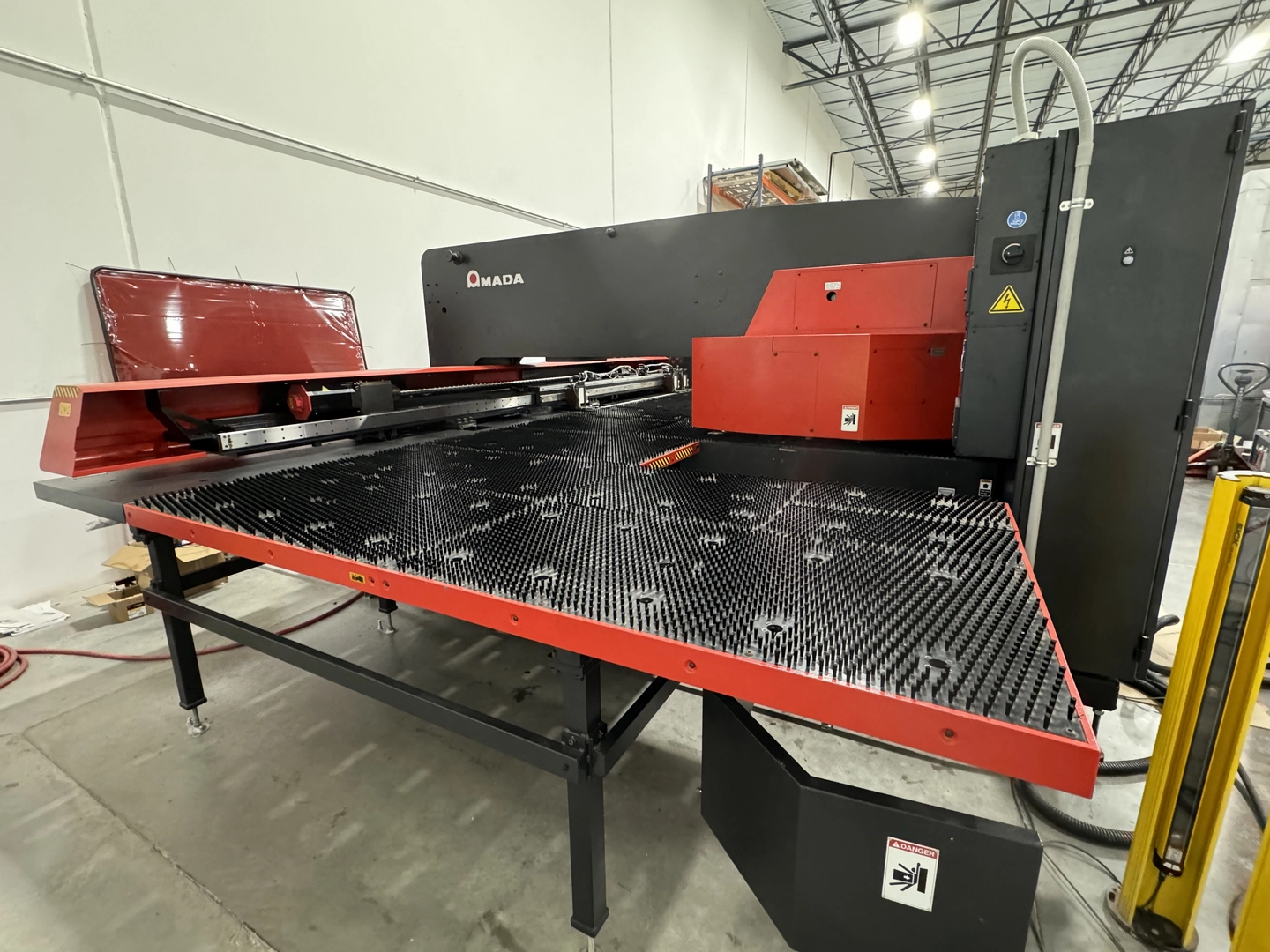

Brush Table Up Function |

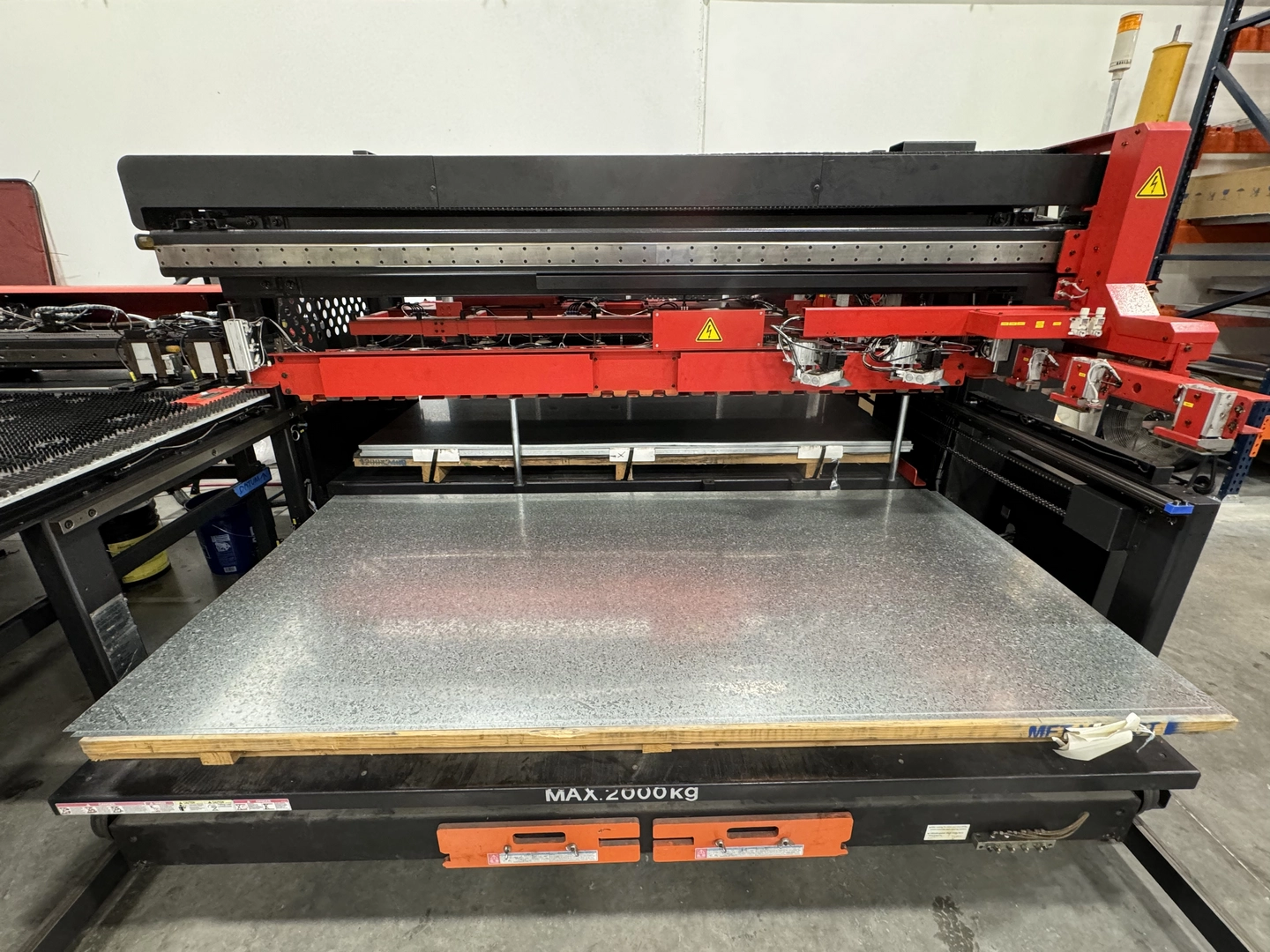

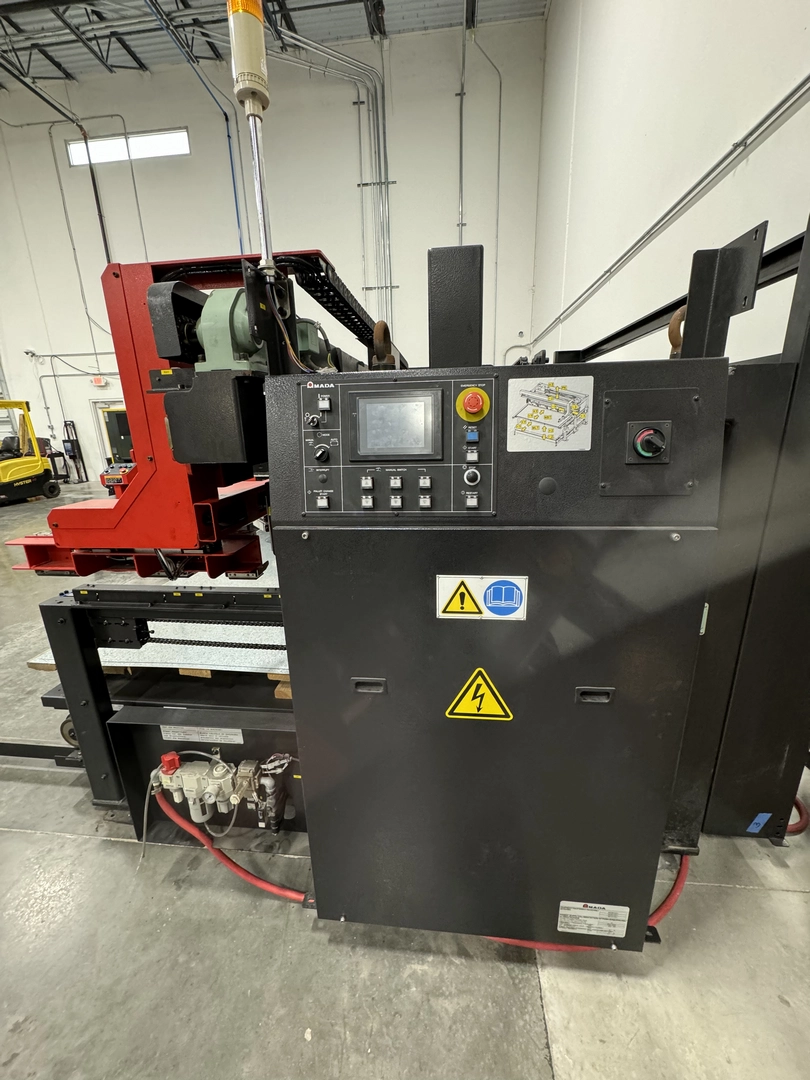

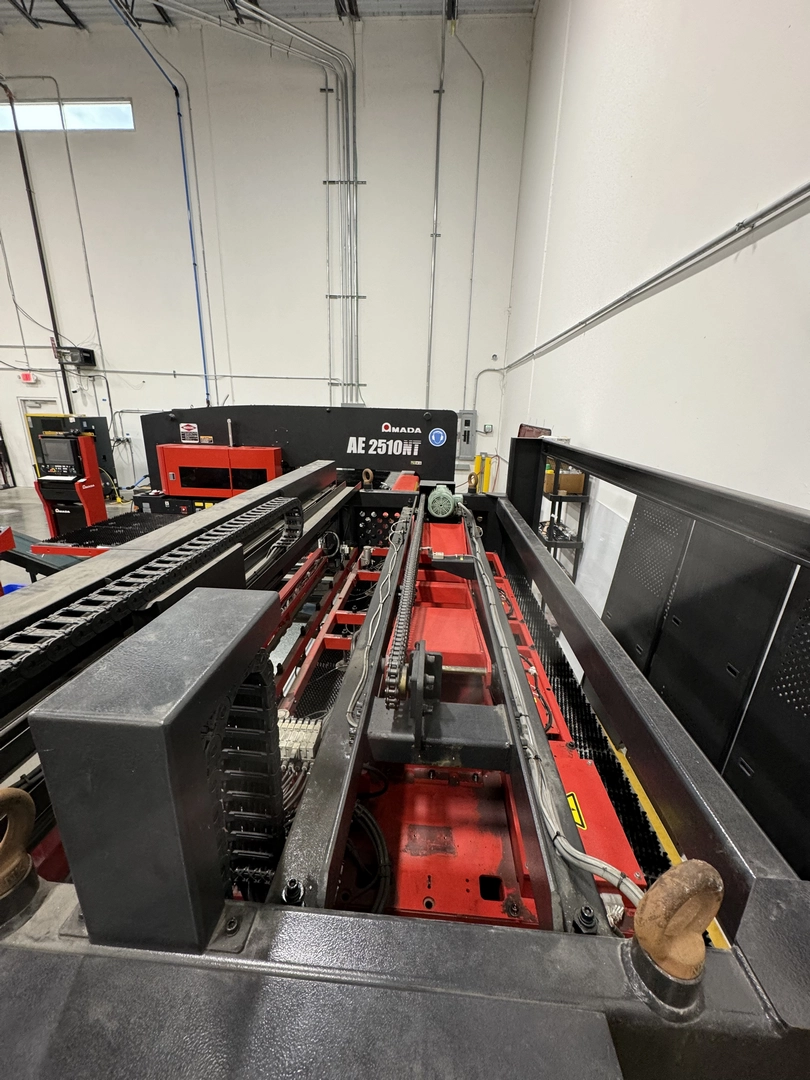

MP2512C1 Autoloader |
|
Ram Hold Down Function |
Slug Suction |
|
AC Servo Drive Motors |
Low Hours |
|

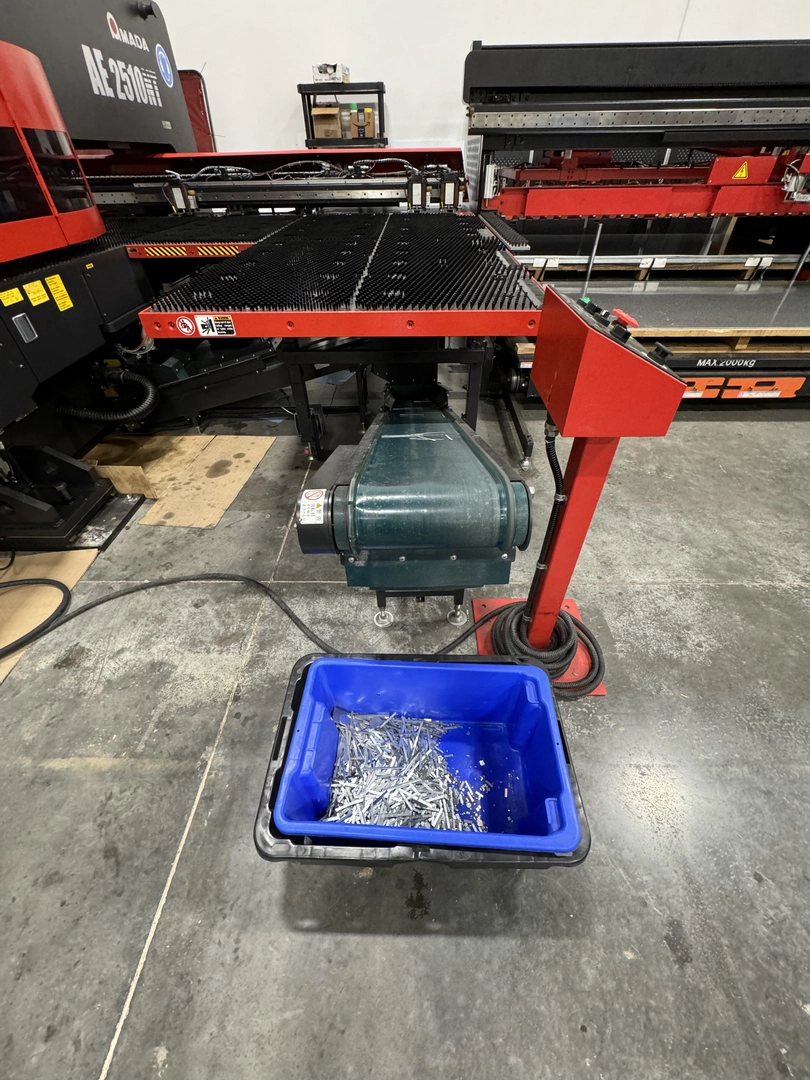

Scrap Conveyor |
*
