Year 2014
Make Anca
Model TX7 Plus

Description

Tool & Cutter Grinder
Reference # 8071671

Price

Activate PricingInquire Now

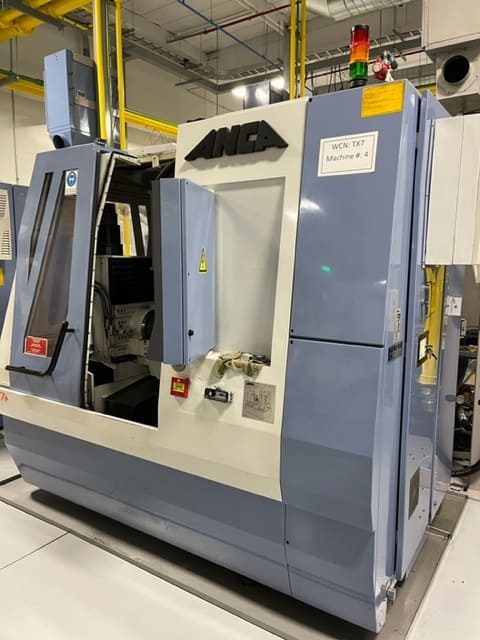

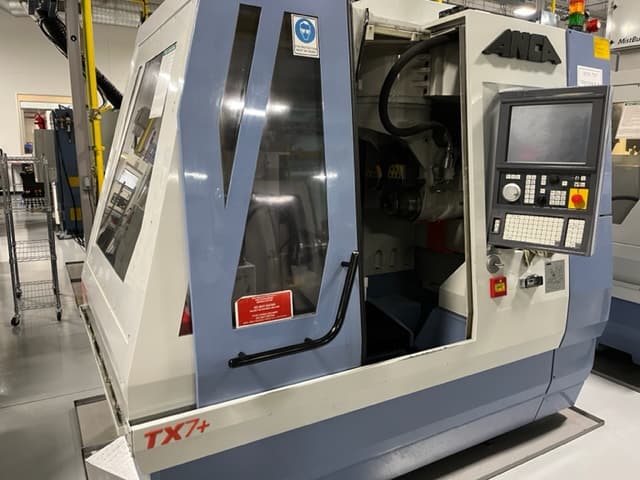

Used Anca TX7 Plus (2014) Tool & Cutter Grinder for Sale.  This pre-owned Anca CNC grinder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Anca Tool & Cutter Grinder, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

X-Axis Travel

22.2"

Y-Axis Travel

16.4"

Z-Axis Travel

10.1"

Spindle Motor

49 HP

Spindle Speed

10,000 RPM

A-Axis

360 Degrees

C-Axis

264 Degrees

Max Tool Diameter

7.9"

Max Tool Length

12"

Max Tool Weight

55 Lbs

Control

Anca 5DX

Note

All Linear and Rotary Axis Use Direct Drive Motor Technology

Features

Hi-Performance

Renishaw Probe

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
