| Year | 2014 |
|---|---|
| Make | Cincinnati |
| Model | CL-940 |
Description |
6' x 12' CNC Fiber Laser |
| Reference # | 8070285 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Table Width |
6' |
|---|---|
| Table Length |
12' |
| Max Wattage |
4,000 |

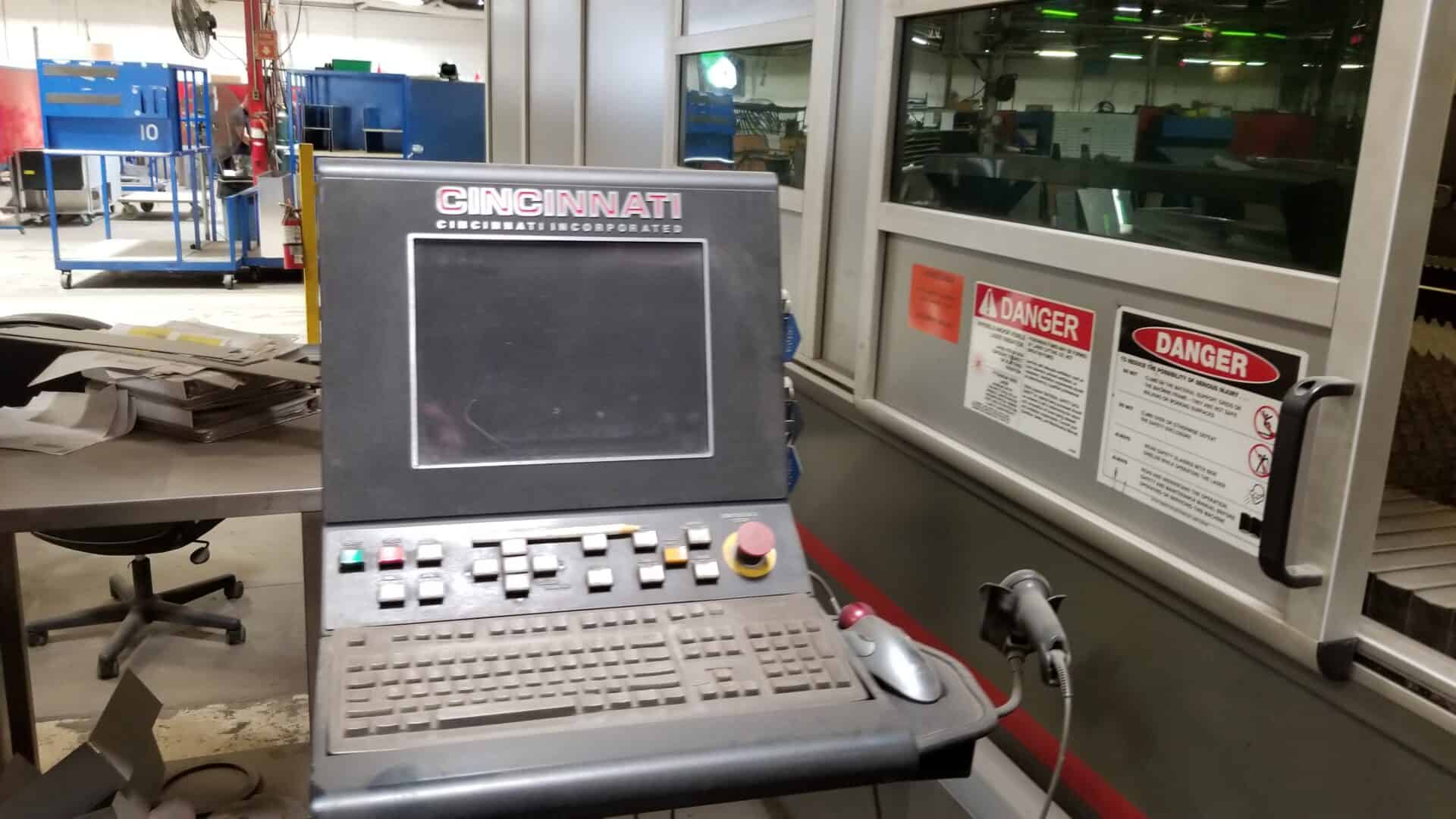

| Control |
Cincinnati INC Windows Based 15" Color Touch Screen Controls |

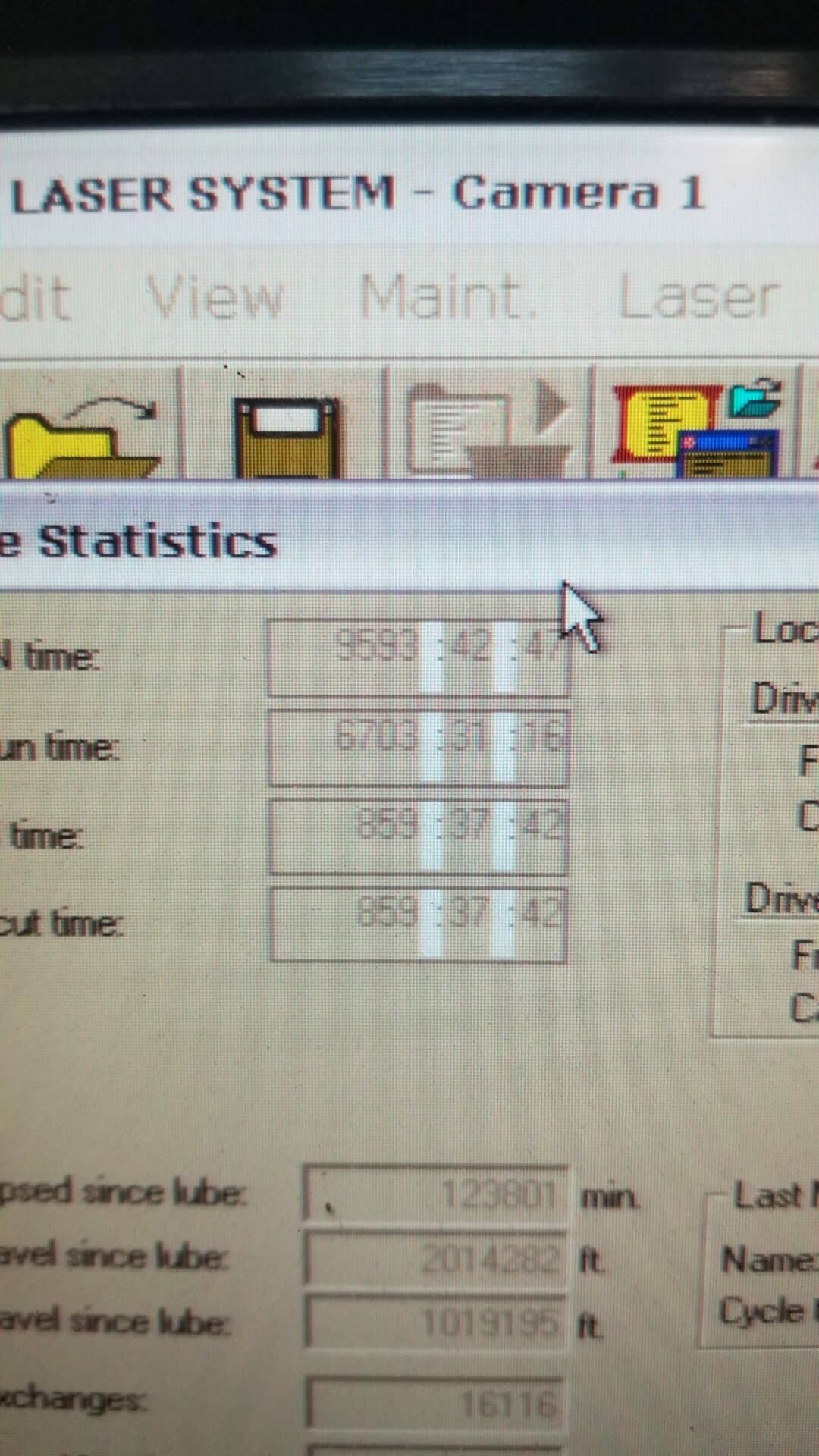

| Hours |
6,700 Run Time Hours |

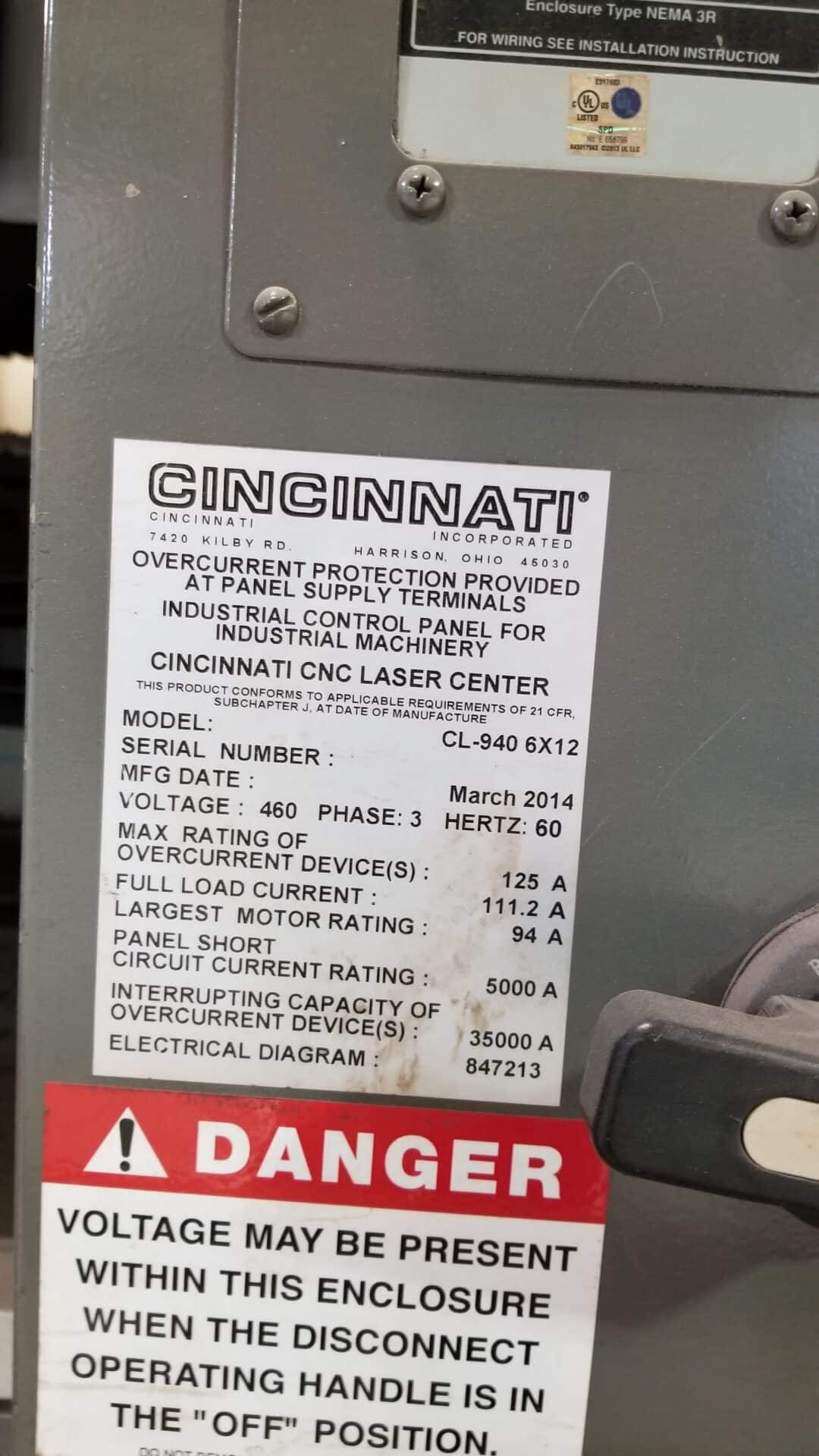

| Power Requirement |
230/460/3/60 |
| Machine Speeds, Positioning |
12,000 IPM |
| Rapid Traverse X And Y Axis |
8,500 IPM |
| Rapid Traverse X And Y Axis Simultaneous: |
12,020 IPM |
| Rapid Traverse Z Axis |
1,700 IPM |
| Jog Mode, Normal Jog X And Y Axis |
300 IPM |
| X/Y Axis |
1,200 IPM |
| Z Axis |
1,200 IPM |
| Acceleration X Axis |
16.5 G |
| Acceleration Y Axis |
16.5 G |
| Acceleration Z Axis |
2 G |
Features
|
Air Dryer |
Chiller |
|
Rapid Pierce |
5" Focal Length Lens |
|
Tactile Foot For Cutting Non-Conductive Metals |
7.5" Focal Length Lens |
|
A/C Brushless Permanent Magnet Linear Servo Motors |
Cincinnati Laser Programming And Nesting Software Module |
|

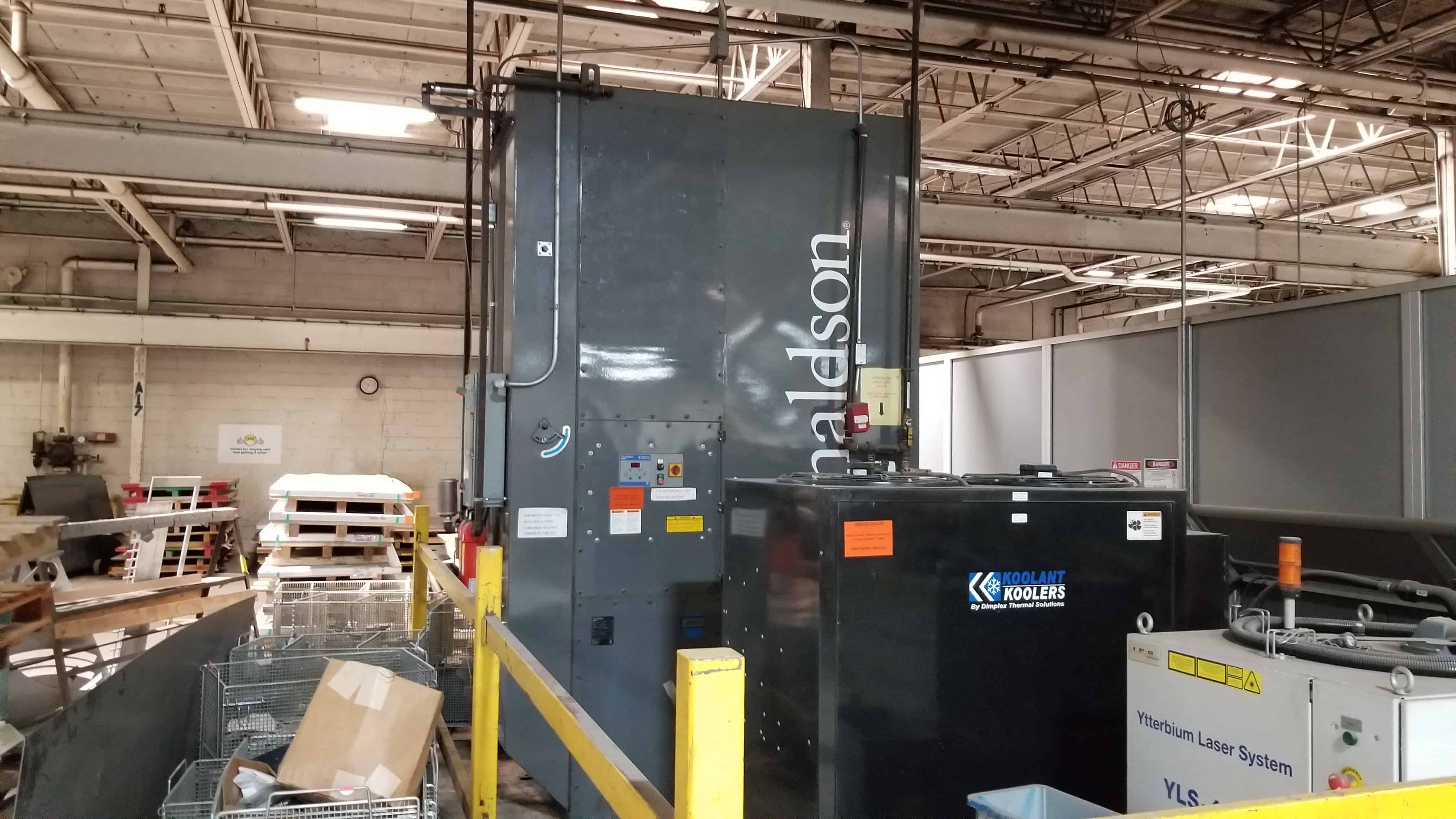

Donaldson Dust Collection System |
Edge Of Sheet Detection |
|
Lower Pallet Special Function ("Box Cutting") |
Pallet Shuttle |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
