| Year | 2014 |
|---|---|
| Make | Hyundai |
| Model | EDIS-1150DL |
Description |
1150 Ton 186.6 oz Shot Size Hybrid Injection Molding Machine |
| Reference # | 8077361 |

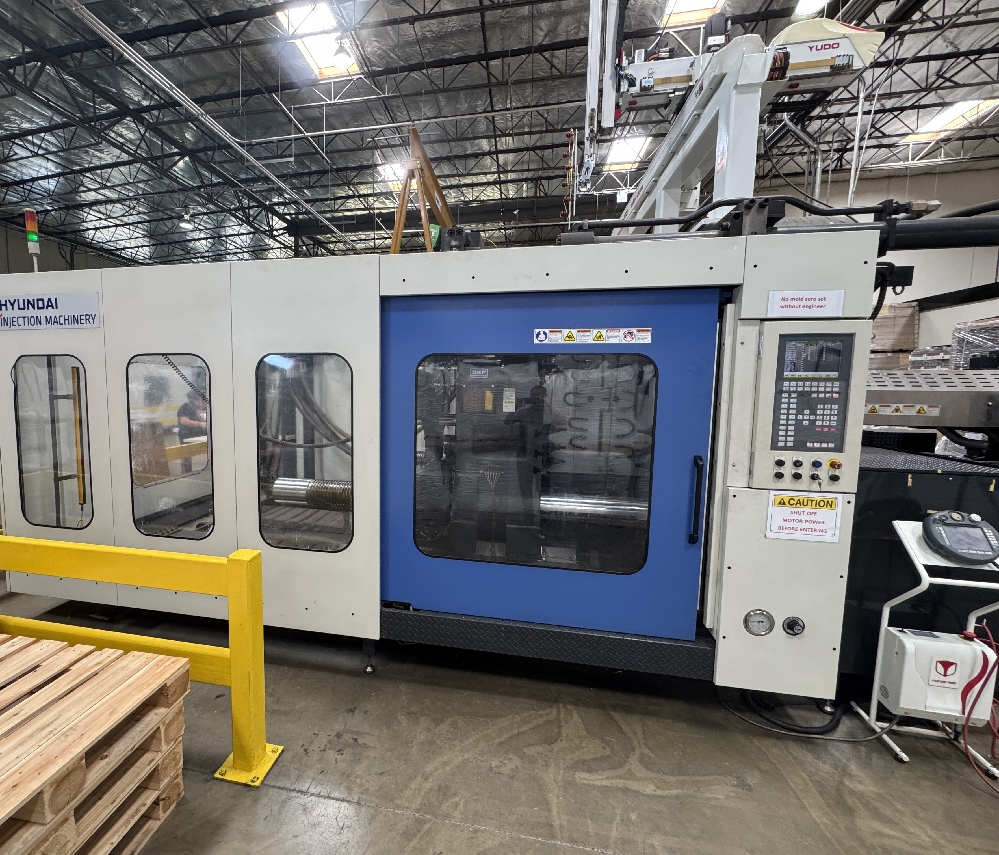

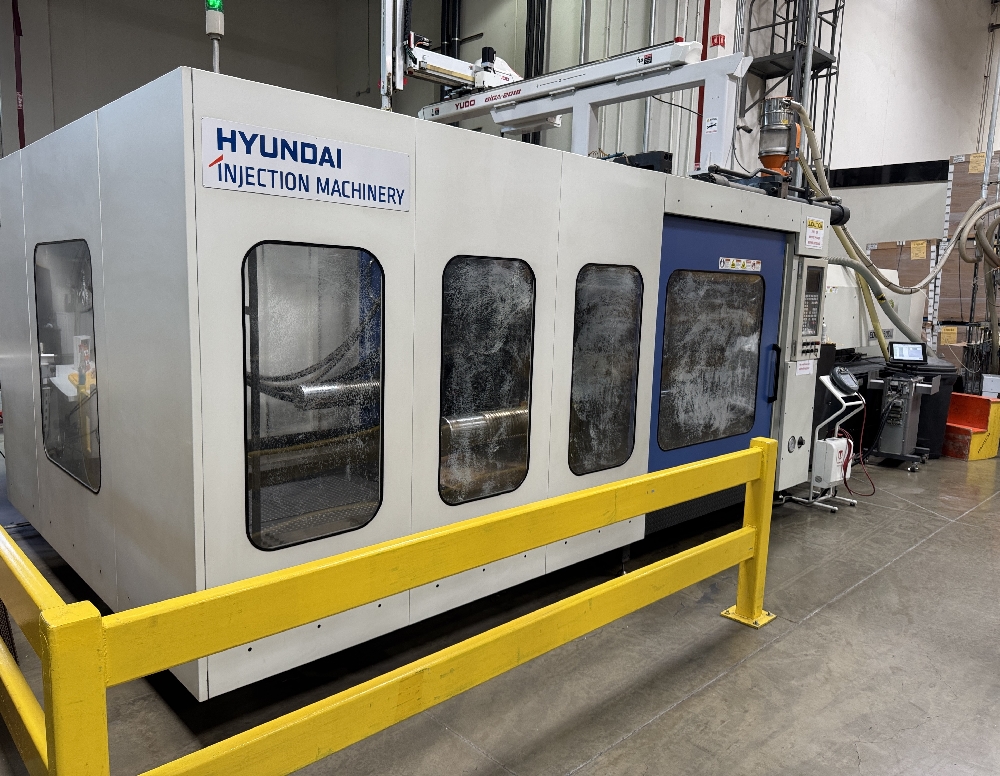

Used Hyundai EDIS-1150DL (2014) Injection Molding Machine for Sale. This pre-owned Hyundai plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Hyundai Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.

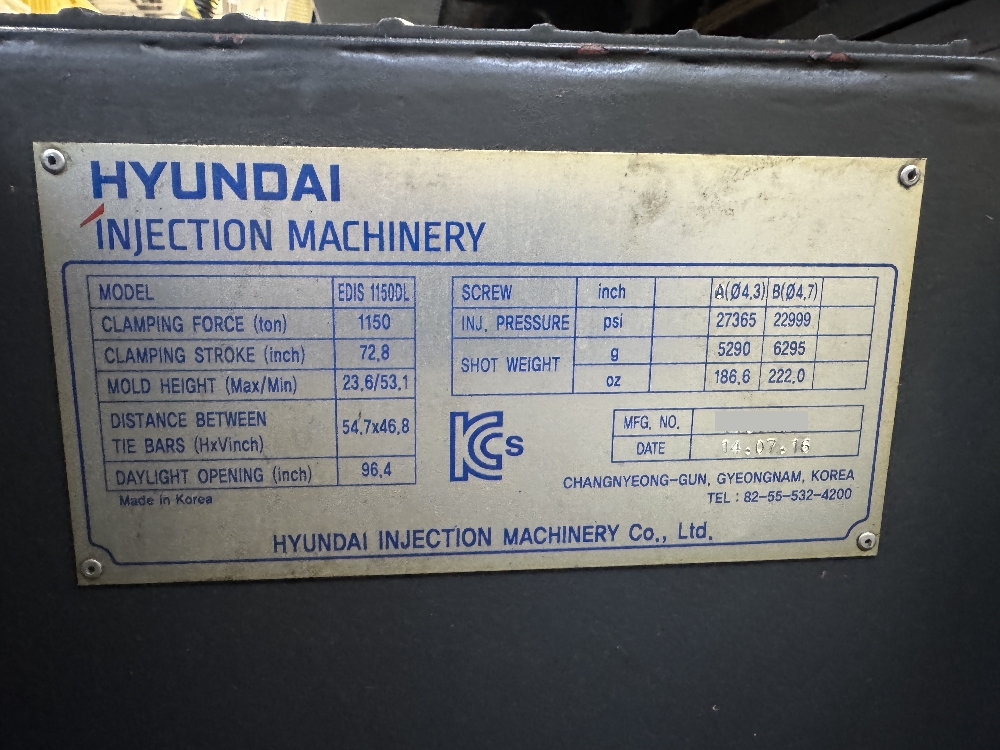

Specifications
| Capacity |
1150 Ton |
|---|---|
| Shot Size |
186.6 oz |
| Tie Bar Spacing |
54.7" X 46.9" |
| Max Daylight |
96.4" |
| Min /Max Mold Height |
23.6"/53.1" |
| Clamp Stroke |
72.8" |
| Note |
(5) Machines Available, Price per Machine |
Features
|
2 x 480V auxiliary power plugs 20 amps each |
Bi-metallic screw and barrel (Anti-wear) |
|
Dual Air Blow Off |
Dual Core Pulls |
|
Hybrid servo drive |
Under Power |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
