| Year | 2014 |
|---|---|
| Make | Mitsubishi |
| Model | ML3015NX-F40(S) |
Description |
5' x 10' 4kW CNC Fiber Laser |
| Reference # | 8074718 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

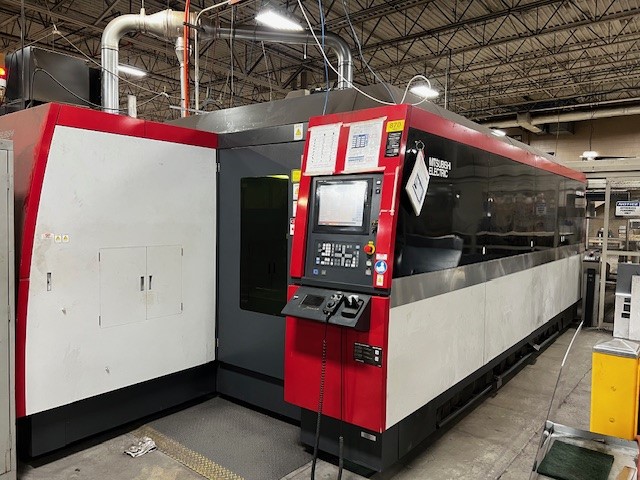

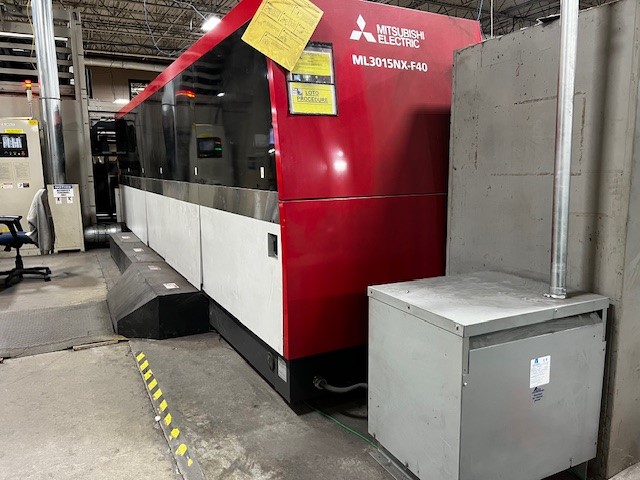

Used Mitsubishi ML3015NX-F40(S) (2014) CNC Laser for Sale. This pre-owned Mitsubishi CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| X-Axis Travel |
125.98" |
| Y-Axis Travel |
62.99" |
| Z-Axis Travel |
4.7" |

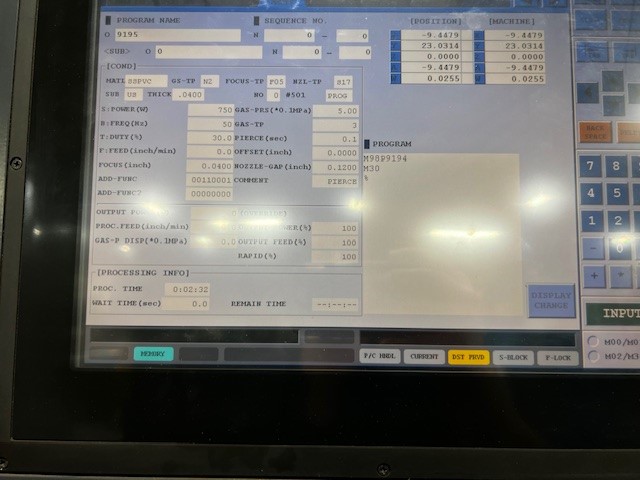

| Control |
Mitsubishi 700 Series |

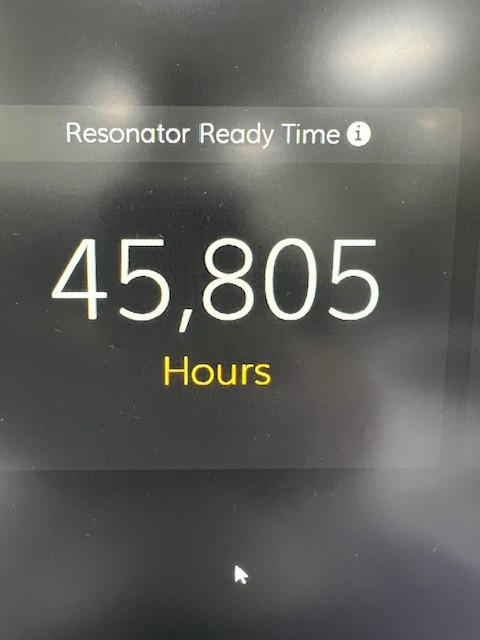

| Hours |
Approx 25000 Discharge Hours |
| Max Wattage |
4,000 |
| Laser Type |
Fiber |
| Machine Type |
Flying Optic |
| Max. Workpiece Size |
60" X 120.1" |
| Table Pass Height |
34.6" |
| Processing Access |
Manual Door |
| Rapid Travel Speed X/Y Single Axis |
4,724 Ipm |
| Rapid Travel Speed X/Y Simultaneous |
6,680 Ipm |
| Max. Processing Feedrate |
2,360 Ipm |
| X/Y-Axis Motion System |
Rack and Pinion |
| Z-Axis Motion System |
Precision Ball Screw |
| Positioning Precision |
0.0019/20 |
| Drive Motor Type |
Intelligent AC Servo |
| Max. Cutting Thickness Mild Steel |
1" |
| Max. Cutting Thickness Stainless Steel |
.50" |
| Max. Cutting Thickness Aluminum |
.50" |
Features
|
Auto Pallet Shuttle |

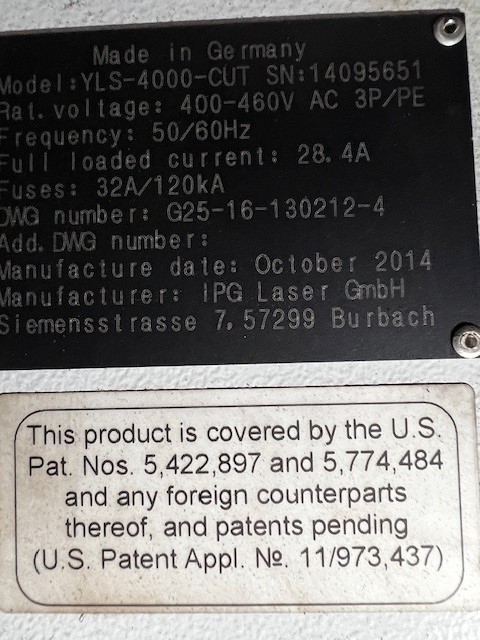

IPG YLS 4000 Fiber Engine |
|

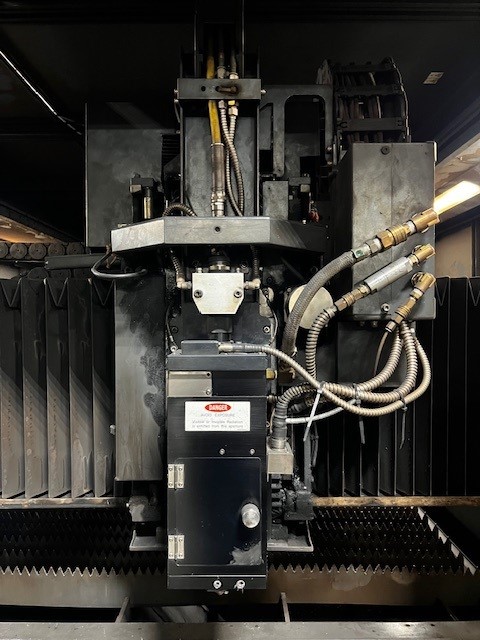

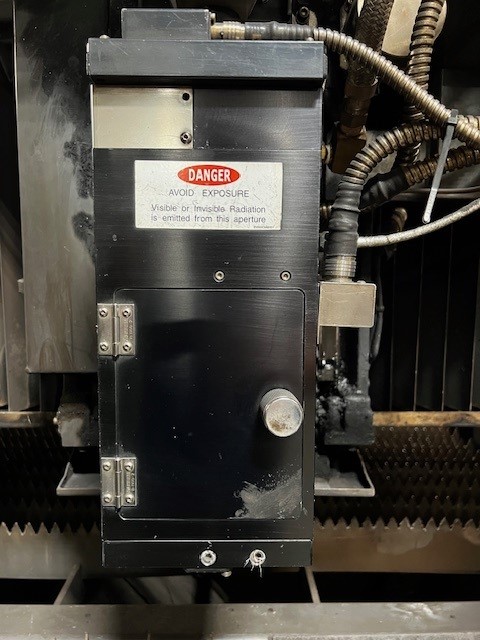

Magnetic Breakaway Cutting Head |
Two High Pressure Assist Gas Ports |
|

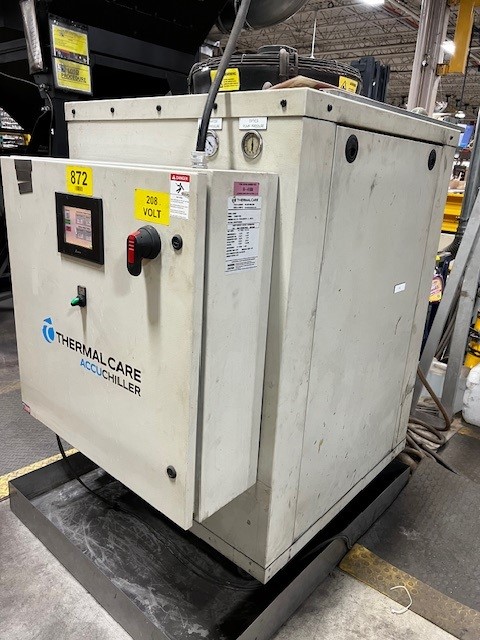

Chiller |
Dual Pallet Shuttle Tables |
|

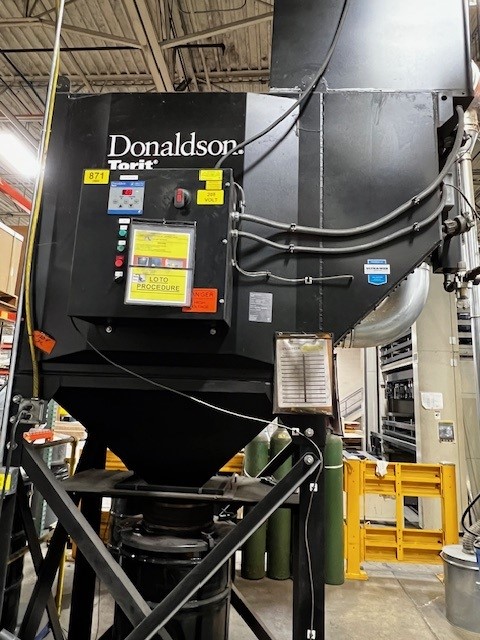

Dust Collector |
