| Year | 2014 |
|---|---|
| Make | Okuma |
| Model | Millac 1052VII |
Description |
CNC Vertical Machining Center |
| Reference # | 8072324 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

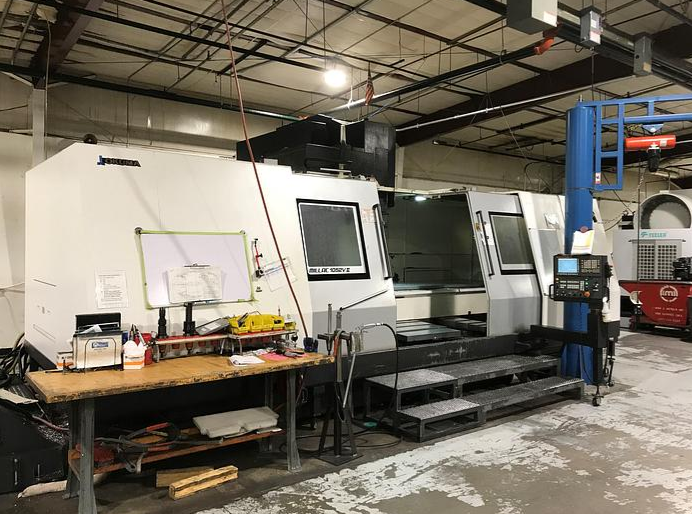

Used Okuma Millac 1052VII (2014) CNC Vertical Machining Center for Sale. This pre-owned Okuma CNC vertical mill is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Okuma Vertical Machining Center, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
120" |
|---|---|
| Y-Axis Travel |
41.73" |
| Z-Axis Travel |
31.5" |
| Spindle Speed |
6,000 RPM |
| Spindle Taper |
CAT 50 |
| Spindle Motor |
30/25 HP VAC Spindle Motor |
| Tool Magazine Capacity |
54 ATC |

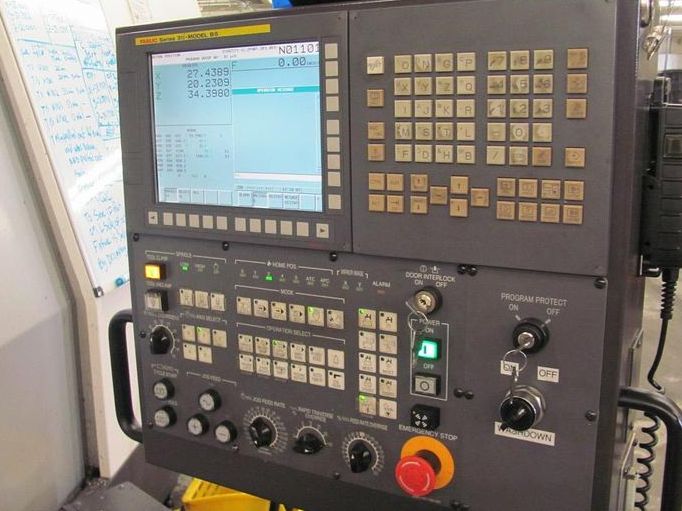

| Control |
Fanuc |
| Coolant |

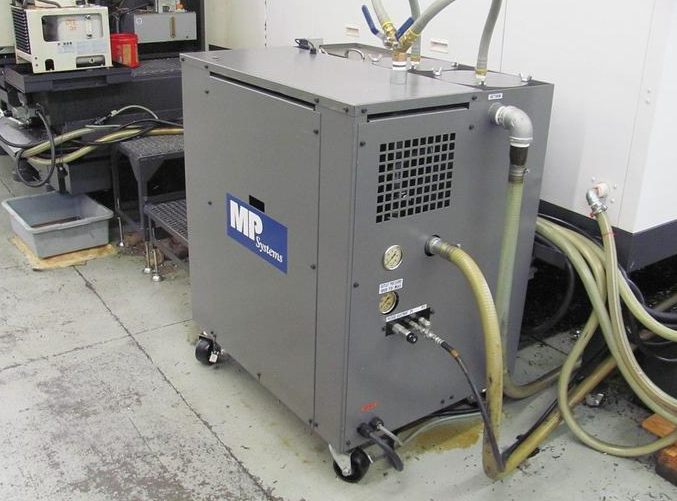

1,000 PSI Coolant Through Spindle |
| Rapid Feed X, Y / Z |
472 / 630 IPM |
| T-T |
2.5 sec |
| C-C |
7 sec |
| Spindle Bearing ID |
3.937” |
| Table Load |
11,000 Lbs |
Features
|
Auto Gauging |
Custom Macro B |
|
Helical Interpolation |
Ring Nozzle Type Face Coolant |
|
2.64 Gal Hydraulic Unit Tank Capacity |
264 Gal Coolant Tank Capacity |
|
Simultaneously Controlled Axes |
3-Color Signal Tower |
|
Spindle Head Lube System with Cooling |
Two Range Spindle Gear Head |
|
CAT 50 V-Flange Specification with BIGPLUS |
Control Axis Detach |
|
Control Soft For Manual Guide |
Controlled Axis Expansion |
|
High Speed Skip Function |
Internal Chip Conveyor Discharging into Front Chip Pan |
