Year 2014
Make TSL
Model FT4K Low Flex

Description

Match Metal Roll-Fed Thermoformer
Reference # 8071542

Price

Activate PricingInquire Now

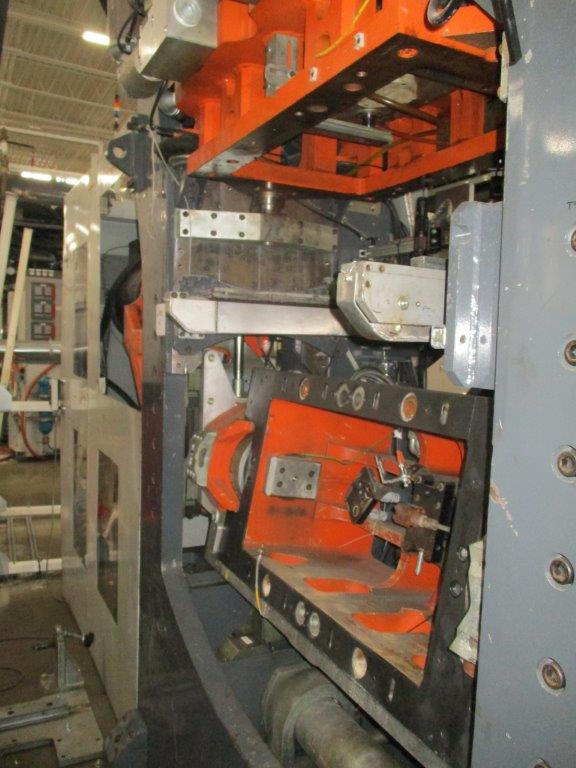

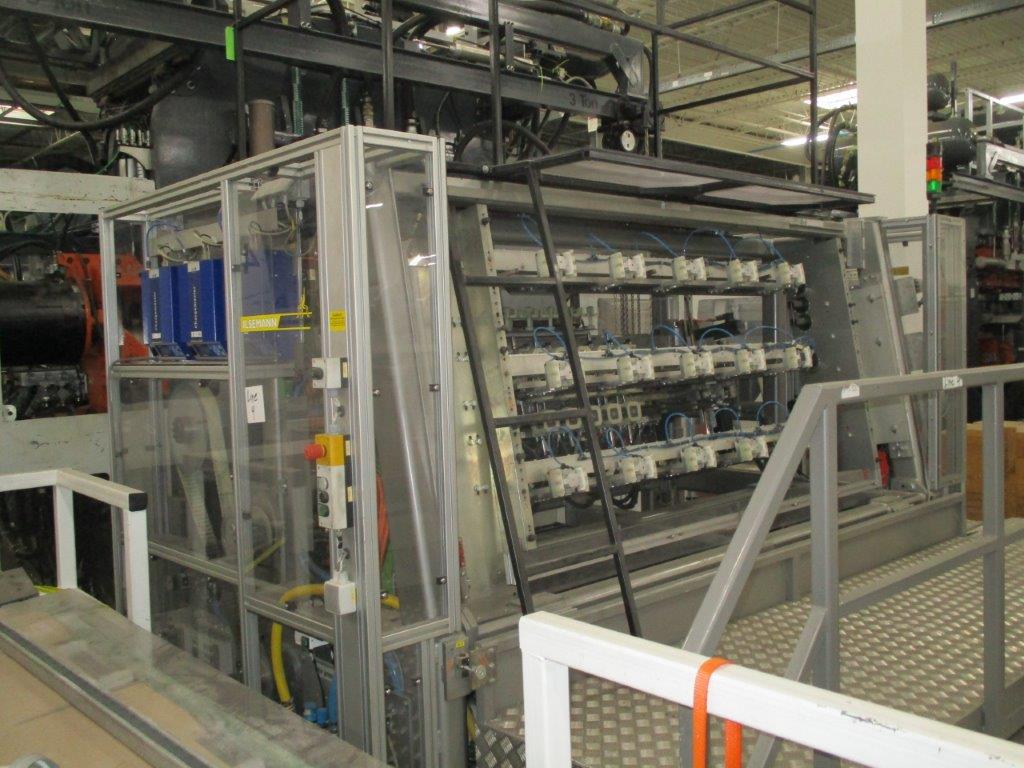

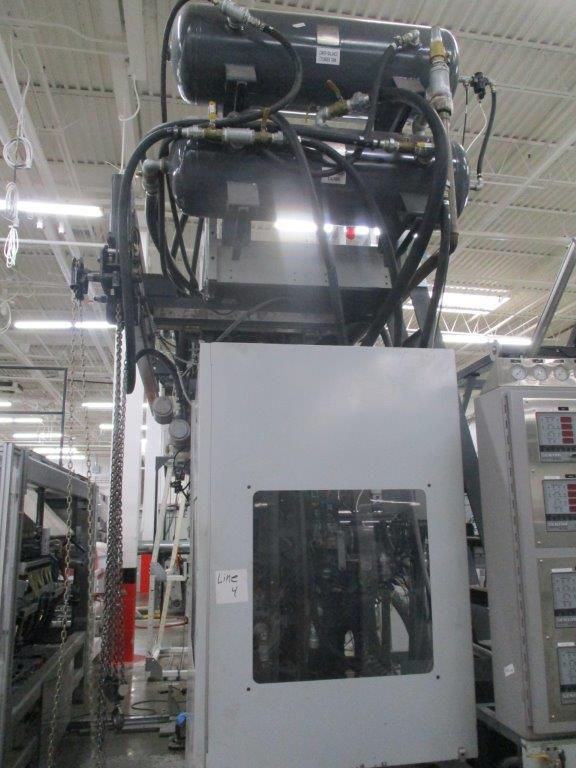

Used TSL FT4K Low Flex (2014) Thermo Former for Sale.  This pre-owned TSL thermo former machine is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this TSL Thermo Former, please feel free to contact us.  You may Activate Pricing to view the price of this Plastic Forming Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Max Mold Size

30.51" x 17.7"

Top Oven

Quartz Elements

Bottom Oven

Quartz Elements

Top Platen Stroke

12"

Bottom Platen Stroke

12"

Platen Drives

Servo (Yaskawa Motors/Controllers)

Material Ran

Polypropylene

Platen Shut Height (Below and Above)

9.45" / 13.58"

Top Platen Tonnage

120 Tons

Dry Cycle Speed

Max. 60 CPM / Min. 1 CPM

Max Sheet Width

35"

Depth Of Draw

Max 6" Below Sheet Line

Max Chain Speed

97"/sec

Oven Zones

50

Oven Length

135"

Platen Travel Distances

Top Max. - 0" / Bottom Max. - 6.875"

Top Platen Servo Adjust

SASH Servo Adjust Shut Height (Top Platen Only)

Top Mold Max Weight

3,000 Lbs

Bottom Mold Max Weight

1,400 Lbs

Note

(3) Machines Available, Price Per Machine, (1) 2014 TSL Thermo Former, (2) 2016 TSL Thermo Formers

Features

Gabler 4-Play Preheat Oven

Ilsemann Stacker

IR Temperature Sensor Assembly

OPTO 22 PAC System and Galil DMC-4060 Motion Controller

Pneumatic Driven Parts Ejector (Bottom Ejector)

Right Hand Machine Layout

Servo Indexing (Yaskawa 7.5 kw Drive System)

Yaskawa Servo Controlled Plug Drive System (Third Motion)
