| Year | 2014 |
|---|---|
| Make | Tsugami |
| Model | B0205-II |
Description |
CNC Swiss Lathe |
| Reference # | 8072938 |
Price |
Activate PricingInquire Now |

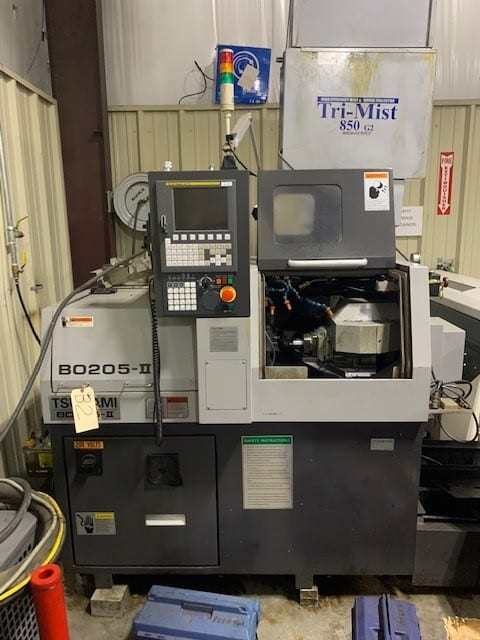

Used Tsugami B0205-II (2014) CNC Swiss Lathe for Sale. This pre-owned Tsugami CNC swiss lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Tsugami Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Working Barstock Diameter |
.12" to .79" |
|---|---|
| Main Spindle Speed |
200-10,000 RPM |
| Back Spindle Speed |
200-12,000 RPM |
| Rapid Traverse Rate |
105 FPM |
| Max. Back Spindle Chucking Diameter |
.79" |
| Max. Machining Length |
8.26" |
| Max. Back Spindle Drilling Diameter |
.31" |
| Max. Main Spindle Drilling Diameter |
.39" |
| Max. Main Spindle Tapping Diameter |
M10 |
| Max. Back Spindle Tapping Diameter |
M8 |
| Main Spindle Motor |
5 HP |
| Back Spindle Motor |
3 HP |
| Control |
Fanuc Oi-TD |
| Chip Removal |
Chip Conveyor |
| Net Weight |
4,409 Lbs |
| Machine Dimensions |
65.16" x 44.29" x 66.93" |
Features
|
Back Spindle |
Firetrace Automatic Fire System |
|

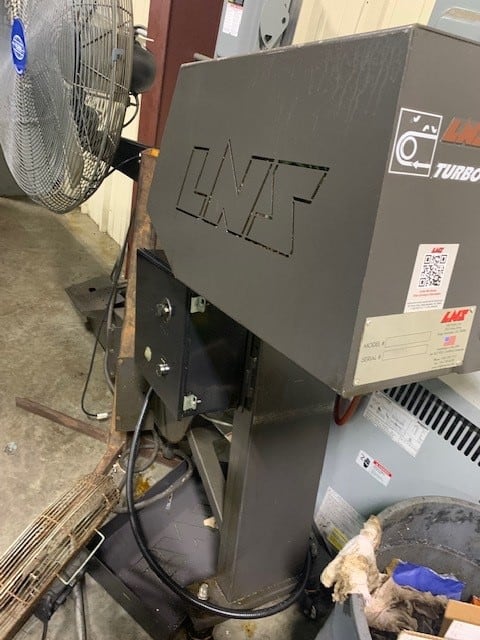

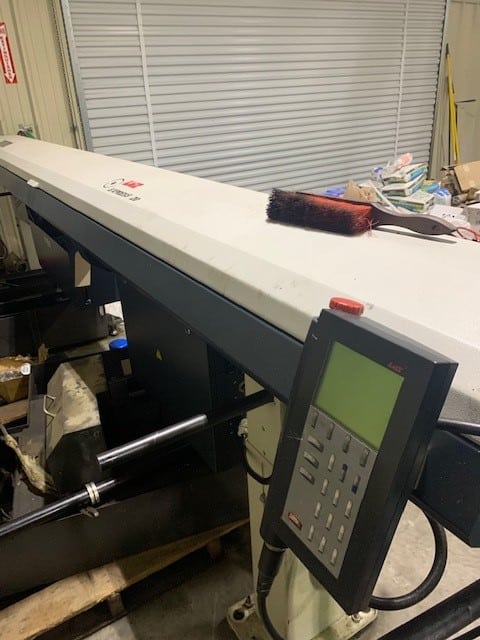

LNS Express 320 Barfeed |
MP Systems High Pressure Pump for Oil Model AT V-2 H08 SD |
|
Chucker Kit |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
