Year | 2015 |
---|---|
Make | Accutex |

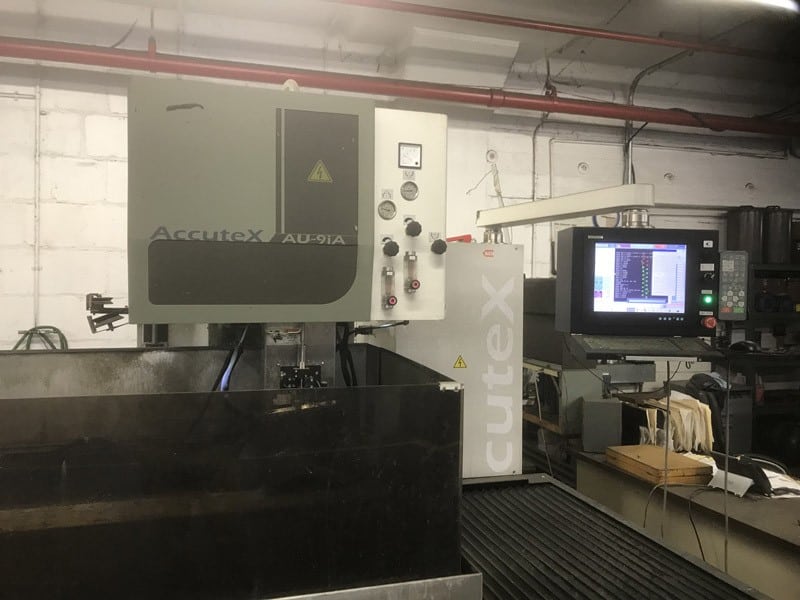

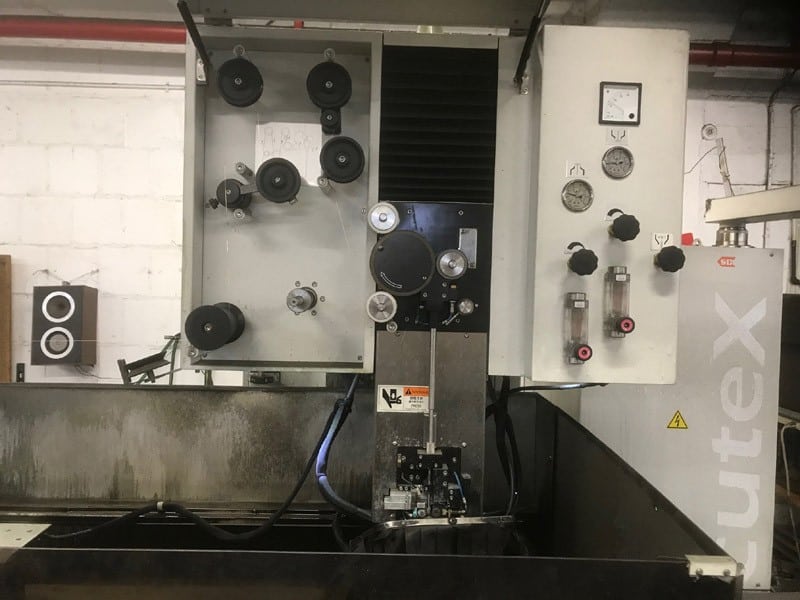

Model | Accutex AU-9iA |
Description |
EDM Wire |
Reference # | 8069669 |
Price |
Activate Pricing |
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
Specifications
X-Axis Travel |
35.4" |
---|---|
Y-Axis Travel |
23.6" |
Z-Axis Travel |
11.8" |
Control |
64 bit Window CE PC |
U/V Axis Travel |
3.9" / 3.9" |
Degree Taper Cutting |
45 Degrees |
Inside Tank Dimensions |
54.2" x 29.9" |
Power Requirement |
200/230/3/60 |
Glass Scale Feedback |
Linear Glass Scales |
Table Feed Rate |
40.0 IPM |
Max. Workpiece (XYZ) |
54.2″ X 29.9″ X 11.6″ |
Max Workpiece Weight |
4,890 Lbs. |
Wire Diameter |
0.006″ – 0.013″ |
Wire Spool Feed Rate |
60 – 787 IPM |
Wire Tension |
300 – 2,200 Grams |
Start Hole Diameter |
0.020″ |
Max. Wire Spool Weight |
35 Lbs. |
Positioning Accuracy |
±0.00012″ |
Repeatability (XY) |
±0.00008″ |
Total Power Required |
15 KVa |
Deionized Resin Tank |
935 0.4 Cu/Ft Fiberglass Bottle |
Tank Capacity |
100 Gallons |
Floor Space |
128″ X 126″ X 90″ |
Weight |
11,880 Lbs. |
Features

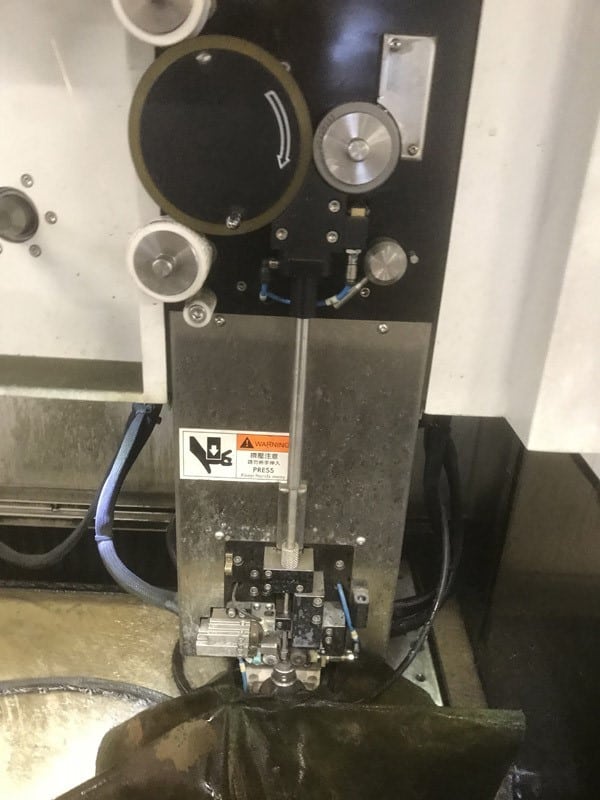

Auto Wire Threading |
Chiller |

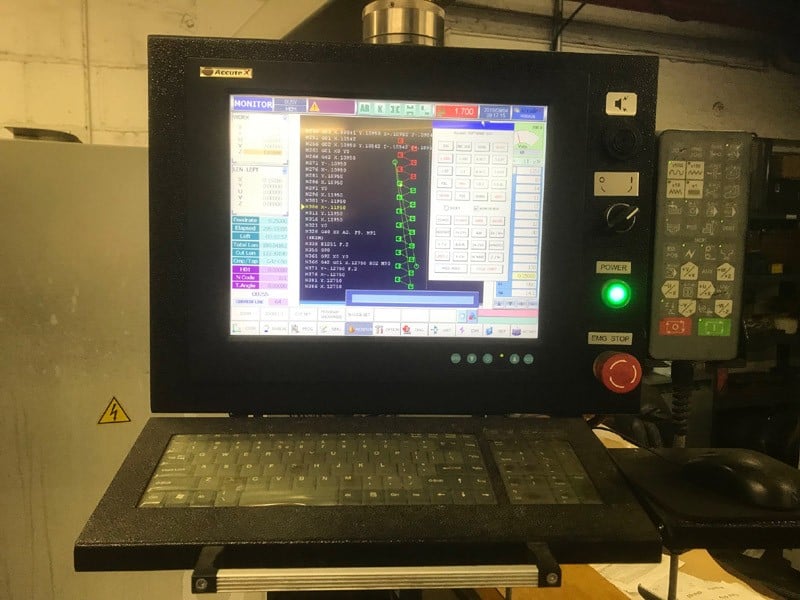

15″ Color Touch CNC Control Screen |
Co-Axial Flushing Machine |
Delivered New In 2015 |
