| Year | 2015 |
|---|---|
| Make | Chevalier |
| Model | FLV-1600VTC |
Description |
CNC Vertical Turret Lathe |
| Reference # | 8072073 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

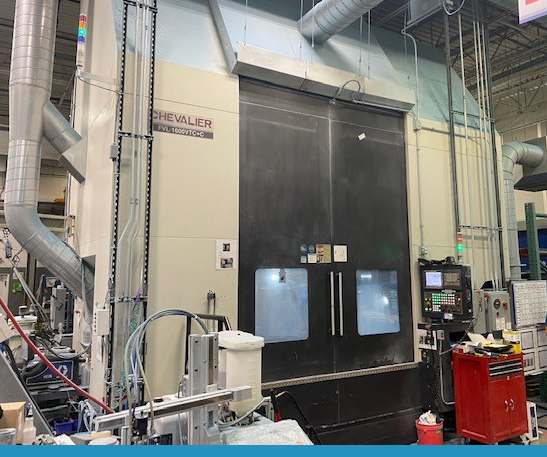

Used Chevalier FLV-1600VTC (2015) CNC Vertical Turret Lathe for Sale. This pre-owned Chevalier CNC vertical turret lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Chevalier Vertical Turret Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
63" |
|---|---|
| Swing |
78.7" |
| Turning Diameter |
78.7" |
| Spindle Speed |
8,000 RPM |
| Control |

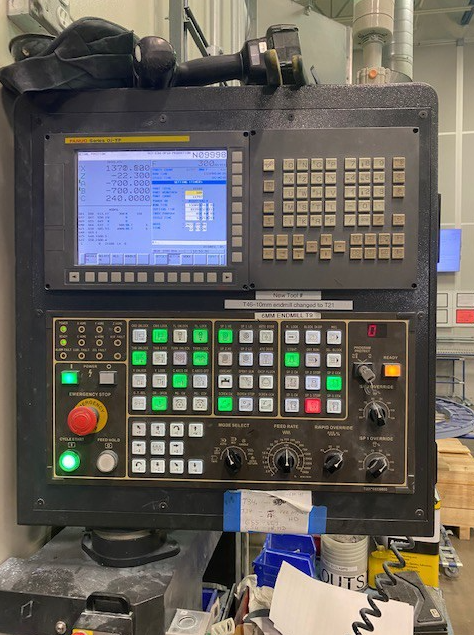

Fanuc Oi-TD |
| X-Axis Travel |
33-45.2" |
| Z-Axis Travel |
35.4" |
| W-Axis Travel |
31.5" |
| C-Axis |
.001 Degree |
| Rapid Traverse X |
472 IPM |
| Rapid Traverse Z |
393 IPM |
| Turret |
48 Station |
| Live Tooling |
C-Axis Live Tooling |
| Chip Removal |
Chip Conveyor |
| Note |
Machine Has Only Cut Plastic |
Features
|
(128) Tool Offsets |
Prepped for Through Spindle Coolant |
|
Auto Tool Presetter |
Prox Switch |
|
(6) Sets of Work Coordinate |
Rear Flush System |
|
Renishaw RTS |
Rotary Scale System with Position Accuracy of 15 ARC Seconds |
|

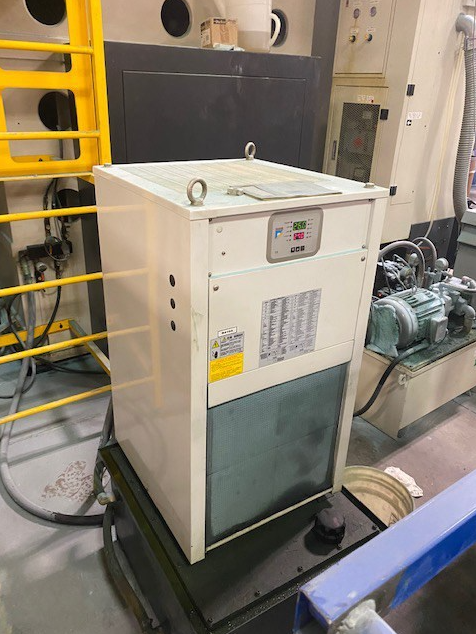

Spindle Chiller |

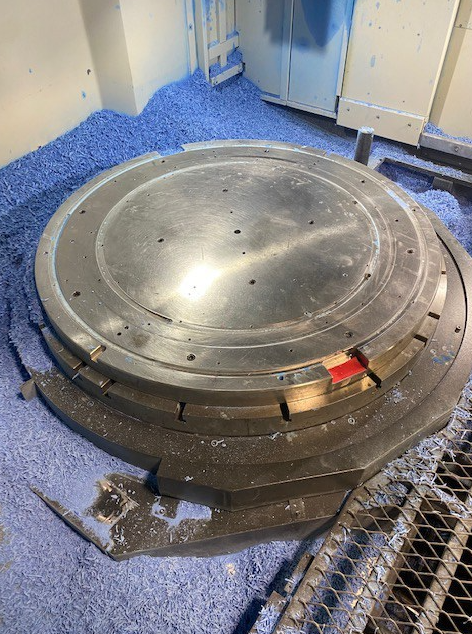

4-Jaw 63" Manual Chuck |
|

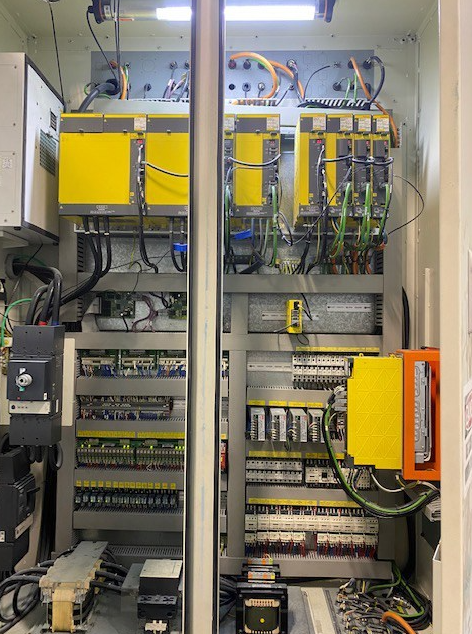

Air Conditioned Electrical Cabinets |
All Static Holders Included |
|
Auto Doors |
Auto Power Off |
|
Ballscrew Protection |
Enhanced Way Cover |
|
Hazardous Material Protection |
Helical and Circular Interpolation |
|
ISO 50 Taper CT Spindle Nose |
Wireless Part Probe and Tool Setter System |
