| Year | 2015 |
|---|---|
| Make | ESCO |
| Model | B-30-5FG |
Description |

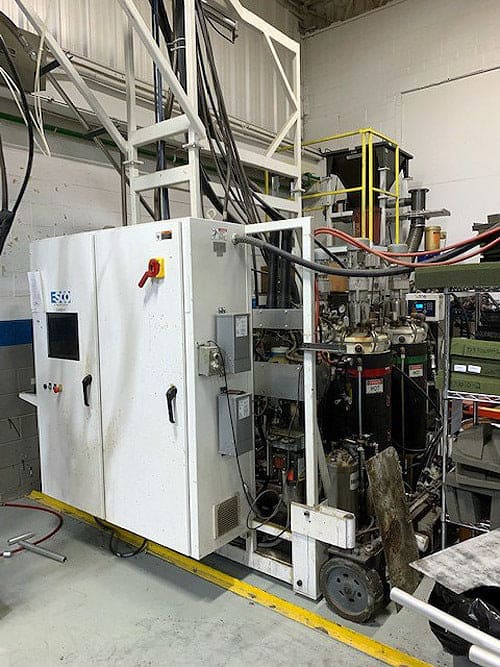

Foam Dispensing Machine |
| Reference # | 8071089 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used ESCO B-30-5FG (2015) Foam Dispensing Machine for Sale. This pre-owned ESCO foam dispenser is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this ESCO Foam Dispensing Machine, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Machine Throughput |
10-30 lb/min |
|---|---|
| Target Batch |
10 - 20 Gallons (~200 lbs) |
| Cycle Time |
~40 min |

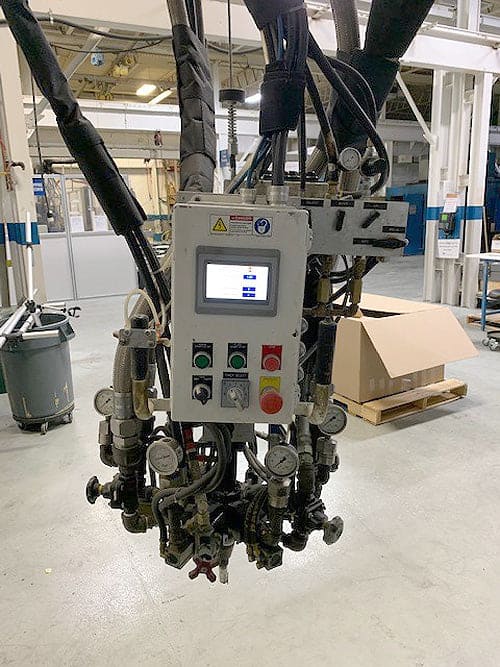

| ESCO M500-5-SPL Mixing Head |
Plunger Style Solvent Injector Valve Conical Mixer Mechanical Shaft Seal Variable Speed Servo Motor Drive Speed: 1,000 - 5,000 RPM Pressure Balancing Return Line Valves |
| Automatic Solvent Flush System |
5 Gallon Stainless Steel Tank Pressure Rating: 110 PSI |
| Isocyanate Metering System |
3.3 - 10 lb/min Variable Speed Motor |

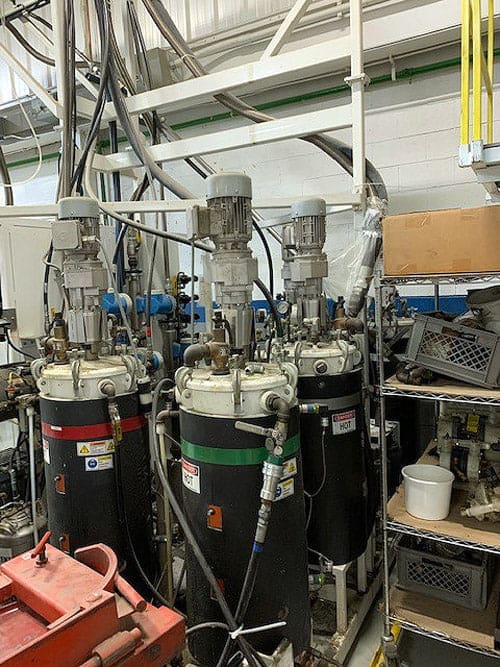

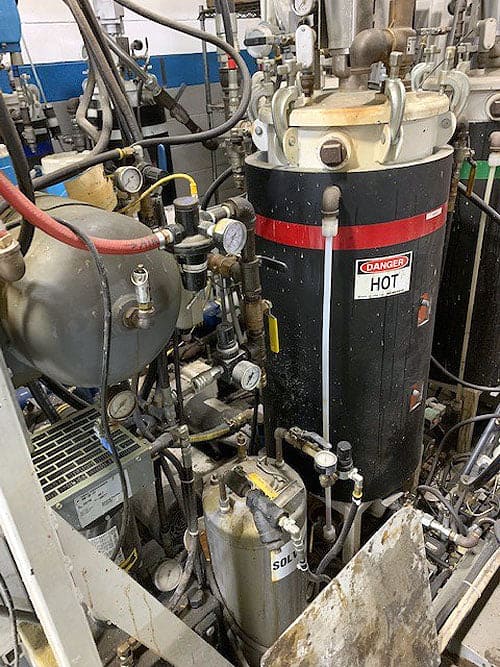

| 20 Gallon Tank System |
15 PSI Rating Nitrogen (Dry Air) Blanketing System Electric Agitator Automatic Refill Controls & Sensors |

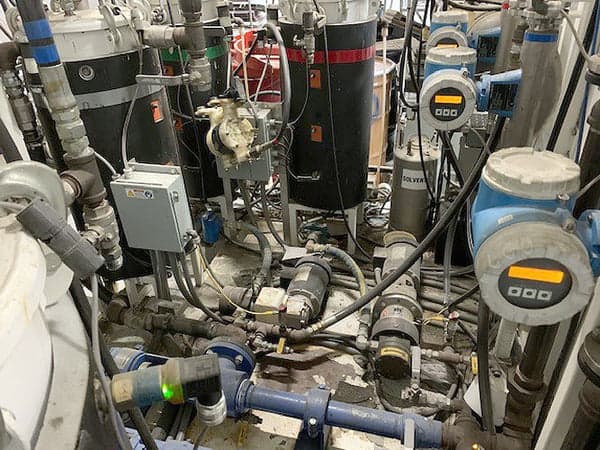

| EG Filled Polyol Metering Systems (x2) |

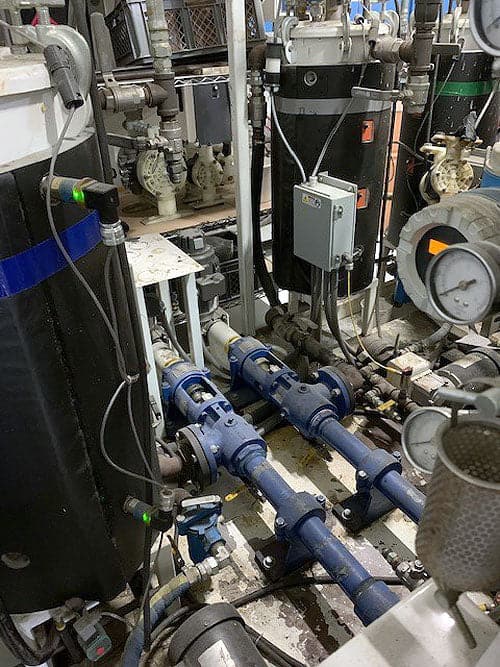

6.7 - 20 lb/min Positive Displacement Progressive Cavity Pump Variable Speed Motor |
| Drum Pump Refill |
Air Operated Diaphragm Transfer Pump Integrated Machine Control |
| Electric Requirements |
240V / 3 Phase / 60 Hz |
| Air Supply |
90-100 PSI at 10-15 SCFM |

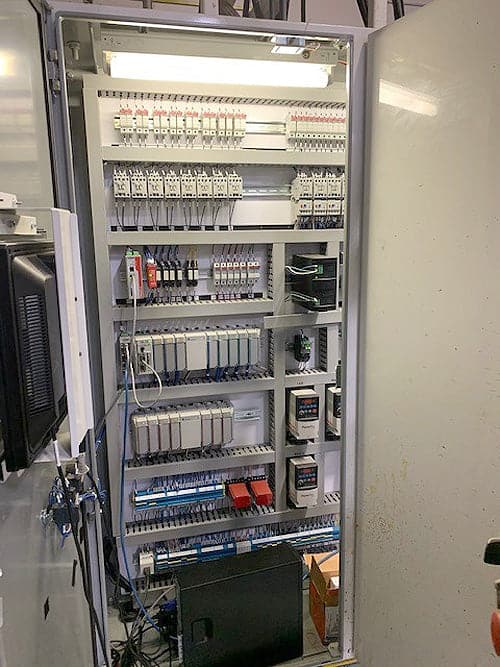

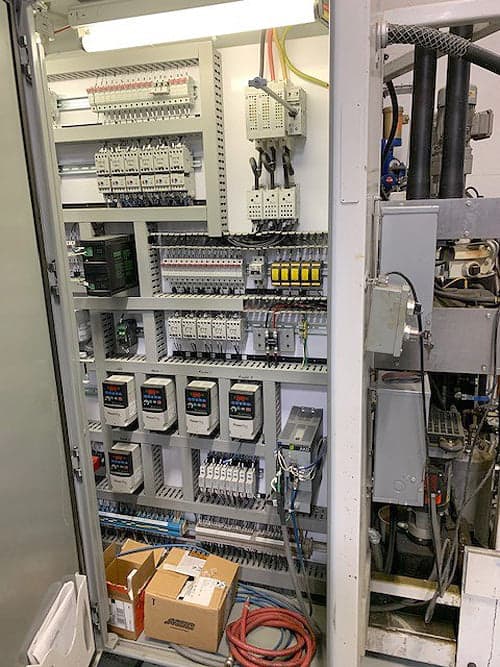

| Control |
Allen Bradley PLC |
| Automatic Solvent Flush |
110 PSI |
| Blended Polyol Feed Pump Systems |
5 gal/min |
| Note |
Manuals & Drawings Available |
Features
|
Regenerative Desiccant Air Dryer Package |
20 Gallon Work Capacity/Batch Tank |
|
5 Gallon Stainless Steel Solvent Tank |
Tank Heating Systems |
|

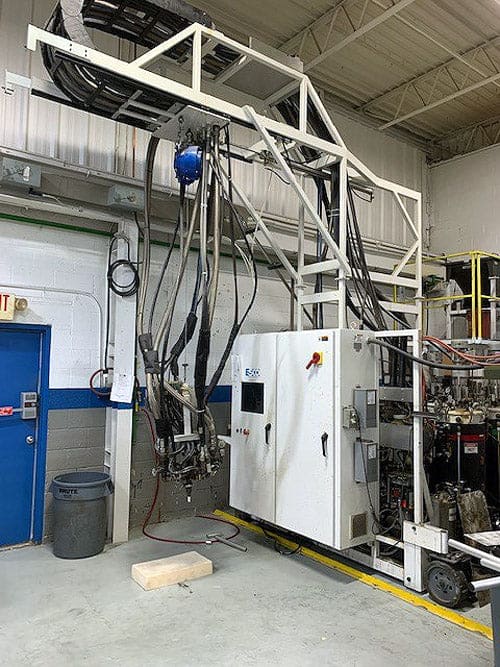

Adjustable Mixing Head Boom |
Variable Speed Batch Mixer |
|
Base Polyol Feed Systems (x2) |

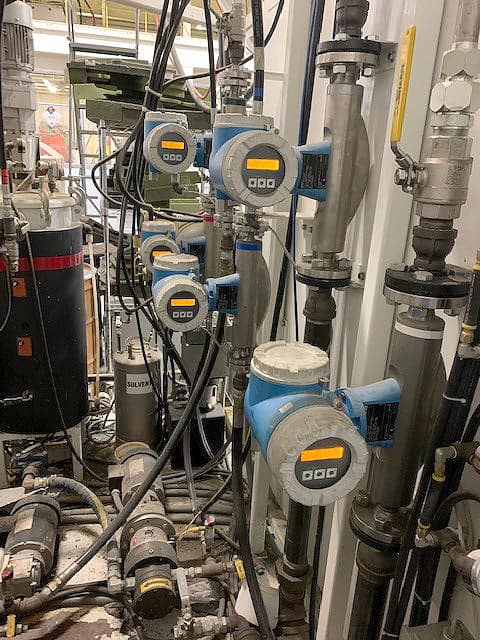

Closed Loop Flow Controls |
|
ESCO AB-200 Batching and Blending System |

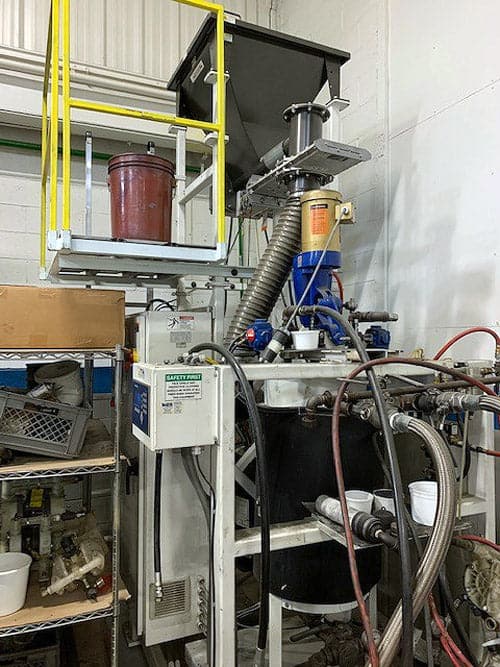

Mineral Filler Metering/ Feed Conveyor System |
|
Mixing Head Control Station |
