| Year | 2015 |
|---|---|
| Make | Haitian |
| Model | JU6500II/4500 |
Description |
730 Ton 71.01 oz Shot Size Injection Molding Machine |
| Reference # | 8071515 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

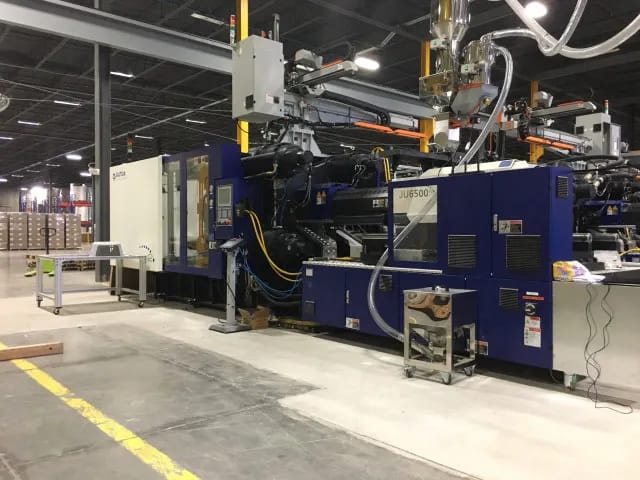

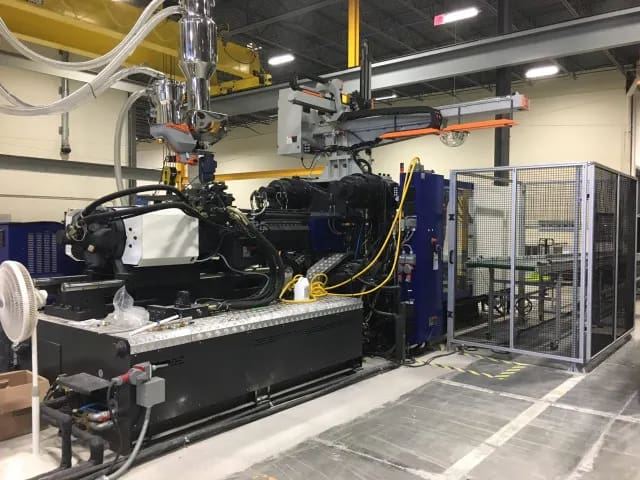

Used Haitian JU6500II/4500 (2015) Injection Molding Machine for Sale. This pre-owned Haitian plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Haitian Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
730 Ton |
|---|---|
| Shot Size |
71.01 oz |
| Tie Bar Spacing |
40.94" x 35.83" |
| Platen Size |
55.12" x 53.15" |
| Max Daylight |
68.90" |
| Min /Max Mold Height |
15.75" / 37.40" |
| Clamp Stroke |
31.5" |
| Ejector Stroke |
9.84" |
| Ejector Force |
12.4" |
| Max Opening Stroke |
53.15" / 31.50" |
| Power Requirement |
460/3/60 |
| Hours |
1,515 |
Features
|
(2) Air Circuits on Moveable |
(2) Air Circuits on Stationary |
|
Euromap 67 Robot Interface |
2015 Well-lih MaxCw10-1300 Robot |
|
SPI Platen Layout |
(1) Core Pull on Moveable |
|
(1) Core Pull on Stationary |
T-Slots |
|
Valve Gate Interface with 8 Circuits |
Bi-Metal Screw & Barrel |
|
Expandable I/O 8in/8out |
Integrated Hot Runner Control (12 Zone) |
