| Year | 2015 |
|---|---|
| Make | Mitsubishi |
| Model | ML3015NX-F40(S) |
Description |
5' x 10' 4kW CNC Fiber Laser |
| Reference # | 8071636 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used Mitsubishi ML3015NX-F40(S) (2015) CNC Laser for Sale. This pre-owned Mitsubishi CNC laser cutter is located in Ohio and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
4,000 |
| X-Axis Travel |
125.98" |
| Y-Axis Travel |
62.99" |
| Z-Axis Travel |
4.7" |
| Control |
Mitsubishi CNC |
| Travel Drive Method |
X,Y,Z Simultaneous 3-Axes |
| Control Method |
X,Y, and Z Simultaneous 3-Axis Control |
| Max Processing Feed Rate |
2,360 IPM |
| Minimum Command Input |
.001 mm/.0001” |
| Simultaneous |
6,680 IPM |

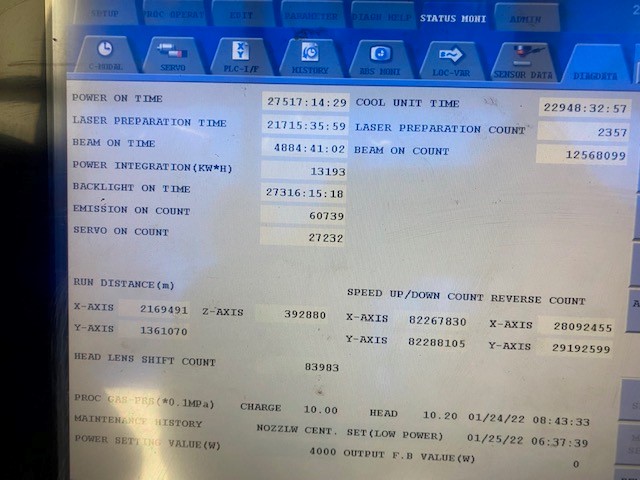

| Hours |
Approx 5,000 Beam On Time |
| Table Pass Height |
33.5” |
| Pallet Change Time |
Approx. 35 Seconds |
| Power Requirement |
208/3/60 |
| Max Work Piece Weight |
3,660 Lbs |
| Max Work Piece Size |
120” x 60” |
| Note |
Not Available Until September |
Features
|
Precision Rack and Pinion with Linear Z-Axis |
Chiller Unit |
|
Dual Pallet Shuttle Tables |
Intelligent AC Servo Drive Motor |
