| Year | 2015 |
|---|---|
| Make | Peddinghaus |
| Model | Peddiwriter PW1250 |
Description |
CNC Plasma Marker |
| Reference # | 8071137 |
Price |
Activate PricingInquire Now |

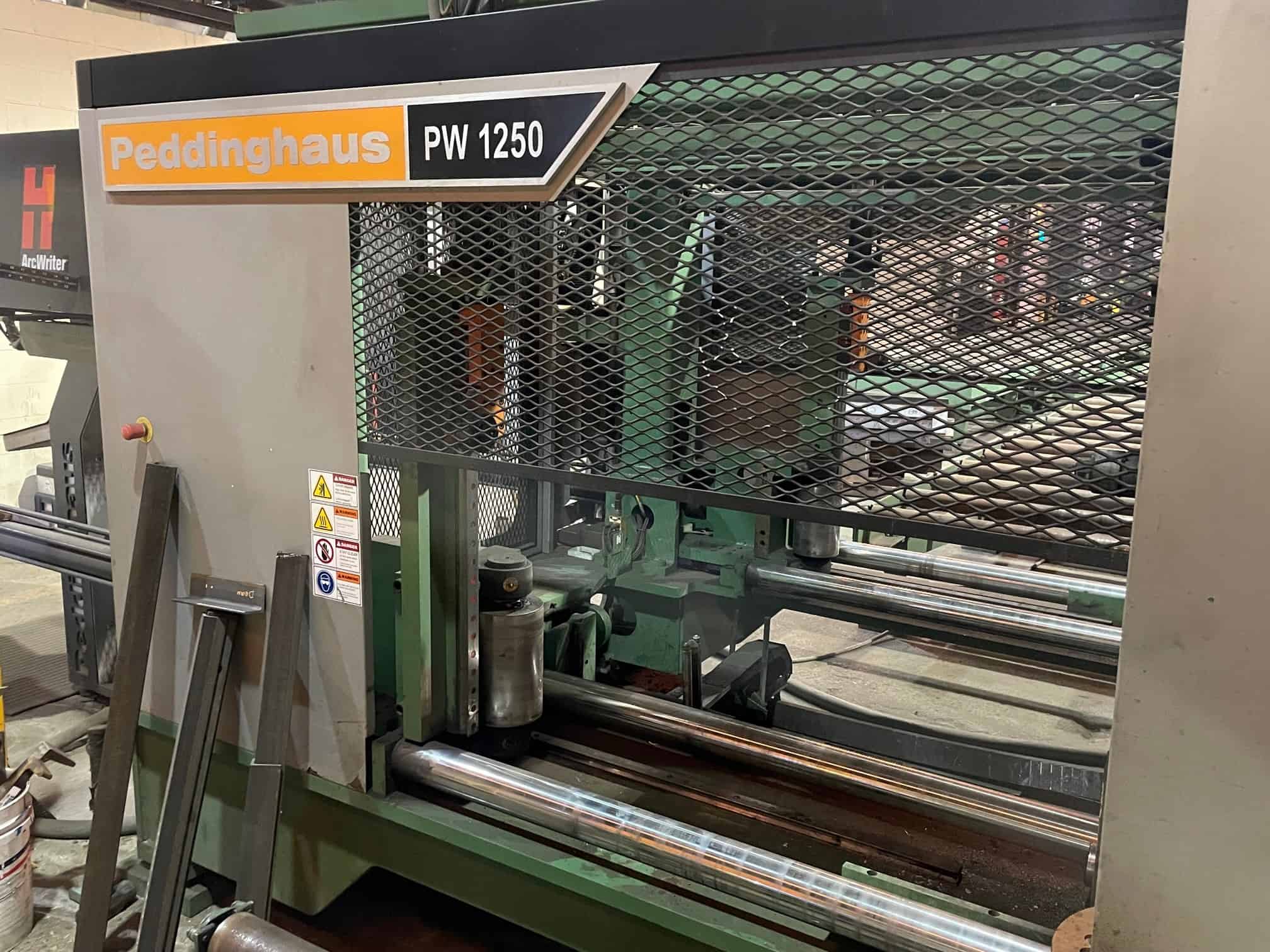

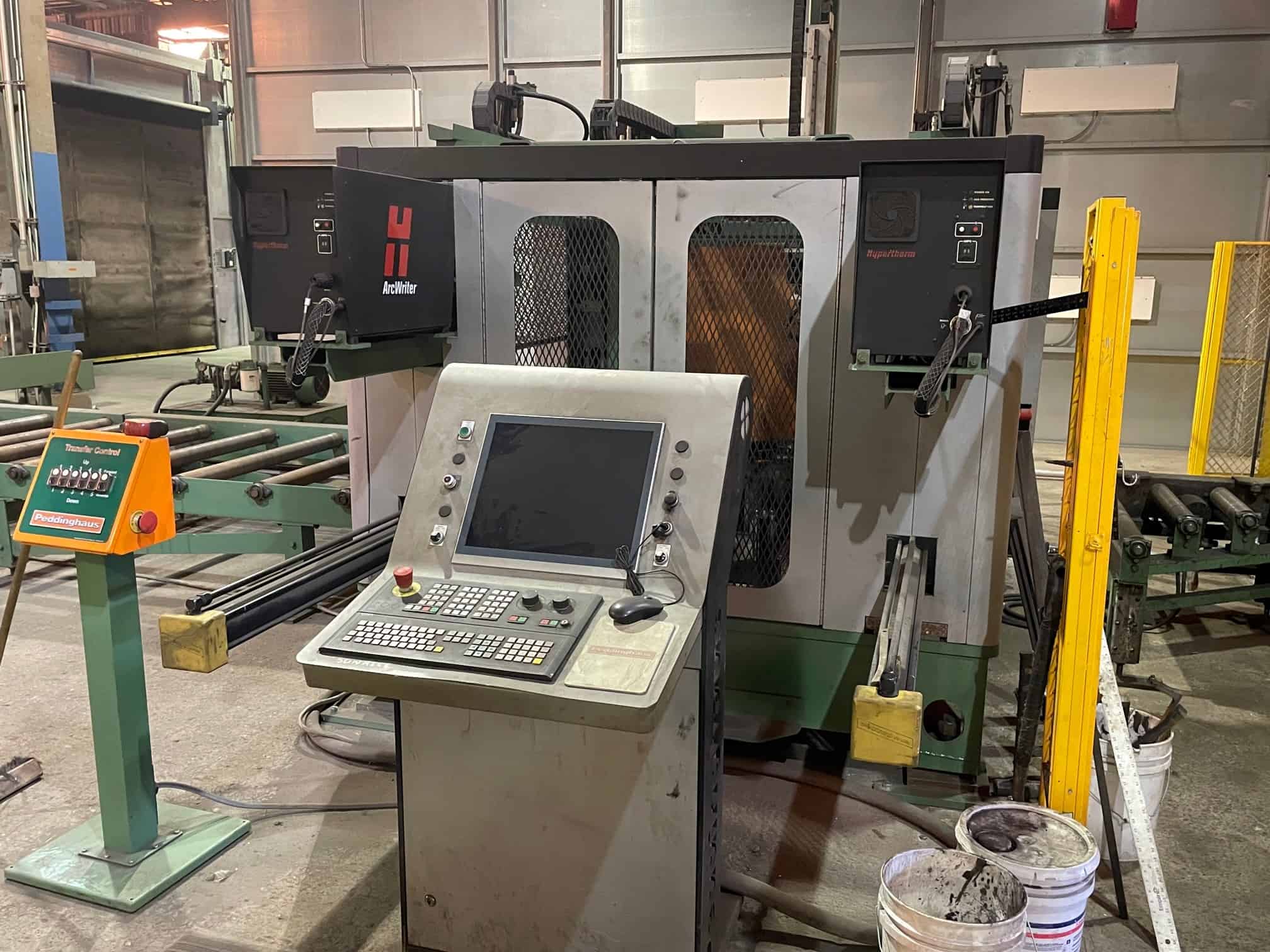

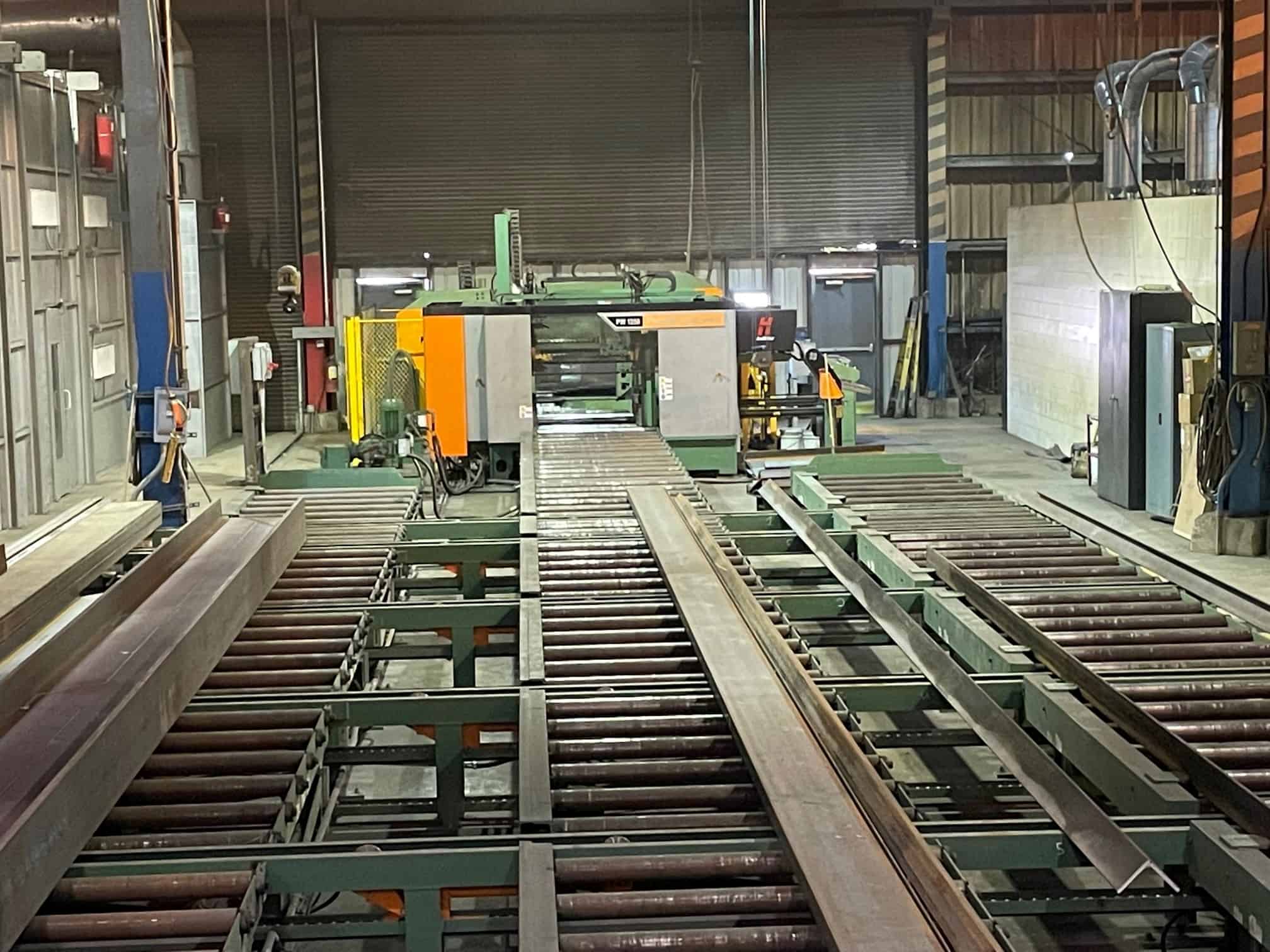

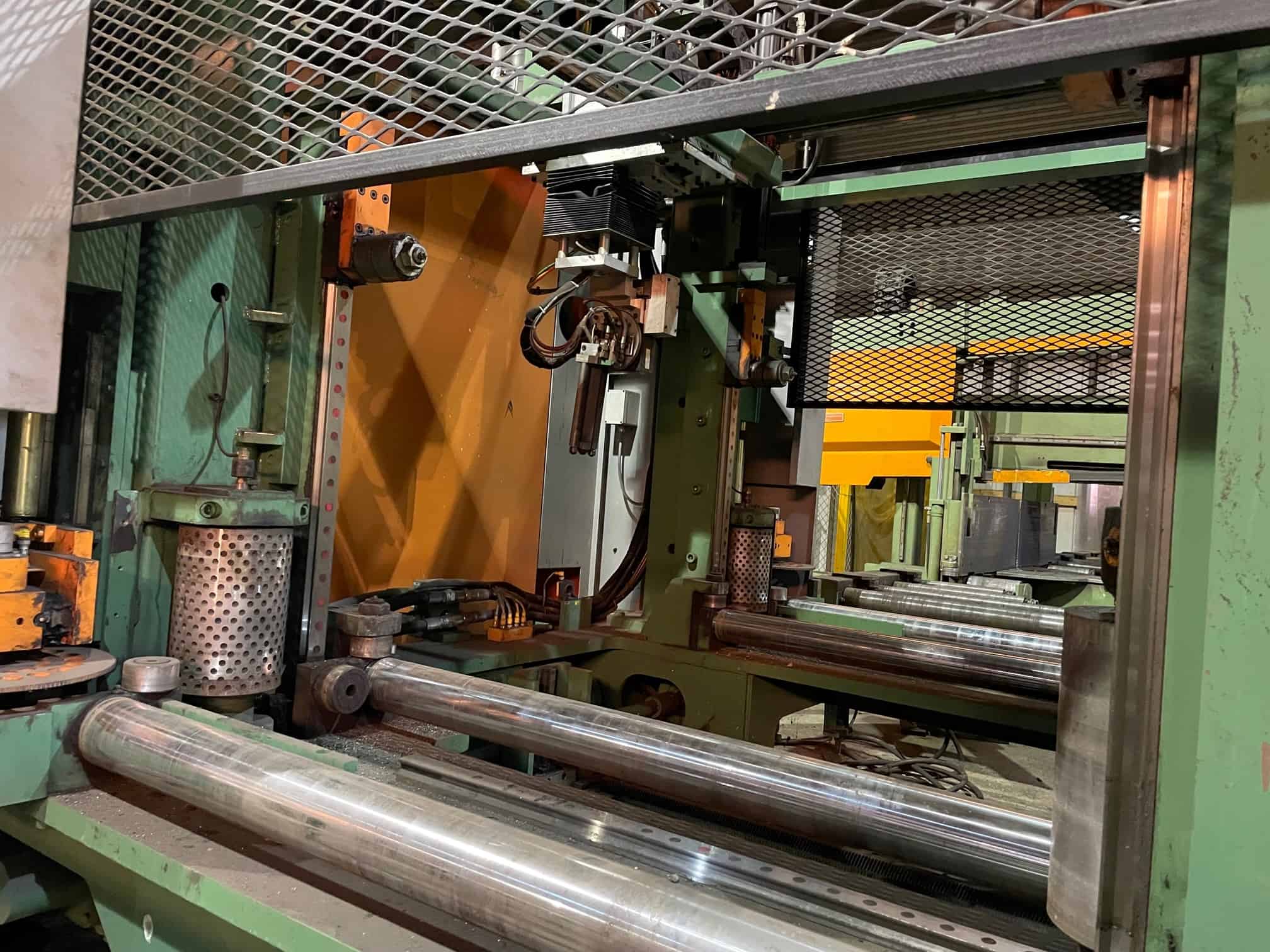

Used Peddinghaus Peddiwriter PW1250 (2015) CNC Plasma Marking Machine for Sale. This pre-owned Peddinghaus CNC plasma marking machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Peddinghaus Plasma Marking Machine, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Type of Marking |
Plasma ArcWriting |
|---|---|
| Number of Marking Assemblies |
(2) Hypertherm ArcWriter Torches |
| Surfaces That Can Be Marked |
Top/Bottom Web & Flange |
| Surfaces Marked Simultaneously |
2 Surfaces |
| Max Profile Dimensions (Beam, Channel) |
55" x 24" |
| Max Profile Dimensions (Tube) |
24" x 16" |
| Max Profile Dimensions (Angle) |
12" x 12" |
| Max Profile Dimensions (Flat) |
50" x 4" |
| Max Profile Dimensions (Beam, Angle) |
3" x 3" |
| Max Profile Dimensions (Tube, Channel) |
2" x 2" |
| Acceptable Profiles |
Beams, Channel, Square/Rectangular, Tubing, Angle, Flat Stock |
| Control |
Siemens CNC |
| Max Profile Weight |
43,800 Lbs |
| Machine Weight |
13,650 Lbs |
Features
|
Raptor Software |
Entry & Exit Conveyor |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
