| Year | 2015 |
|---|---|
| Make | Quantum |
| Model | QV5-3000 |
Description |
CNC Vertical Machining Center |
| Reference # | 8073029 |
Price |
Activate PricingInquire Now |

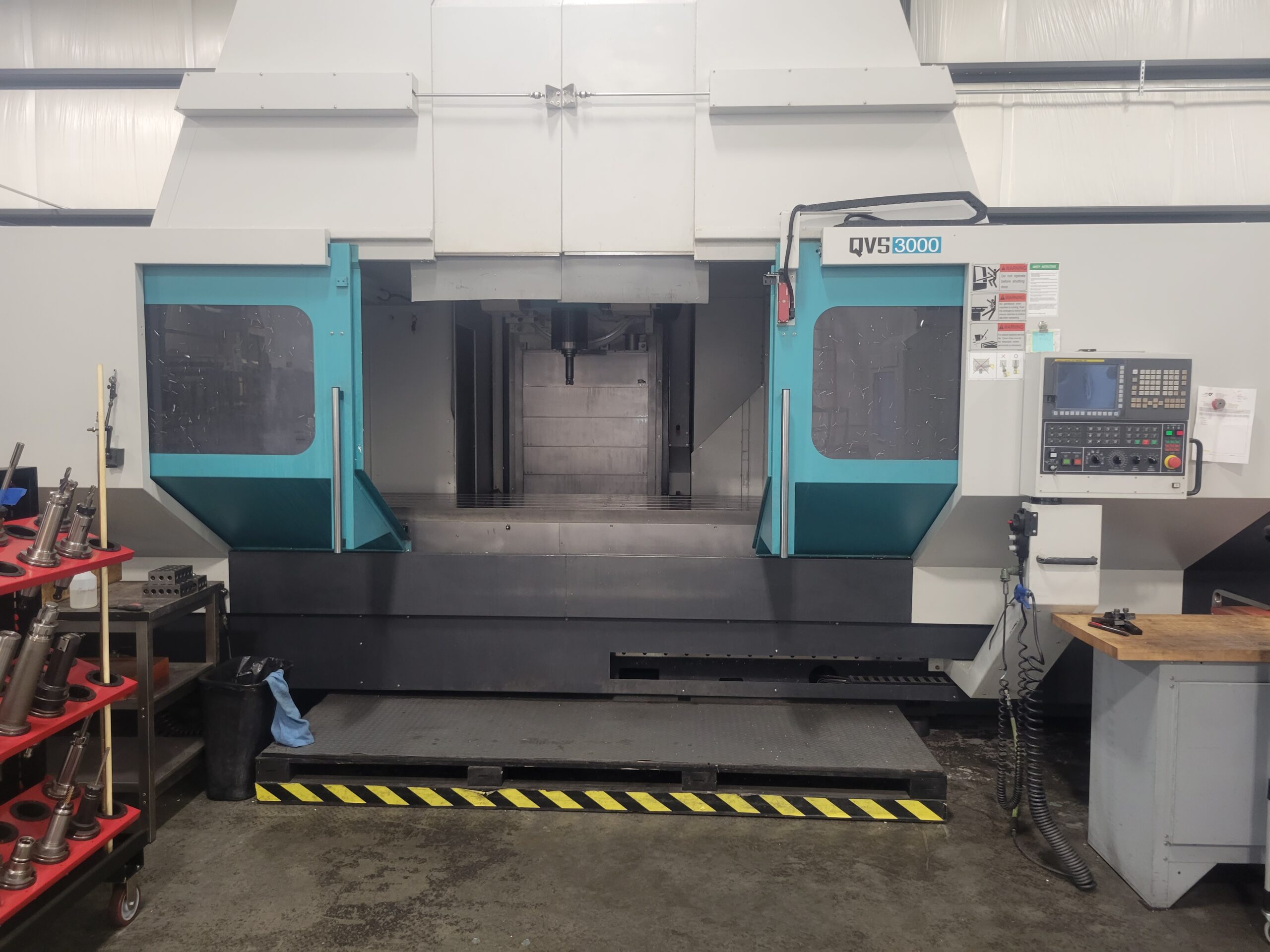

Used Quantum QV5-3000 (2015) CNC Vertical Machining Center for Sale. This pre-owned Quantum CNC vertical mill is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Quantum Vertical Machining Center, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
118.1" |
|---|---|
| Y-Axis Travel |
39.4" |
| Z-Axis Travel |
29.5" |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
CAT 50 |
| Spindle Motor |
25/30 HP |

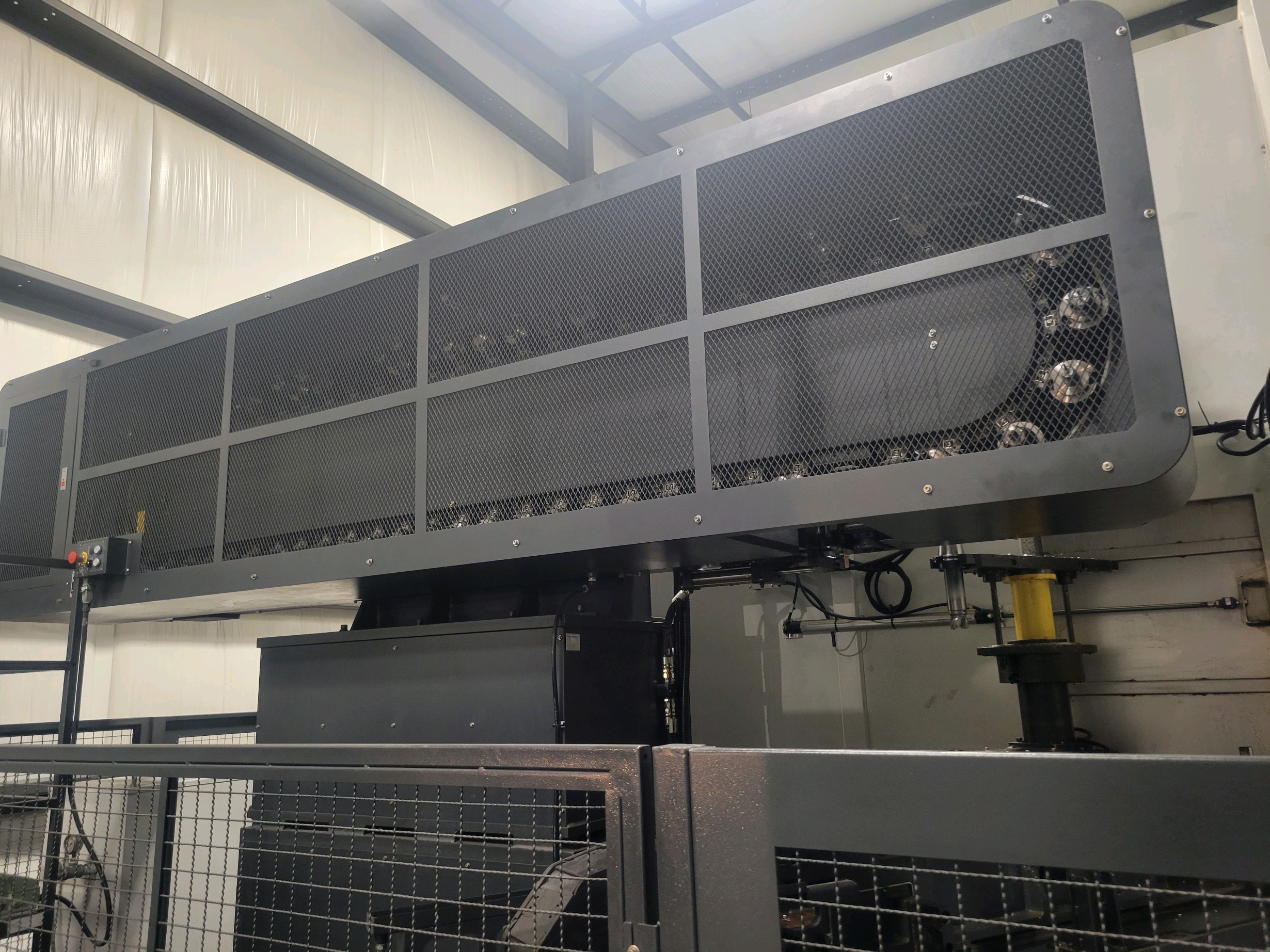

| Tool Magazine Capacity |
60 ATC |
| Control |
Fanuc CNC |
| Chip Removal |
Lift-Up Chip Conveyor with Drum Filter |
| A/B-Axis Travel |
-40~+40 Degree |
Features
|
3-Color Patrol Light |
Chip Wash Down System |
|
Disc Oil/Coolant Separator |
Dual Nitrogen Balancing Cylinders |
|
Hydraulic Unit and Spindle Oil Cooling System |
Interior Work Lamps |
|
Movable Manuel Pulse Generator |
Spindle Air Dryer |
|
Spindle Oil Air Lubricator |
Z-Axis Motor Brake |
|
5-Axis |
