| Year | 2015 |
|---|---|
| Make | Trumpf |
| Model | TruLaser Tube 5000 |
Description |
CNC Tube Laser |
| Reference # | 8074867 |
Price |
Activate PricingInquire Now |

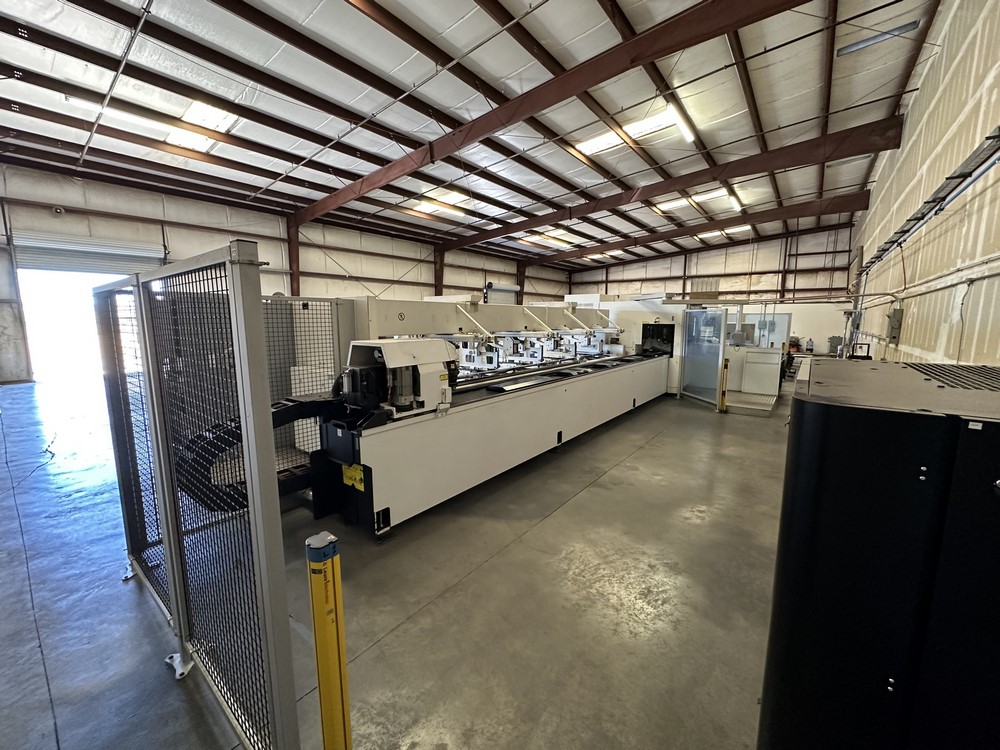

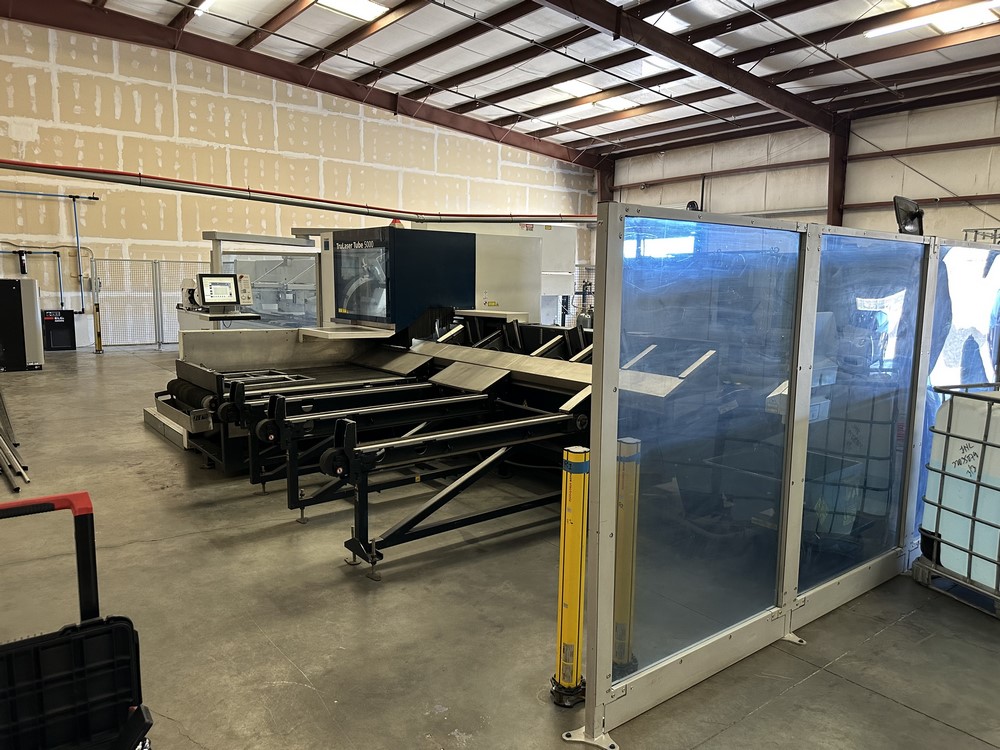

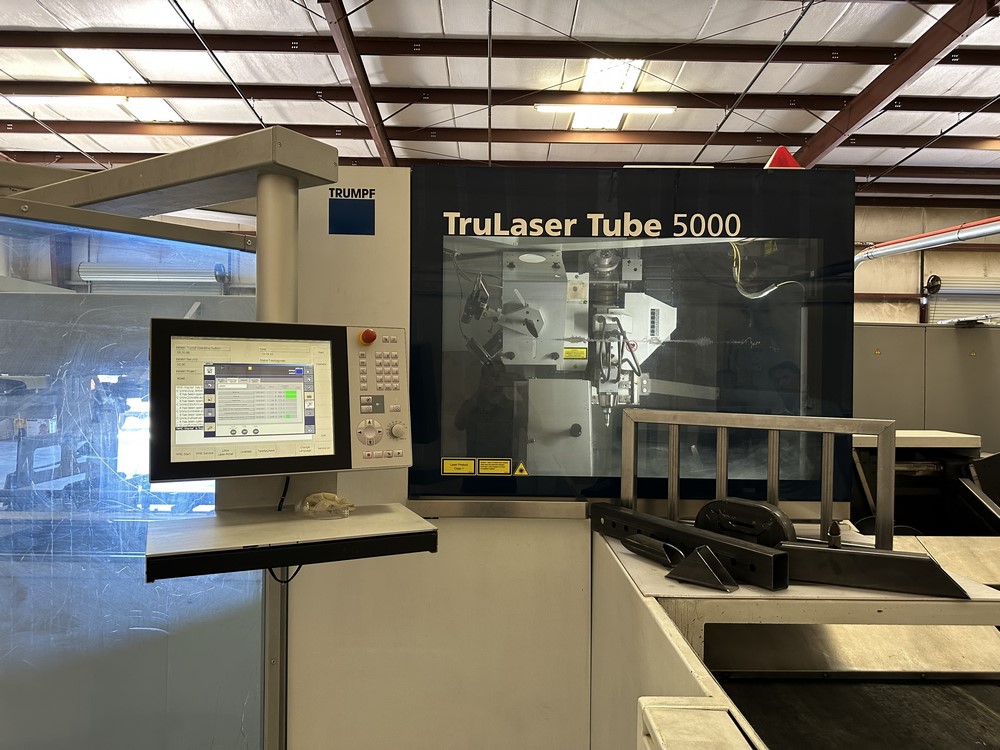

Used Trumpf Trulaser Tube 5000 (2015) CNC Laser for Sale. This pre-owned Trumpf CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Trumpf Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Max Wattage |
3,200 |
|---|---|
| X-Axis Travel |
255.9" |
| Y-Axis Travel |
7.87" |
| Z-Axis Travel |
5.90" |
| Control |
Sinumerik 840D CNC |
| Laser Source |
CO2 |
| Resonator |
Truflow 3200 |
| Max. Cutting Thickness |
Mild Steel 0.251" / Stainless 0.196" / Aluminum 0.157" |
| Max. OD Round & Rectangular Tubes |
5.984" |
| Max. Tube Length |
255.90" |
| Max. Length Automatic Loading |
118.11" |
| Max. Length Finished Parts |
180.0" |
| Max. Workpiece Weight |
264.55 lbs |
| Max. Tube Bundle Weight |
8,818 lbs |
| Travel Speed |
3,937 IPM |
| Smallest Prog Increment |
+/- 0.0039" |
| Power Consumption |
27-53 Kw/H |
| Machine Weight |
38,580 lbs |
| Approx. Dimensions |
622”L X 319"W X 94"H |
Features
|
15′ Unload with Scrap Conveyer |
21′ Automatic Tube Loader and Magazine |
|
Automatic Shutdown |
Laser Power Control |
|
Light Barriers & Safety Cabin |
Maintenance-Free 3 Phase Servo Motors |
|
Nitroline High Pressure Cutting |
Seam Detection Camera |
|
Teleservice Connect |
TLF3200 Watt CO2 Power Source |
|
Programmable Cutting Pressure |
Chiller Unit |
|
Dust Collector |
Soft Touch Rollers |
|
Wireless Operation Point |
Work Area Lighting |
