| Year | 2015 |
|---|---|
| Make | Tsugami |
| Model | B0205-III |
Description |
CNC Swiss Lathe |
| Reference # | 8072928 |
Price |
Activate PricingInquire Now |

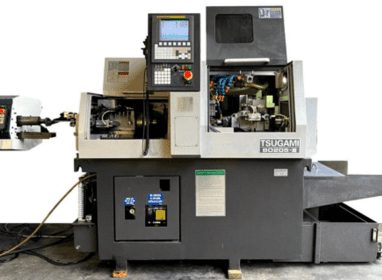

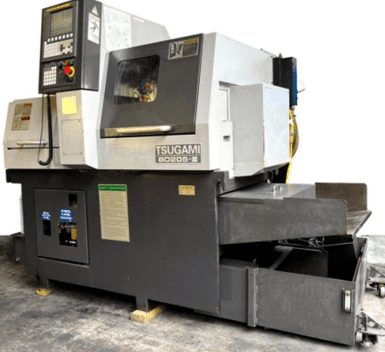

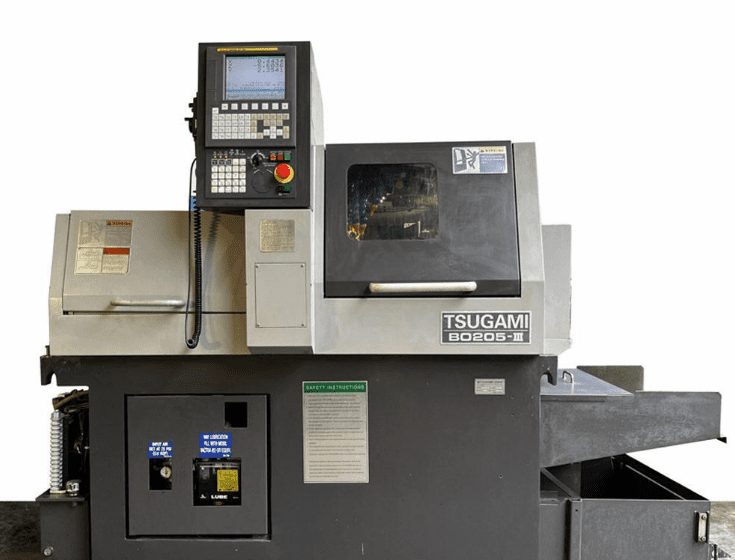

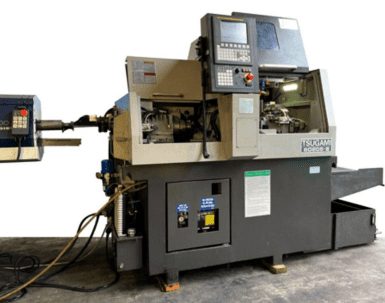

Used Tsugami B0205-III (2015) CNC Swiss Lathe for Sale. This pre-owned Tsugami CNC swiss lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Tsugami Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Bar Capacity |
0.79" |
|---|---|
| Turning Diameter |
0.79" |

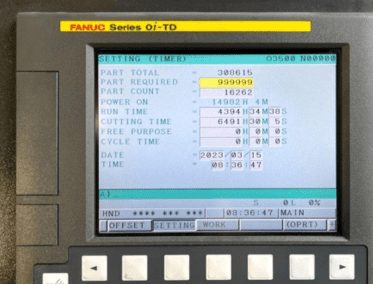

| Control |
Fanuc Oi-TD |
| High Speed Rapid Traverse |
944 IPM |
| Max Turning Length |
8.3" |
| Max Turning Length with Gripping Unit |
6.69" |
| Max Tool Positions |
21 |
| Max. Main Spindle Drilling Diameter |
0.39" |
| Max. Main Spindle Tapping Diameter |
M10 |
| Max. Back Spindle Chucking Diameter |
0.79" |
| Max. Back Spindle Drilling Diameter |
0.31" |
| Max. Back Spindle Tapping Diameter |
M8 |
| Max. Cross Drilling Diameter |
0.275"/ER`` & 0.393"/ER16 |
| Max. Cross Tapping Diameter |
M5 x 0.8 (option) |
| Max. Tool Spindle Slotting Cutter Diameter |
1.18" |
| Max. Back Drilling Diameter |
0.275" |
| Max. Back Tapping Diameter |
M5 |
| Main Spindle Indexing |
0.01 Degree (C-Axis Control) |
| Main Spindle Bore |
0.79" |
| Main Spindle Speed |
10,000 RPM |
| Back Spindle Speed |
12,000 RPM |
| Back Spindle Index |
1 Degree |
Features
|
Absolute Position Detection |
Books and Manuals |
|
Coolant Tank |

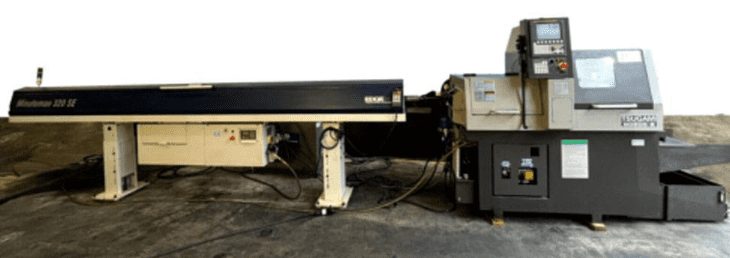

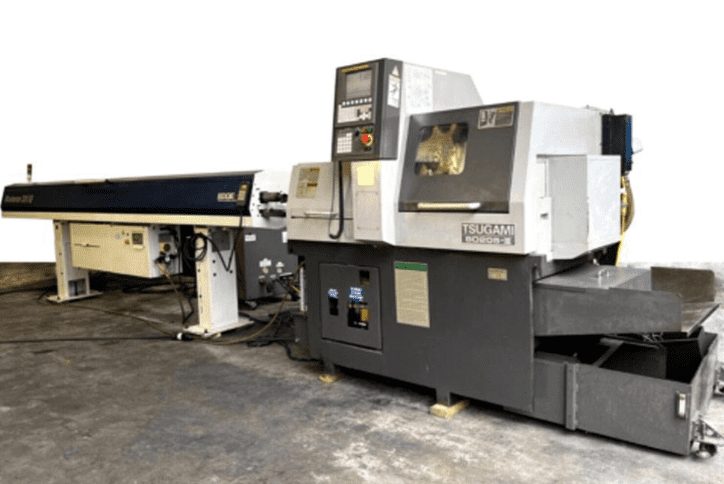

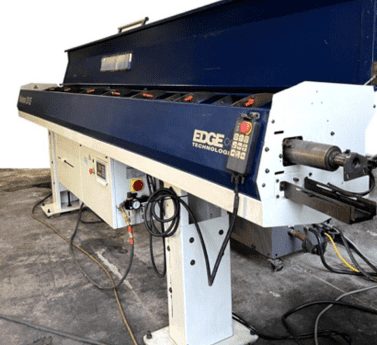

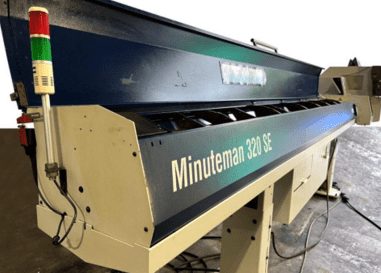

Edge Minuteman 320 SE Bar Feeder |
|
High Speed Program Processing |
Leveling Pads |
|
Live Tools Capable |
Long Parts Capable |
|
Main & Back Spindle Synchronization |
MPG Handwheel Control |
|
Parts Catcher |
Voltage Stepdown Transformer |
|
Automatic Lubrication System |
