| Year | 2016 |
|---|---|
| Make | Doosan |
| Model | Lynx 220LSY |
Description |
CNC Lathe |
| Reference # | 8072769 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

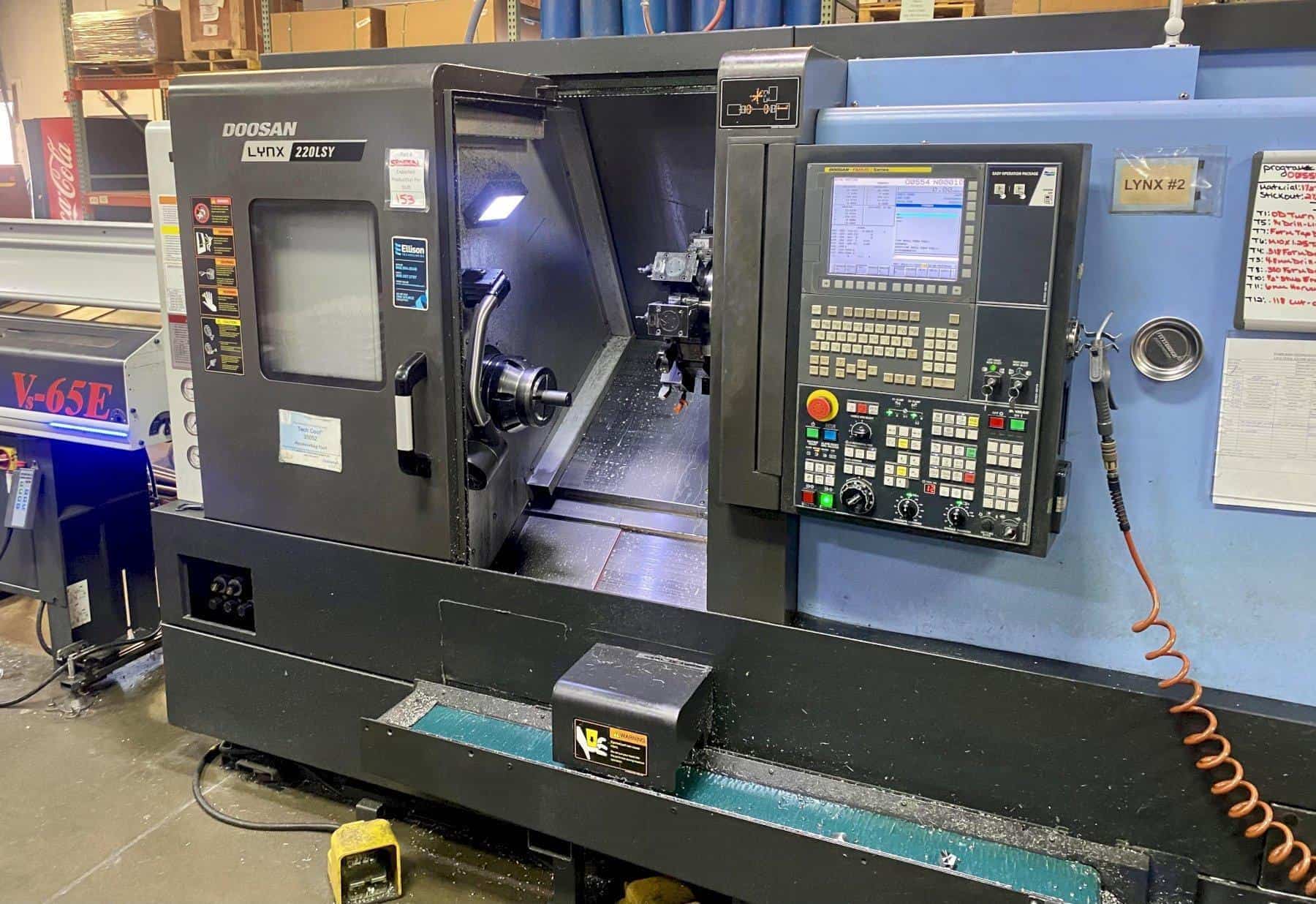

Used Doosan Lynx 220LSY (2016) CNC Lathe for Sale. This pre-owned Doosan CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Doosan Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications

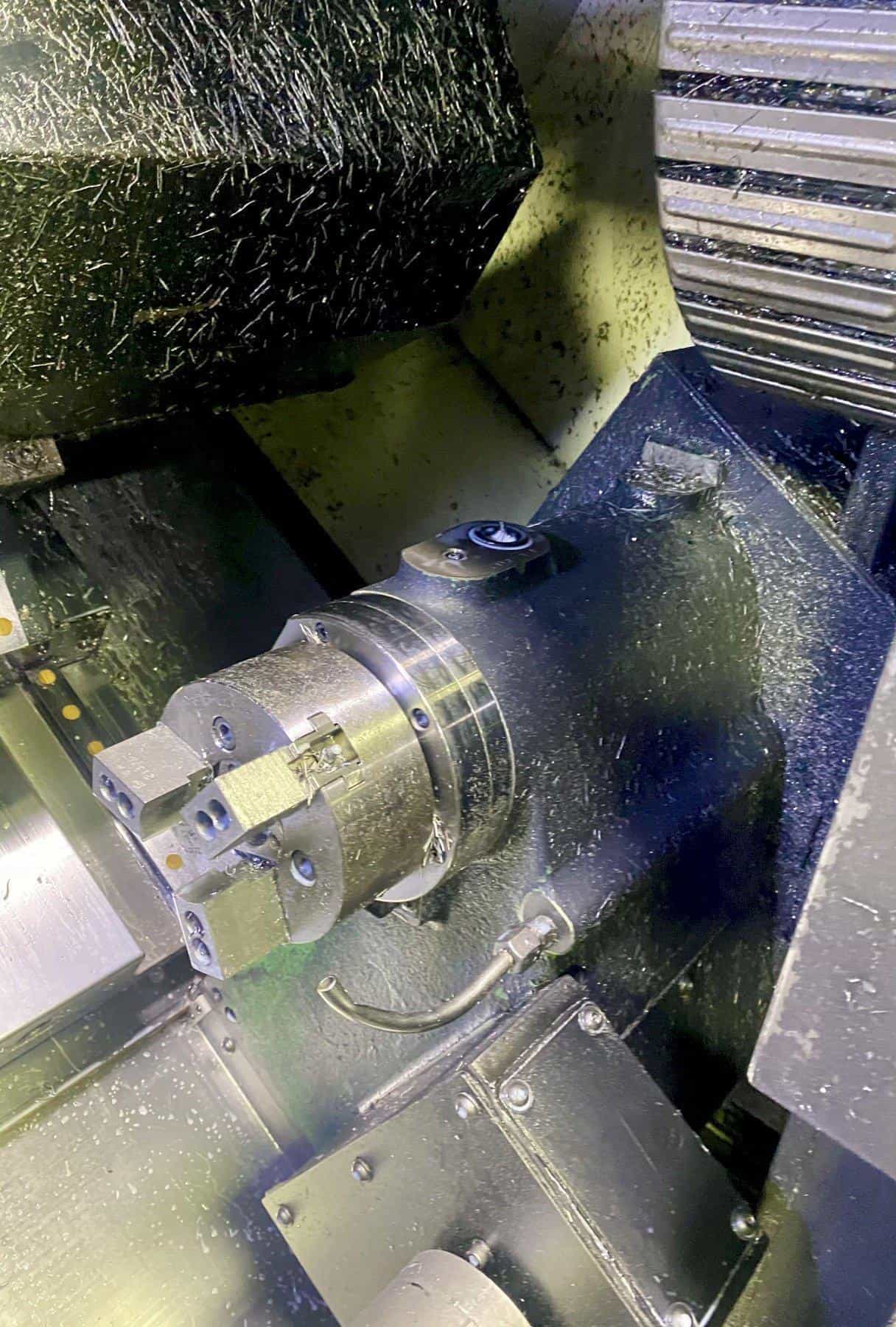

| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.5" |
| Swing |
23.6" |
| Turning Diameter |
11.8" |
| Spindle Speed |
4,500 RPM |

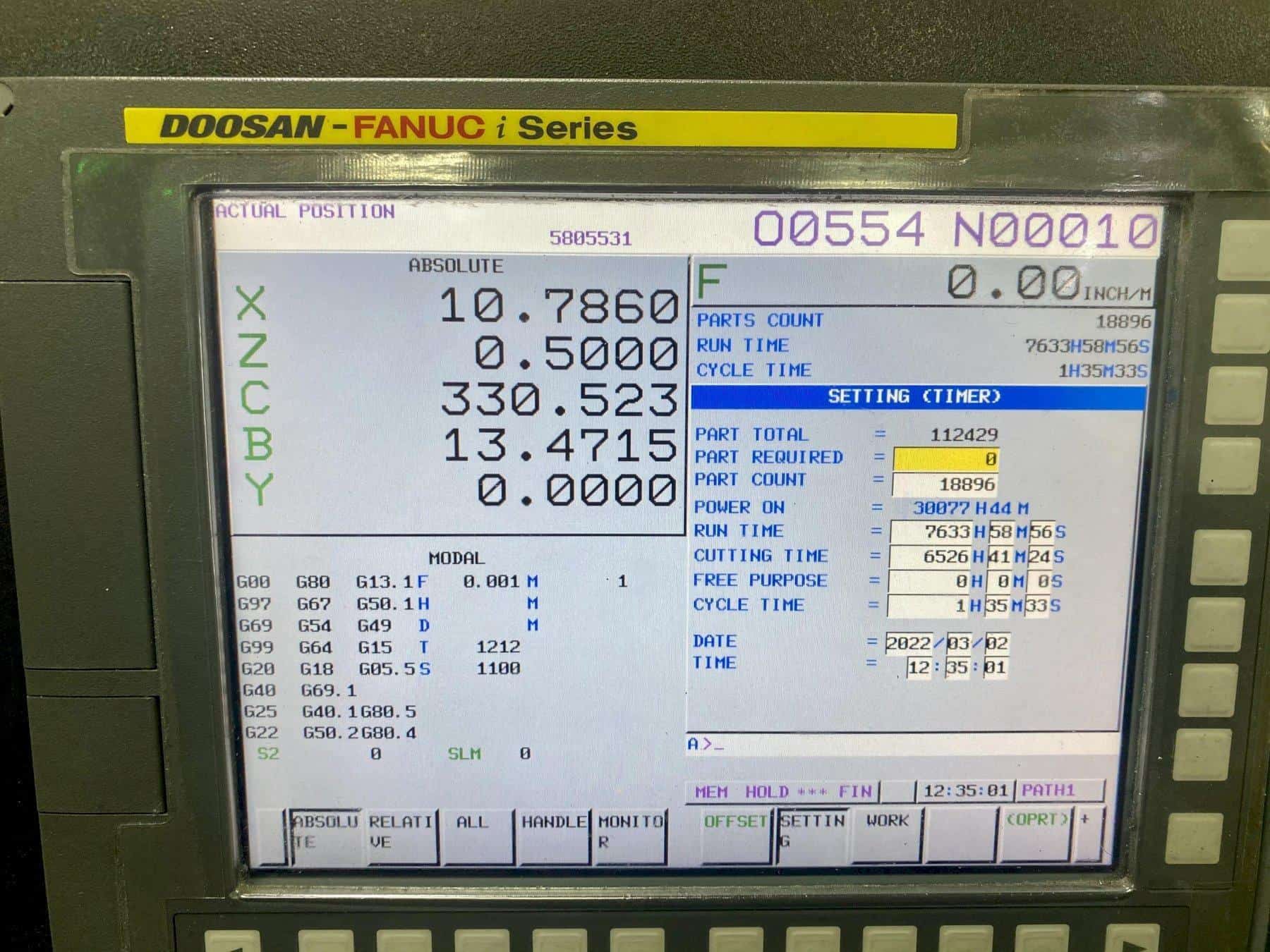

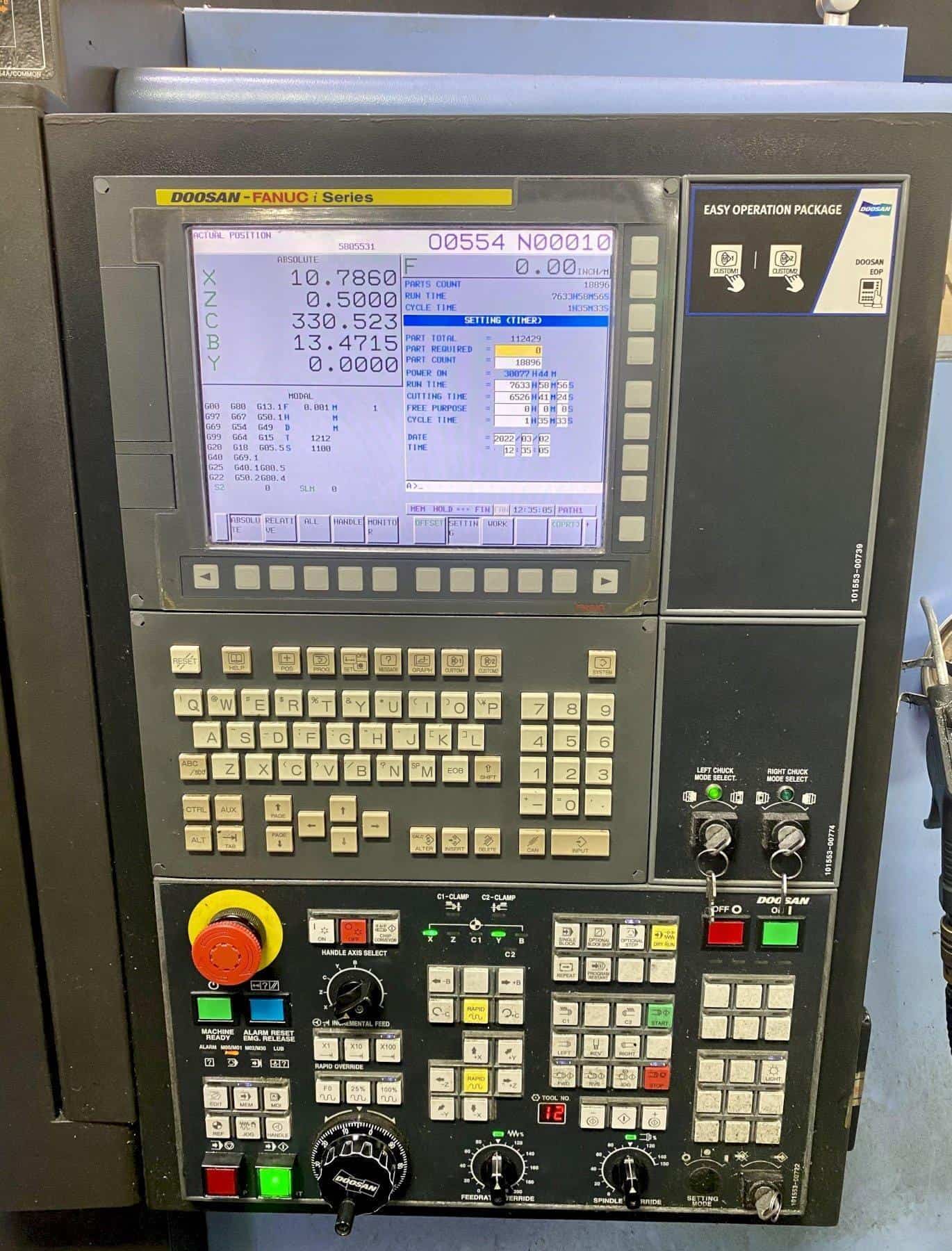

| Control |
Fanuc i Series |
| Distance Between Centers |
20.1" |

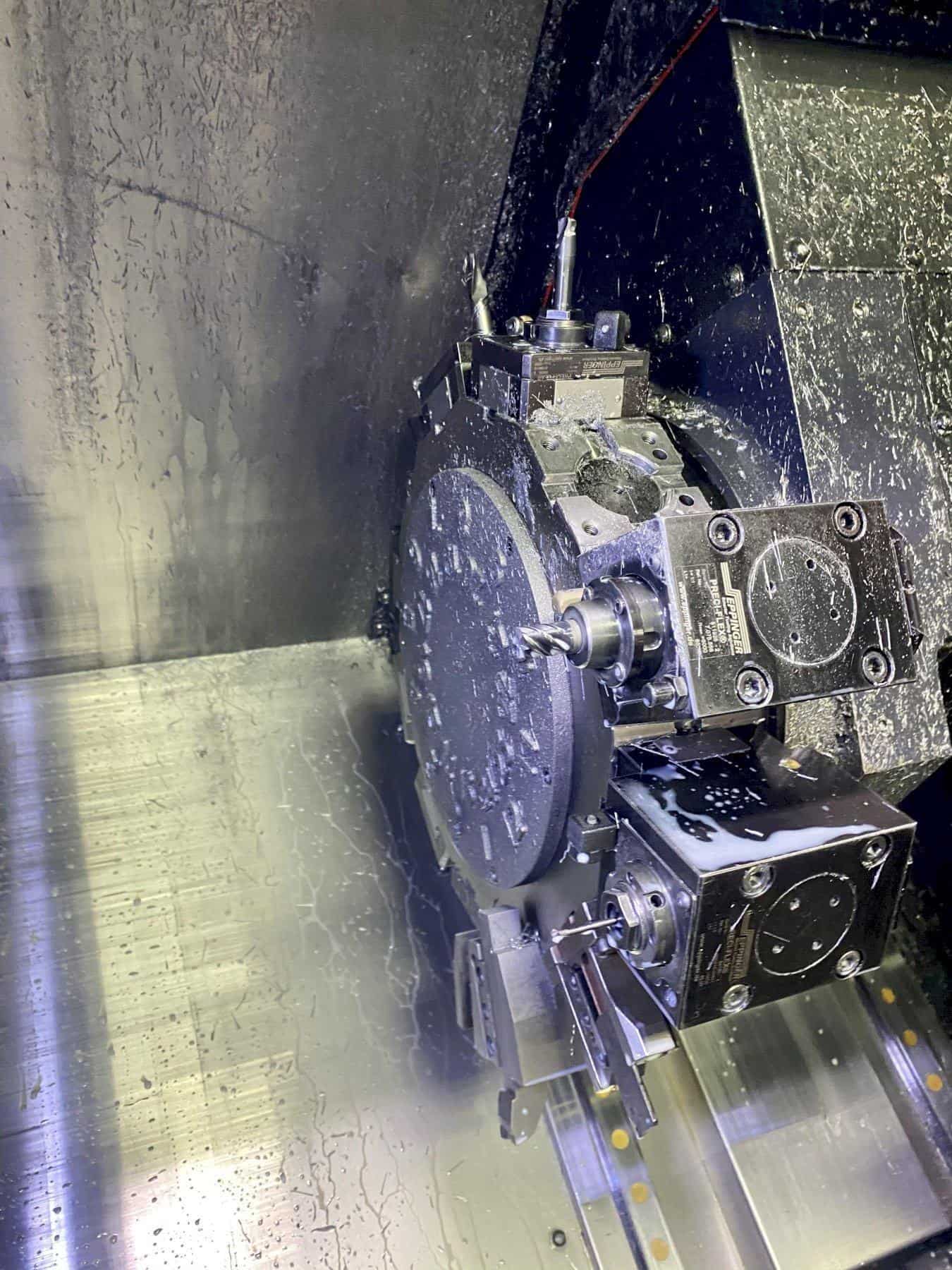

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |

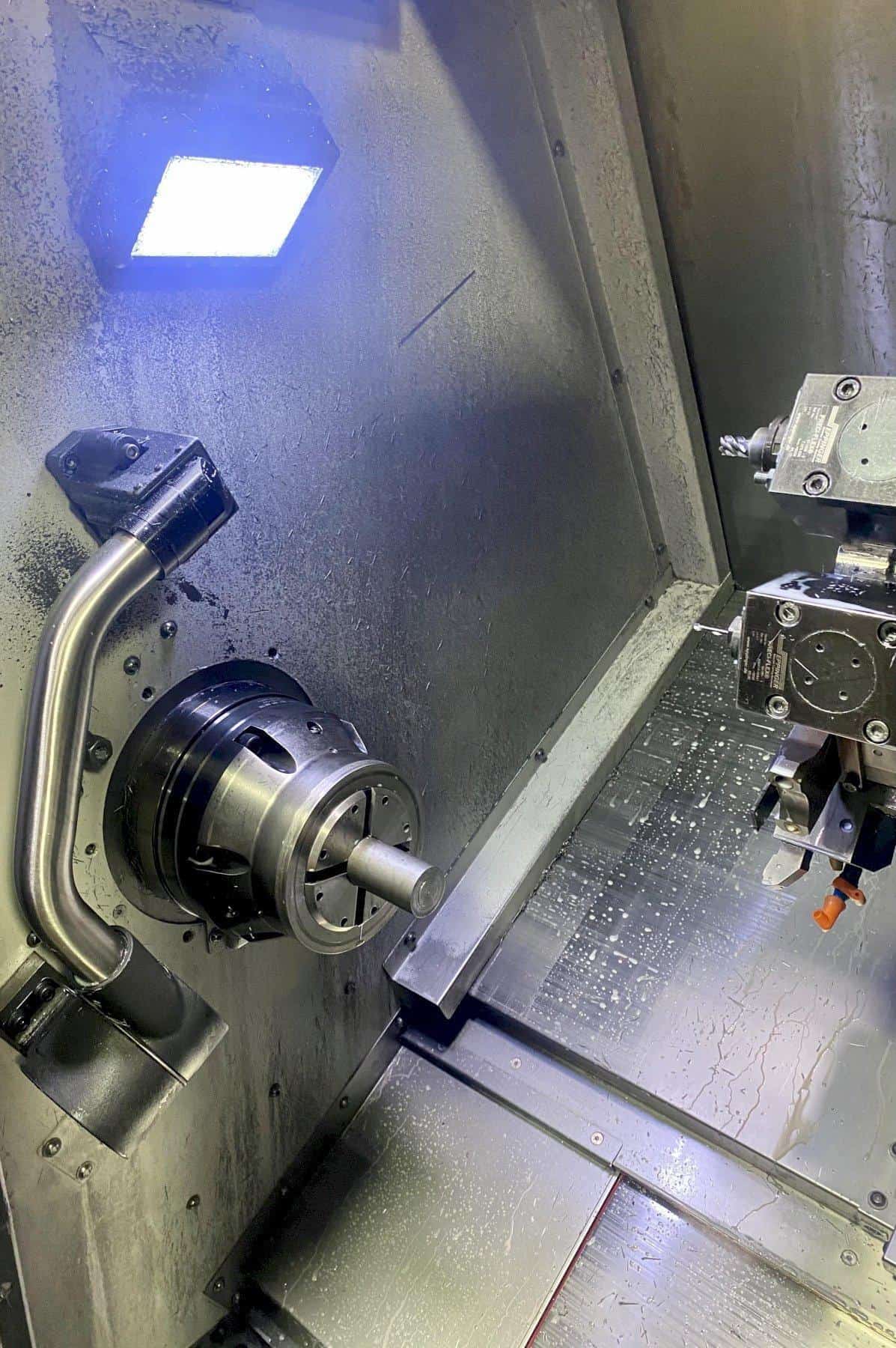

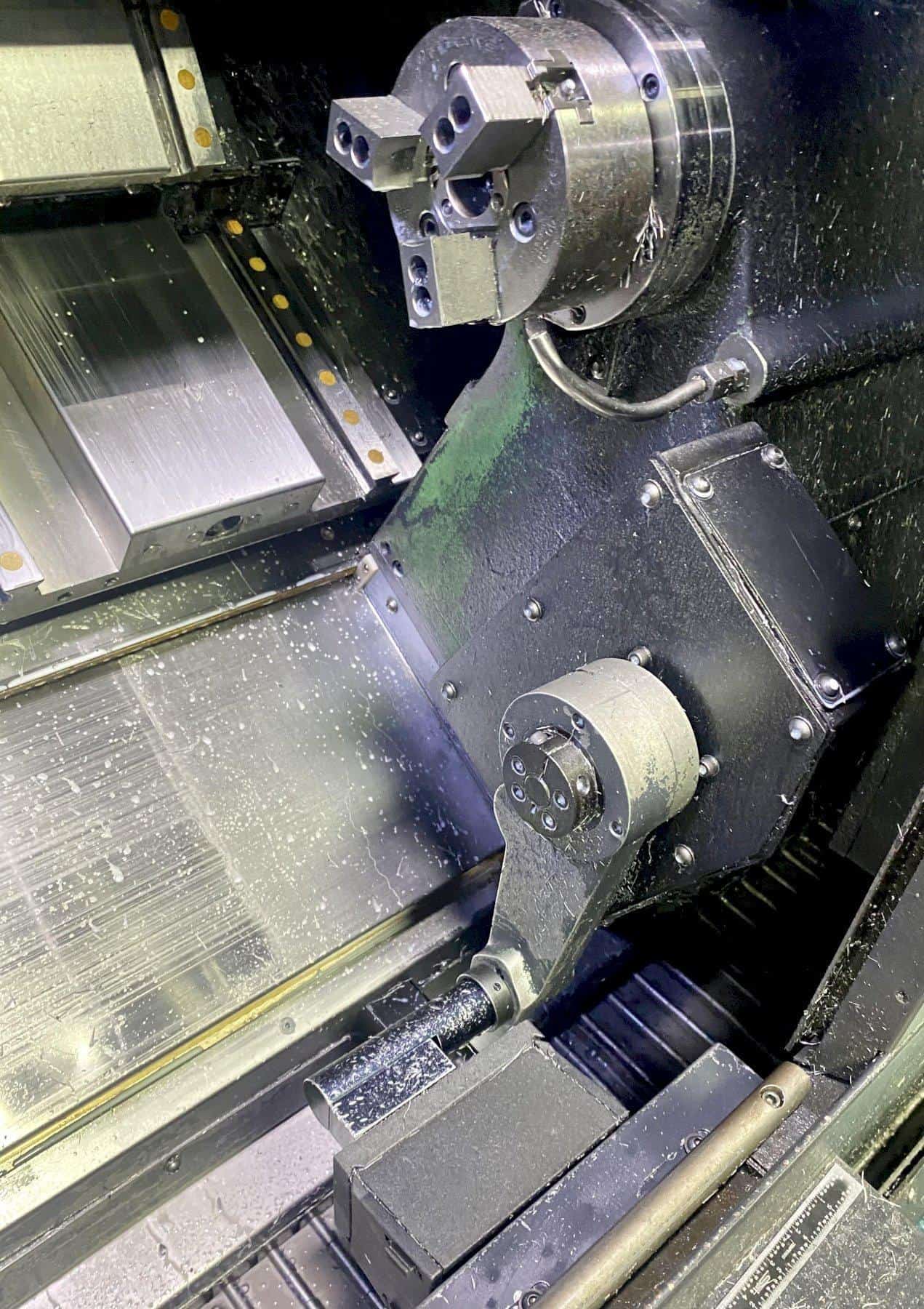

| Sub-Spindle |
6,000 RPM, 6" Chuck |
| X-Axis Travel |
8.1" |
| Y-Axis Travel |
5.25" |
| Z-Axis Travel |
22" |
| C-Axis (Indexing Positions of Main Spindle) |
.001 Degree |
| C2-Axis (Indexing Positions of Sub Spindle) |
.001 Degree |
| Main Spindle Thru Hole |
2.68" |
| Spindle Motor |
20 HP |
| Upper Turret Live Tooling |
5 HP |
| Chip Removal |
Chip Conveyor |
| Power Requirement |
220/3/60 |
| Hours |
Approx. 6,526 |
| Machine Dimensions |
113" x 70" x 83"H |
| Machine Weight |
9,400 Lbs |
Features
|
Auto Tool Presetter |
BMT-45 Turret with Live Tooling |
|
Coolant System |
Parts Catcher |
|
Parts Conveyor |

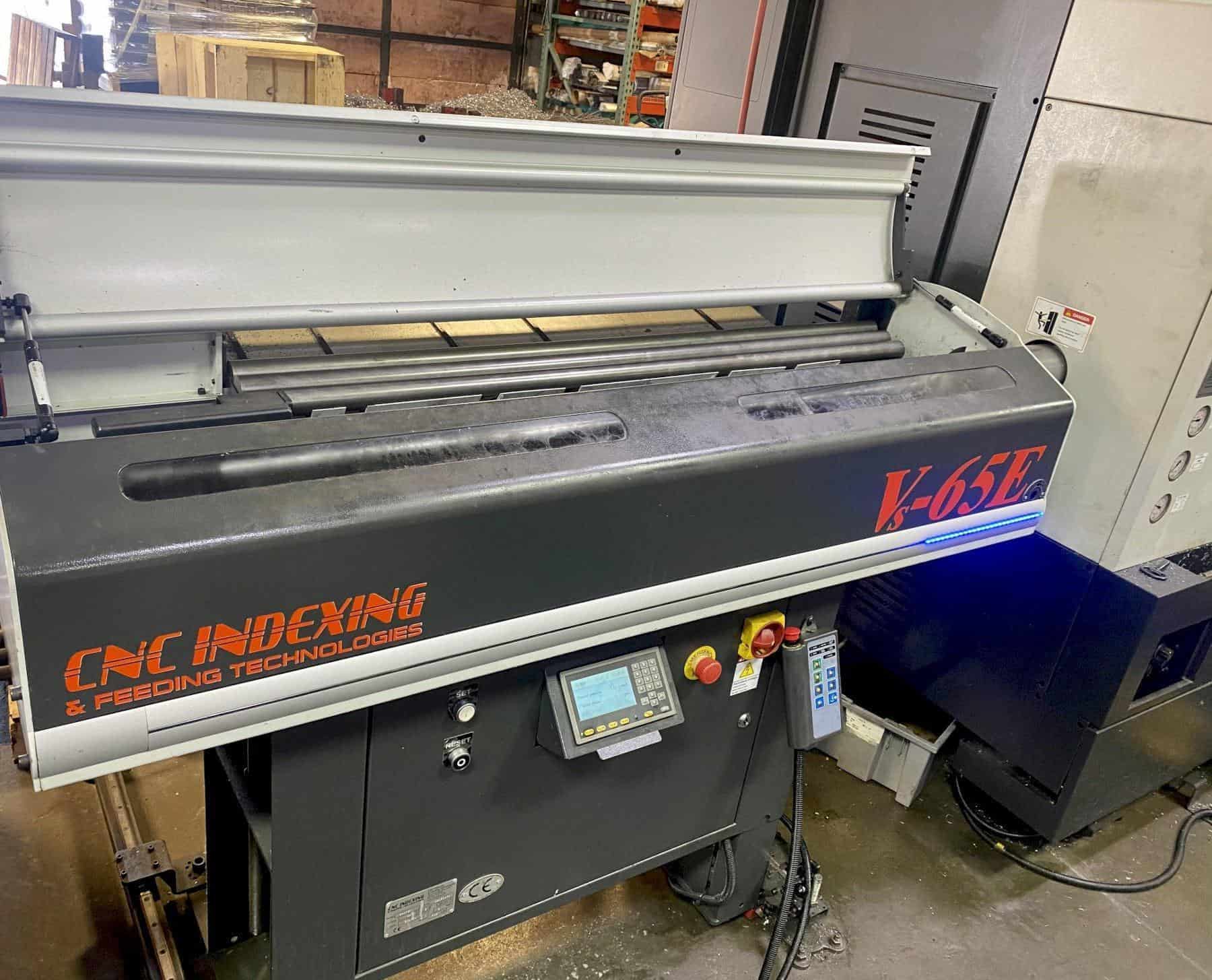

4' CNC Indexing VS-65 Bar Feeder |
|
A2-6 Spindle Nose |
Collet Chuck on Main Spindle |
|
Live Toolholders Included |
