Year 2016
Make Krauss Maffei
Model 300-1000CX

Description

330 Ton 13.6 oz Shot Size Injection Molding Machine
Reference # 8072351

Price

Activate PricingInquire Now

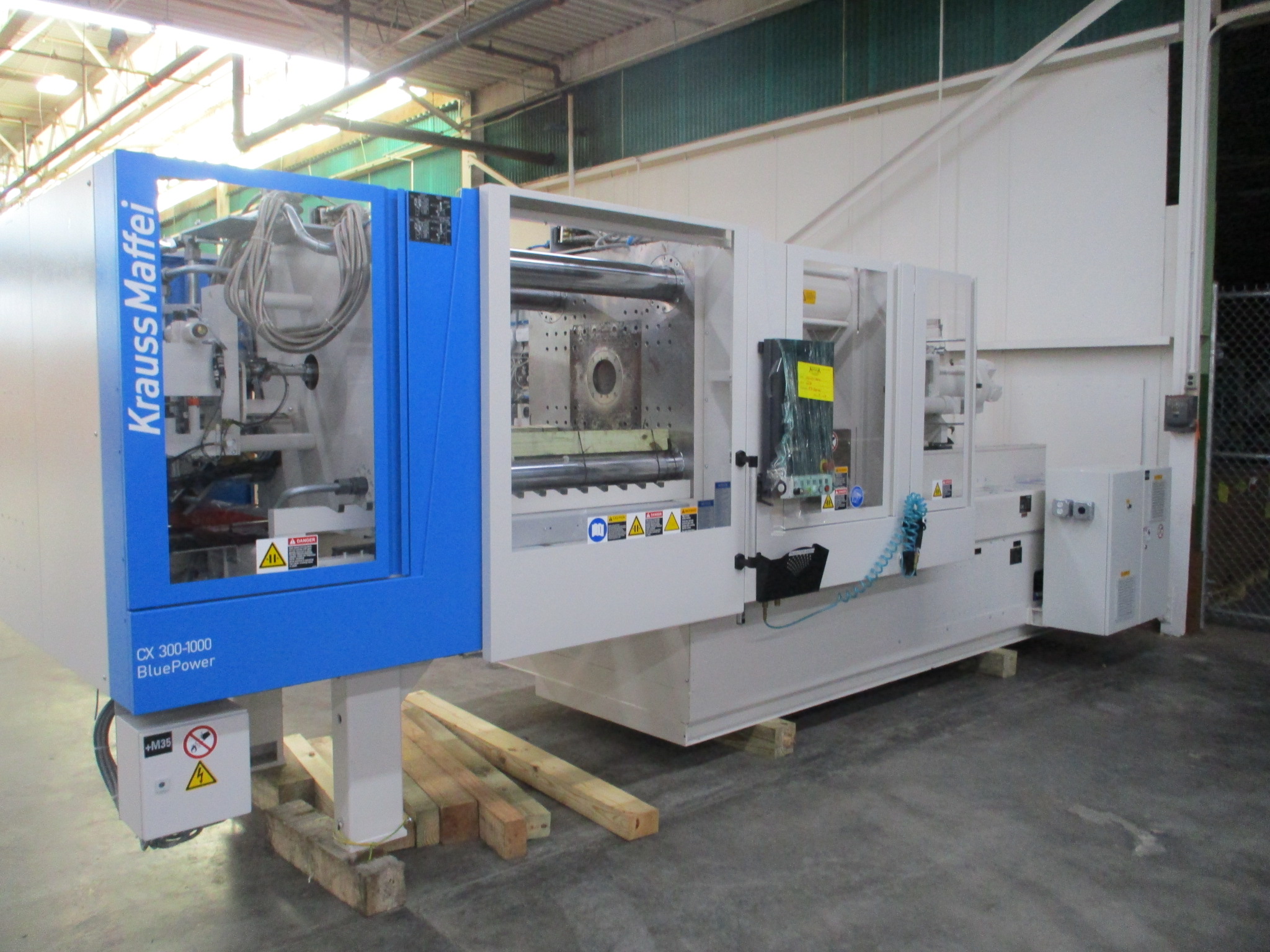

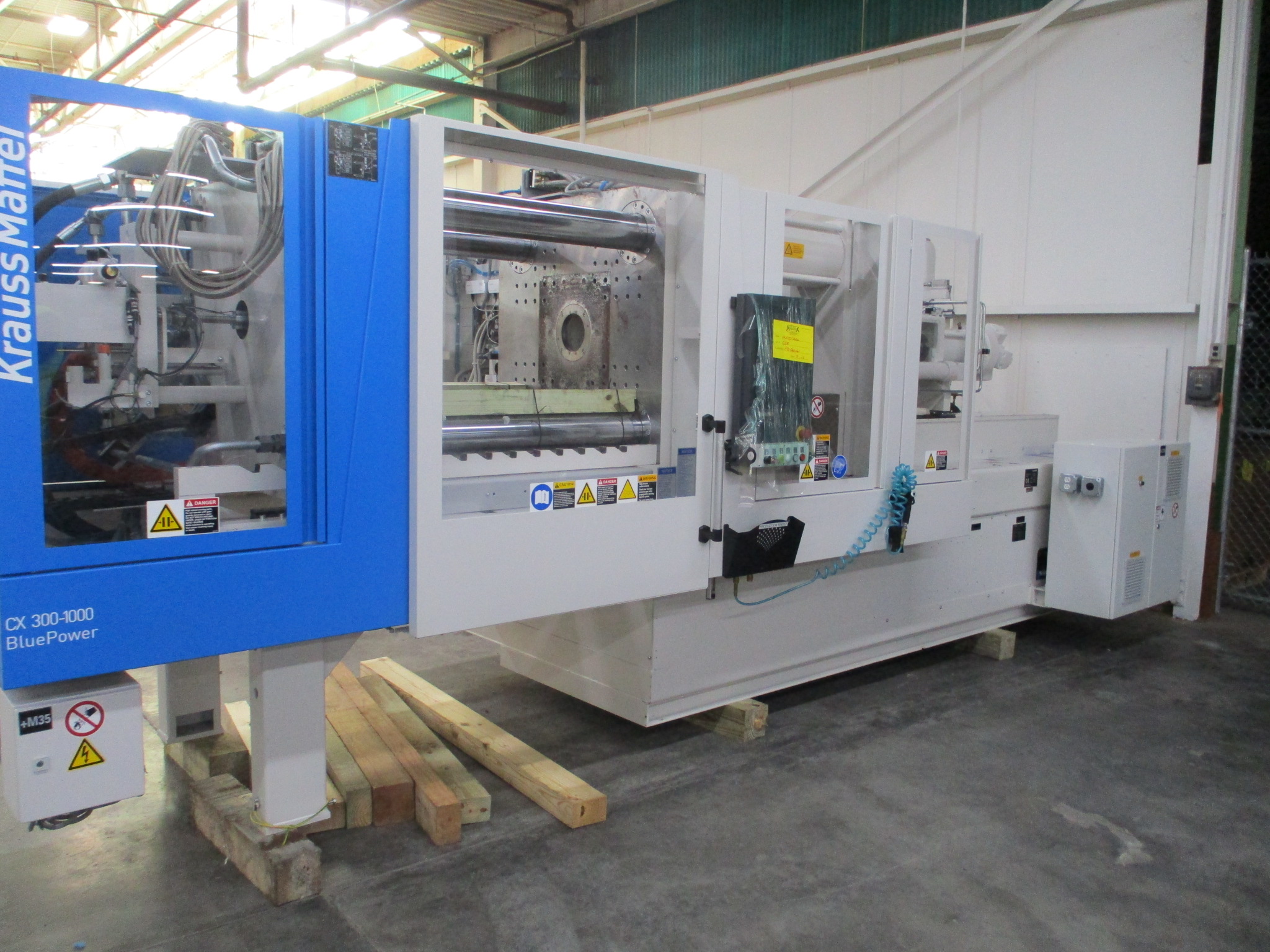

Used Krauss Maffei 300-1000CX (2016) Injection Molding Machine for Sale.  This pre-owned Krauss Maffei plastic injection molding machine is located in Georgia and available to be seen under power for an inspection.  If you have any questions regarding this Krauss Maffei Injection Molding Machine, please feel free to contact us.  You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Capacity

330 Ton

Shot Size

13.6 oz

Mold Opening Force

19 Ton

Travel Opening Force (Movable Platen)

9.7 Ton

Travel Closing Force (Movable Platen)

7.6 Ton

Platen Size

39.20" x 41.37"

Platen Size (Extended Horizontal)

42.36" x 41.37"

Platen Size (Wide Platen Option)

46.30" x 44.92"

Tie Bar Spacing

24.82" x 24.82"

Tie Bar Spacing (Extended Horizontal)

27.97" x 24.82"

Tie Bar Spacing (Wide Platen Option)

31.91" x 28.37"

Mold Opening Stroke

32.31"

Min Mold Height

13"

Min. Mold Height (Extended)

18.91"

Max Daylight

45.31"

Max. Daylight (Extended)

51.22"

Ejector Stroke

7.88"

Ejector Force (Forward/Backward)

6.5 / 3.2 Ton

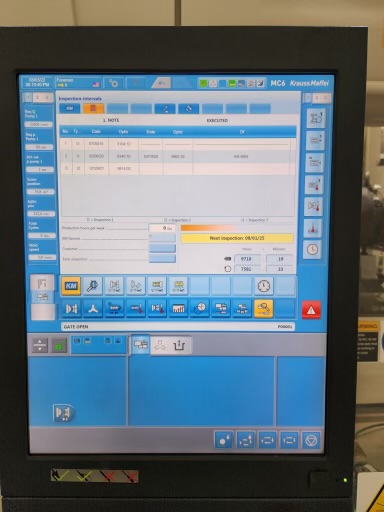

Control

MC6

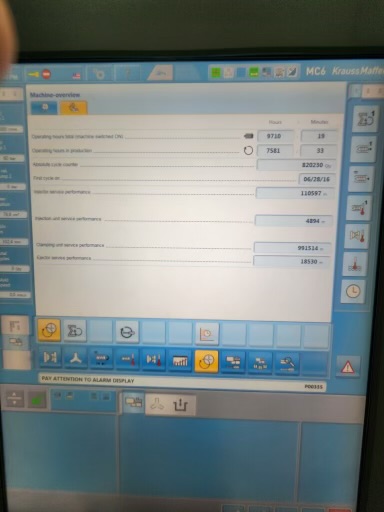

Hours

7,581

Machine Dimensions

256" x 87" x 91"

Machine Weight

31,967 Lbs

Note

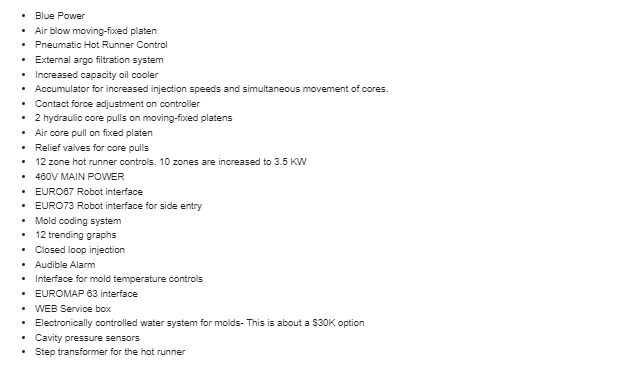

Lots of Features - See Photo

Features

Air Core Pull on Fixed Platen

Blue Power

EURO67 Robot Interface

EURO73 Robot Interface for Side Entry

Pneumatic Hot Runner Control

Low Hours

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
