| Year | 2016 |
|---|---|
| Make | Mazak |
| Model | QTN 200MSY |
Description |
CNC Lathe |
| Reference # | 8072321 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

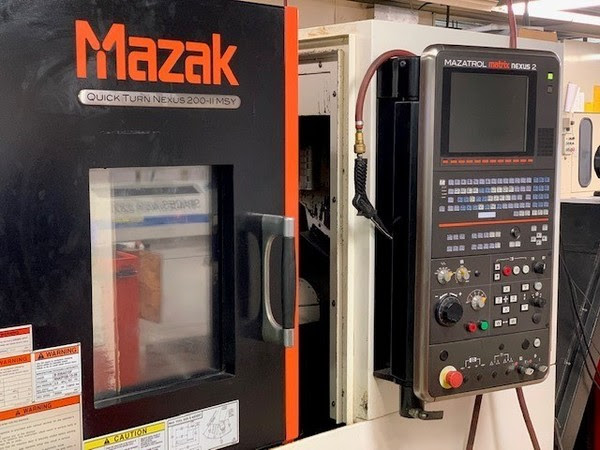

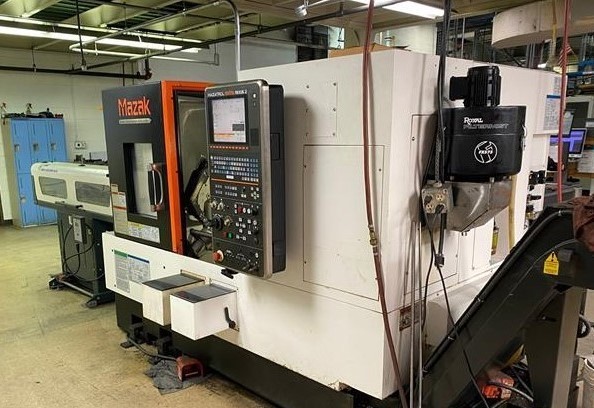

Used Mazak QTN 200MSY (2016) CNC Lathe for Sale. This pre-owned Mazak CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mazak Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2" |
| Swing |
26.5" |
| Turning Diameter |
13.7" |
| Spindle Speed |
5,000 RPM |

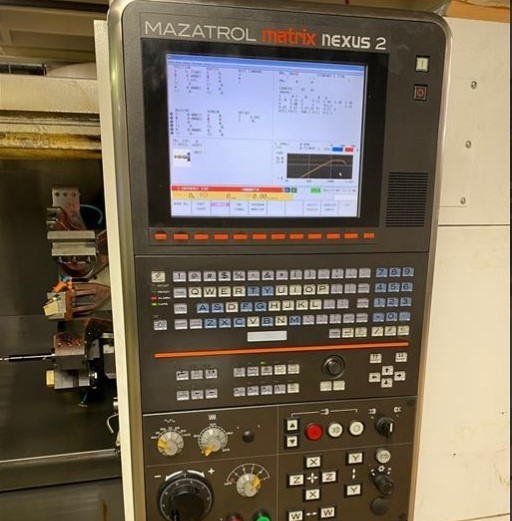

| Control |
Nexus 2 CNC |
| Distance Between Centers |
22.6" |

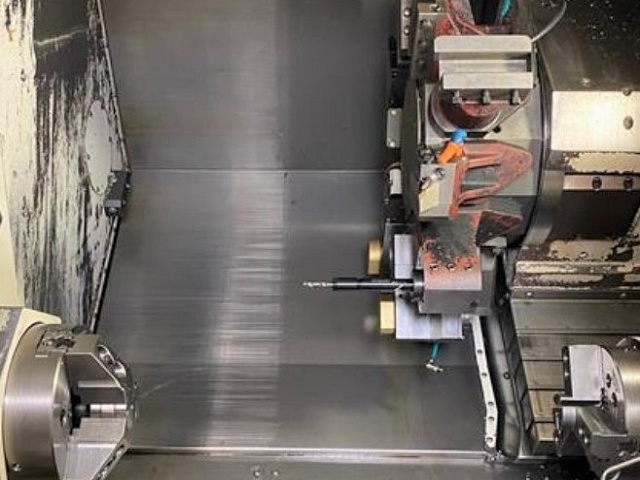

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Sub-Spindle |
6" Chuck |
| X-Axis Travel |
9" |
| Y-Axis Travel |
4" |
| Z-Axis Travel |
43" |
| Rapid Traverse (X) |
1,181 IPM |
| Rapid Traverse (Y) |
826 IPM |
| Rapid Traverse (Z) |
1,299 IPM |
| C-Axis |
.001 Degree |
| Sub Spindle Speed |
6,000 RPM |
| Main Spindle Motor |
35 HP |
| Rotary Tool Spindle |
15 HP |
| Milling Speeds |
4,500 RPM |
| Milling Motor |
7.5 HP |

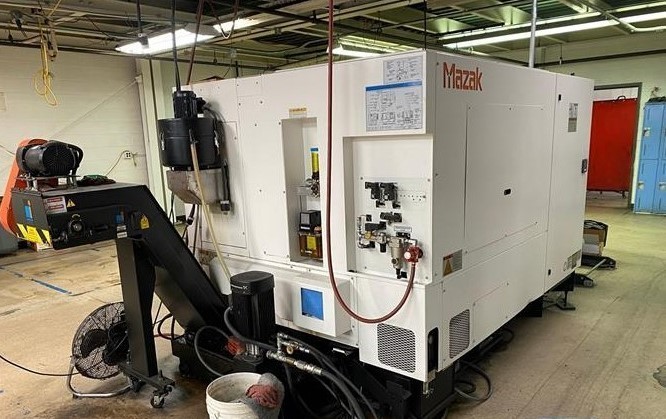

| Chip Removal |
Chip Conveyor |
Features
|
All Available Tooling |
Auto Tool Presetter |
|
Automatic Tool Eye |
Milling Spindle Synchronous Tapping |
|
Parts Catcher |
Tool Wear Compensation |
|
LNS Quick Load Servo 80 S2 Barfeed |
Main & Sub Spindle Synchronization |
