| Year | 2016 |
|---|---|
| Make | Toyoda |
| Model | FH400J |
Description |
CNC Horizontal Machining Center |
| Reference # | 8075215 |
Price |
Activate PricingInquire Now |

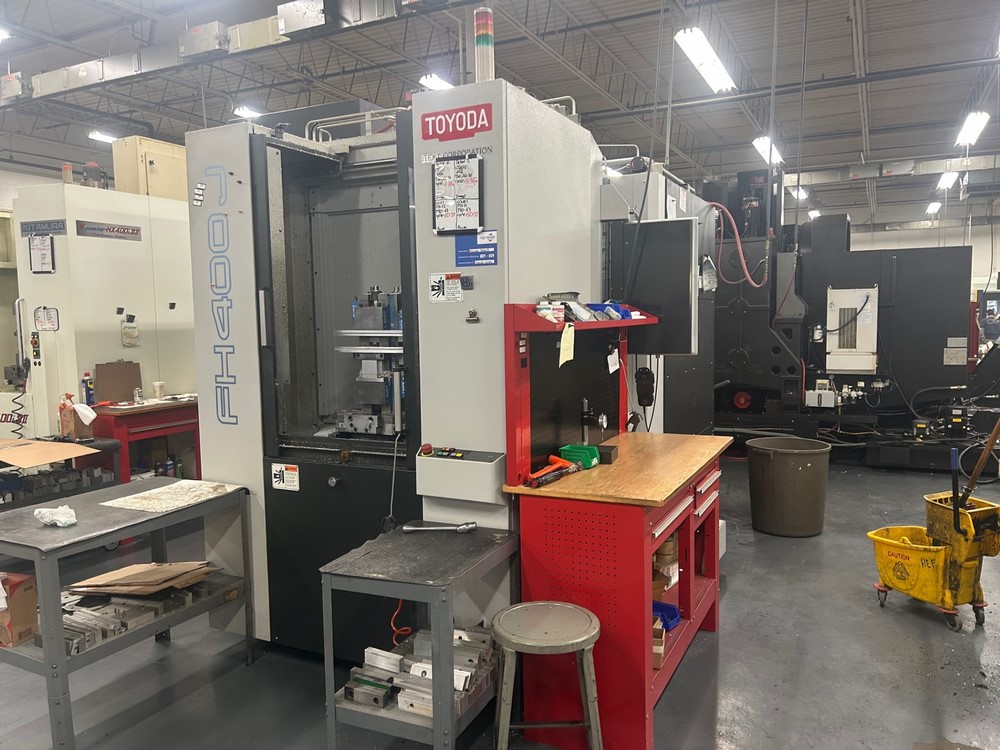

Used Toyoda FH400J (2016) CNC Horizontal Machining Center for Sale. This pre-owned Toyoda CNC horizontal mill is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Toyoda Horizontal Machining Center, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Pallet Size |
15.75" x 15.75" |
|---|---|
| X-Axis Travel |
23.62" |
| Y-Axis Travel |
22.05" |
| Z-Axis Travel |
24.8" |
| Tool Magazine Capacity |
119 ATC |

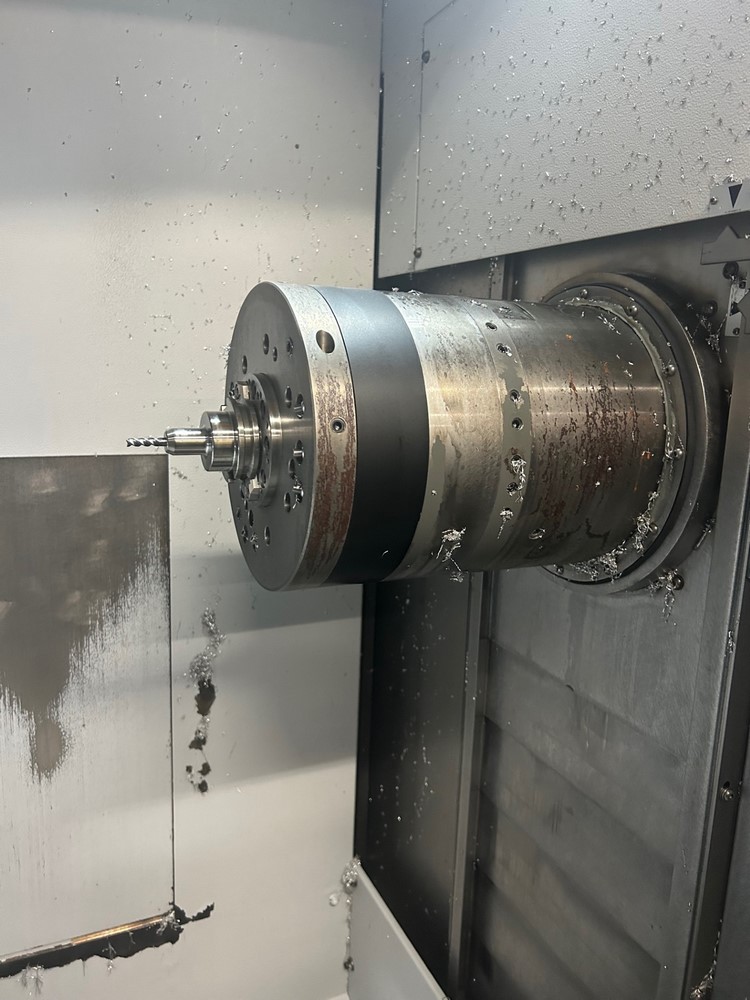

| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT 40 Big Plus |
| Pallet Indexing |
Full 4th Axis |
| Spindle Motor |
30 HP |
| Max. Workpiece Swing |
24.8" X 35.43" |
| Rapid Traverse Rate |
2,362 IPM |
| Table Top to Spindle Center |
1.97"-24.02" |
| Full 4th Axis |
360,000 Positions |
| Max. Work Load on the Pallet |
880 lbs. |
| Pallet Height from Floor |
43.31" |
Features
|
360 |
000 Degree NC Positioning B Axis Table |
|
Big Plus Modification for All Series Spindles |

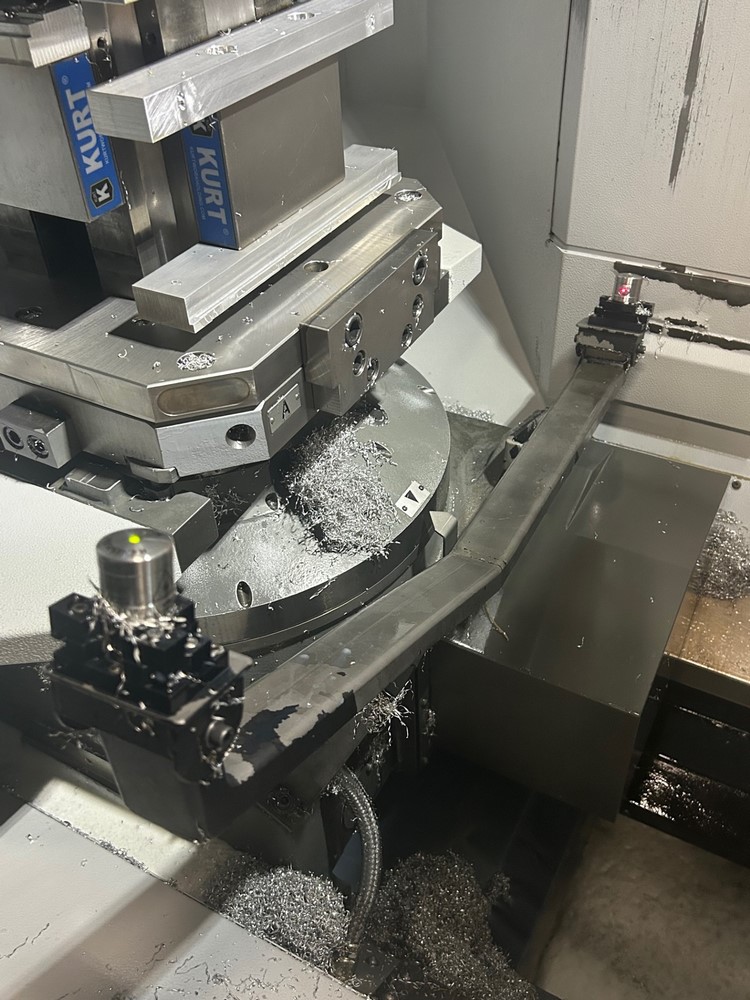

Laser Tool Measurement System |
|
Multi Step Skip Function (Required for Use of Spindle Probe and Tool Measurement System) |
Operation Supporter - OP20T |
|
RMP60 (Radio Transmission) |
AI Precision Control II |
|
Hand Held Splash Gun |
Inverse Time Feed |
|
Overhead Coolant Shower |
