| Year | 2017 |
|---|---|
| Make | Kiwa |
| Model | KH-4500 |
Description |
CNC Horizontal Machining Center |
| Reference # | 8074071 |
Price |
Activate PricingInquire Now |

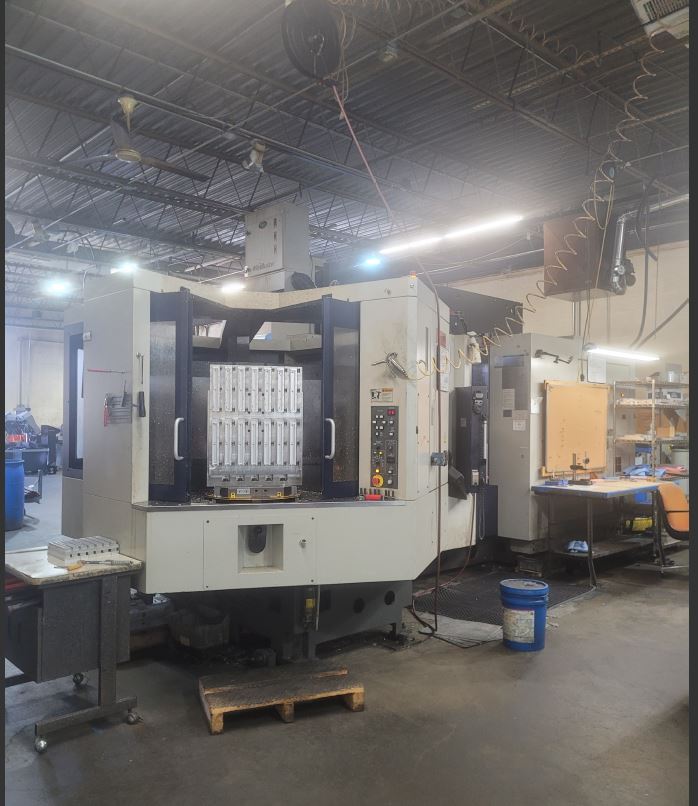

Used Kiwa KH-4500 (2017) CNC Horizontal Machining Center for Sale. This pre-owned Kiwa CNC horizontal mill is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Kiwa Horizontal Machining Center, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Pallet Size (Millimeters) |
400 |
|---|---|
| Pallet Size |
15.7" x 15.7" |
| X-Axis Travel |
25.2" |
| Y-Axis Travel |
25" |
| Z-Axis Travel |
26.8" |

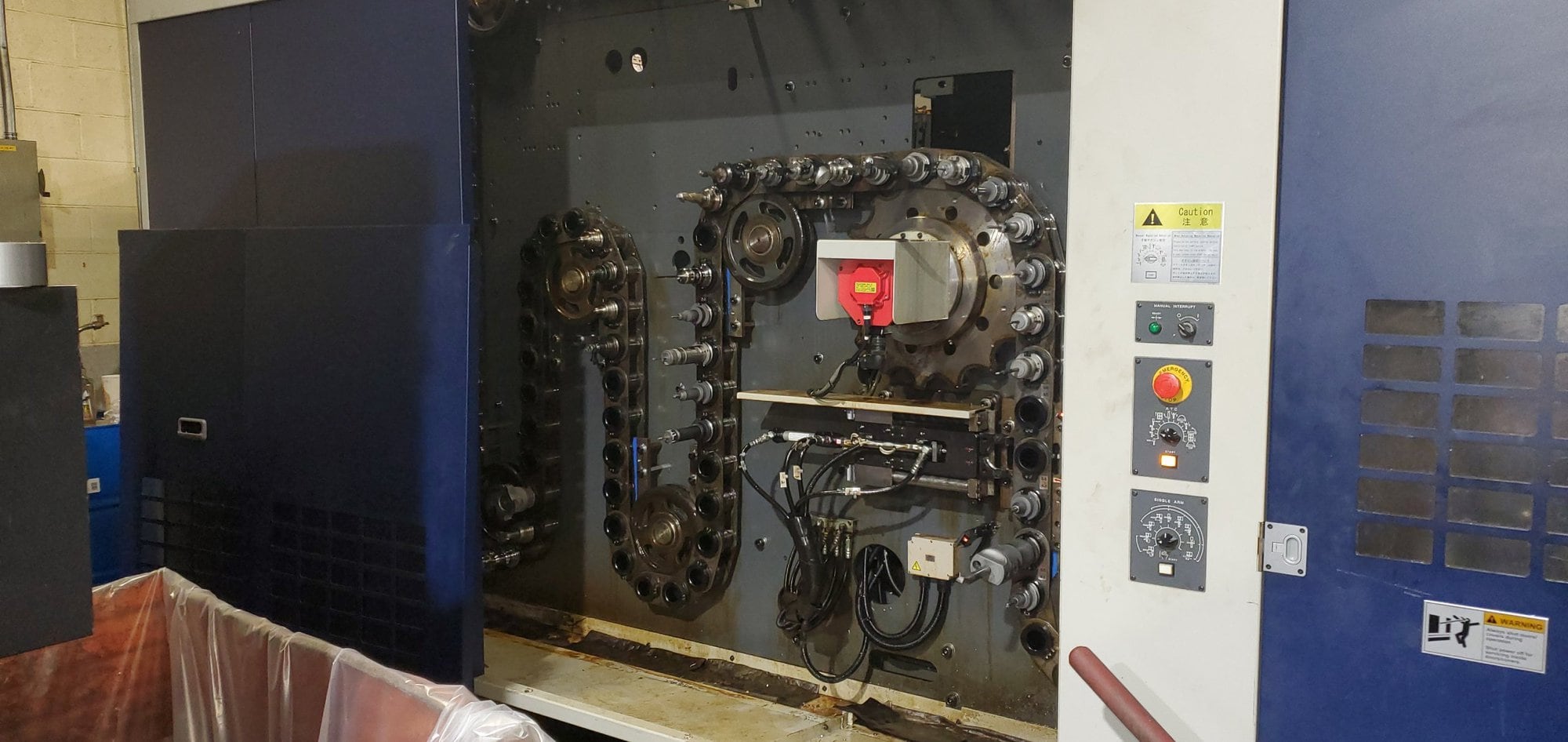

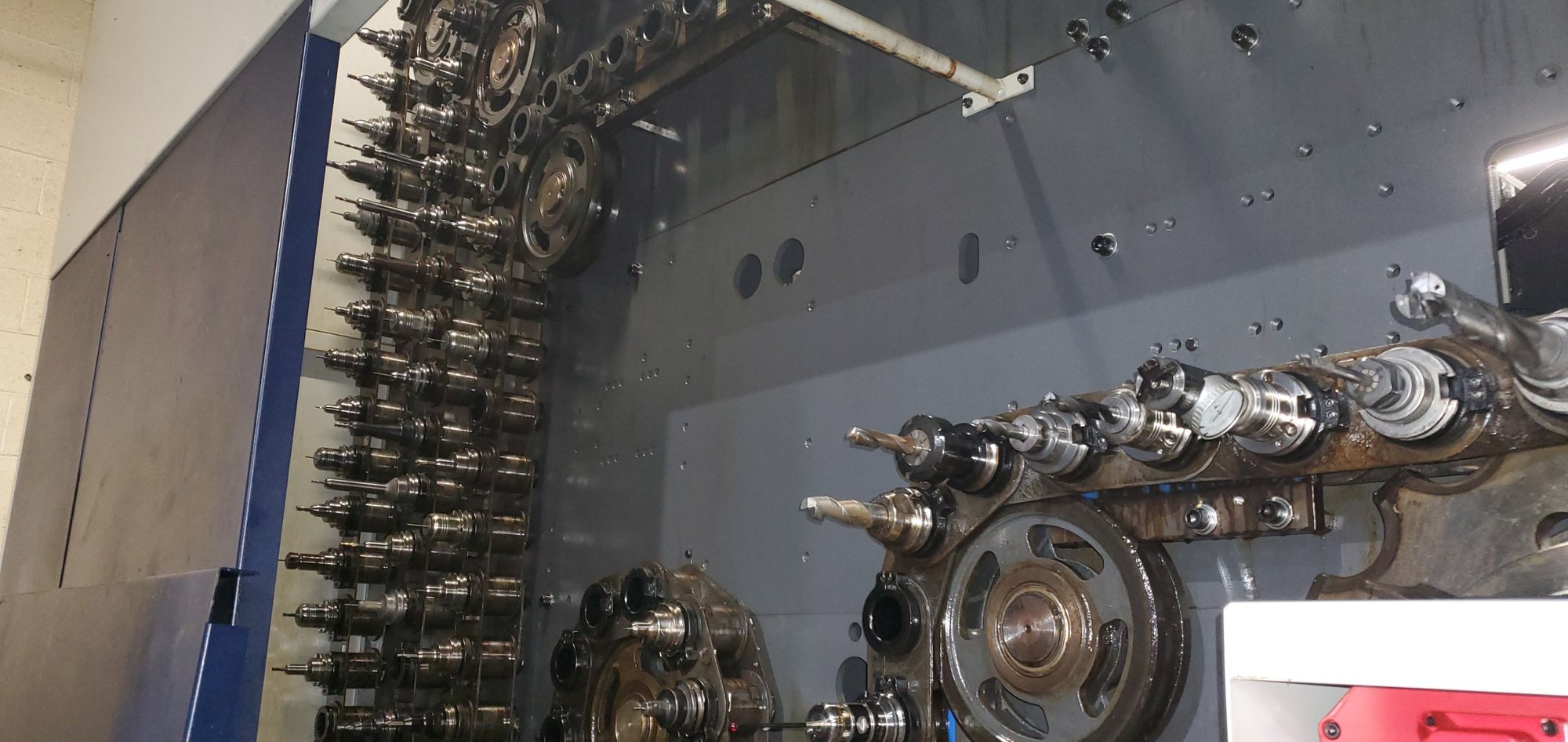

| Tool Magazine Capacity |
240 ATC |

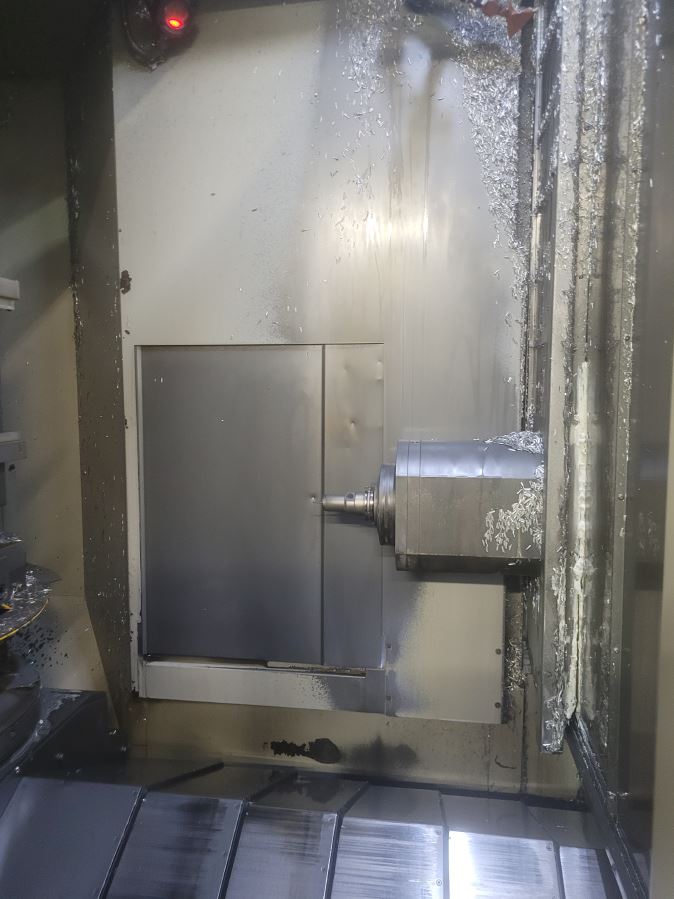

| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT 40 |

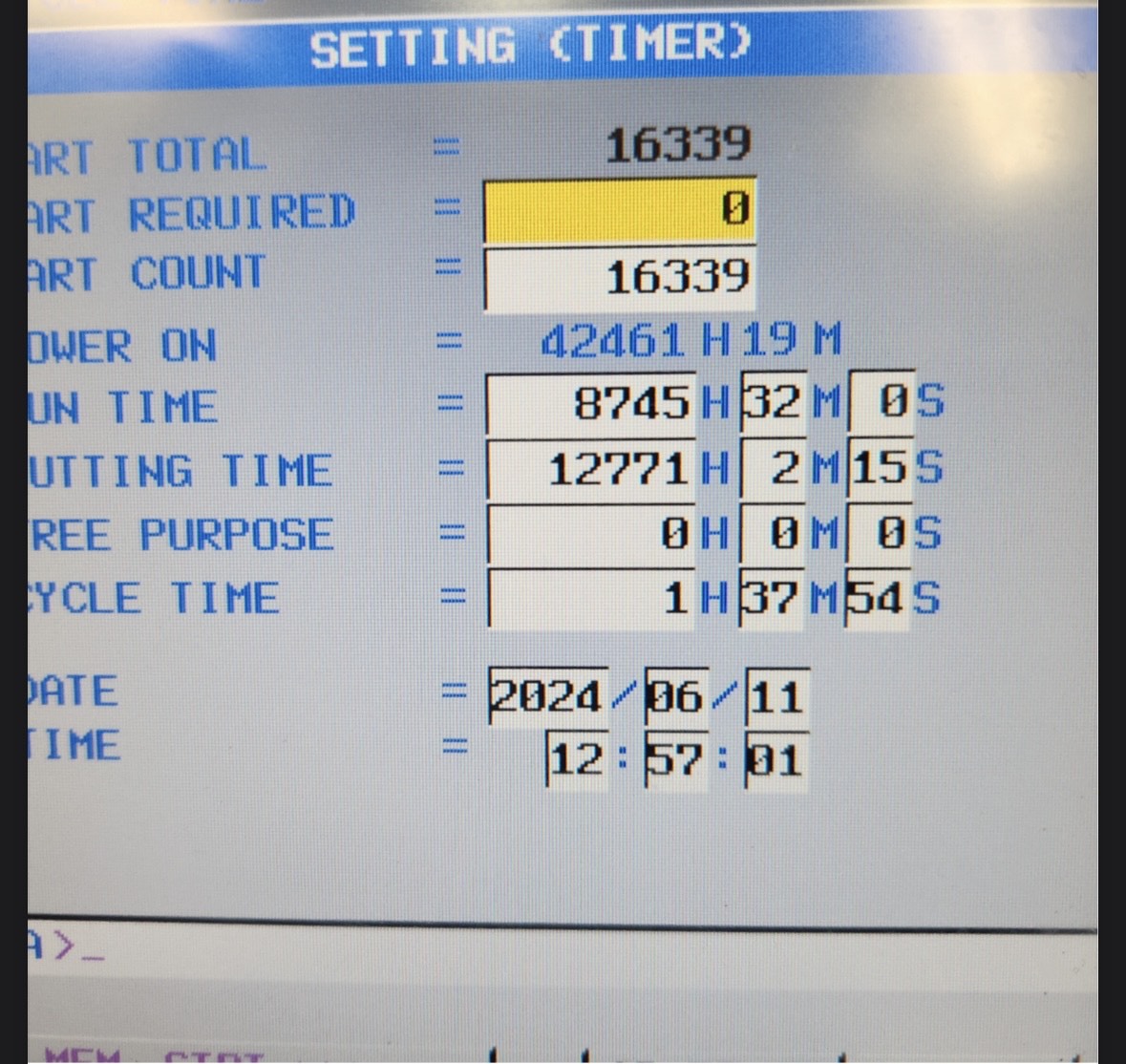

| Control |
Fanuc 31ib |

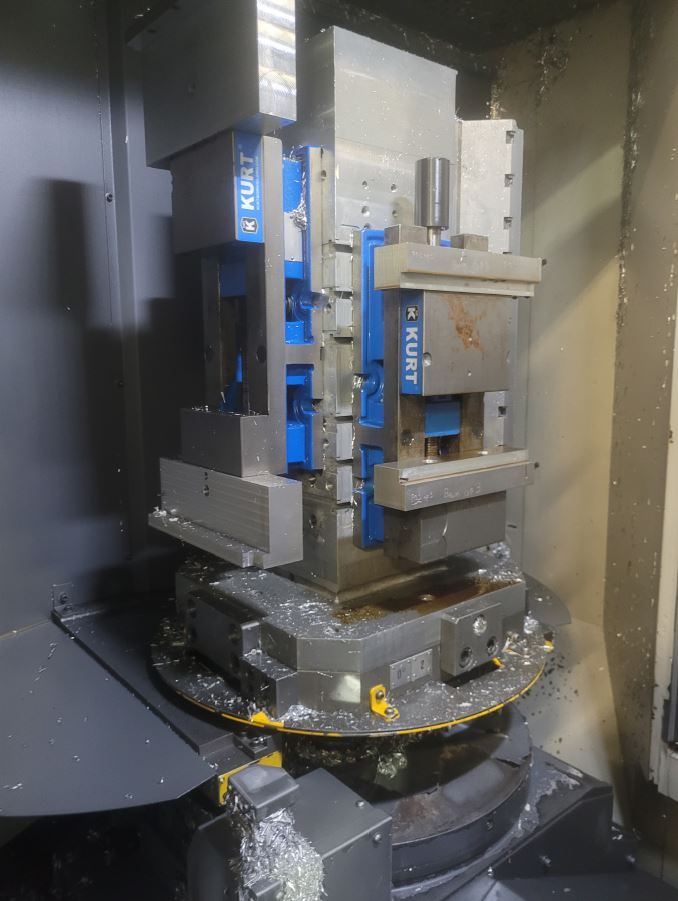

| Pallet Indexing |
Full 4th Axis |

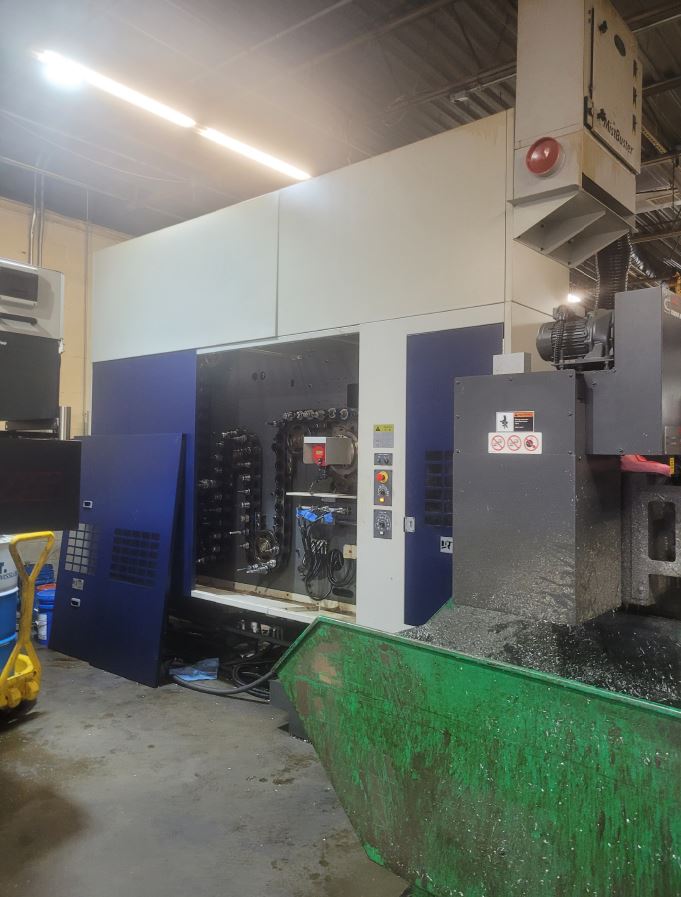

| Chip Removal |
Chip Conveyor |
| Pallet Surface to Spindle Center |
2.0-26.0 (50-660) in (mm) |
| Pallet Center to Spindle Nose |
3.9-30.7 (100-780) in (mm) |
| Pallet Load Capacity |
1100 (500) lbs (kg) |
| Max. Workpiece Size |
ø 29.5 (750) for 2/6APC / ø 25.6 (650) for 8APC in (mm) |
| Pallet Change Time |
7.6 sec |
| X/Y/Z Axis Rapid Traverse |
3149 IPM |
| Cutting Feed (X/Y/Z) |
1181 (30) in/min (m/min) |
Features
|
Additional Custom Common Variable |
Automatic Tool Breakage Detection |
|
Chipblaster J30 HP Coolant Thru Spindle (1000PSI) |
LNS Microfine Chip Conveyor |
|
OMP-400 Renishaw Probe |
Part Program to 8mb |
|
8 Pallet Pool |
