| Year | 2017 |
|---|---|
| Make | Mazak |
| Model | Integrex i-200ST |
Description |
CNC Lathe |
| Reference # | 8072352 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

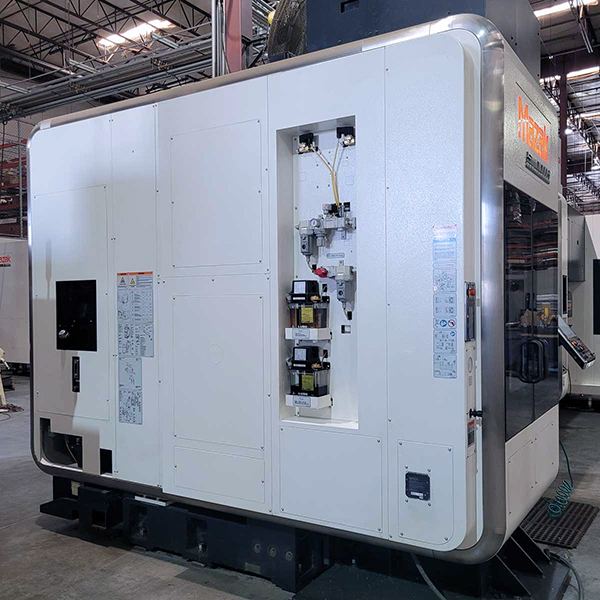

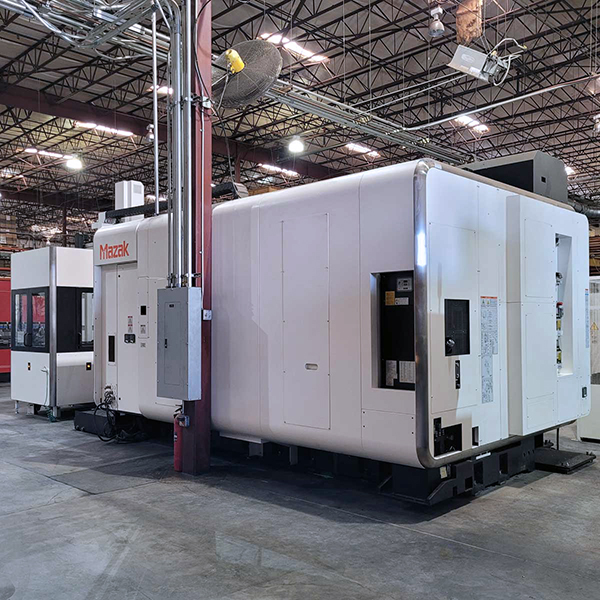

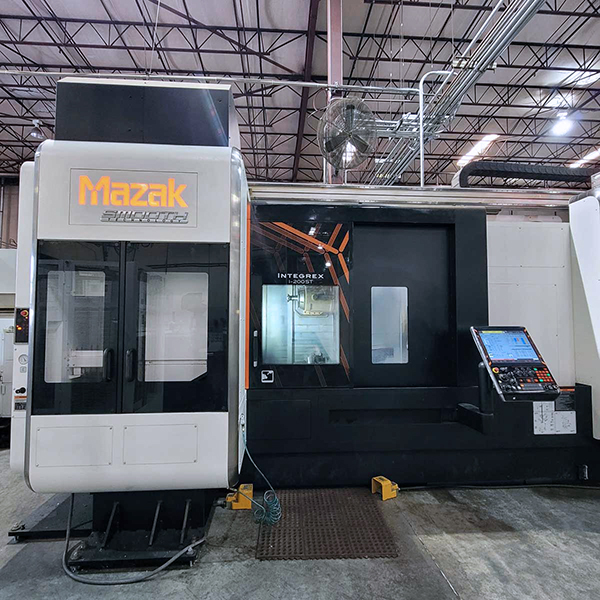

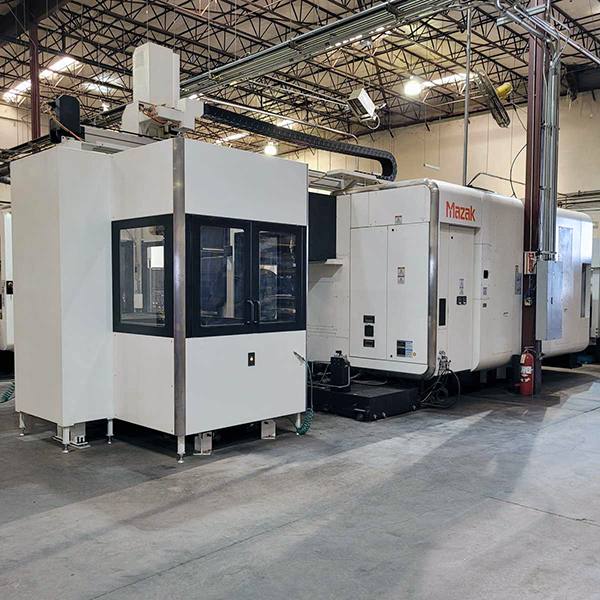

Used Mazak Integrex i-200ST (2017) CNC Lathe for Sale. This pre-owned Mazak CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mazak Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2" |
| Swing |
25.91" |
| Turning Diameter |
25.91" |
| Spindle Speed |
5,000 RPM |

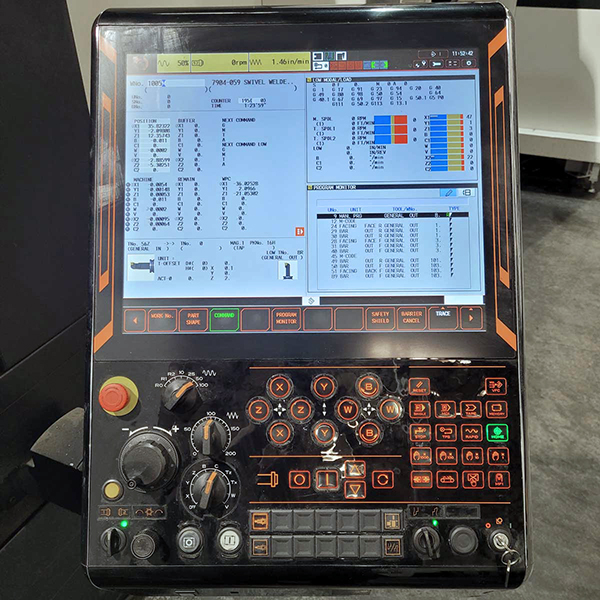

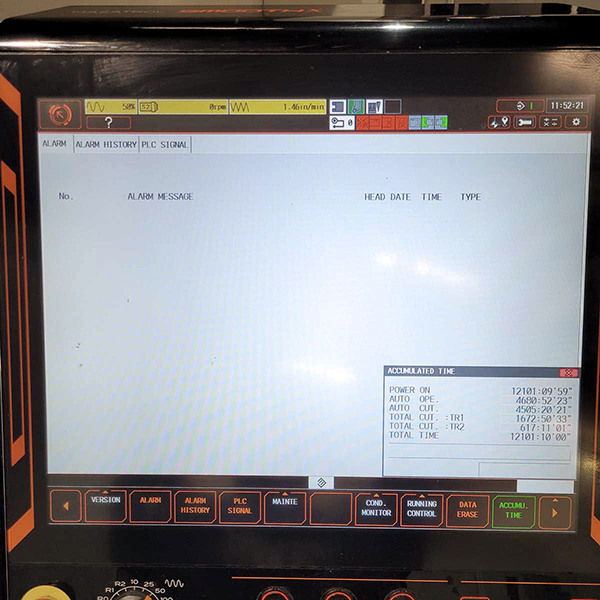

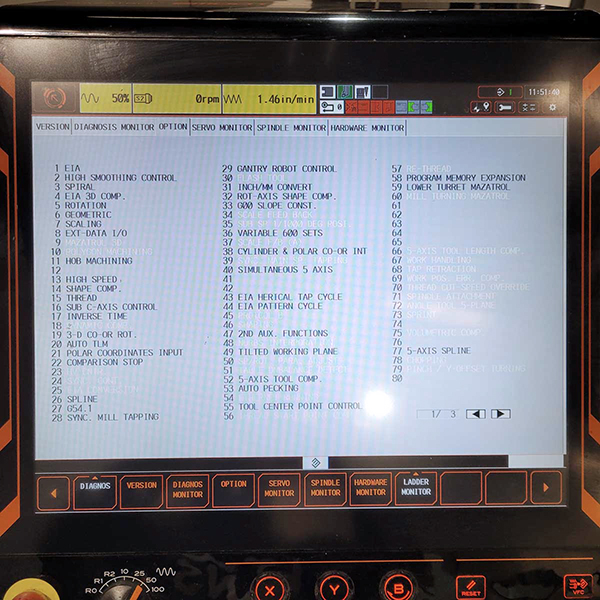

| Control |
Mazatrol Smooth |
| Distance Between Centers |
59.8" |

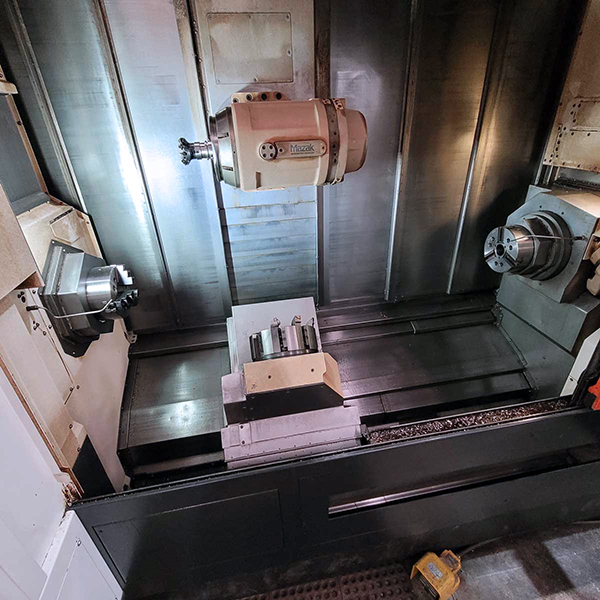

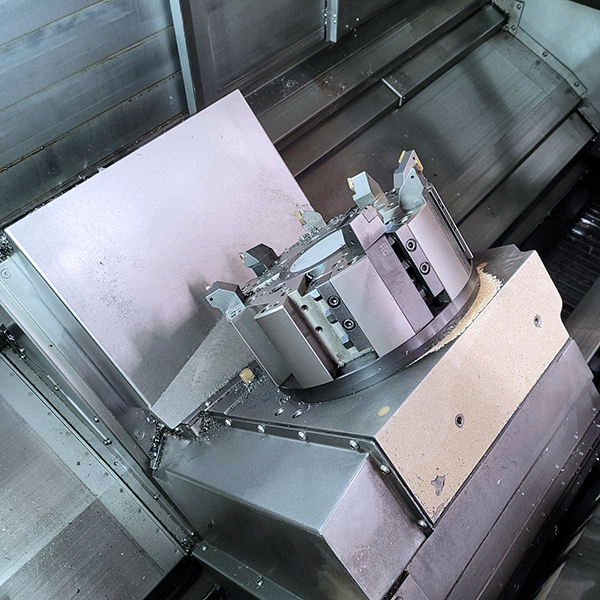

| Turret |
8 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |

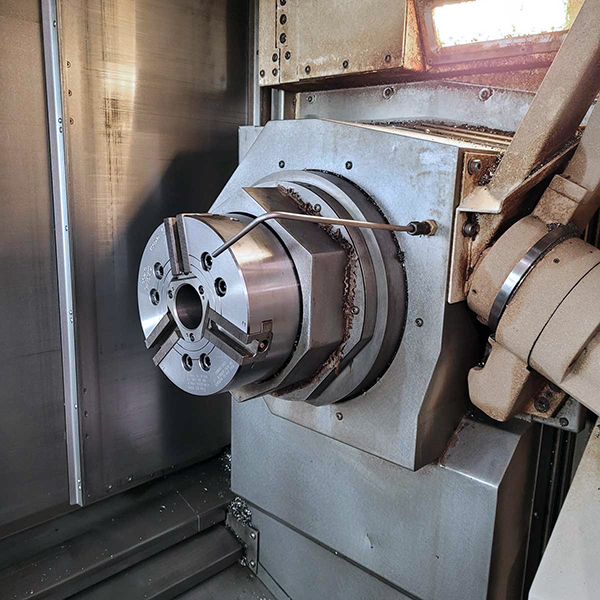

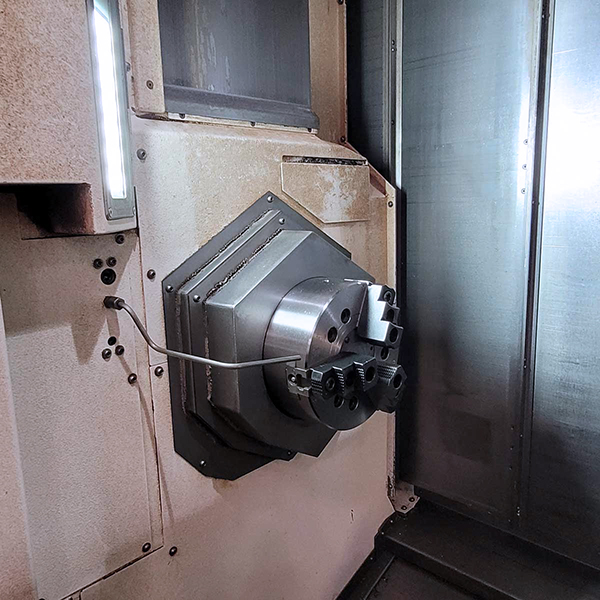

| Sub-Spindle |
5,000 RPM, 8" Chuck |
| Main/Sub Spindle Motor Output |
30 HP |
| Travels (X,Y,Z,W) |
24.21" x 10.24 " x 62.4" x 60.59" |
| X2 Travel |
9.06" |
| Z2 Travel |
54.65" |

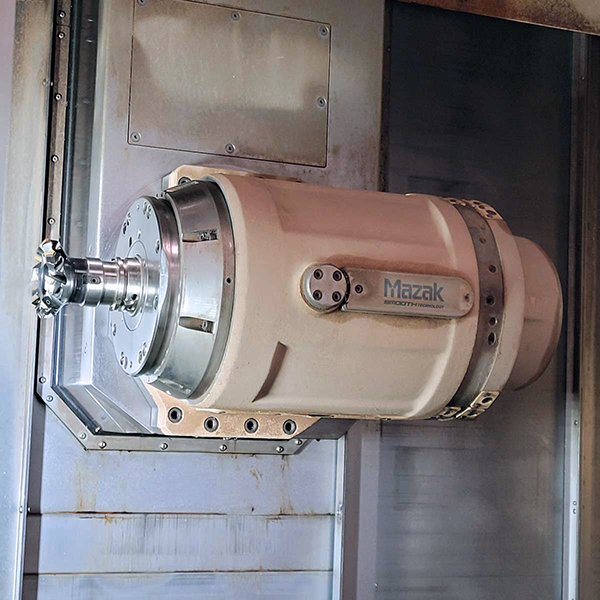

| B-Axis |
30 Deg ~ +210 Deg |
| C-Axis |
.0001 Degree (Main and Sub) |
| Rapid Traverse Rate X/Z Axis |
1,969 IPM |
| Rapid Traverse Rate Y Axis |
40 IPM |
| Rapid Traverse Rate W Axis |
30 IPM |

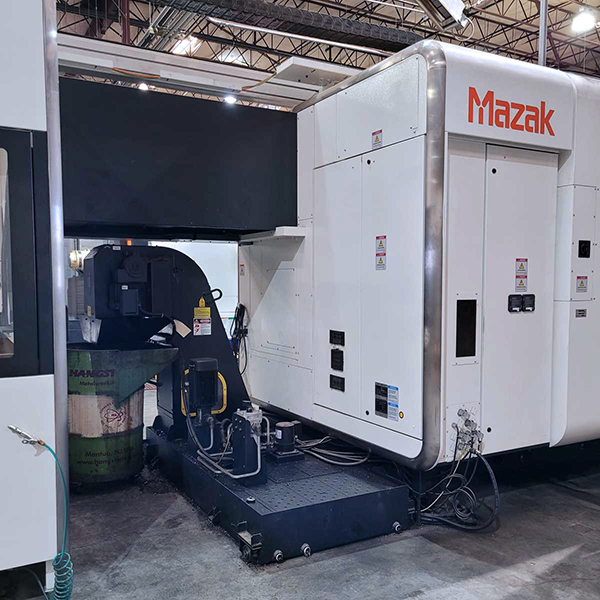

| Chip Removal |
Mayfran Consep Chip Conveyor |
Features
|
Auto Tool Presetter |
Renishaw RMP-600 Work Measuring System with Probe |
|
110 HSK Tool Magazine |
213 PSI Coolant Through Spindle |
|
Smooth Set and Inspection Software |
32MB Mazimum Program Size |
|
Tool Radius Compensation |
Auto Pecking Drill Cycle with Load Detection |
|

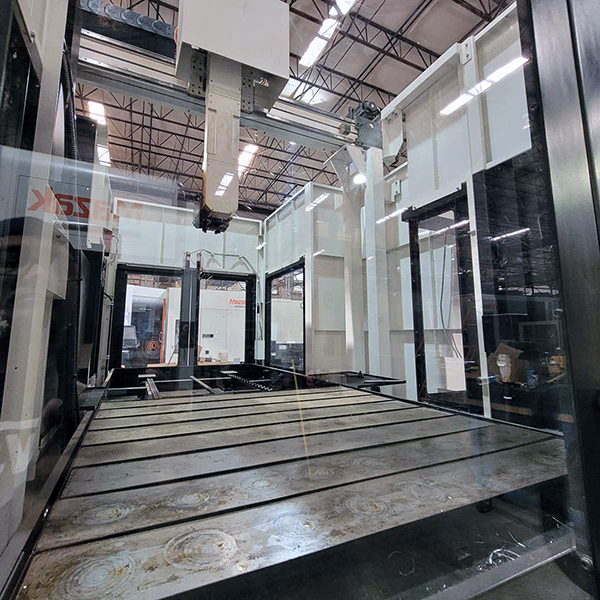

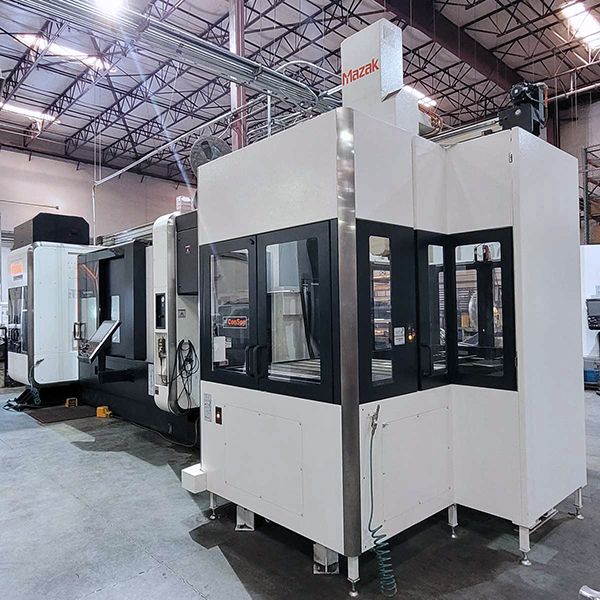

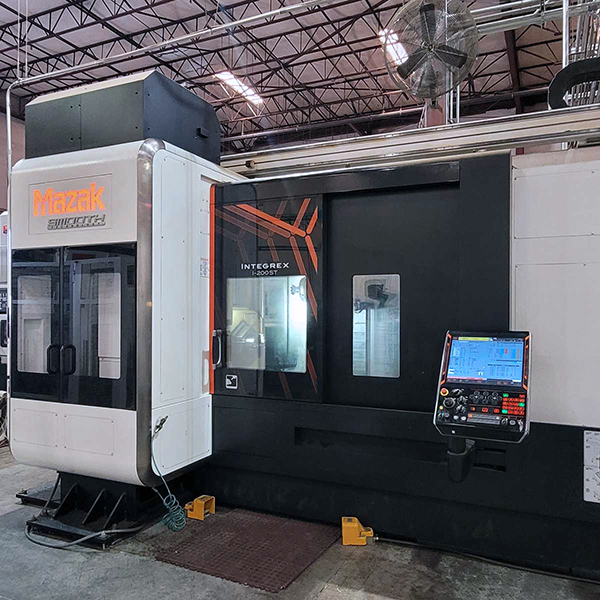

GL150F Pitch Feed Robot with D3 Hands |
Hobbing Function |
