| Year | 2018 |
|---|---|
| Make | Amada |
| Model | HG 1303 |
Description |

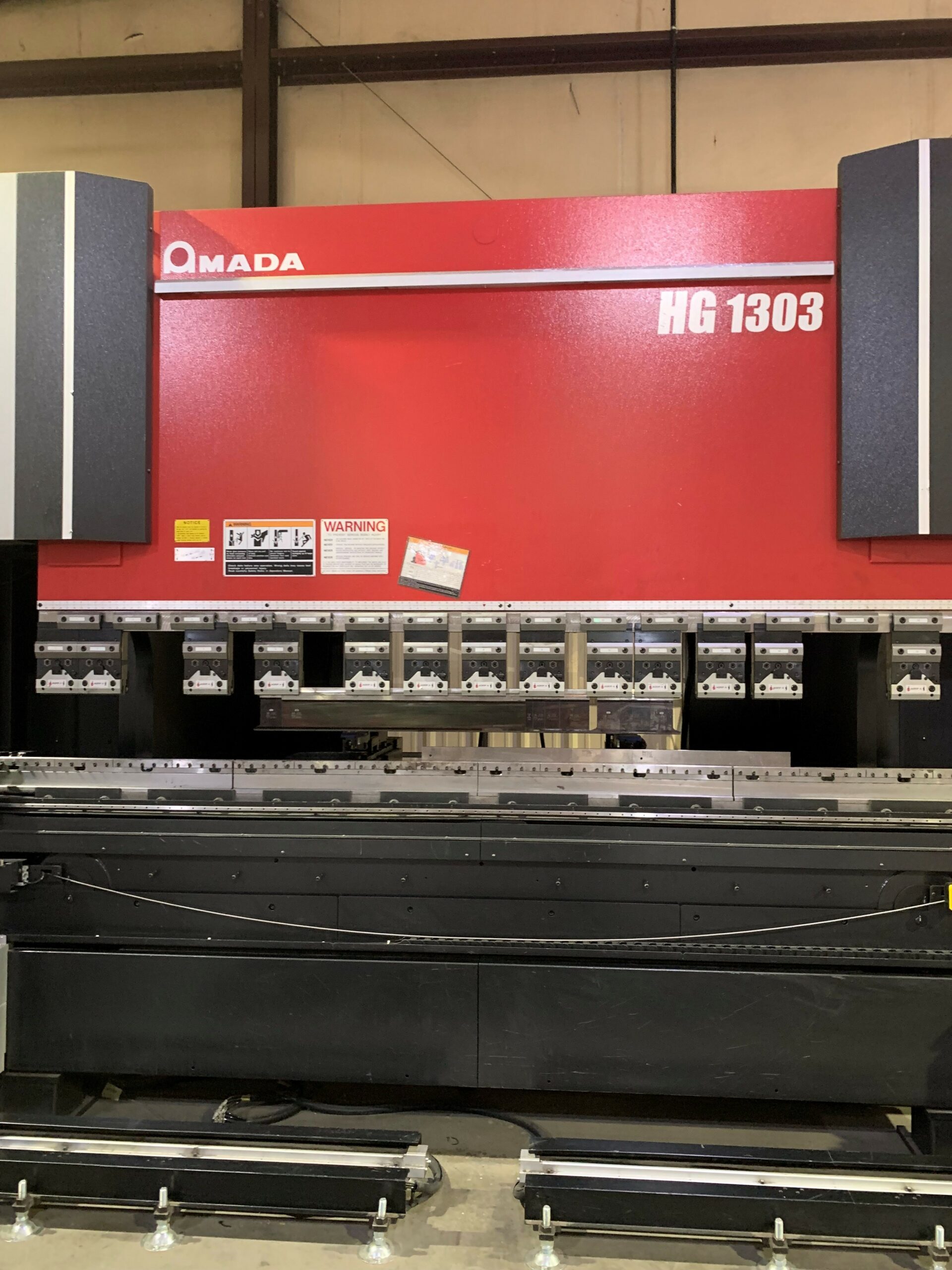

143 Ton x 10' Hydraulic Press Brake |
| Reference # | 8072348 |
Price |
Activate PricingInquire Now |

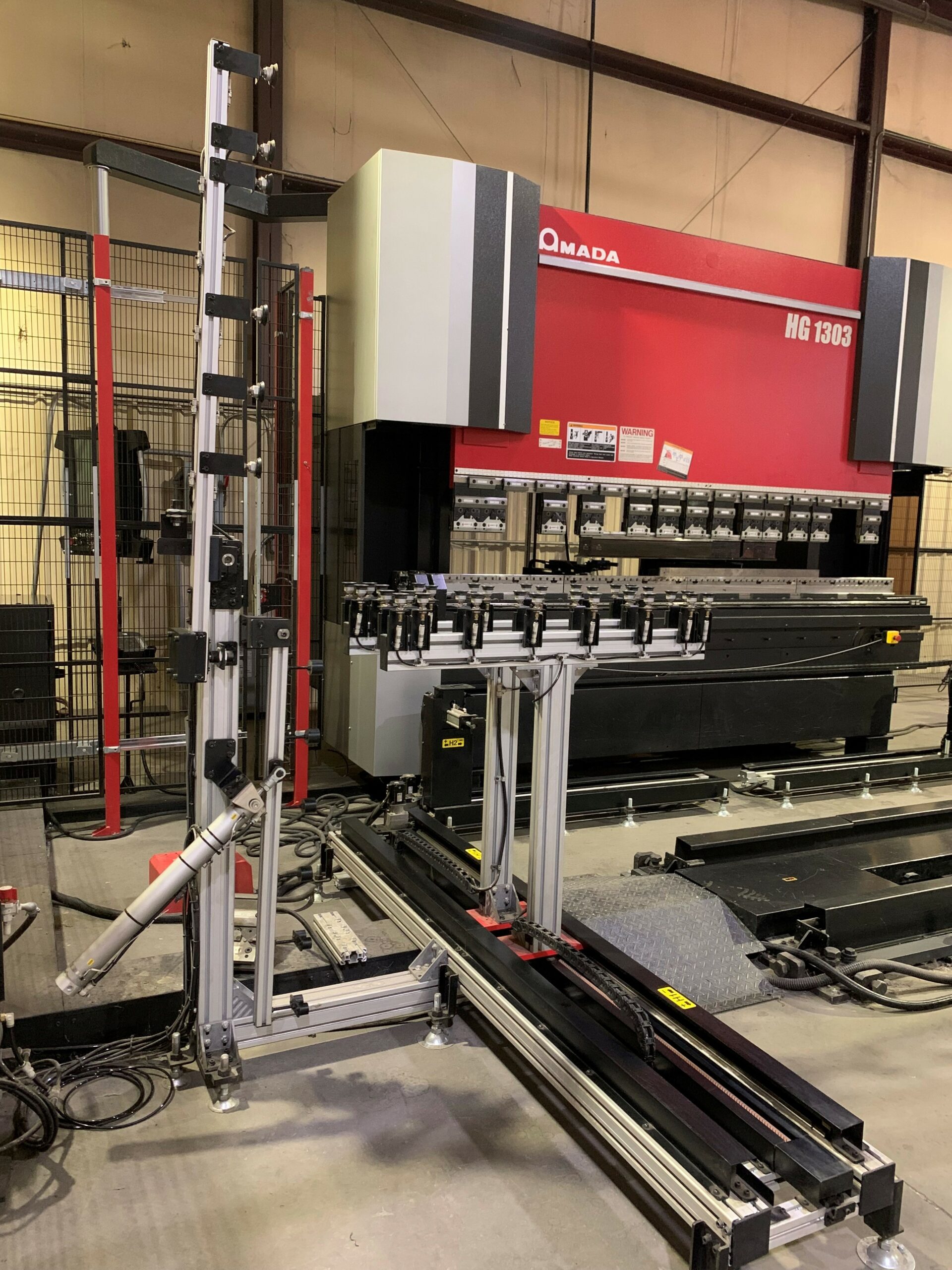

Used Amada HG 1303 (2018) CNC Press Brake for Sale. This pre-owned Amada CNC press brake is located in The United States. If you have any questions regarding this Amada Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
143 Ton |
|---|---|
| Overall Length of Bed |
10' |
| Control |

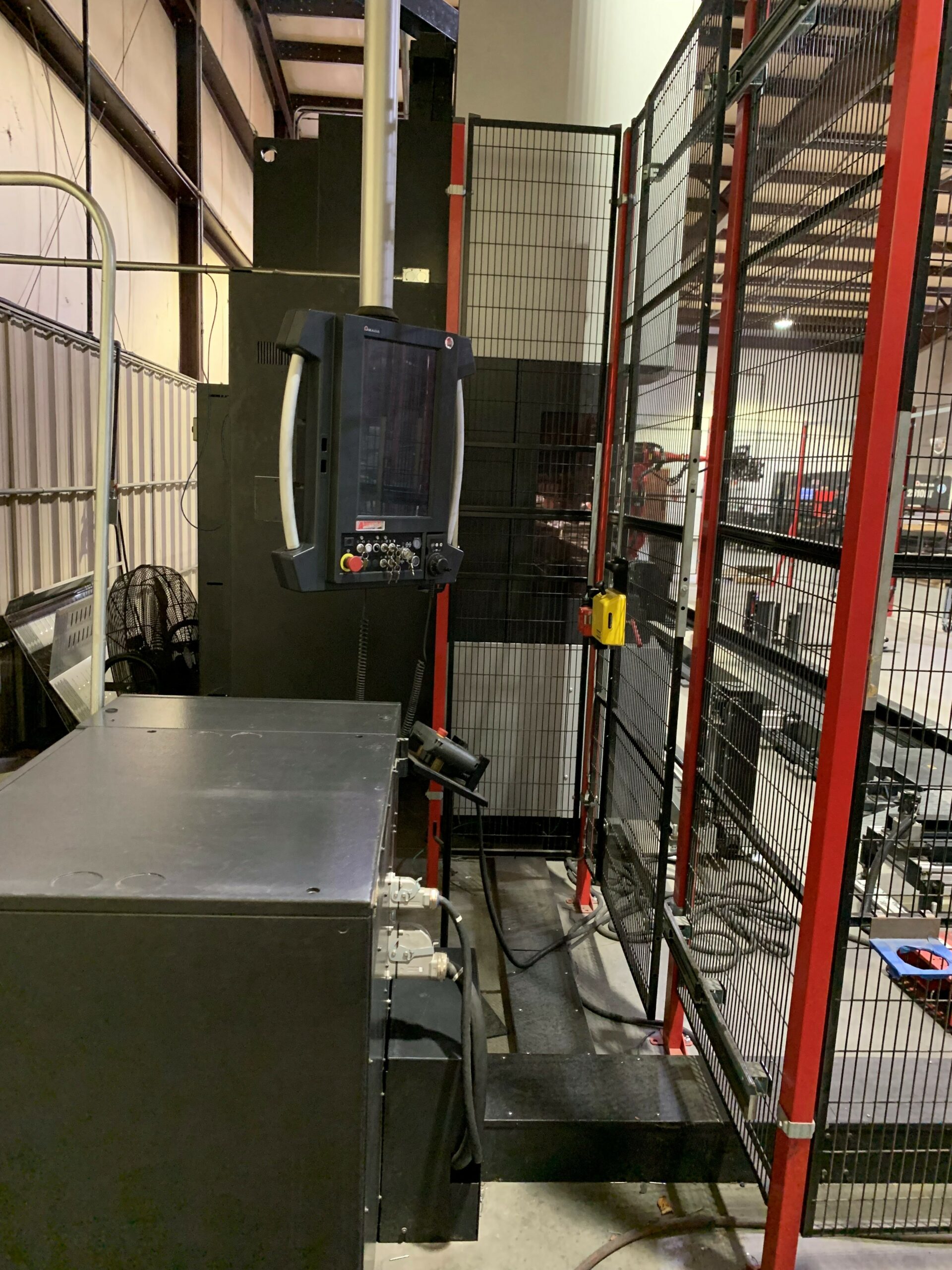

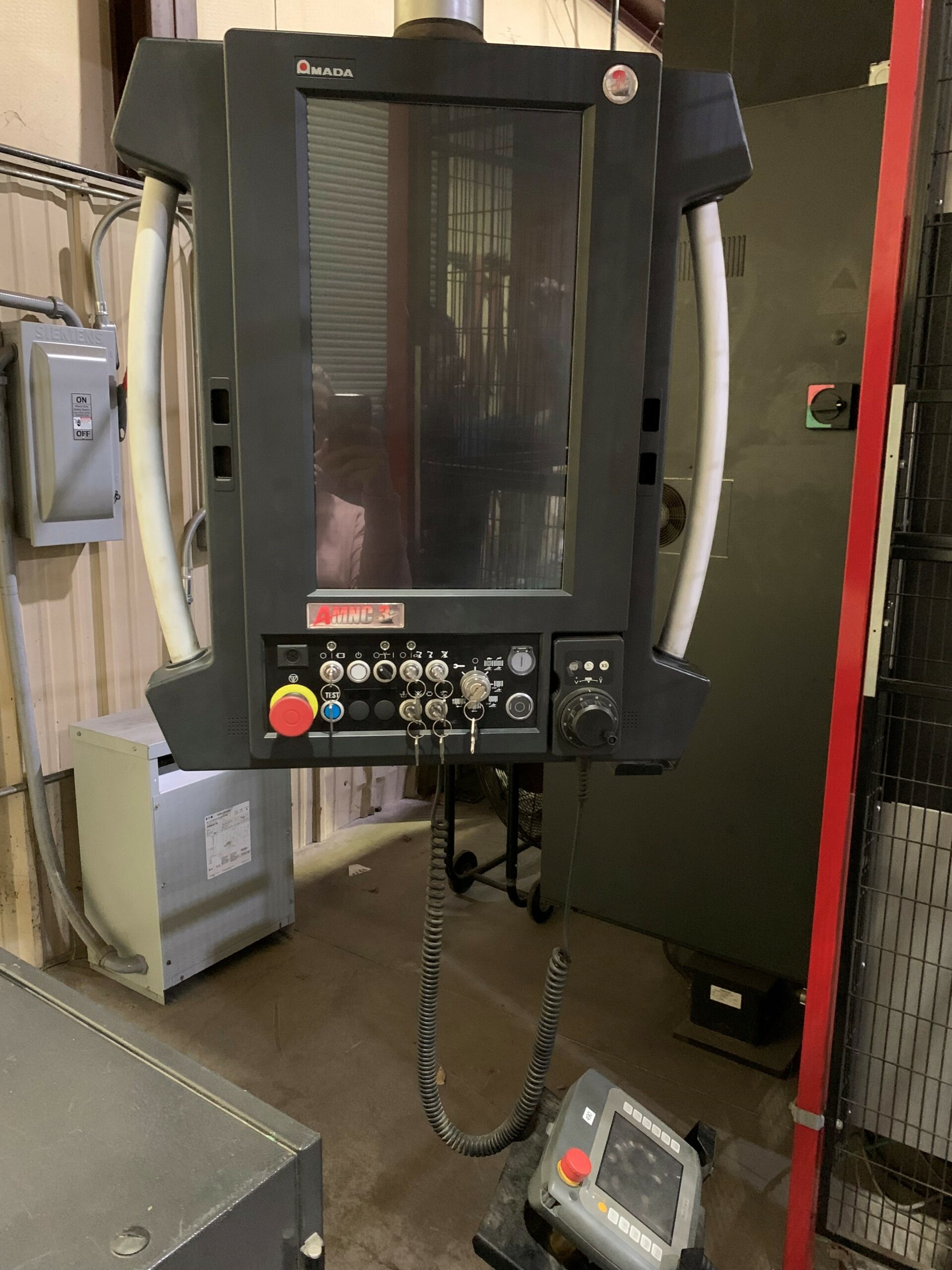

Amada AMNC/PC Control |
| Distance Between Housings |
106.3" |
| Stroke |
9.84" |
| Throat Depth |
17.7" |
| Open Height |
20.47" |
| Approach Speed |
8.7 IPS |
| Bending Speed |
0.79 IPS |
| Return Speed |
9.8 IPS |
| Travelling Axis |
26.2" |
| Approx. Dimensions |
442" x 235" x 110" |
| Approx. Machine Weight |
33,100 Lbs |
Features
|
CNC Crowning |
Electric Foot Switch |
|
Flush Floor |
Hydraulic Tool Clamping System |
|

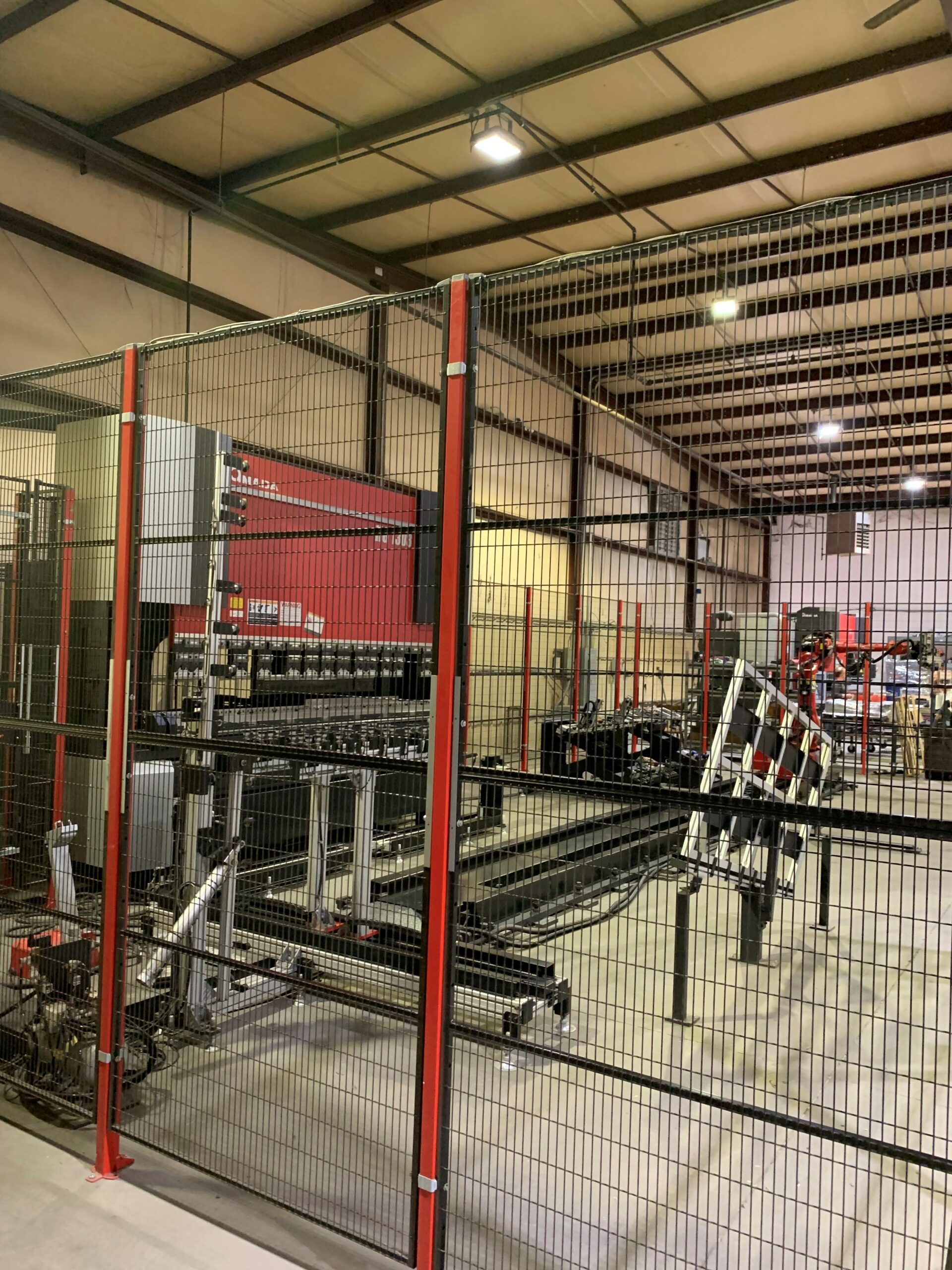

Light Curtains |
5-Axis CNC Back Gauge |
|
6 Controlled Axes |
CNC Bend Indicator Option |
|
CNC Hydraulic Bed Crowning |

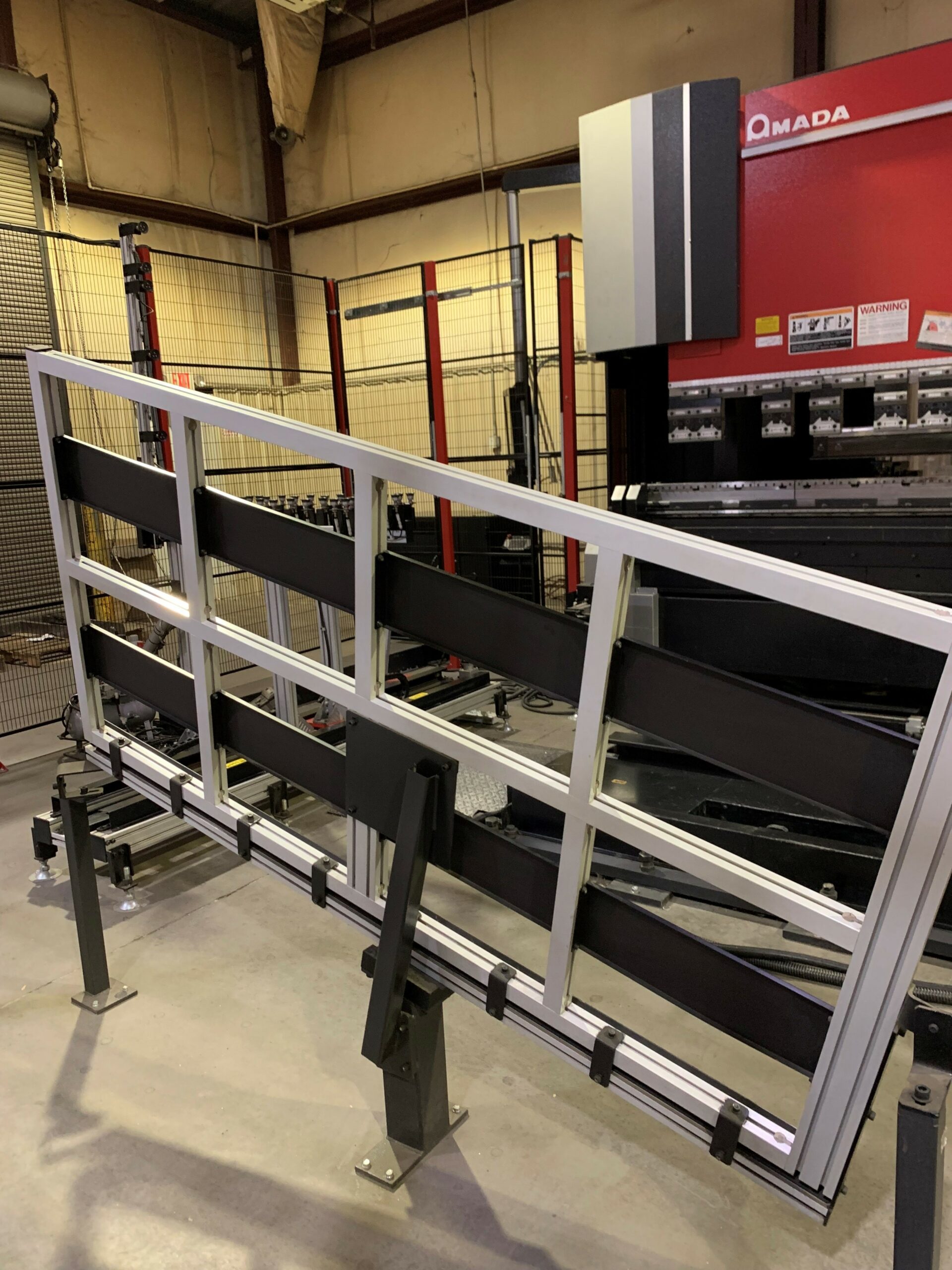

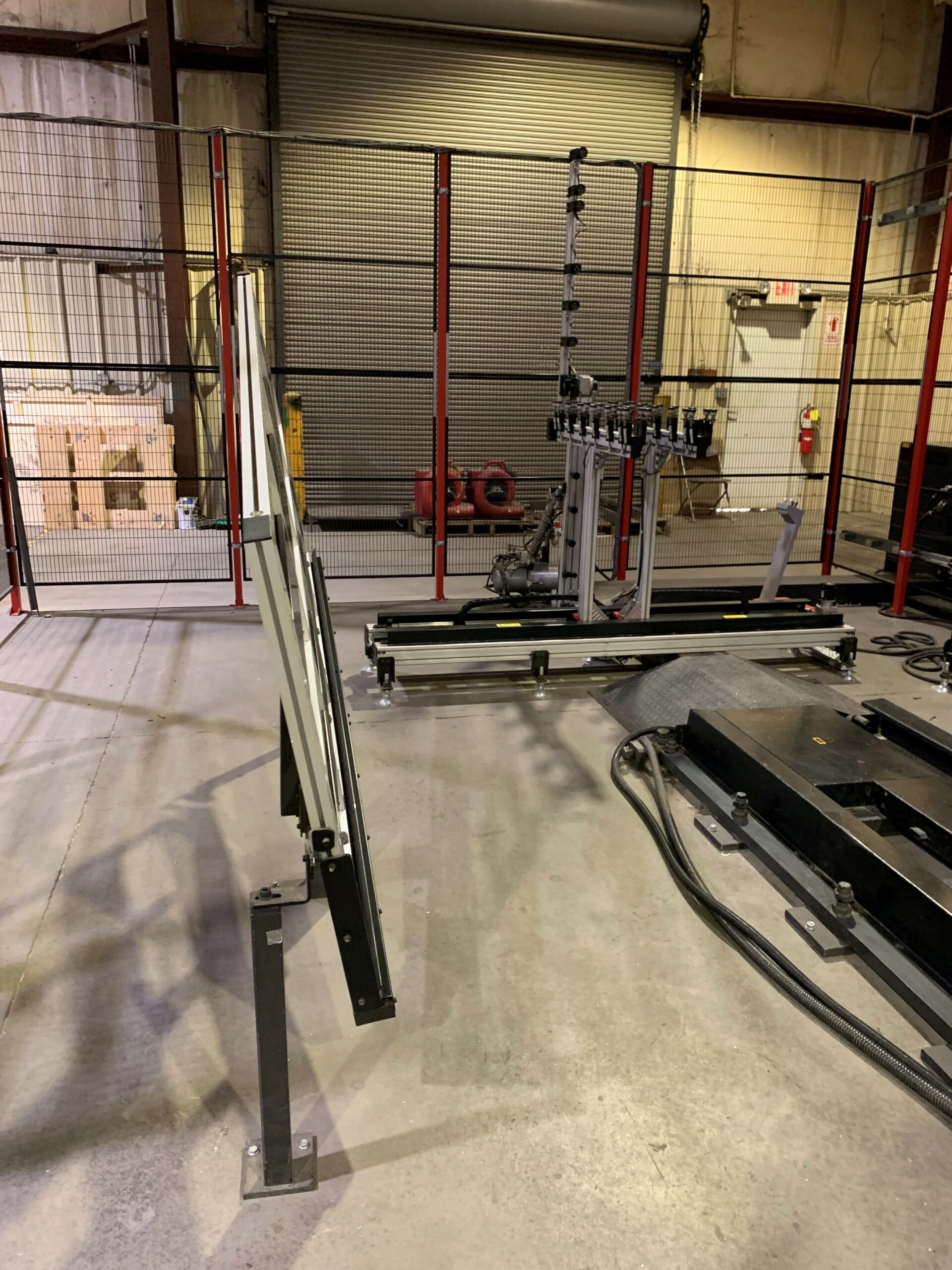

Large Quantity of Part-Handling Fixtures |
|

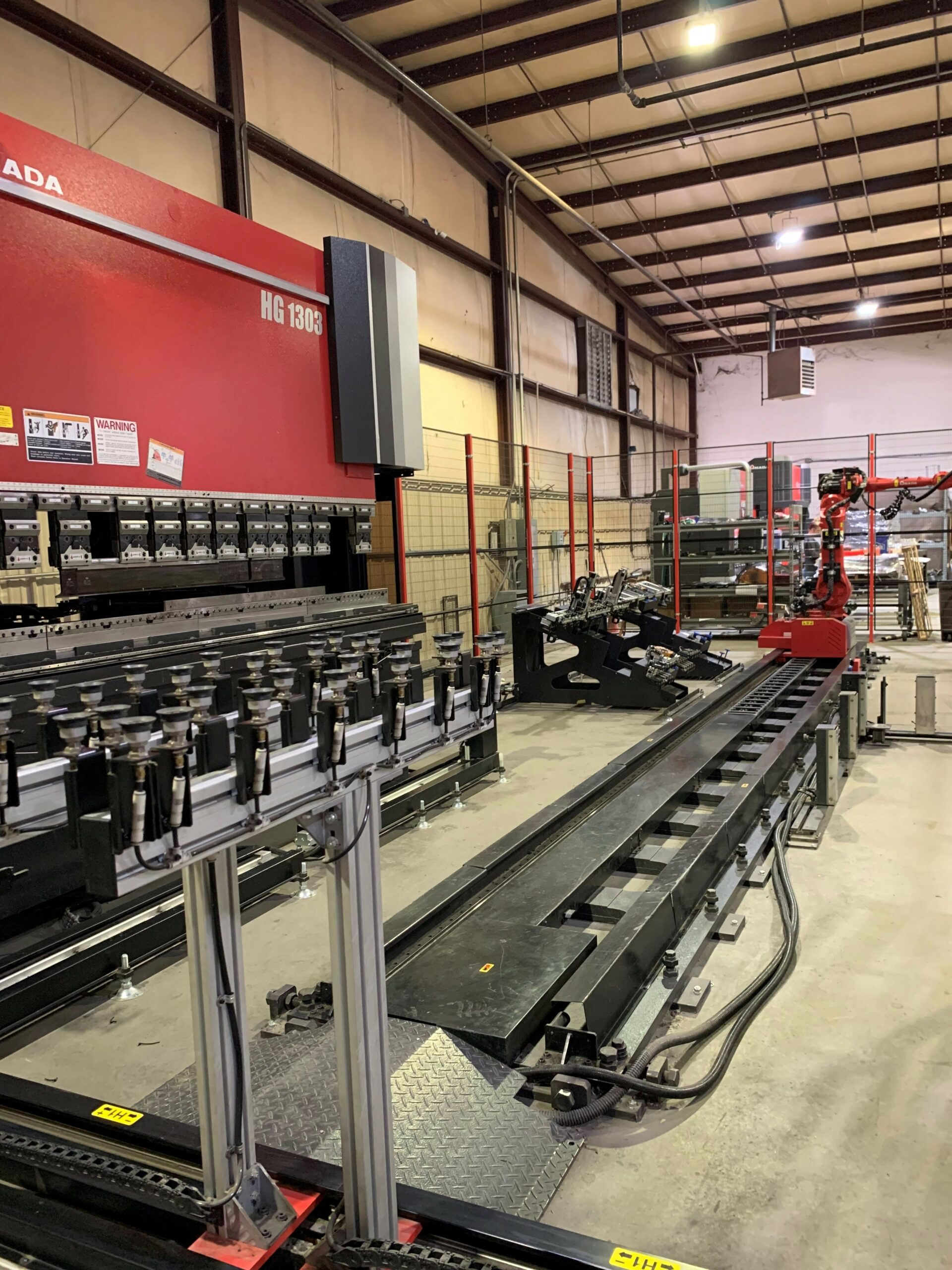

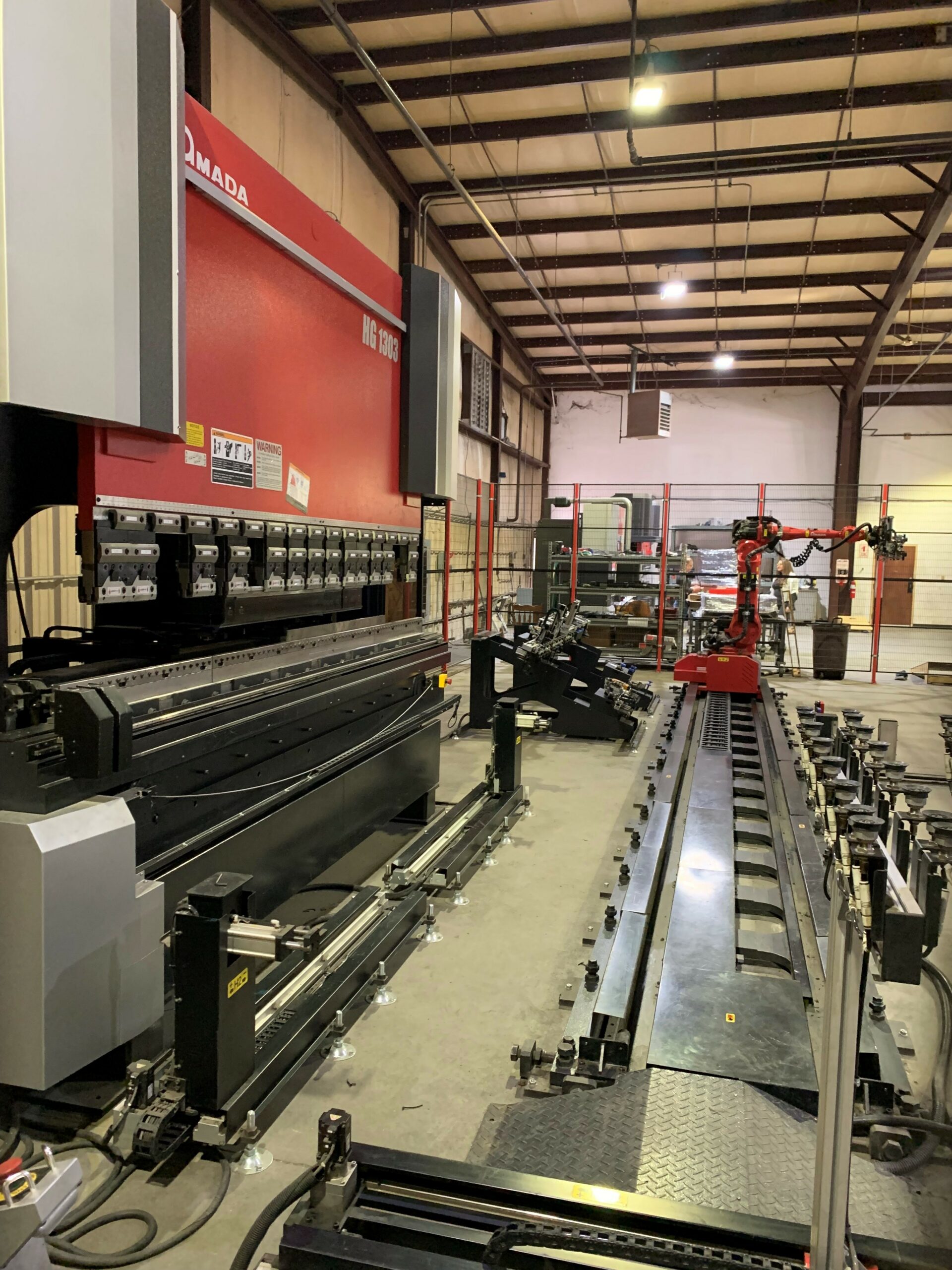

Yaskawa 6-Axis CNC Robot |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
