Year 2018
Make Amada
Model HG2204RH

Description

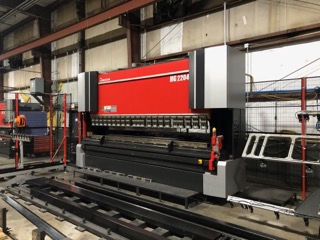

247 Ton x 14' Hydraulic Press Brake
Reference # 8070887

Price

Activate PricingInquire Now

Specifications

Capacity

247 Ton

Overall Length of Bed

14'

Control

AMNC 3i Control

Distance Between Housings

157.4"

Stroke

9.84"

Open Height

20.5"

Max Part Size

59.1'' x 157.4''

Min Part Size

3.94'' x 39.4''

Part Thickness

0.020" - 0.236"

Max Loading Height

250mm

5-Axis Back Gauge

L1, L2, Y1, Y2, Z

Approach Speed

8.7 ips

Max Bending Speed

.98 ips

Features

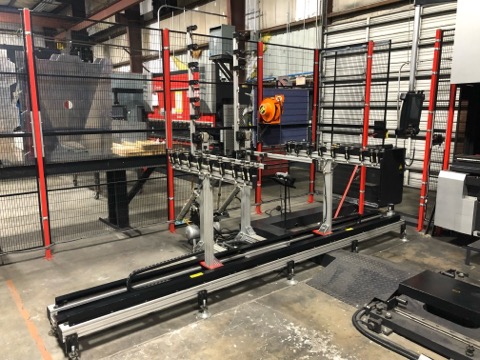

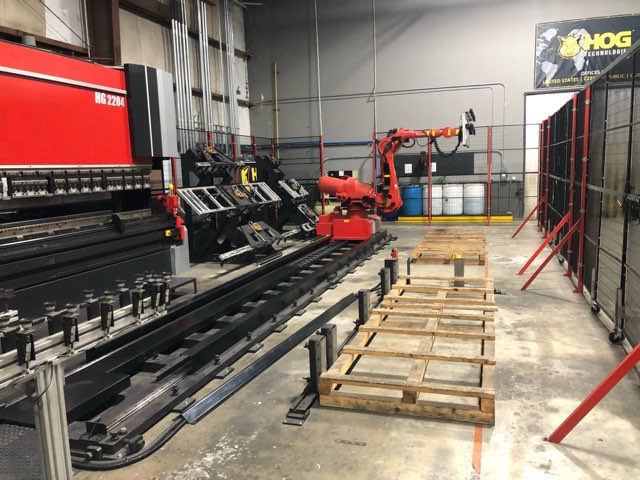

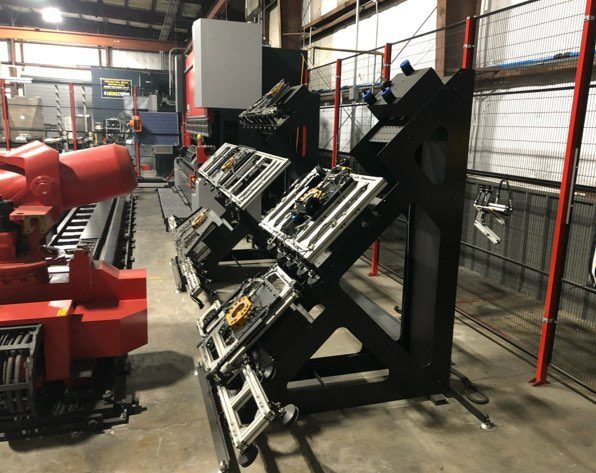

165kg Capacity Robotic Part Handler

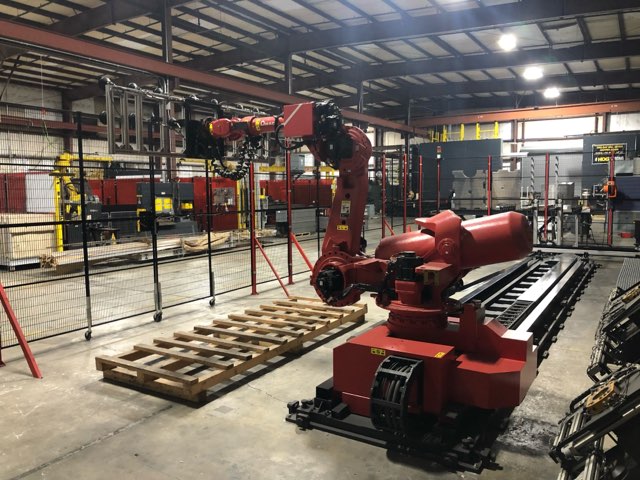

6-Axis Robot (Yaskawa/Motoman)

8m of Track Length

Automatic Hydraulic Crowning System

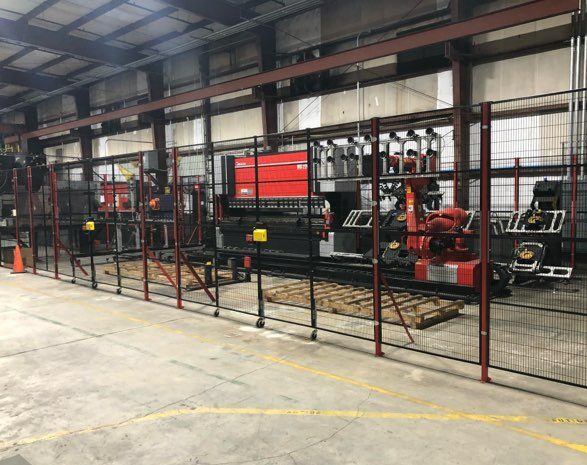

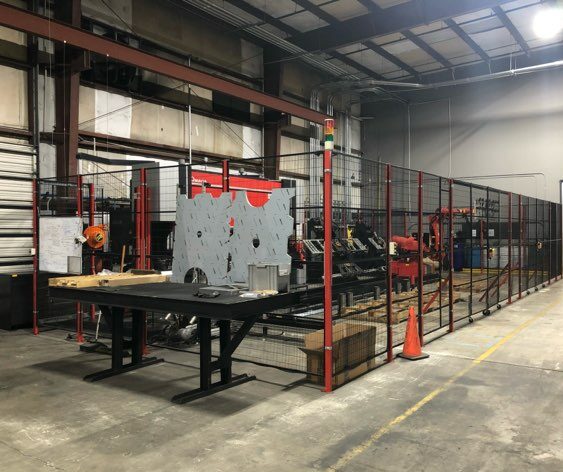

Safety Fench

Thickness Detection System

Vacuum Gripper
