| Year | 2018 |
|---|---|
| Make | BigRep |
| Model | STUDIO |
Description |
Desktop 3D Printer |
| Reference # | 8077023 |

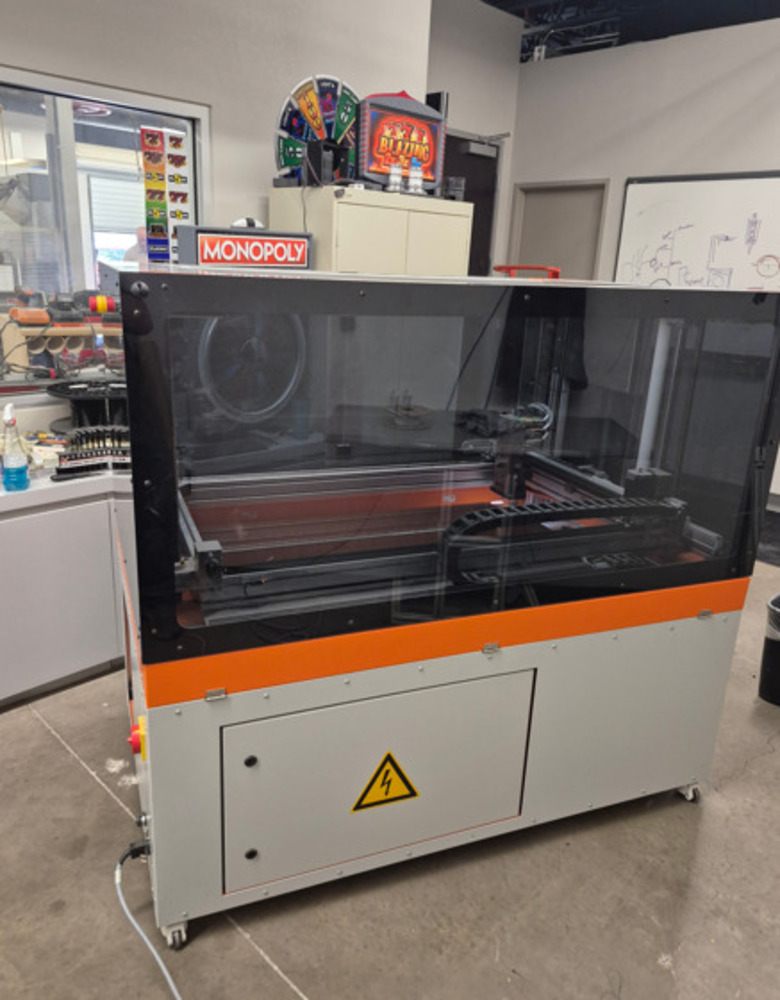

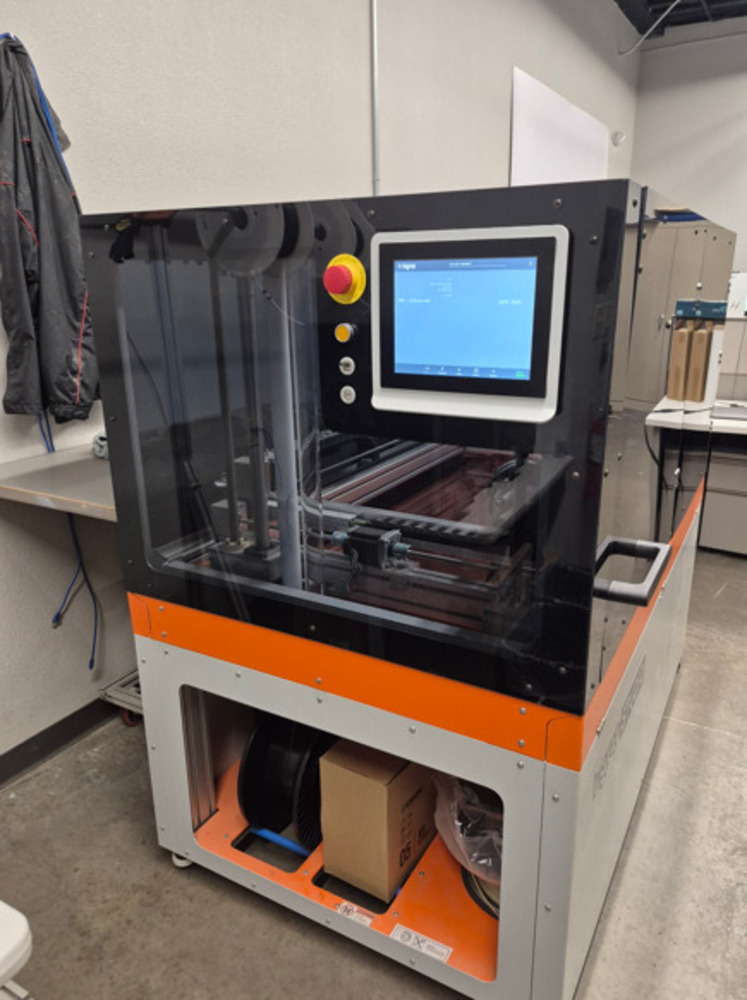

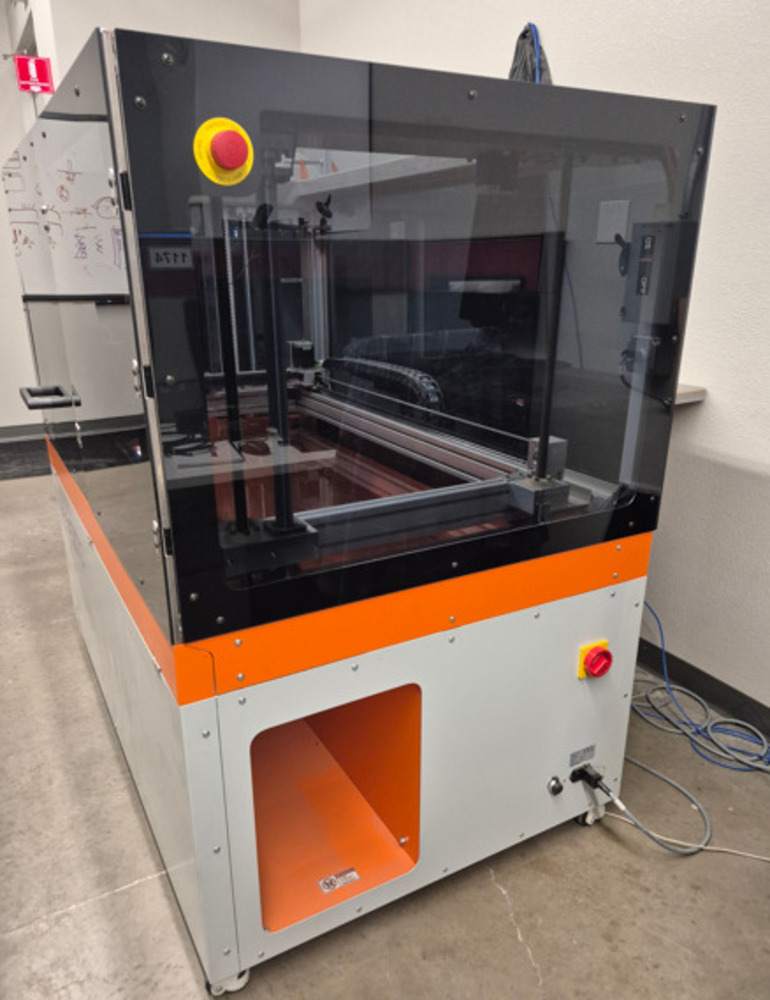

Used BigRep STUDIO
Specifications
| Build Volume |
X-39.5/Y-19.5/Z-19.5 in (X-1000/Y-500/Z-500 mm) |
|---|---|
| Layer Height Resolution |
0.1 – 0.4 (mm) |
| Acceleration |
Up to 600 mm/s2 |
| Extruder |
Dual Extruder (Equipped with Two 0.6 mm Hot Ends) |
| Printing Technology |
Fused Filament Fabrication (FFF/FDM) |
| Compatible Big Rep Materials |
ASA, ABS, BVOH, HI-TEMP, PA6/66, PET-CF, PETG,PLA, PLX, PRO HT, PVA, TPU and More |
| Printbed Temperature |
Max. 212 °F (100 °C) |
| Printer Weight |
Approx. 1210 Lbs (550 kg) |
| Size |
X-67.5/Y-46/Z-69.5 in (X-1715/Y-1170/Z-1765 mm) |
| Power Requirement |
208V - 240V / 16A / 50/60Hz |
| Safety Certifications |
CE Approved (All major certifications in progress) |

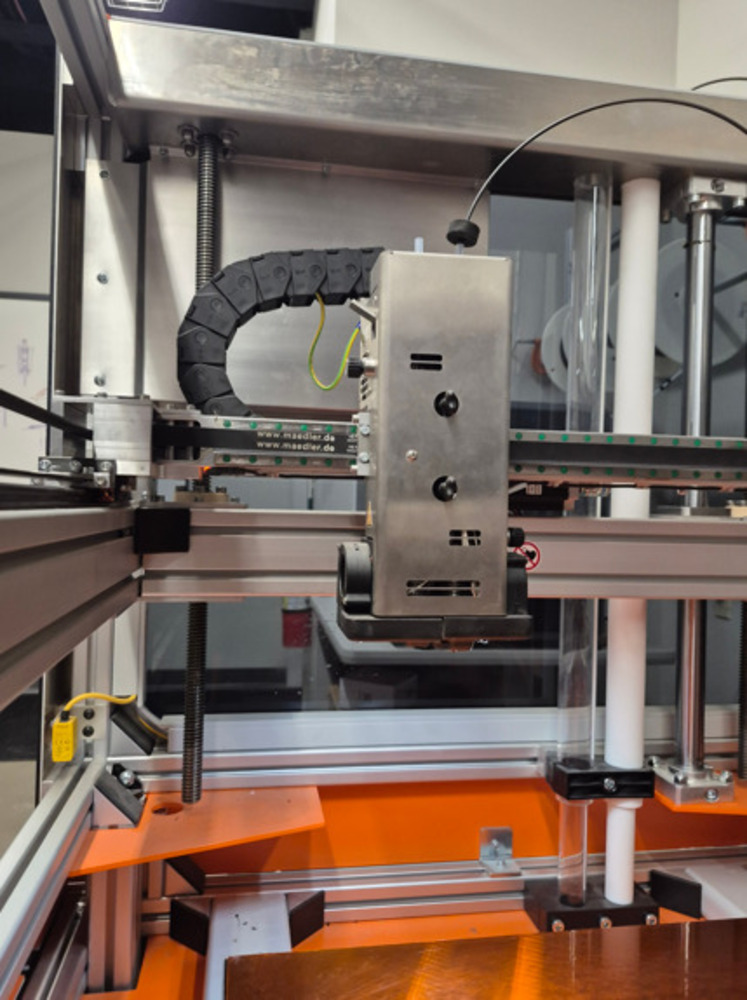

| Studio Dual Extruder (SDX) |
The Best-In-Class Print Heads |

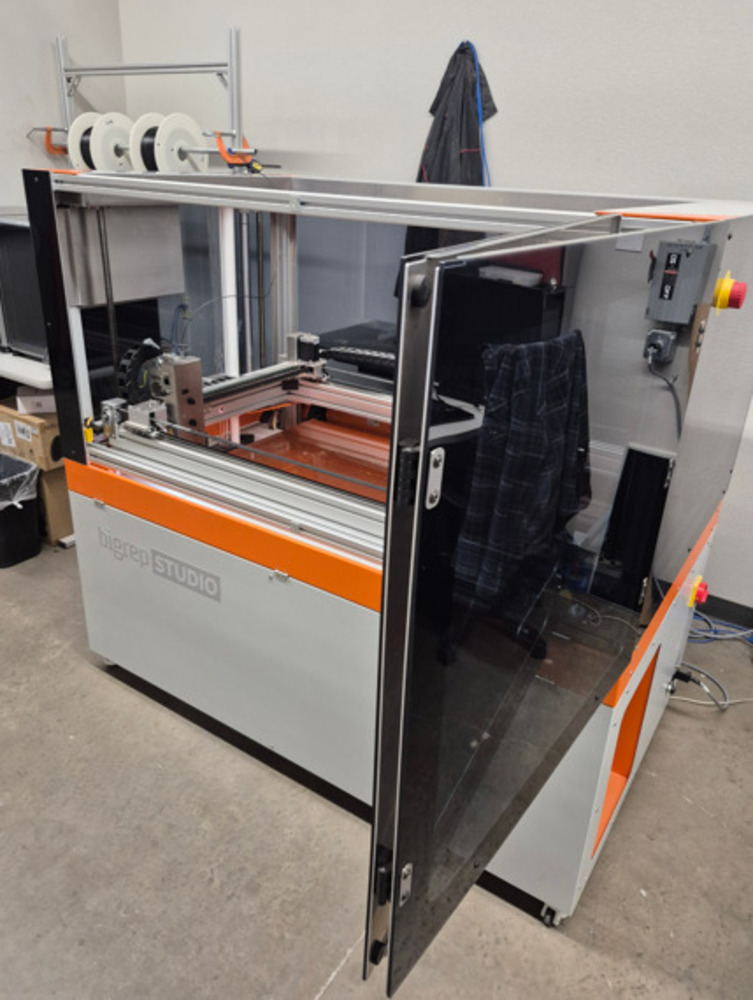

| Fully Enclosed Environment |
The Insulated Build Envelope |
| Modular Temperature Controls |
The Heated Filament Chamber |
| Optimal Printing Temperatures |
The Fast-Heating Print Bed |
| Easy & Intuitive |
The New Slicer |
| Compact Enough For Any Space |
Massive Build Volume & Low Noise Emission |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
