| Year | 2018 |
|---|---|
| Make | Cincinnati |
| Model | 90PF+8 |
Description |

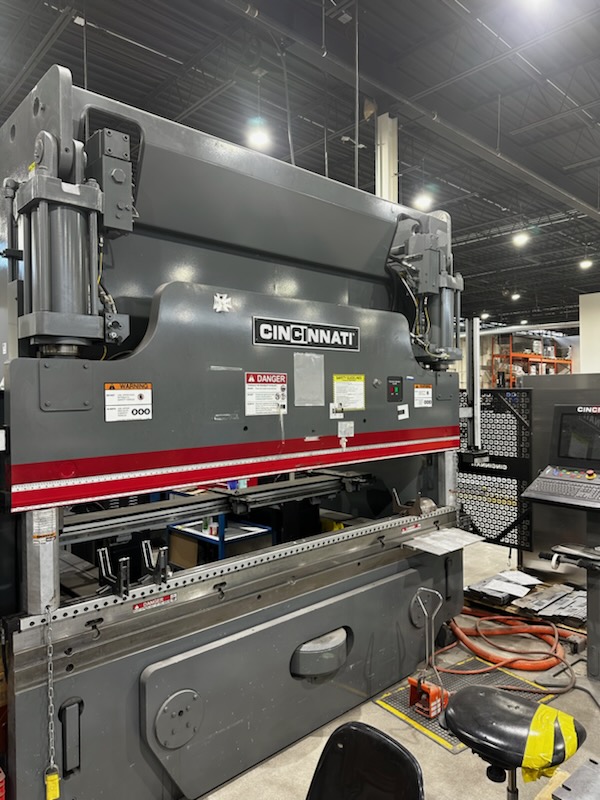

90 Ton x 10' Hydraulic Press Brake |
| Reference # | 8074955 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used Cincinnati 90PF+8 (2018) CNC Press Brake for Sale. This pre-owned Cincinnati CNC press brake is located in Canada. If you have any questions regarding this Cincinnati Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
90 Ton |
|---|---|
| Overall Length of Bed |
10' |
| Control |

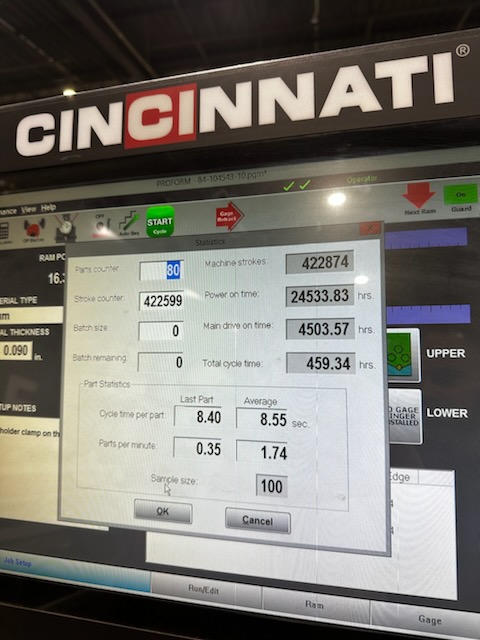

Cincinnati PC Based CNC |
| Distance Between Housings |
102.5" |
| Stroke |
8" |
| Throat Depth |
7" |
| Open Height |
15" |
| Closed Height |
7" |
| Approach Speed |
260 IPM |
| Forming Speed |
80 IPM |
| Return Speed |
280 IPM |
| Ram Repeatability |
+/-0.0004" |
| Motor |
15 HP |
| Power Requirement |
460V 3 Phase |
| Approx. Dimensions |
14' x 4' x 10' H |
| Approx. Weight |
16,000 Lbs |
Features
|
6'' Increased Stroke |
Guarding Package |
|
Lazer Safe IRIS |

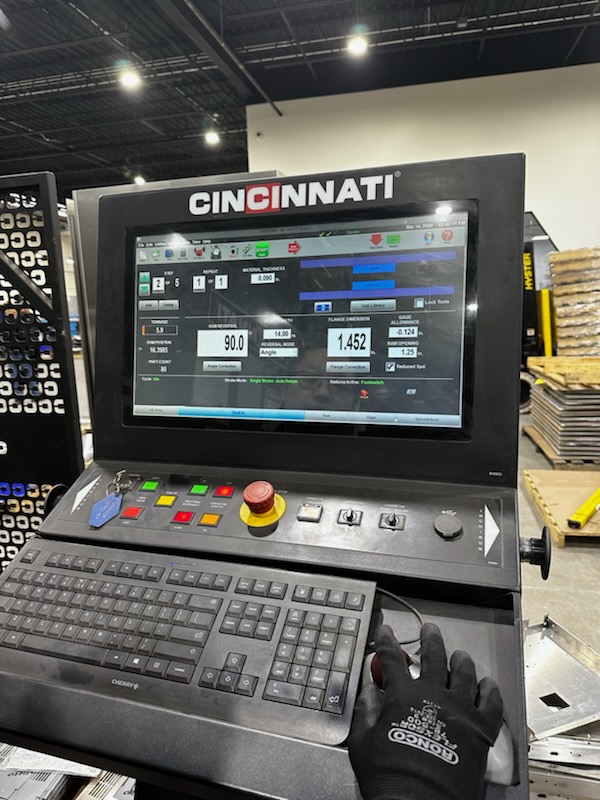

Pedestal Mounted Control (HMI) |
|
Wilson Hydraulic clamping |
Auto Crowning |
*
