| Year | 2018 |
|---|---|
| Make | CR Onsrud |
| Model | 615DG24H8 |
Description |
CNC Router |
| Reference # | 8074378 |
Price |
Activate PricingInquire Now |

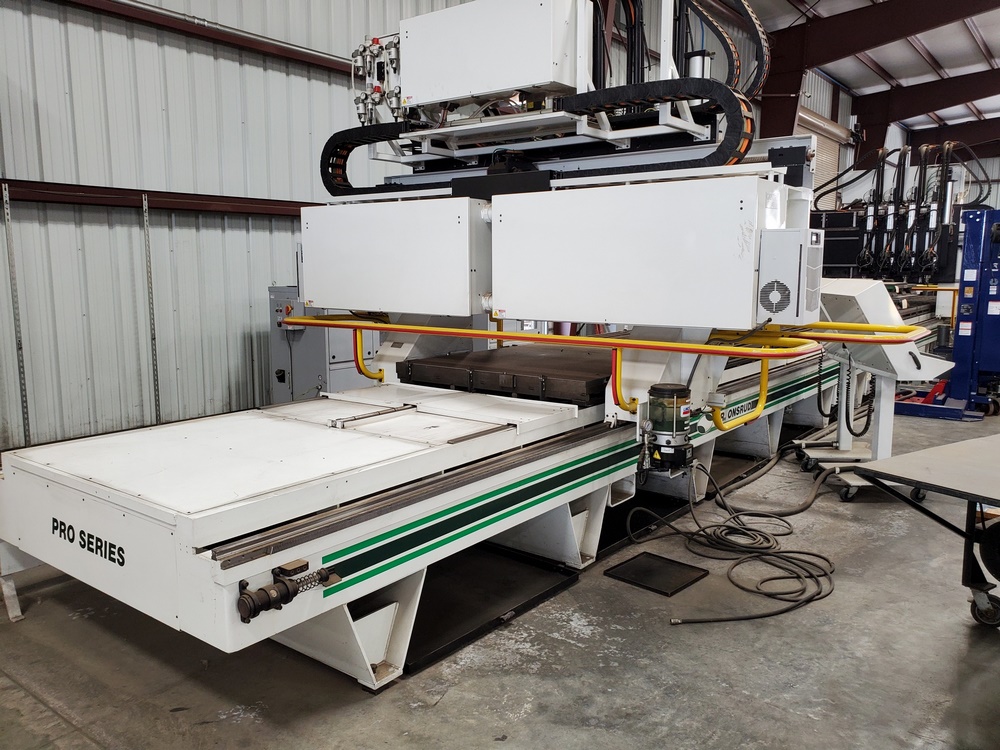

Used CR Onsrud 615DG24H8 (2018) CNC Router for Sale. This pre-owned CR Onsrud router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this CR Onsrud CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Number of Axis |
3 |
|---|---|
| X-Axis Travel |
641.825" |
| Y-Axis Travel |
60" |
| Z-Axis Travel |
12.6" (36.872") |
| Spindle Speed |
24,000 RPM |

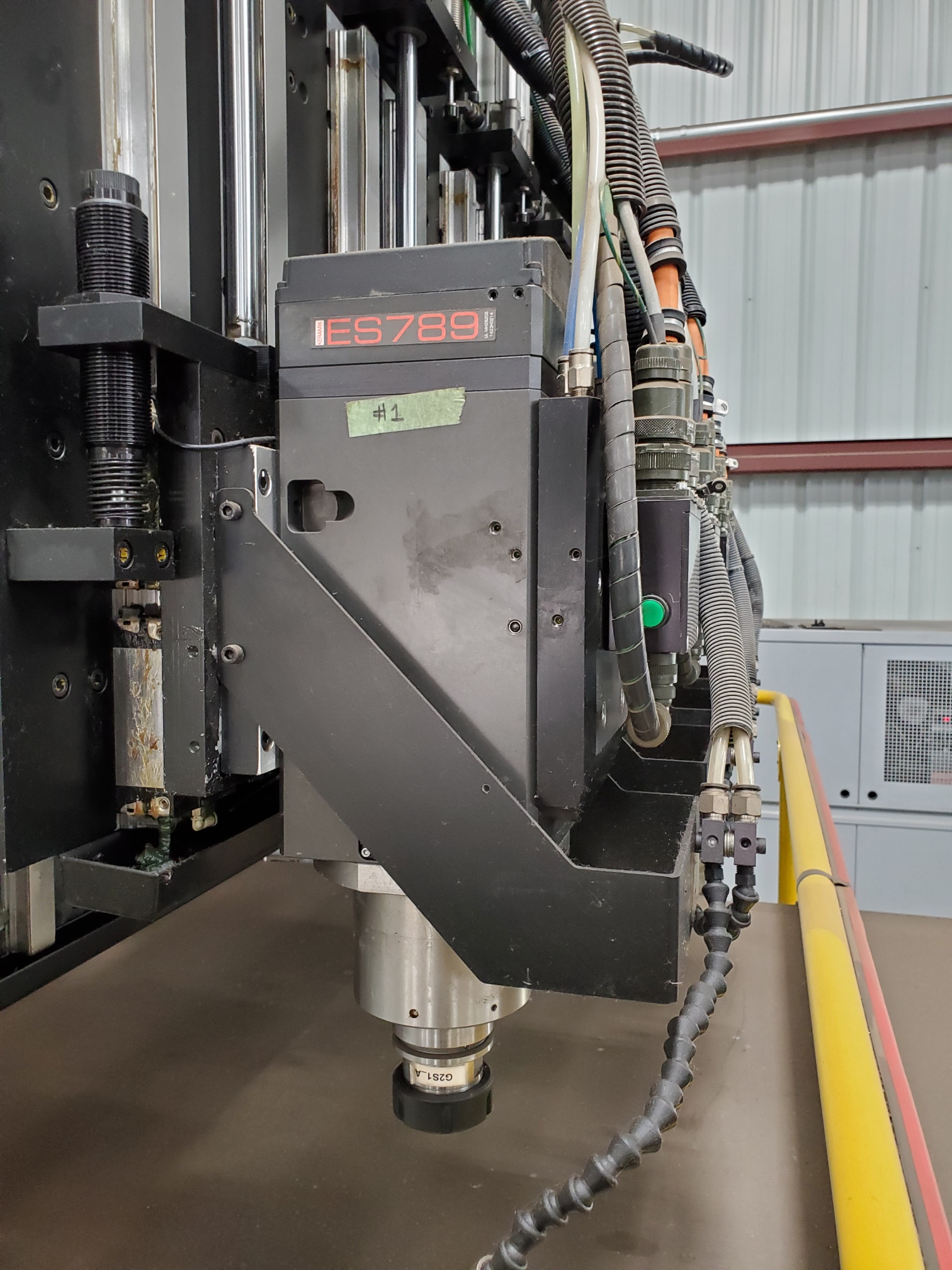

| Spindle Motor |
Four 24HP Spindles Per Gantry - Servo Centered (8 Spindles Total) |
| Control |

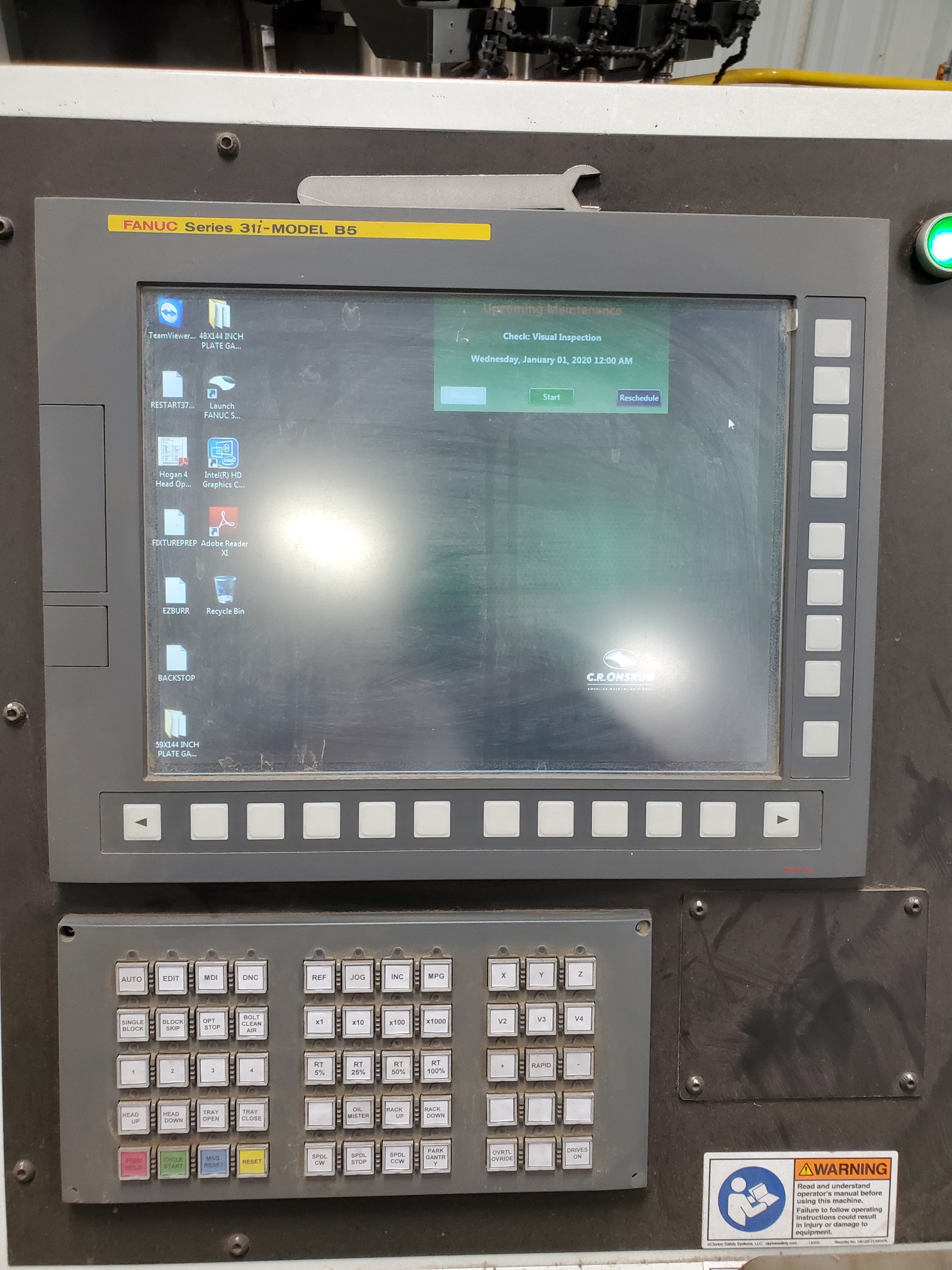

Two FANUC 31i-B5 Controls |
| Minimum Distance Between Heads |
12.5" |
| Maximum Distance Between Heads |
75" |
Features
|
12-Position Tool Changer Per Gantry (24 Tool Positions Total) |
8 High Accuracy Pins |
|
Auto Machine Lubrication |
Dual Gantry 5' Wide 3-Axis |
|
Extended Bridges |
FANUC Spindle Drives for All 8 Spindles (Includes Rigid Tapping with Each Spindle) |
|
HSK-63F Tool Taper |
Oil Mist Lube for Each Spindle |
|
Tool Changer Hides Under the Machine Frame When Not In Use |
