| Year | 2018 |
|---|---|
| Make | Doosan |
| Model | Puma SMX3100ST |
Description |
CNC Lathe |
| Reference # | 8071386 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

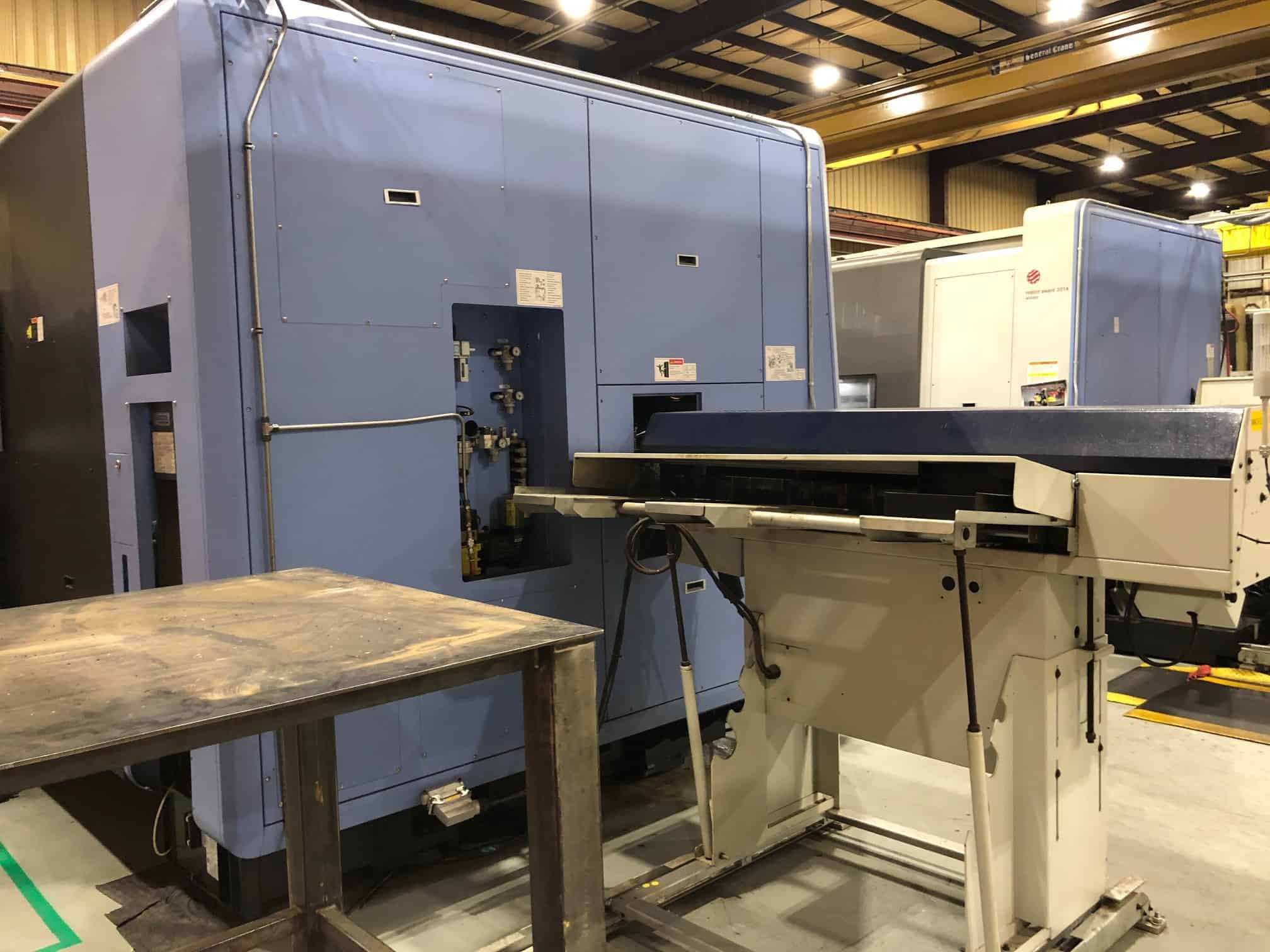

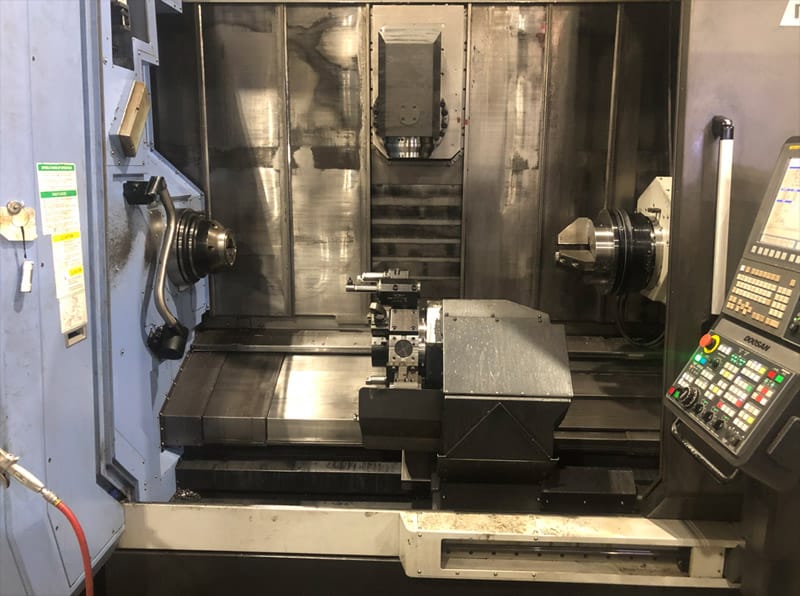

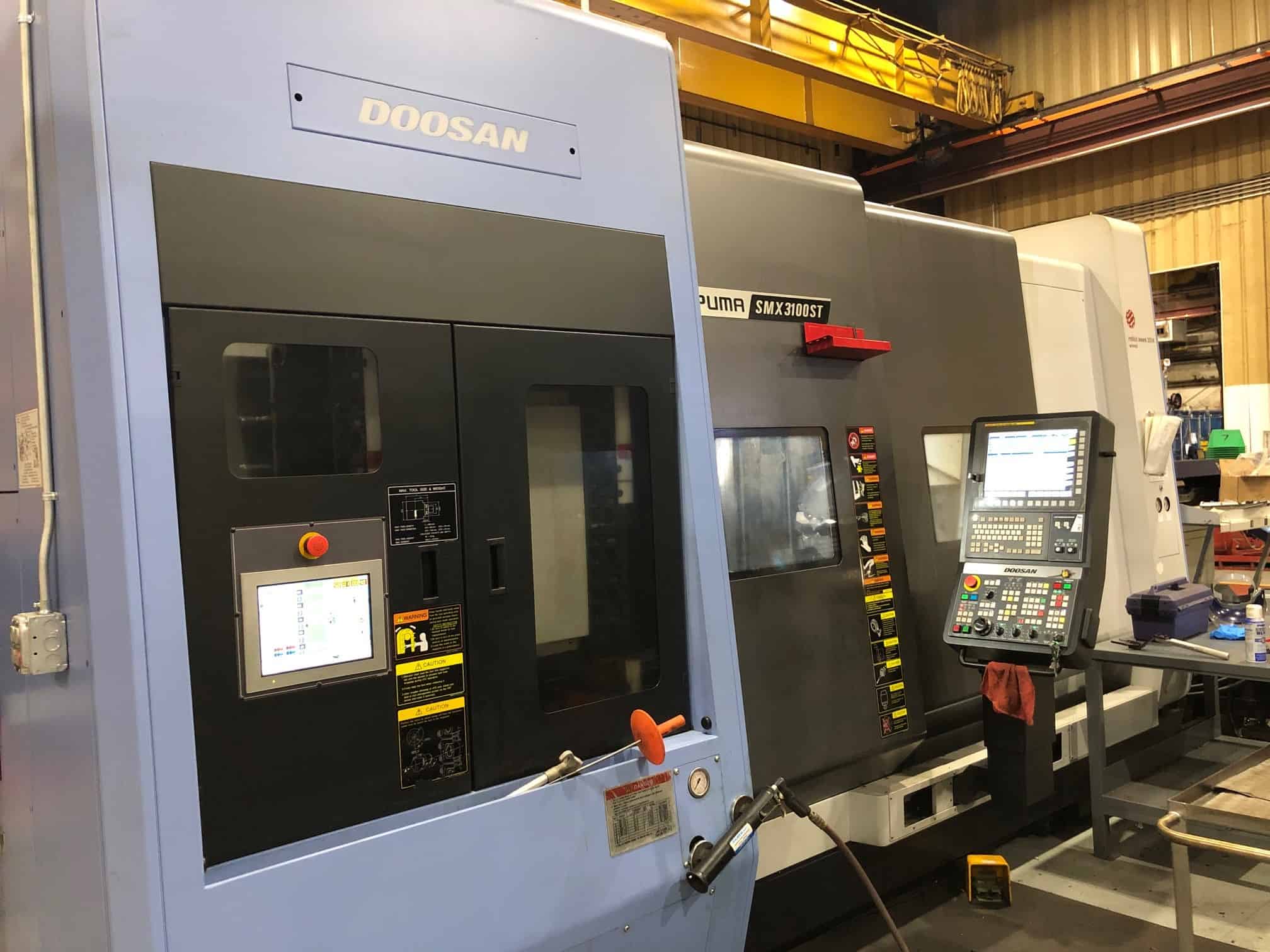

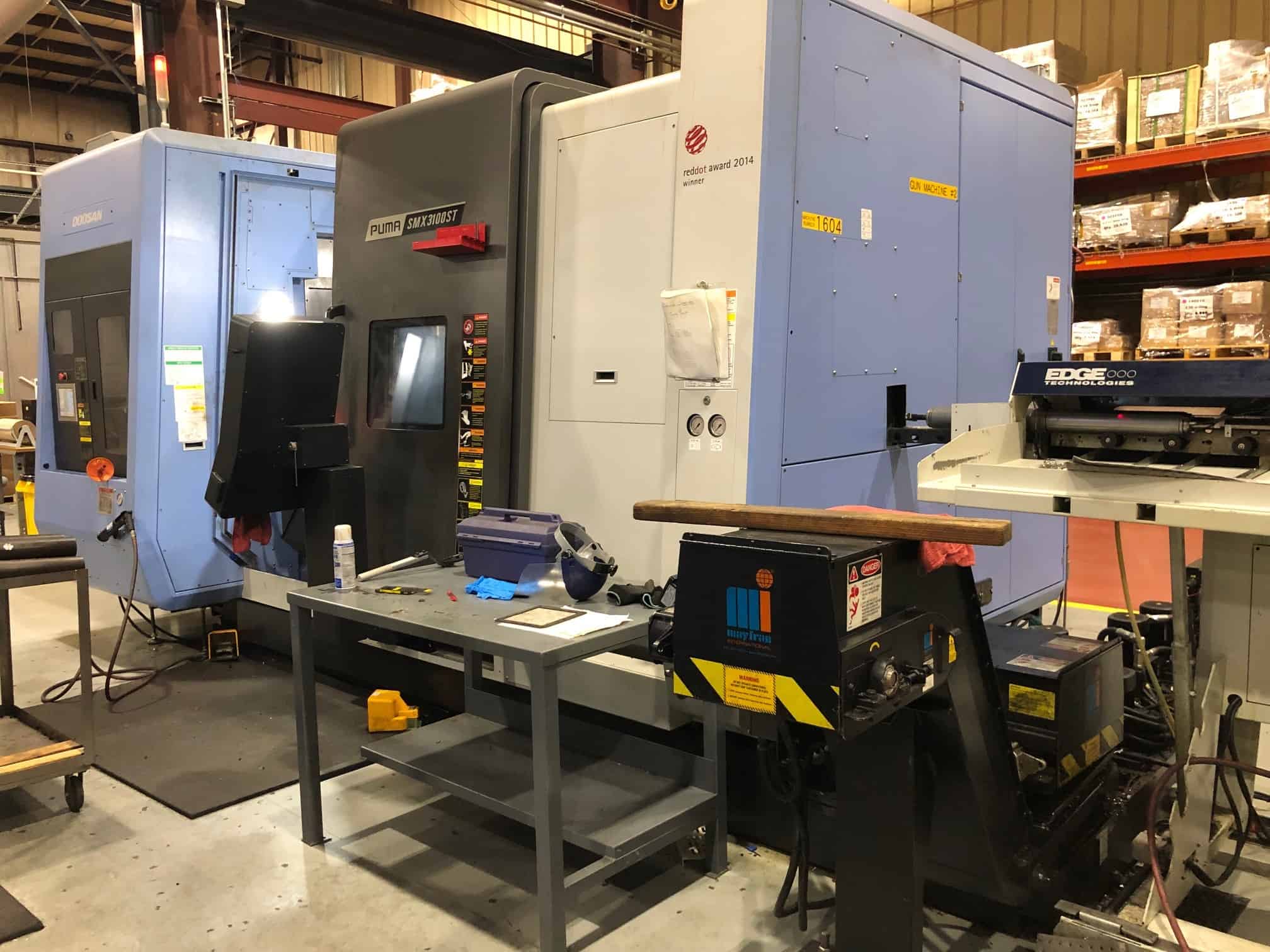

Used Doosan Puma SMX3100ST (2018) CNC Lathe for Sale. This pre-owned Doosan CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Doosan Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
12" |
|---|---|
| Bar Capacity |
4" |
| Swing |
25.98" |
| Turning Diameter |
25.98" |
| Spindle Speed |
3,000 (Main Spindle) 4,000 (Sub Spindle) |
| Control |

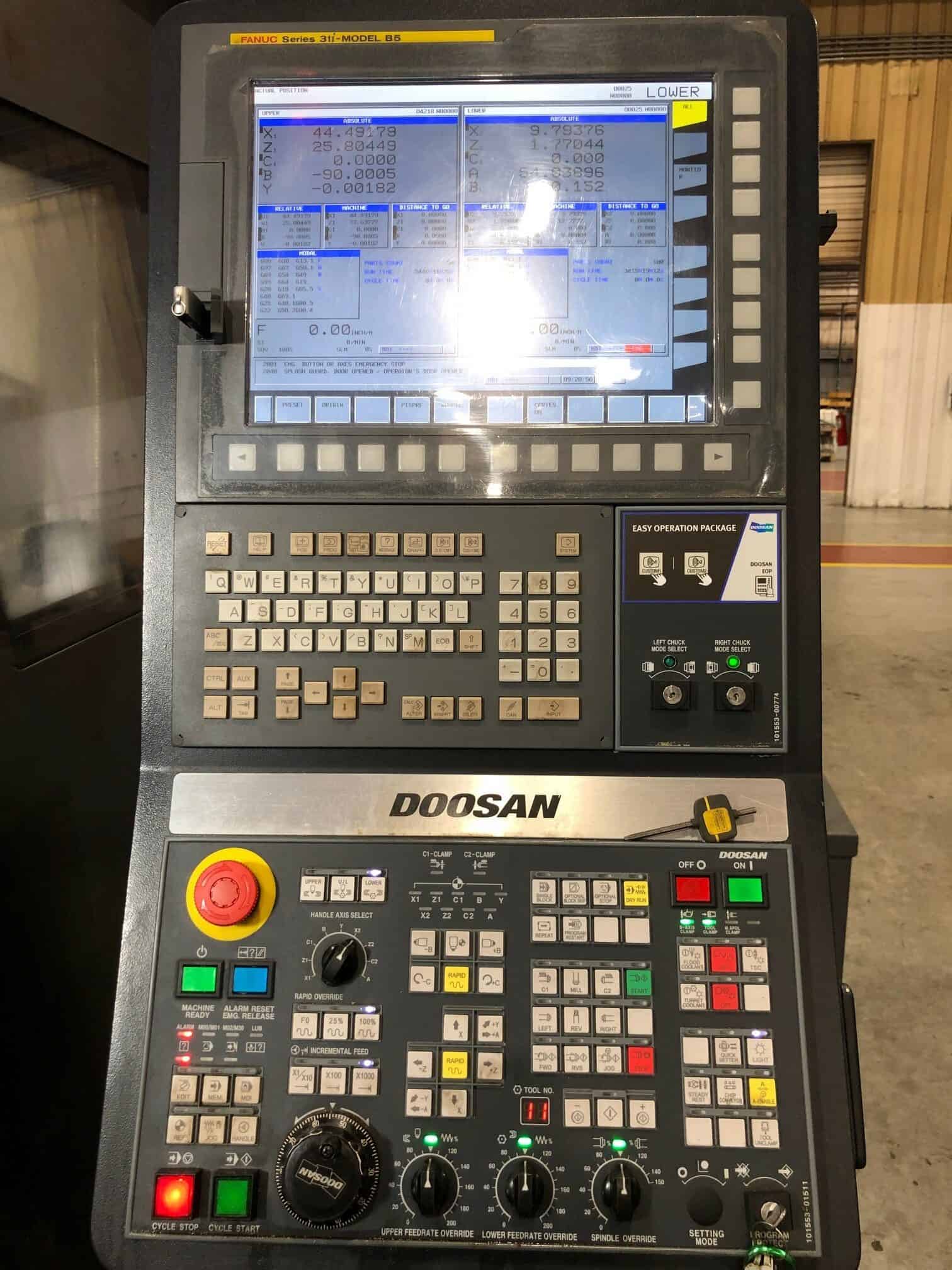

Fanuc 31i-B5 CNC |
| Distance Between Centers |
60.53" |
| Live Tooling |
Y-Axis, Milling/ C-Axis |
| Chip Removal |
Chip Conveyor |
Features
|
Auto Tool Presetter |
Right Spindle Body Positioning by Ball Screw and Servo Motor - Right Spindle Can Be Synchronized with Left Spindle |
|
Royal QG 100 On Main Spindle |

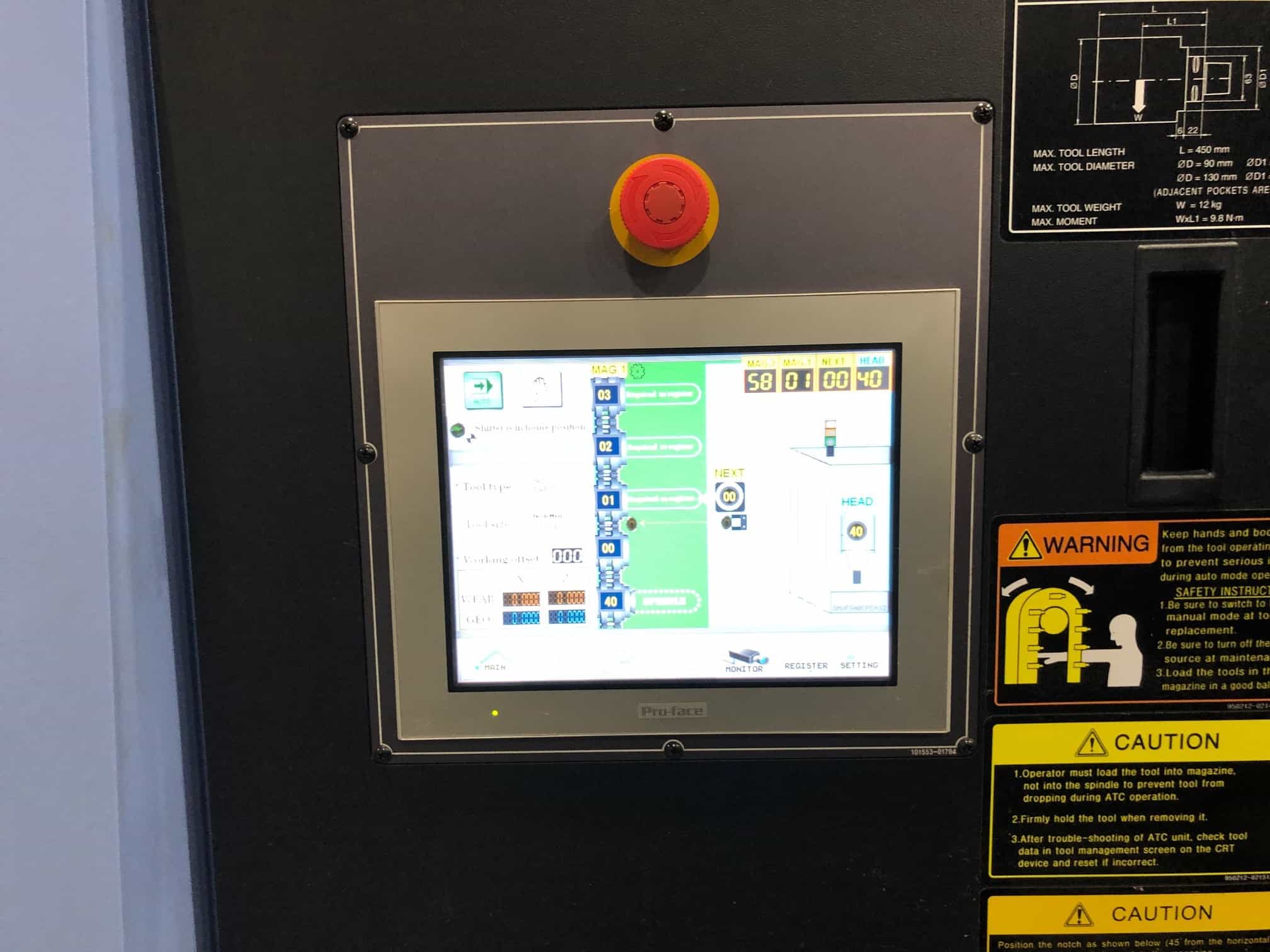

Servo Driven 80 Station ATC With 2.1 Second Tool to Tool Time |
|
Sub Spindle |
SMW SP280-92 12” 3-Jaw Air Chuck for The Second Spindle |
|
Automatic Tool Setters for Both Upper Milling Spindle and Lower Turret |
Custom Mayfran Conveyors to Allow Access for The Bar Unloader |
|
Doosan Tool Load Monitoring System |

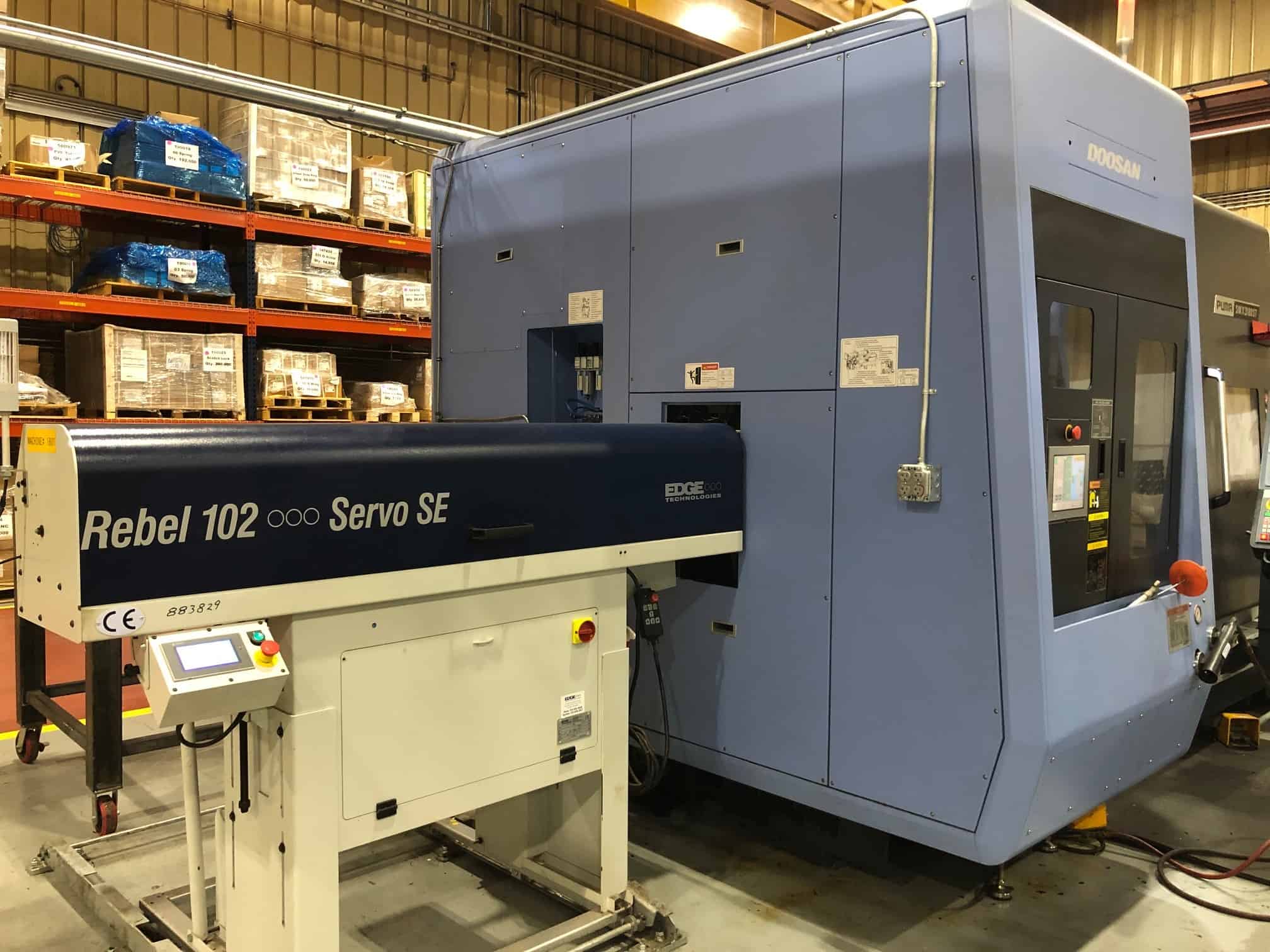

Edge Rebel 102SE Servo Loader Bar Feeder |
|

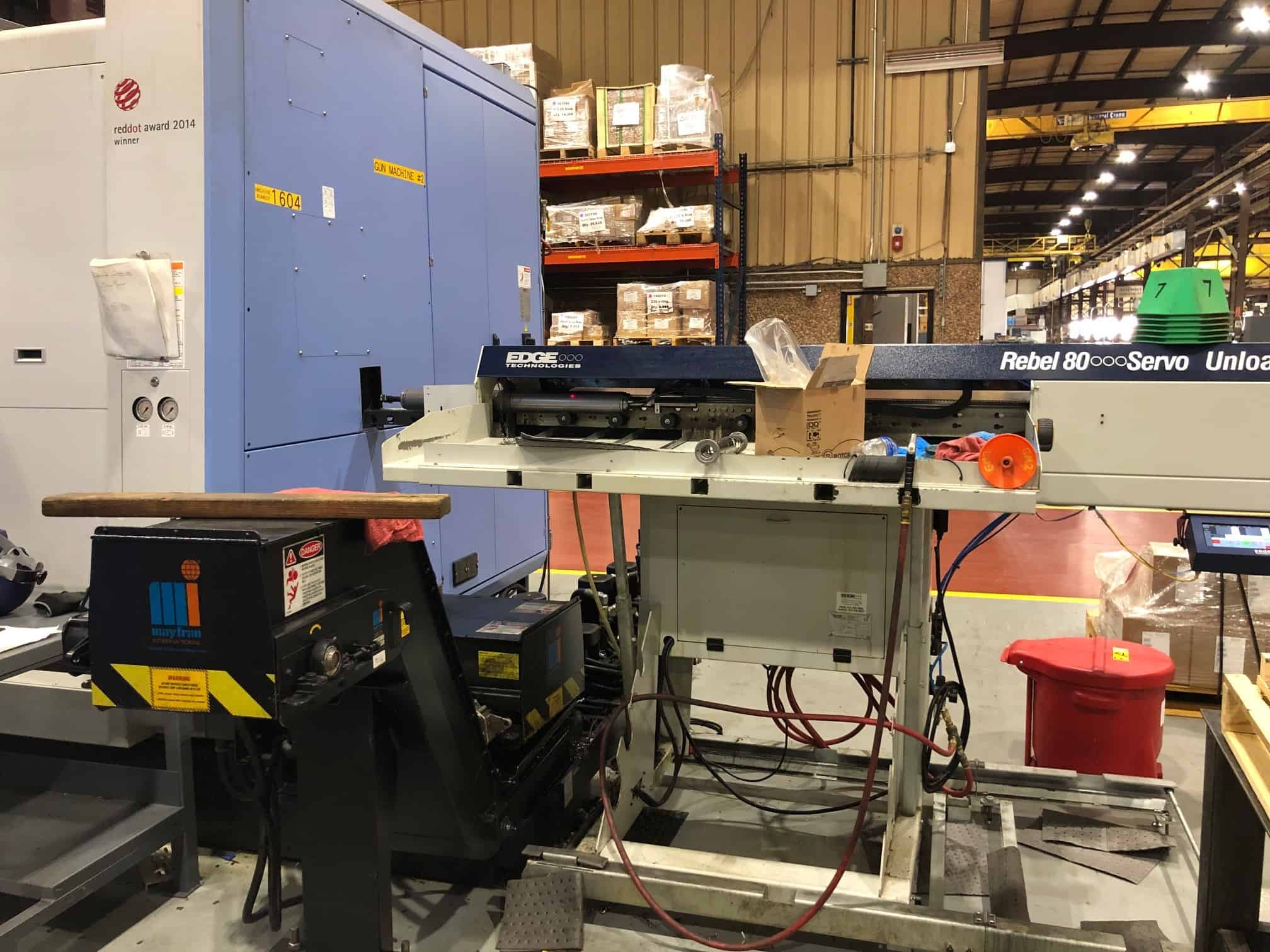

Edge Rebel 80 Unloader |
Full Contouring C-Axis on Both Spindles |
|
Milling/Drilling and Rigid Tapping Capabilities on Both Spindles |

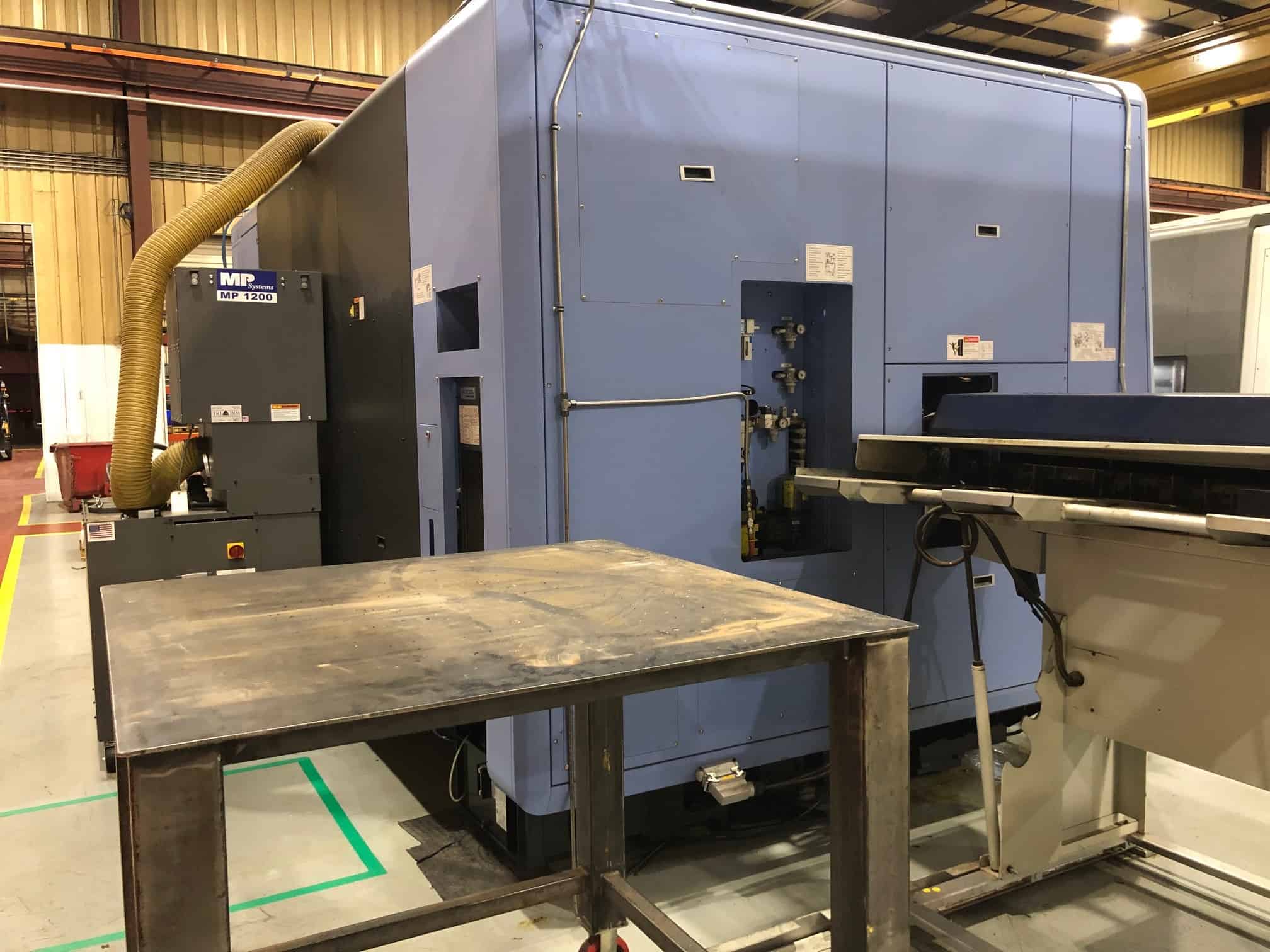

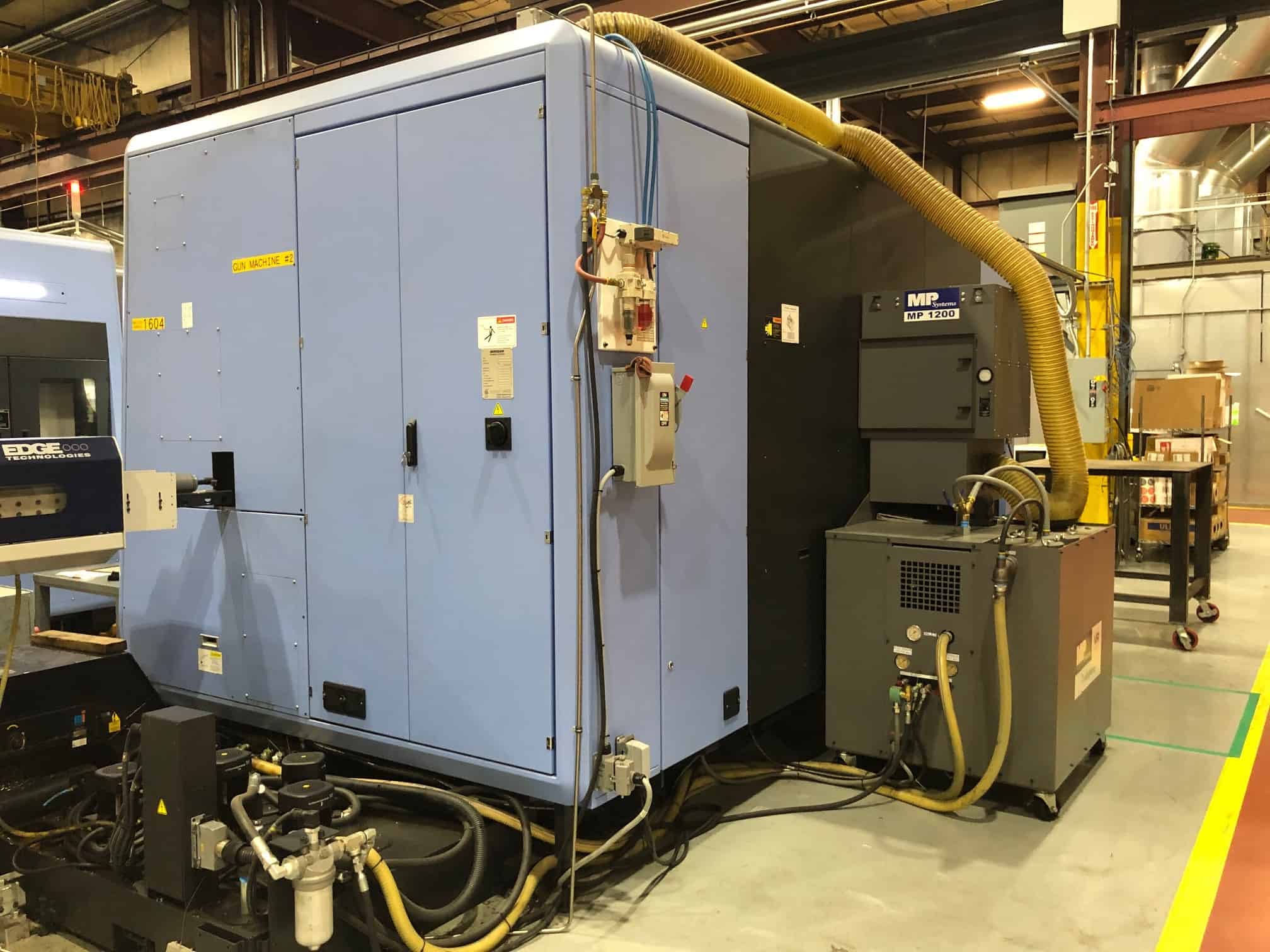

MP System Mist Collector |
|
MP System VRT Twin Outlet 1000 PSI/8gpm |
Orthogonal Y-Axis With 300 Mm (±150mm) ((11.81” (±5.9”))) Stroke |
|
X1-Axis Glass Scale |
