| Year | 2018 |
|---|---|
| Make | Nakamura-Tome |
| Model | NTY3-150 |
Description |
CNC Lathe |
| Reference # | 8070202 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.5" |
| Turning Diameter |
6.88" |
| Spindle Speed |
4,500 RPM |

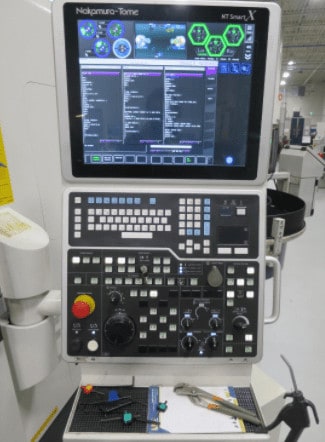

| Control |
Fanuc 31i-B |
| Distance Between Centers |
22" |

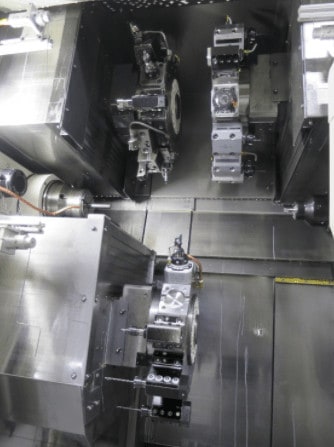

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Chip Removal |
Chip Conveyor |
| Left Spindle Speed |
4500 RPM 20 / 15 HP Fanuc Spindle Motor |
| Right Spindle Speed |
5000 RPM 20 / 15 HP Fanuc Spindle Motor |
| Left Spindle Bar Capacity |
65mm (2.5”) |
| Right Spindle Bar Capacity |
51mm (2.0”) |
| Y Axis Function |
2 Upper and 1 Lower Turret |
Features
|
Auto Tool Presetter |
Helical Interpolation |
|
Sub Spindle |
Three Turret 1000PSI High Pressure |
|

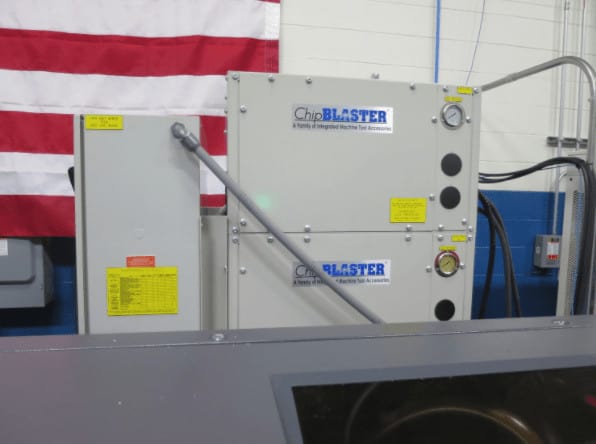

Chip Blaster J3-90 (24 GPM/100GAL Tank/Oil Skimmer) |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
