| Year | 2018 |
|---|---|
| Make | Peddinghaus |
| Model | Ocean Avenger Plus MDL 1250/1C |
Description |
CNC Beam Drill Line |
| Reference # | 8073894 |
Price |
Activate PricingInquire Now |

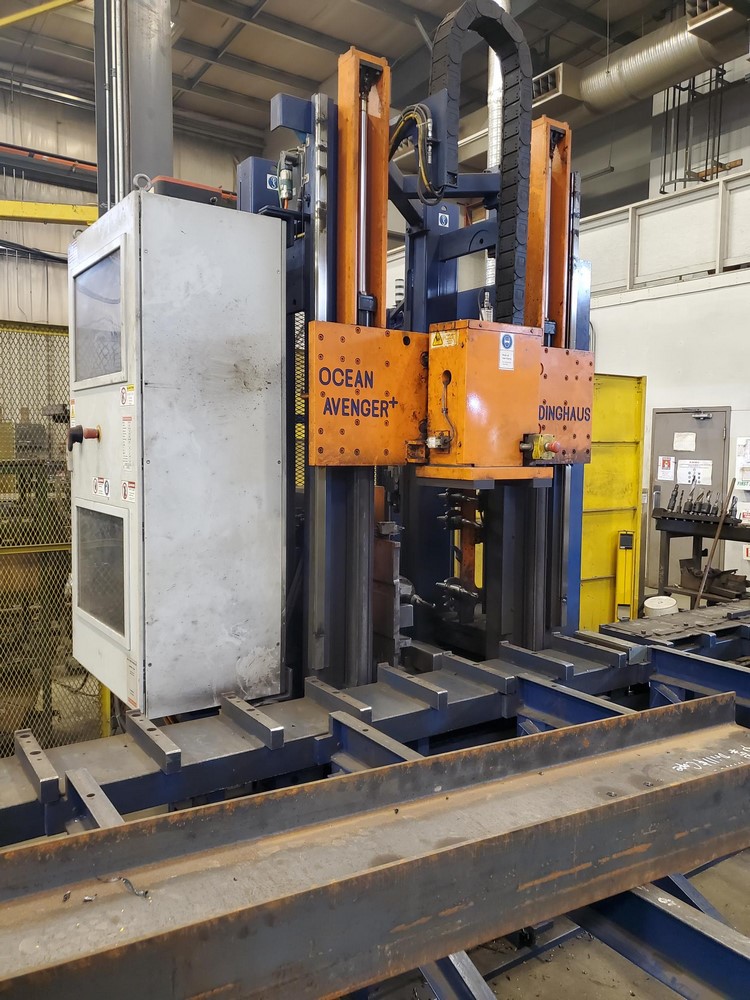

Peddinghaus Ocean Avenger Plus MDL 1250/1C
Specifications

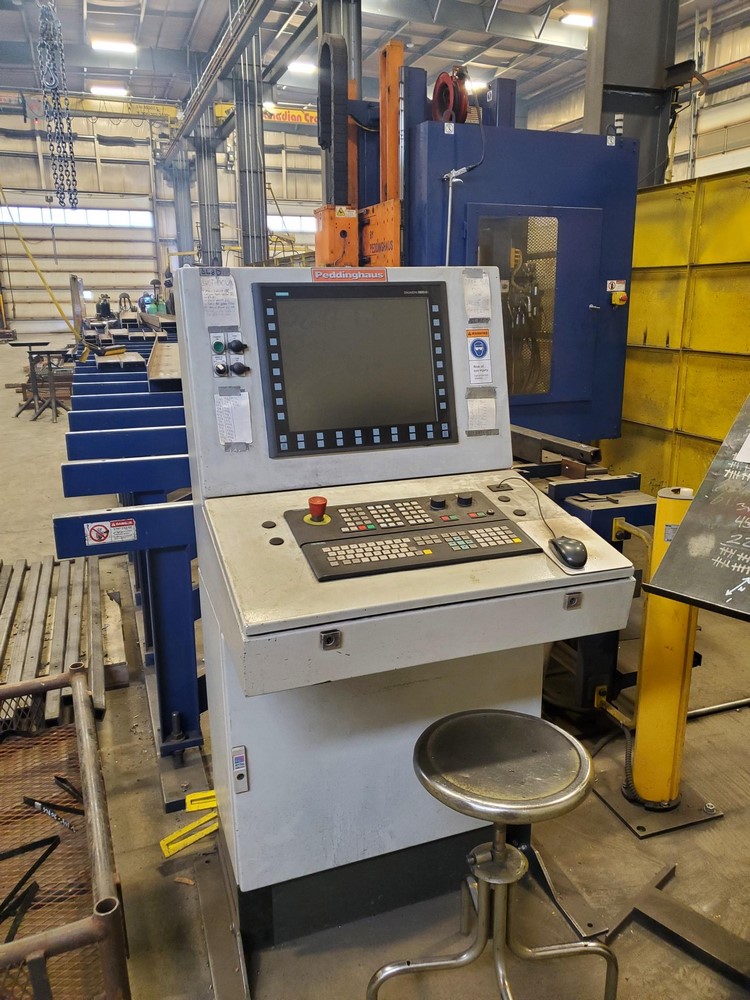

| Control |
Siemens 840D CNC |
|---|---|
| Max Profile Height |
48" |
| Max Profile Length |
65' |
| Max X-Axis Speed |
150 FPM |
| Max Y-Axis Speed |
60 FPM |
| Spindle Motor |
25 HP |
| Drilling Speed (Variable) |
0 - 3,375 RPM |
| Drilling Feed Rate (Variable) |
0 - 60 IPM |
| Spindle Stroke (Max Reach) |
26" |
| Power Requirement |
480/3/60 |
| Approx. Weight |
8,340 Lbs |
Features
|
65' Fixed Table |
8-Position Tool Changer |
|
High Speed Carbide Milling & Drilling |
Unist MQL (Minimum Quantity Lubrication) |
*
