| Year | 2018 |
|---|---|
| Make | Summit |
| Model | SC30-9X80M |
Description |
CNC Lathe |
| Reference # | 8072882 |
Price |
Activate PricingInquire Now |

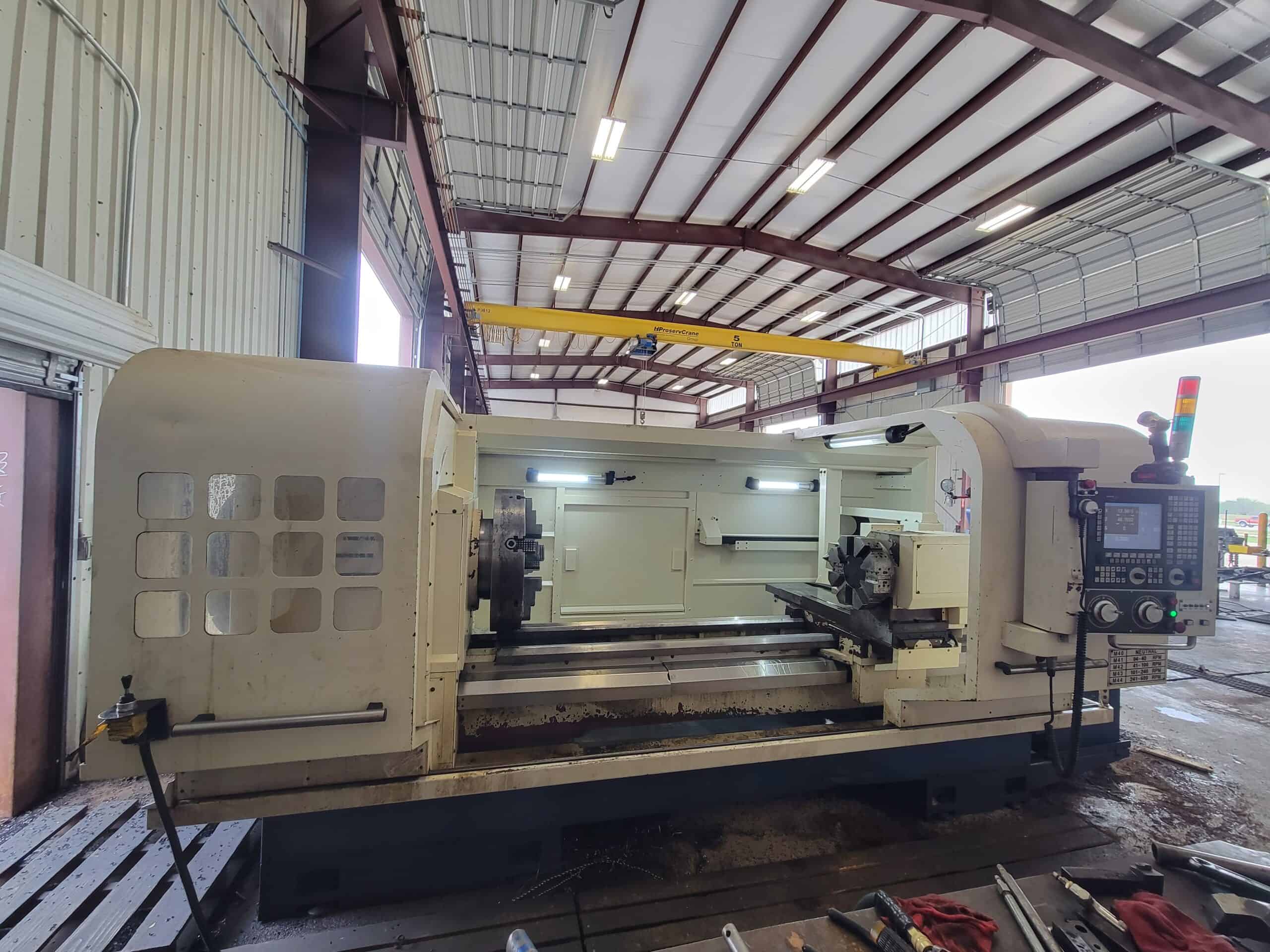

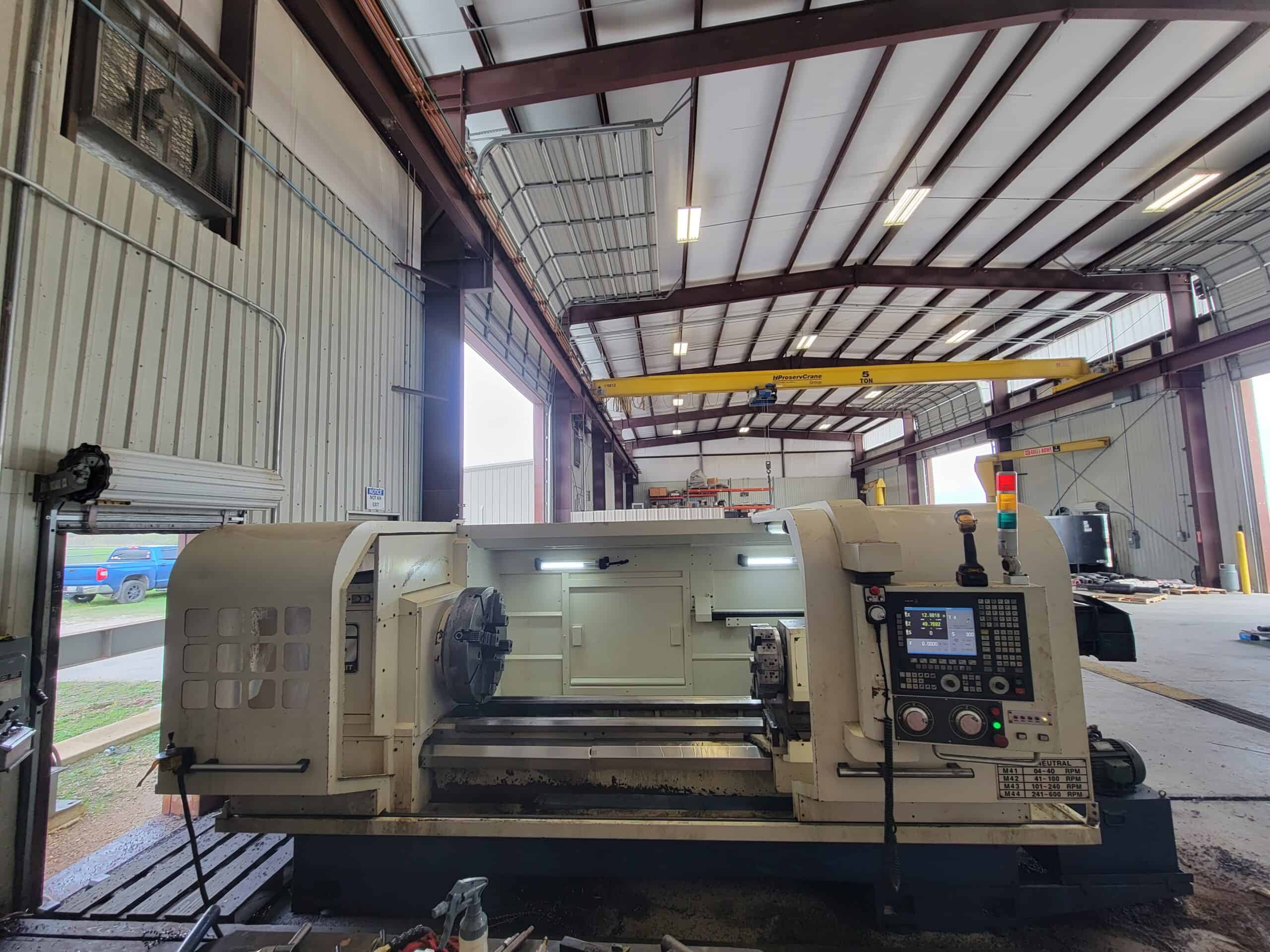

Used Summit SC30-9X80M (2018) CNC Lathe for Sale. This pre-owned Summit CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Summit Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
26" |
|---|---|
| Swing |
30.375" |
| Spindle Speed |
800 RPM |

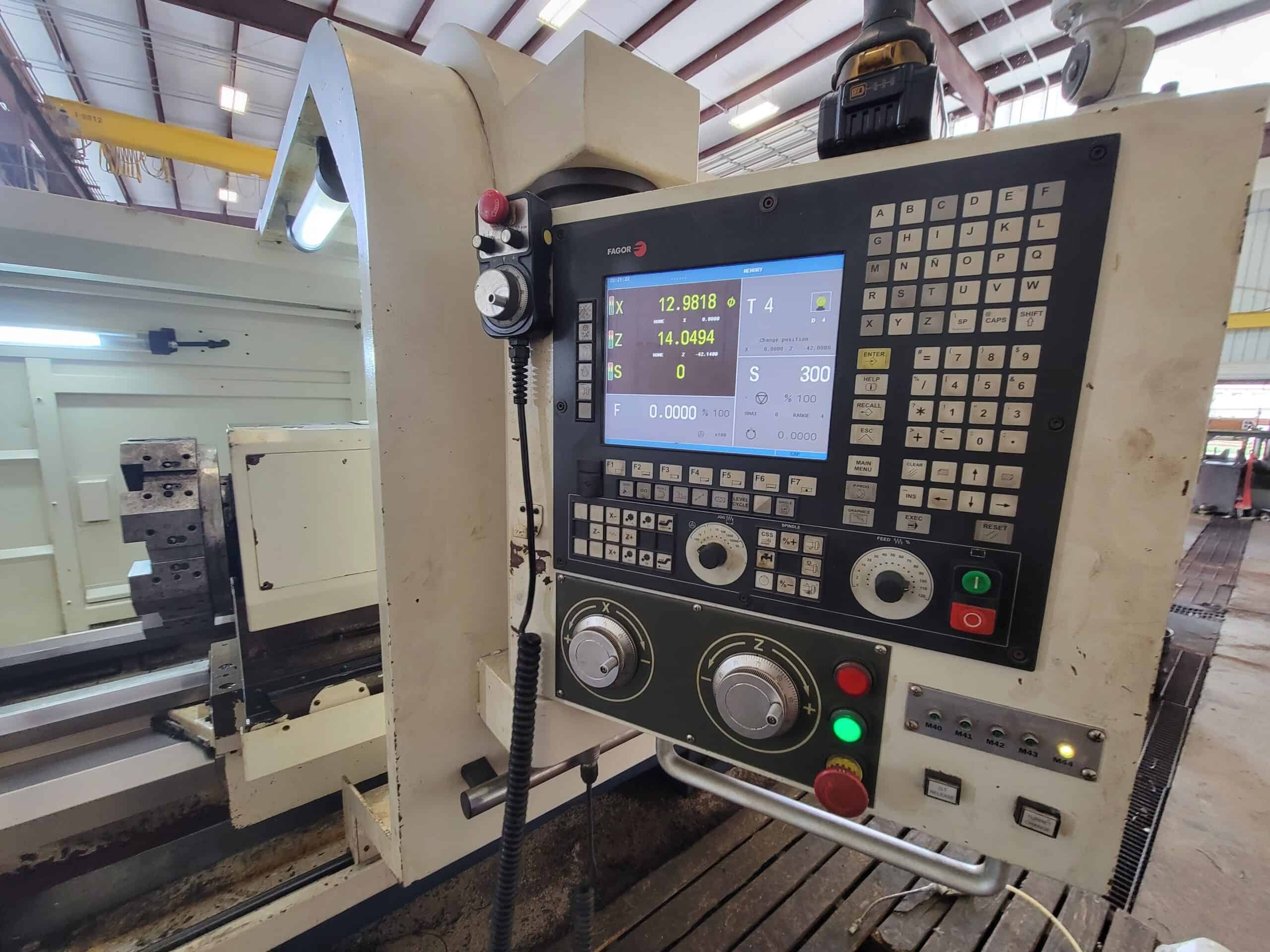

| Control |
Fagor 8055TC |
| Distance Between Centers |
70" |

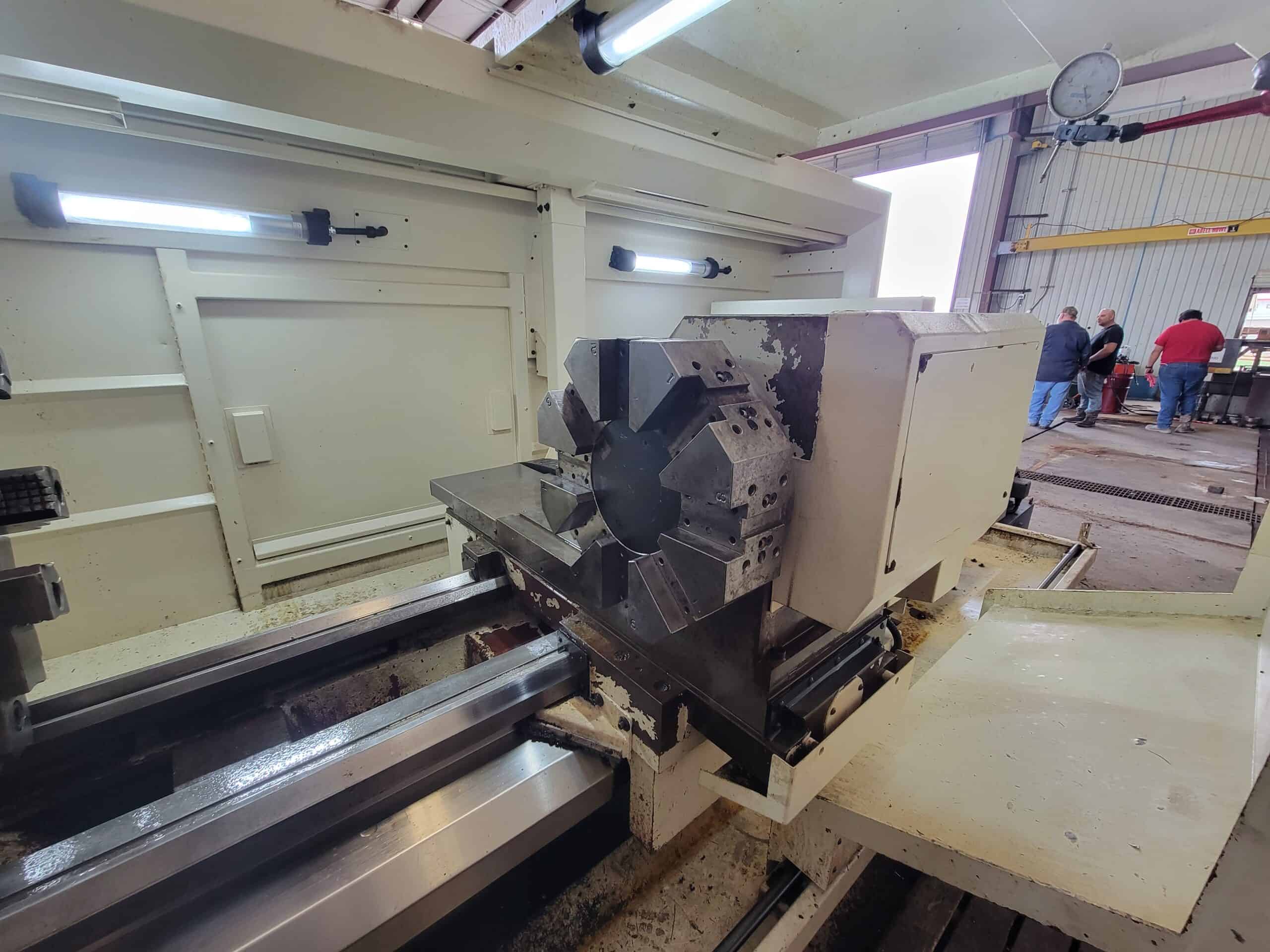

| Turret |
8 Position |
| Spindle Bore |
9" |
| Cross Slide Travel |
16 |
| Motor |
25 HP |
| Longitudinal Travel (Z-Axis) |
70" |
| Ball Screw Diameter (Z-Axis) |
2" |
| Ball Screw Diameter (X-Axis) |
1.25" |
| Feed Rate |
0-196 IPM |
| Chip Removal |
Chip Conveyor |
| Approx. Dimensions |
72" x 88" x 160" |
| Approx. Weight |
11,800 Lbs |
Features
|
26" Heavy Duty Steel Body 4-Jaw Chuck |
RS-232 C Serial Communication Line |
|
USB Connection |
A2-15 Spindle Nose |
|
Ethernet |
*
