| Year | 2018 |
|---|---|
| Make | Techni |
| Model | TJ4100-X3 |
Description |
7.8' x 14.4' PAC60 Head CNC Waterjet |
| Reference # | 8073840 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

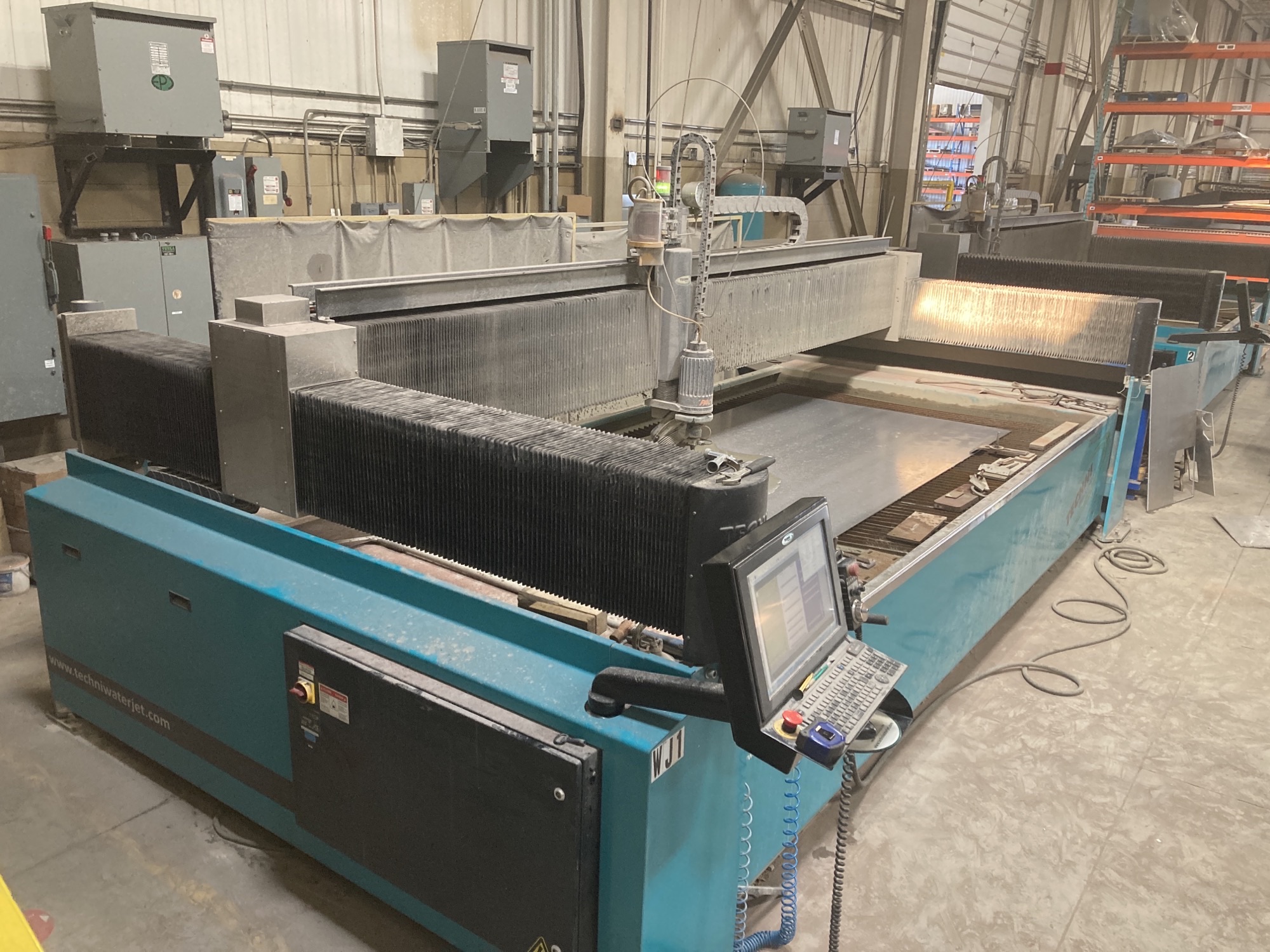

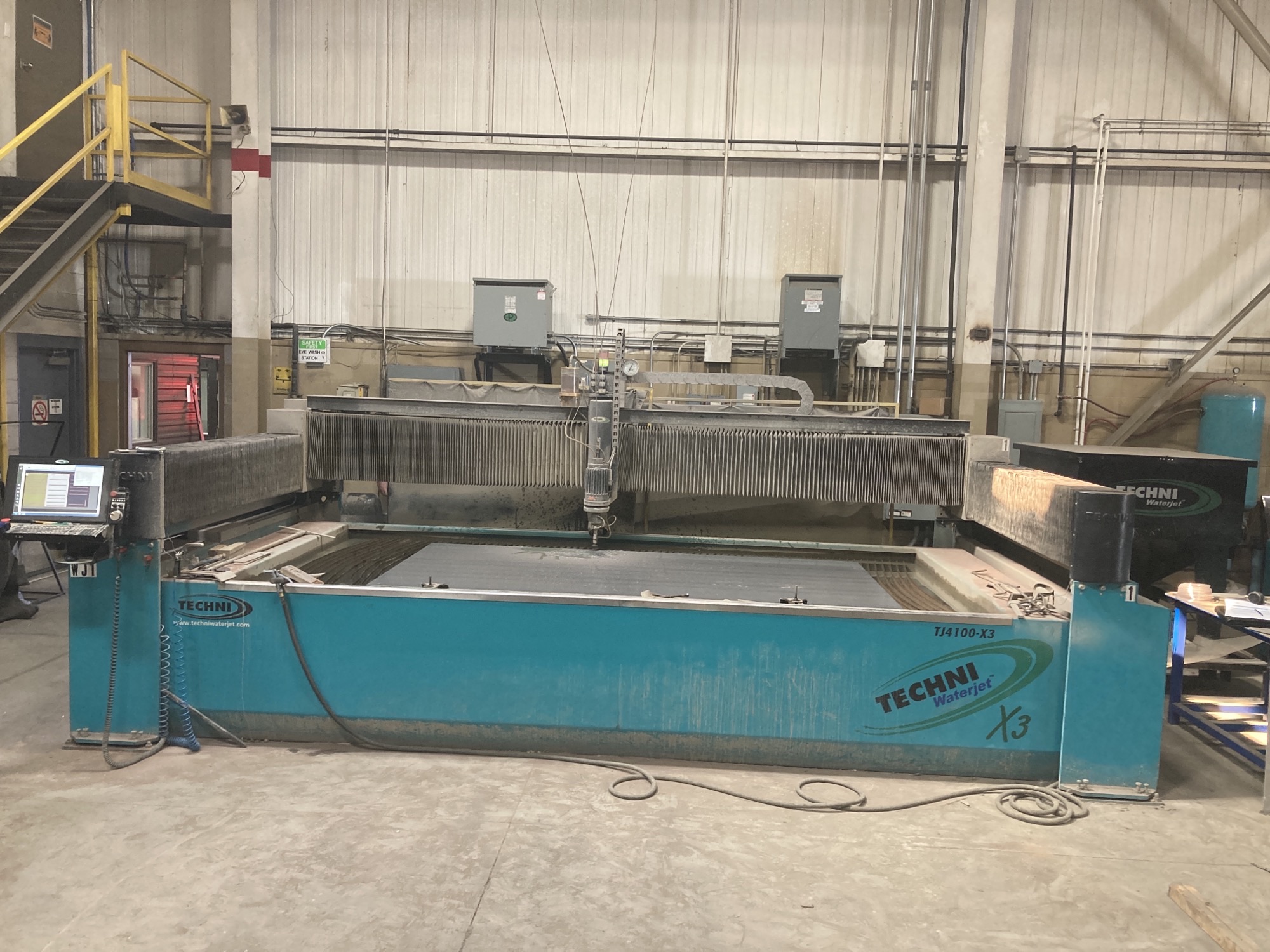

Used Techni TJ4100-X3 (2018) CNC Waterjet for Sale. This pre-owned Techni CNC waterjet is located in Minnesota. If you have any questions regarding this Techni Waterjet, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
7.8' |
|---|---|
| Table Length |
14.4' |
| Pump |
37 HP |
| Max Cutting Pressure |
66,000 PSI |
| Accuracy of Motion |
.001" per Axis |
| Repeatability |
.0005" |
| Z-Axis Stroke |
8" |
| Max Cutting Speed |
700 IPM |
| Power Requirement |
460/3/60 |
| Machine Weight |
19,000 Lbs |
| Total Footprint |
19' x 11.2' x 6.5' |
Features
|
100 Amp Required Total for Machine and Pump |
2200 Lb Abrasive Hopper |
|
Abrasive Flow Monitoring Device with Vac Assist |
Advanced Nesting Software |
|
Automatic CAD Package |
Closed Loop Chiller (18kW) |
|
Complex 5-Axis Programming Software Made Easy |
Continuous Rotation |
|

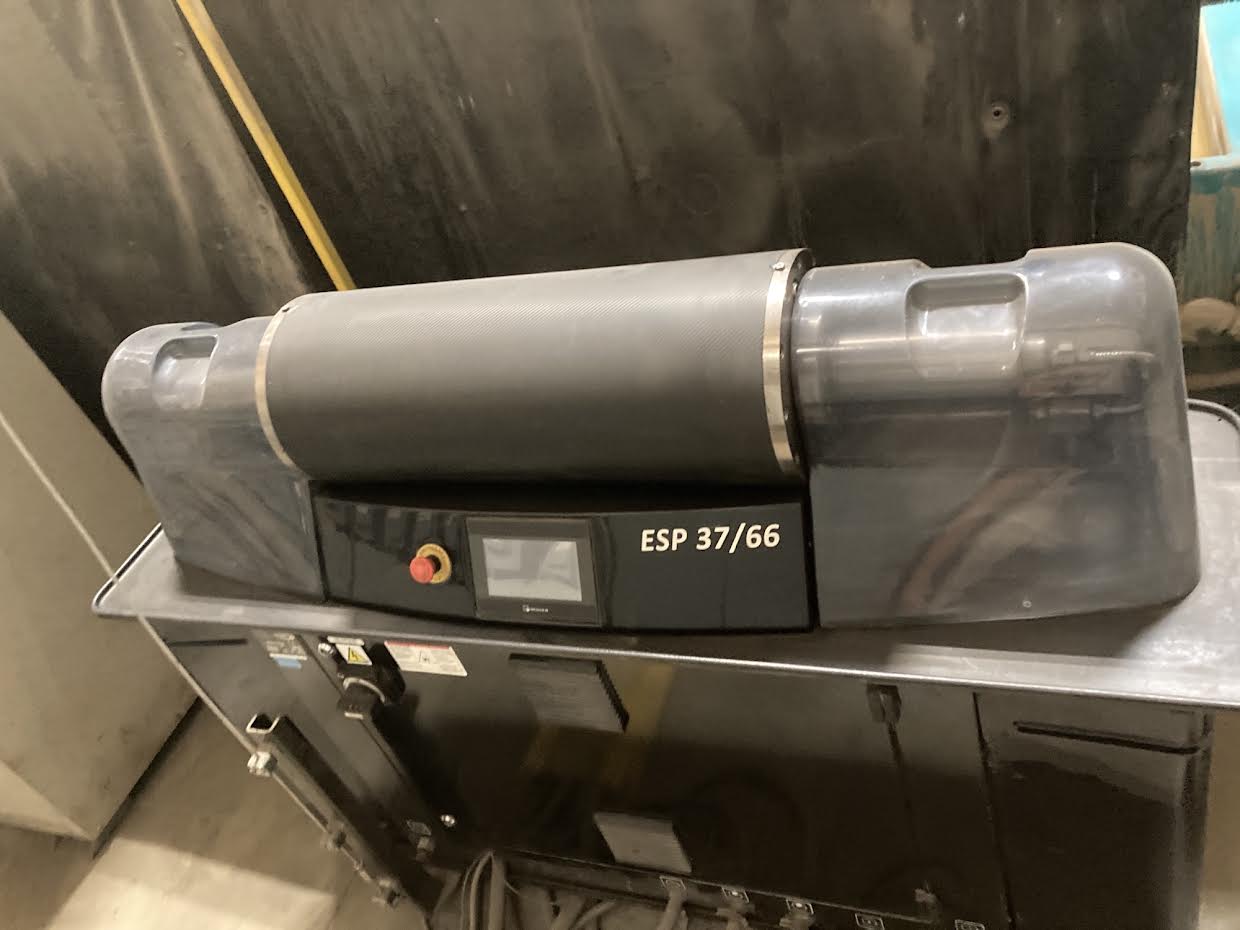

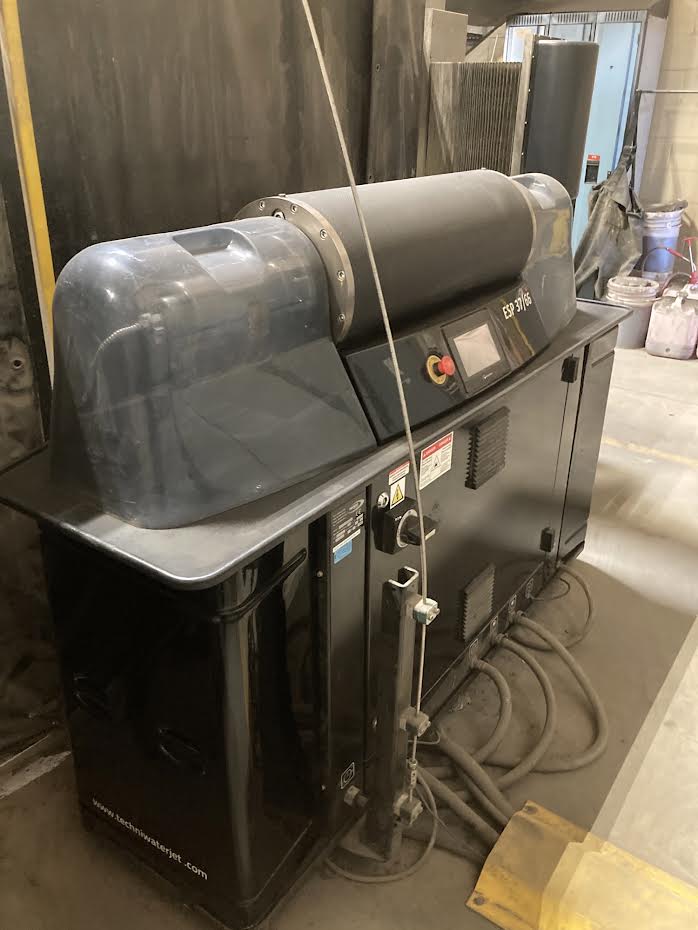

ESP Dual Electric Servo Pump |
Laser Height Sensor |
|
Linear Scales Feedback with Laser-Calibrated Mapping |
PAC60 5-Axis Cutting Head |
|
Water Raise Lower |

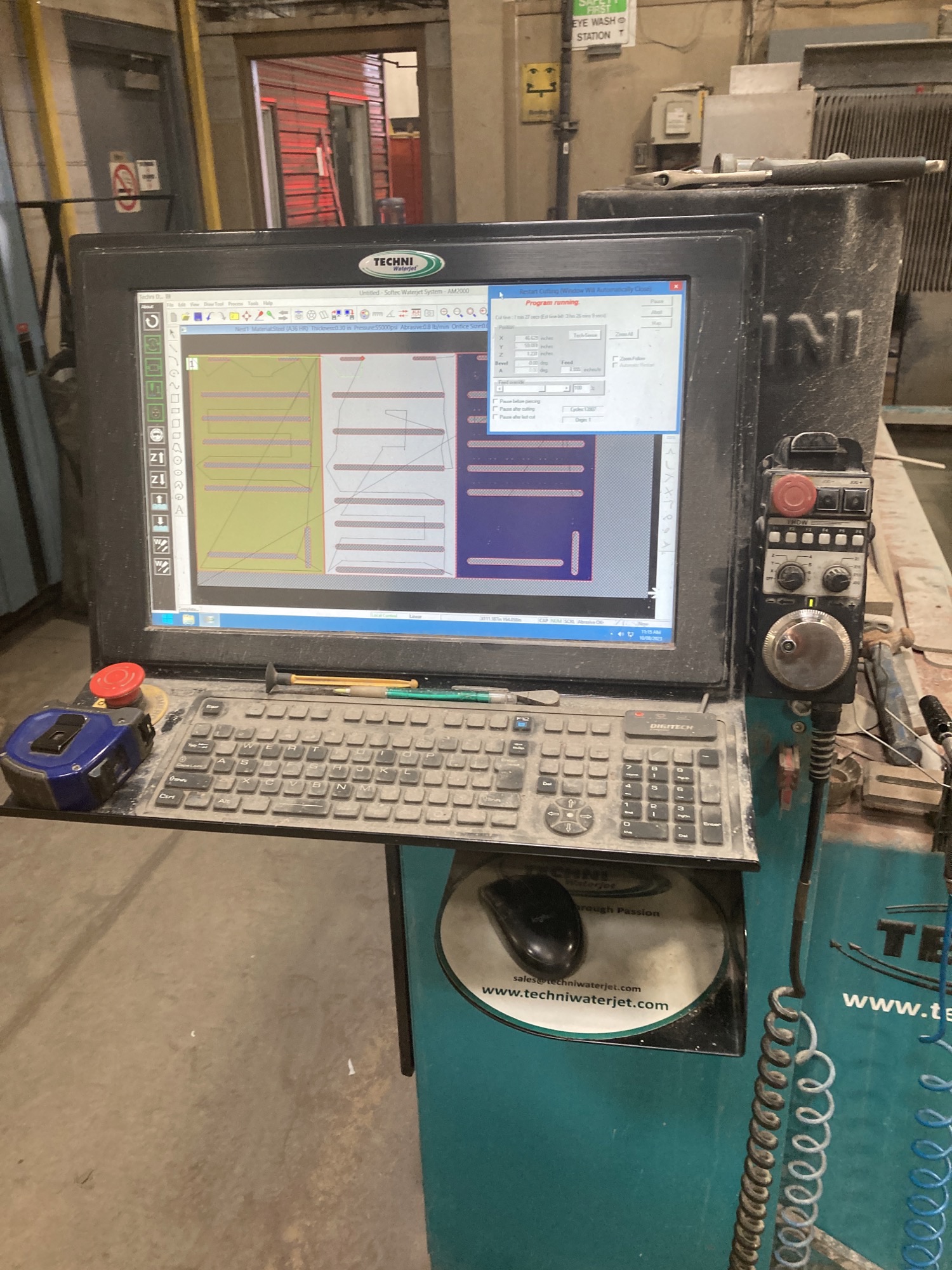

Remote Pendant Control |
|
Very Low Hours |
Crash Sensing Break Away Head |
|
Fully Enclosed Bellows |
