| Year | 2019 |
|---|---|
| Make | CAMaster |
| Model | Cobra Elite CR-408 |
Description |
CNC Router |
| Reference # | 8071099 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used CAMaster Cobra Elite CR-408 (2019) CNC Router for Sale. This pre-owned CAMaster cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this CAMaster Cobra Elite CR-408 CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
48" |
|---|---|
| Table Length |
96" |
| X-Axis Travel |
61" |
| Y-Axis Travel |
97" |
| Z-Axis Travel |
10" |
| Spindle Motor |
15 HP |
| Rapid Speed |
2,500 IPM |
| Cut Speed |
1,500 IPM |
| Repeatability |
+/- 0.001” |
| Thick Aluminum Tabletop |
5' x 8'1" |
Features
|
10 Tool Holders/10 Tool Cones/10 Collets |
10:1 High Precision Planetary Gearboxes |
|
12 HP HSD Automatic Tool Changing Spindle |
12 HP HSD Collet Spindle |
|
Rotary Carousel |
25 mm Heavy Duty Precision Rails & Bearings on All Axis |
|
Touch Screen Monitor/Keyboard/Mouse |
Variable Frequency Drive (Inverter) and Necessary Hardware/Wiring/Control System Upgrades to Accommodate This Option |
|
All Steel Gantry |
All-Steel Gusseted Side Supports |
|
Automatic Spindle On/Off Control and Speed Control From G-Code |
Automatic Tool Measure Switch |
|
Bracket Mount and 1/4" Air-Line |
Brushless AC Servo Drive System |
|
Ceramic Bearings |
Controlled via G-Code |
|
Cooling by Electric Fan |

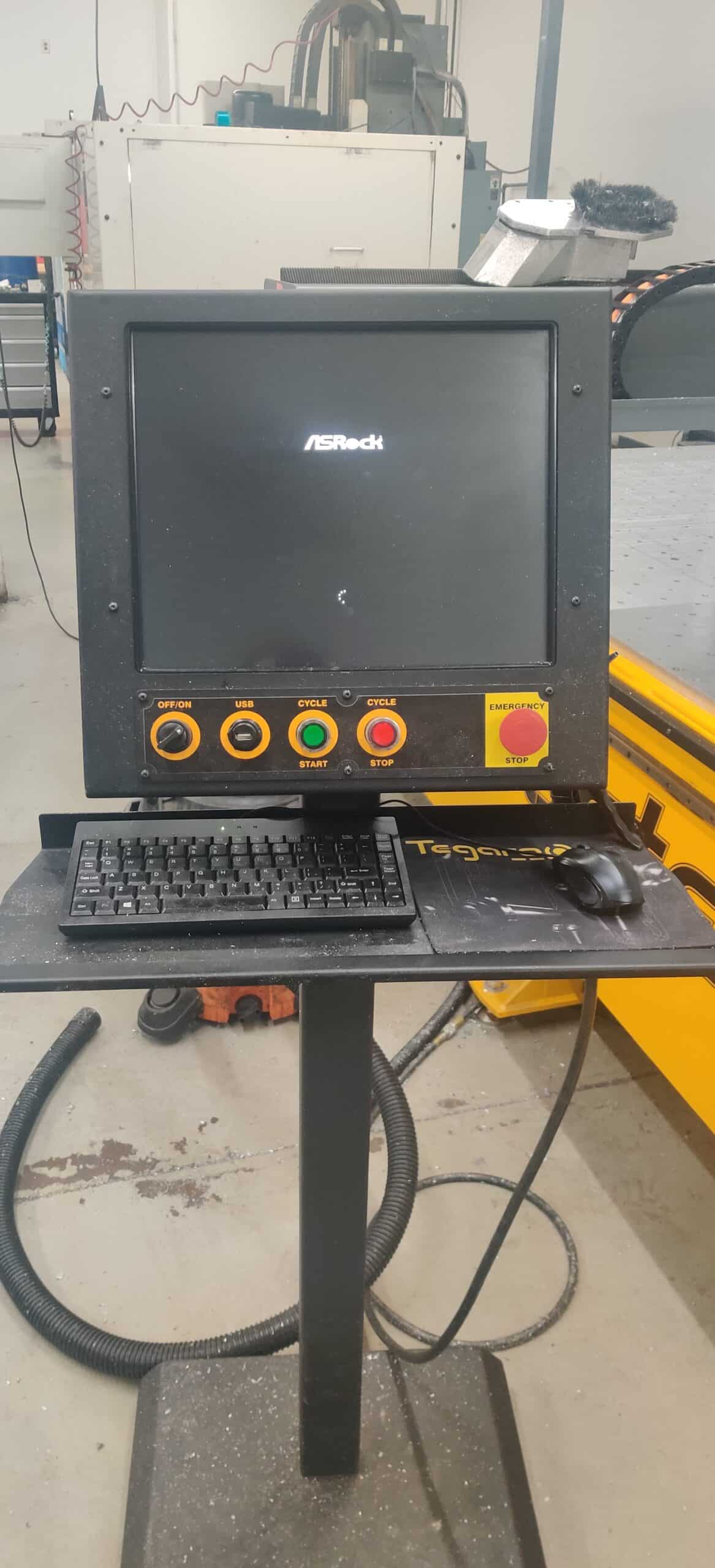

Custom Built Monitor Stand with On/Off/Cycle Start/Cycle Stop and E-Stop Buttons and USB Port |
|
Dual Drive on Y Axis |
Helical Rack & Pinion |
|
High Speed Visual CNC Control System (Win CNC) |
Industrial Steel Welded Frame |
|
Machine Is Setup to Run On 208/230 Volt 3 Phase Power |
Mister Line to The Router/Spindle Mount |
|
Mister System for Cutting Metal |
Windows 10 Pro Control Computer |
|
Z Axis Brake |
