| Year | 2019 |
|---|---|
| Make | DMG Mori |
| Model | NZX-2000/800STY |
Description |
CNC Lathe |
| Reference # | 8073767 |
Price |
Activate PricingInquire Now |

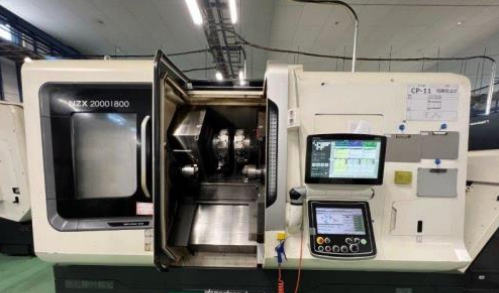

Used DMG Mori NZX-2000/800STY (2019) CNC Lathe for Sale. This pre-owned DMG Mori CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this DMG Mori Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.5" |
| Swing |
31.5" |
| Turning Diameter |
12.5" |
| Spindle Speed |
5,000 RPM |
| Control |
CELOS (F31iB) |
| Distance Between Centers |
44" |
| Turret |
16 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Sub-Spindle |
6,000 RPM |
| Chip Removal |
Side Exit Scraper Type Chip Conveyor |
| Approx. Machine Dimensions |
199.3" x 111.6" x 91.3" |
| Approx. Machine Weight |
22,000 Lbs |
Features
|
(2) Micro Centric MBS 200 Collet Chucks |
(3) Turrets with Y-Axis |
|
(5) External M-Codes |
21.5" Color Ergoline Touch TFT |
|
3D Coordinate Conversion |
4-Color Signal Light |
|
Air Blow for Tool Tip (T1/T2/T3) |
Air Purge (Left and Right Spindle) |
|
Auto Tool Presetter (Left and Right Spindle) |
C-Axis High-Precision Indexing |
|
Chip Blaster/Chip Chiller High Pressure Coolant System |
Chuck Top Coolant |
|
Tool Retract and Recover |
X-Axis Direct Scale Feedback (X1/X2/X3) |
|
X-Axis Direction JIS / ISO |
Built-In Work Light |
|
Parts Catcher |
Automatic Door |
|
Coolant Gun |
Ethernet Capability |
|
Hobbing Function |
