| Year | 2019 |
|---|---|
| Make | Erbend |
| Model | MFB 3200 |
Description |
10' x 14 Gauge CNC Folder |
| Reference # | 8073532 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

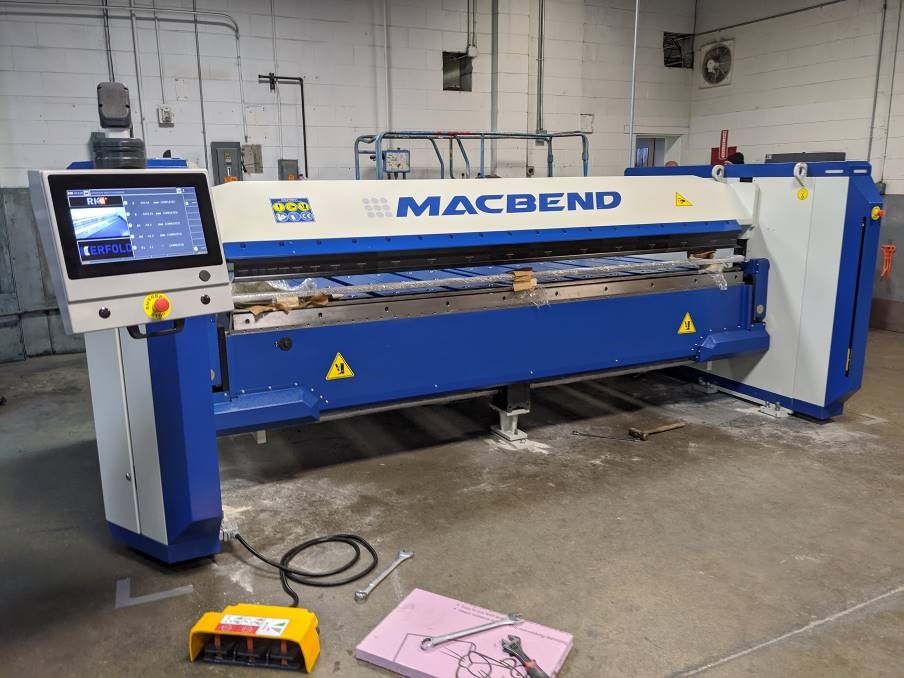

Used Erbend MFB 3200 (2019) Folding Machine for Sale. This pre-owned Erbend folding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Erbend Folding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Fabrication Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Overall Length |
125.88" |
|---|---|
| Max Thickness Capacity |
0.078" (Steel) |
| Opening Height (No Tools) |
6.3" |
| Clamping Speed |
2.36 IPS |
| Folding Angle |
0 - 150 Degrees Folding |
| Folding Speed |
65 Degrees / Sec |
| Adjustment Height |
3.1" |
| Adjustment Speed |
9.8 IPS |
| Min/Max Gauging |
0.078" / 39.37" |
| Rotational Speed |
20 Degrees/Sec |
Features
|
80mm Segmented Goats Foot Tooling |
CE Safety Package |
|
Clamping Beam (Z-Axis) |
Folding Beam (Y-Axis) |
|
Full Length 15mm Folding Beam Tool |
Full Length Bottom Beam |
|
Manual Crowning System |
Motorized Folding Beam Adjustment (A-Axis) |
|

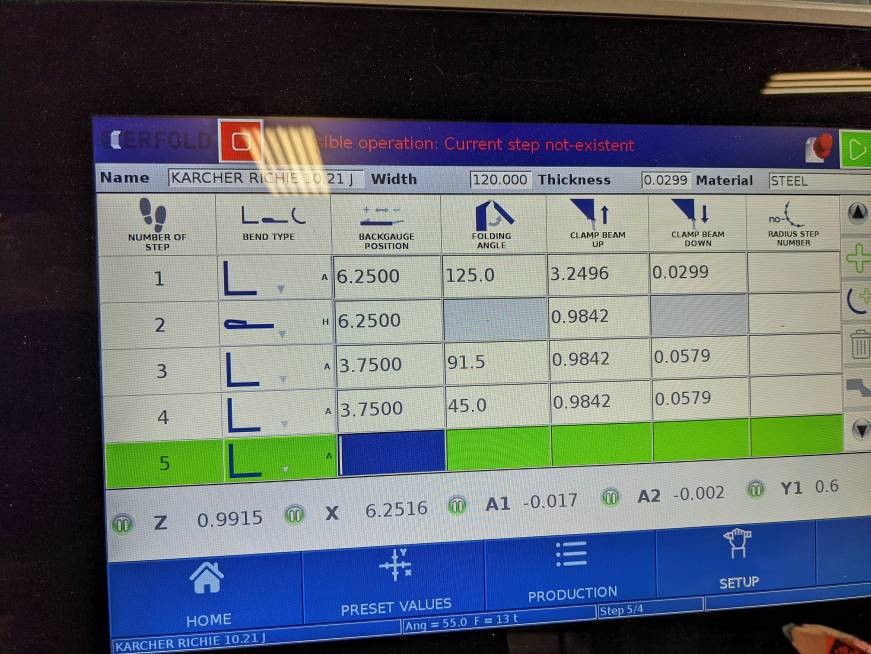

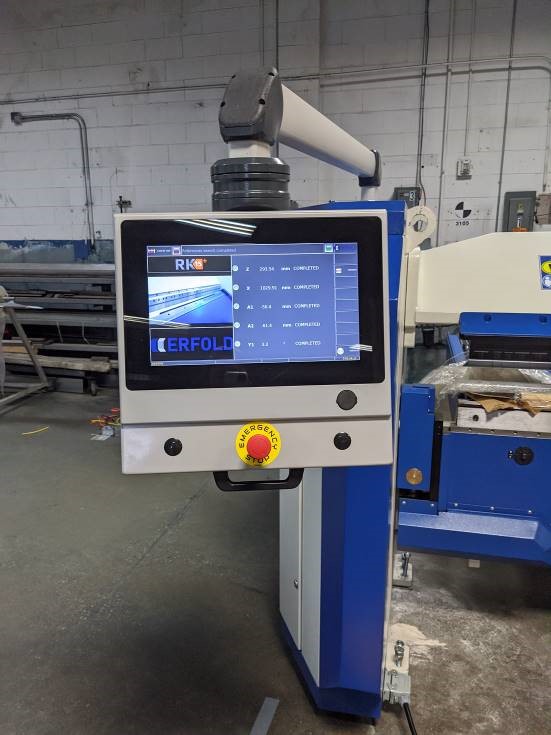

New ERFOLD Advanced 2D CNC Graphic Software on 15.6” Touch Screen Control |
Single Piece 30 Degree Sharp Nose |
|
Spring Finger Back Gauge |
