| Year | 2019 |
|---|---|
| Make | Haas |
| Model | ST-20Y |
Description |
CNC Lathe |
| Reference # | 8073073 |
Price |
Activate PricingInquire Now |
Used Haas ST-20Y (2019) CNC Lathe for Sale. This pre-owned Haas CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Haas Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.5" |
| Swing |
21" |
| Turning Diameter |
11.75" |
| Spindle Speed |
4,000 RPM |

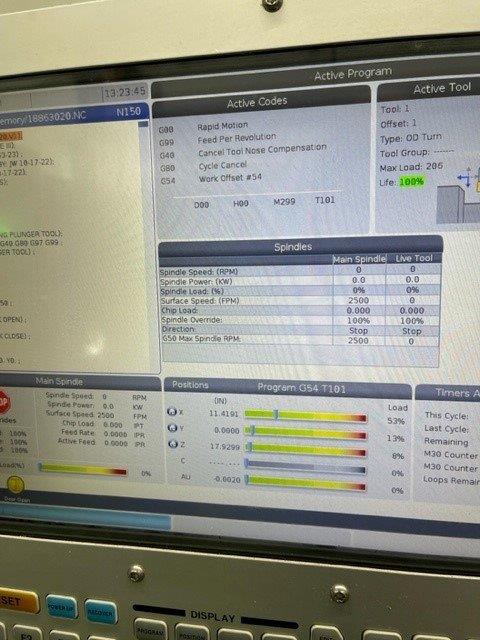

| Control |
Haas CNC |
| Distance Between Centers |
22.5" |

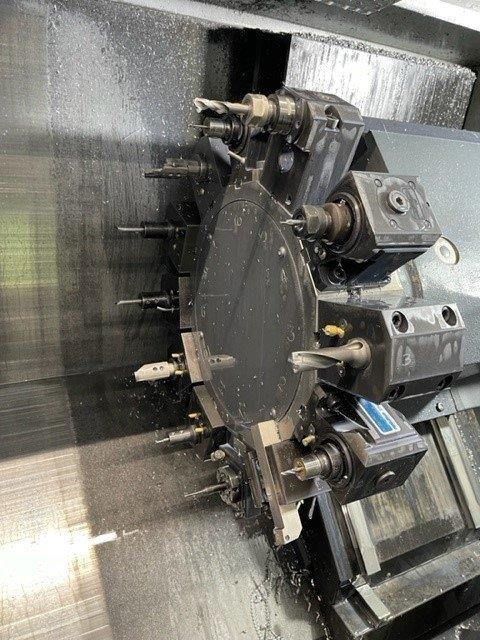

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Axis Travels AU/AV/AW |
111" x 28" x 46" |
| Maximum Part Size (Slug) |
5.8" x 5.0" |
| Maximum Part Size (Bar) |
4.0" x 6.0" |
| Gripper Rotation |
90 Degrees |
| Table Load Capacity |
1000 Lbs |
Features
|

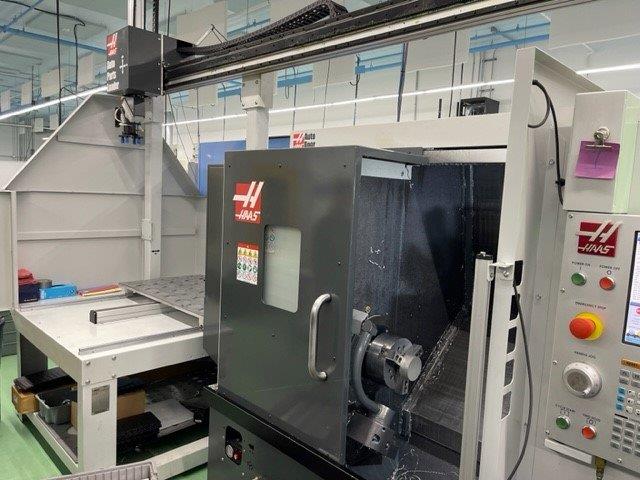

Automatic Parts Loader |

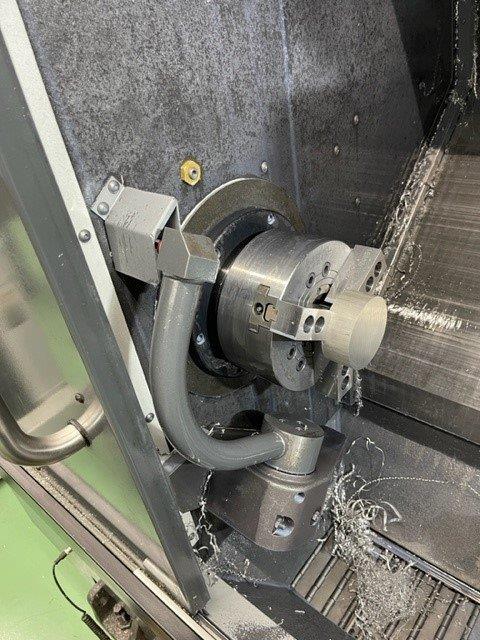

8" 3-Jaw Chuck |
|
Auto Door |
Auto Tool Presetter |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
