| Year | 2019 |
|---|---|
| Make | Makino |
| Model | U6 H.E.A.T. |
Description |
EDM Wire |
| Reference # | 8074636 |
Price |
Activate PricingInquire Now |

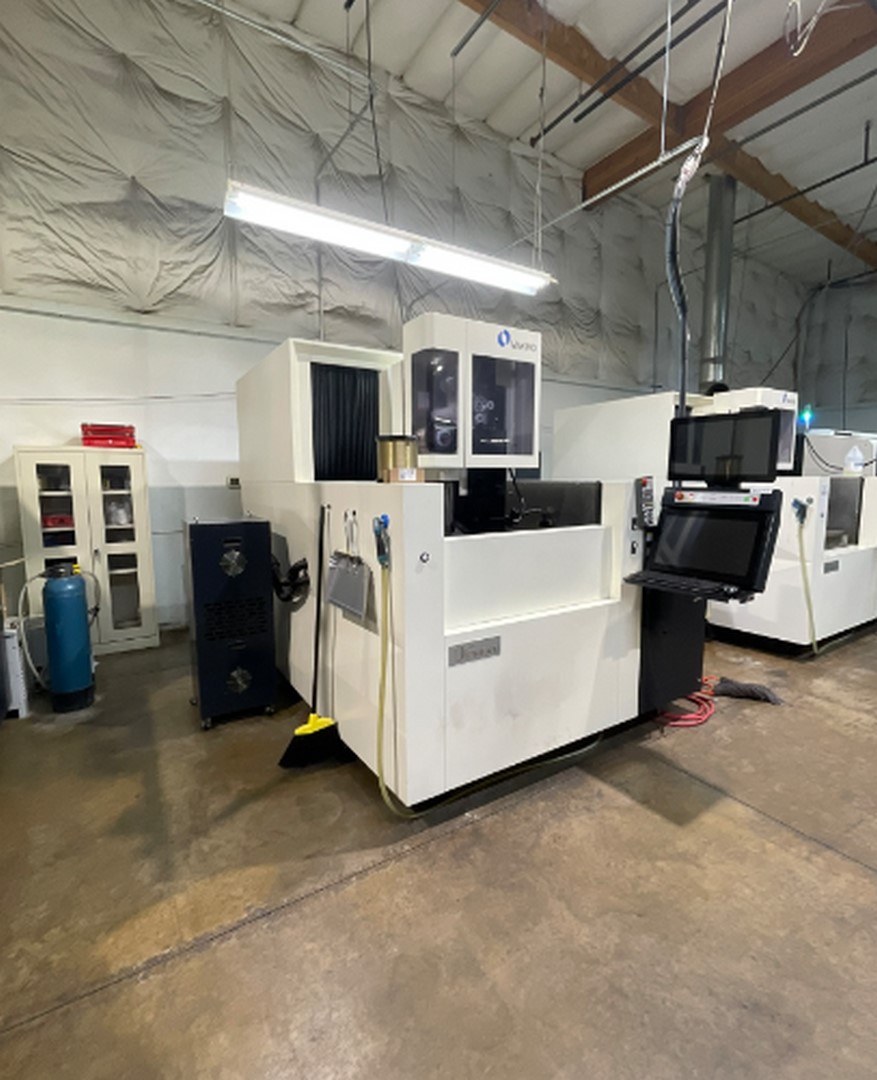

Used Makino U6 H.E.A.T. (2019) CNC EDM for Sale. This pre-owned Makino CNC EDM wire is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Makino EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
25.59" |
|---|---|
| Y-Axis Travel |
17.71" |
| Z-Axis Travel |
16.53" |
| Control |
Hyper I |
| U/V Axis Travel |
2.95" x 2.95" |
| Degree Taper Cutting |
15 @ 4" |
| Inside Tank Dimensions |
42.13" x 34.65" |
| Rapid Traverse (X/Y/Z) |
78.74 IPM |
| Wire Electrode Size Range |
0.07, 0.10, 0.15, 0.20, 0.25, 0.30 mm |
| X/Y-Axes (Full Stroke) Repeatability |
+/- 0.000039" |
| Max Load on Table |
3,968 Lbs |
| Machine Weight |
13,007 Lbs |
| Power Requirement |
208/3/60 |
Features
|
Dielectric Chiller Unit |
Direct Drive PWM Digital AC Servo |
|
Power Supply |
Auto Wire Threading |
|
Chiller |
Low Hours |
|
Wire Chopper |
Multi-Tap Transformer |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
