| Year | 2019 |
|---|---|
| Make | PET-ALL |
| Model | AH 1000L |
Description |
Blow Molder |
| Reference # | 8074387 |
Price |
Activate PricingInquire Now |

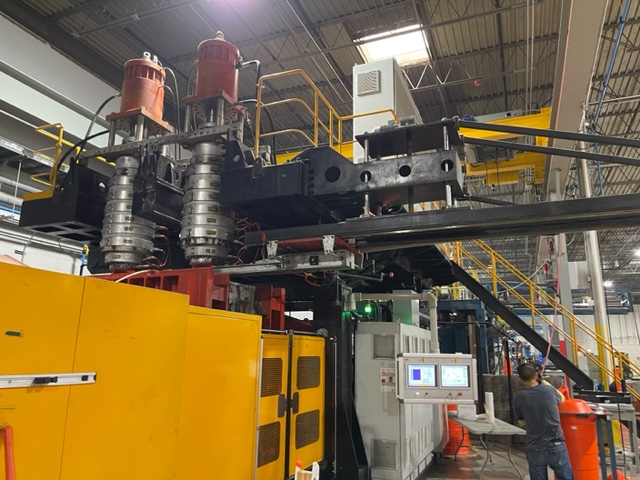

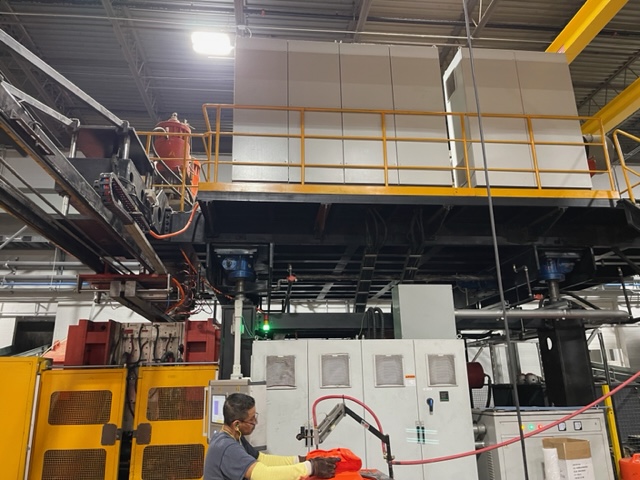

Used Pet-All AH 1000LL (2019) Blow Molder for Sale. This pre-owned Pet-All blow molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Pet-All Blow Molder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Type of Blow Molder |
Accumulator Style |
|---|---|
| Number of Heads |
2 |
| Head Center Spacing |
47" |
| Shot Size Capacity |
30 lb. |
| Platen Size |
98" W x 59" H |
| Mold Clamping Force |
359 Tons |
| Number of Extruders |
(2) Two |
| Screw Size |
125 mm (4.92") |
| Screw / Barrel Material |
Sacm645 Chrome Molybdenum Steel, Nitride, Polish Surface, Sacm645 Nitralloy, w/ Nitrogen Treatment, Hardness HRC |
| L/D Ratio |
35:1 |

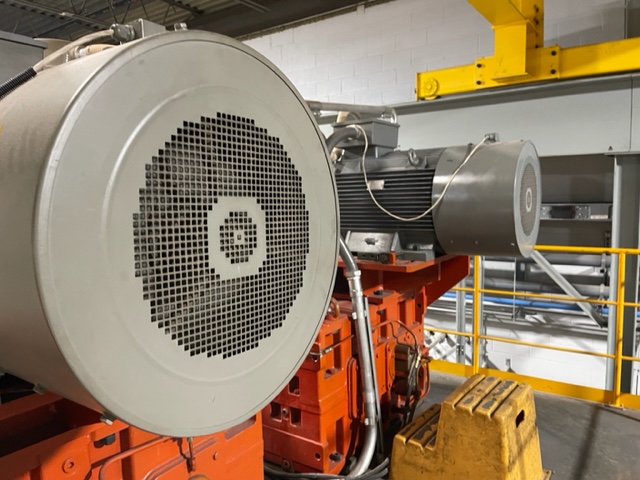

| Horsepower |
177 HP |
| Materials |
HDPE, HMWHDPE |
| Thickness Controller |
100 Points Moog |

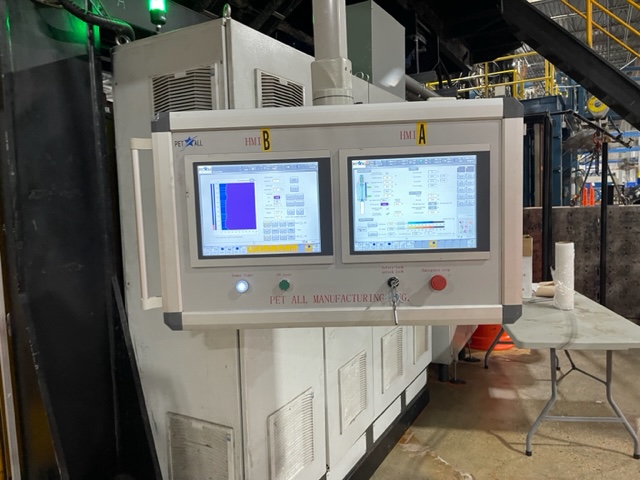

| Control |
Siemens |
| Electrical Requirements |
480v - 3 ph - 60 |
| Head Tooling Included |
2 Sets 2”, 2 Sets 4”, 2 Sets 10”, 2 Sets 16”, (Round w/ No Shaping) |
Features
|
Lots Of Safety Features |
Under Power for Inspections |
|
Bottom Blow Station |
