| Year | 2020 |
|---|---|
| Make | Eagle |
| Model | iNspire 1530 F15 |
Description |
5' x 10' 15kW CNC Fiber Laser |
| Reference # | 8074894 |
Price |
Activate PricingInquire Now |

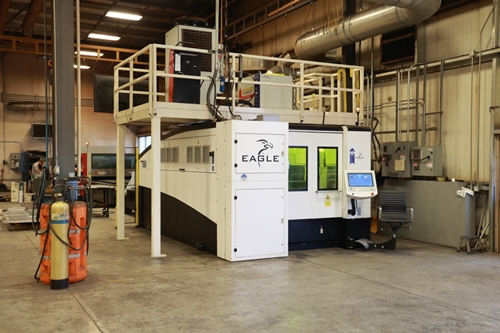

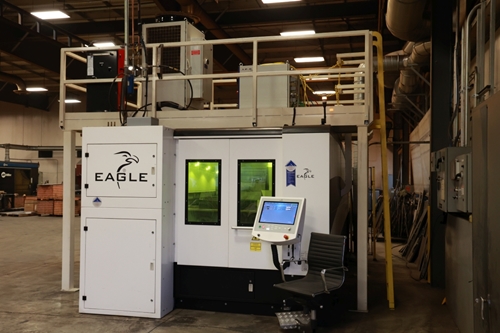

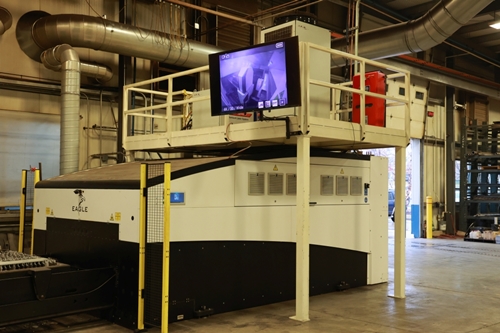

Used Eagle iNspire 1530 F15 (2020) CNC Laser for Sale. This pre-owned Eagle CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Eagle Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
15,000 Watt |
| Control |
Beckhoff TwinCat CNC |
| Hours |
1500 Beam On |
| Maximum Speeds Parallel to X/Y/Z Axes |
250 [m/min] |
| Maximum Speeds Simultaneous |
350 [m/min] |
| Axis Parameters Repetitiveness |
0,03 [mm] |
| Axis Parameters Precision 0,05 [mm] |
0,05 [mm] |
| Max. Acceleration |
Up to 60 [m/s2] |
| Min. Programmable Step |
0,001 [mm] |
| Max Cutting Thickness MS |
60mm |
| Max Cutting Thickness SS |
60mm |
| Max Cutting Thickness Aluminum |
50mm |
| Max Cutting Thickness Brass |
30mm |
| Max Cutting Thickness Copper |
25mm |
Features
|
Drop and Cut |
Eva Cutting Head |
|
IPG Laser Source 15kw |
Linear Drive Motors On All Movement Axes |
|
Mixline |
Chiller Unit |
|
Dual Pallet Shuttle Tables |
Dust Collector |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
