Year 2020
Make Flow
Model Mach 200 4020

Description

6' x 13.1' Pivot+ Head CNC Waterjet
Reference # 8071613

Price

Activate PricingInquire Now

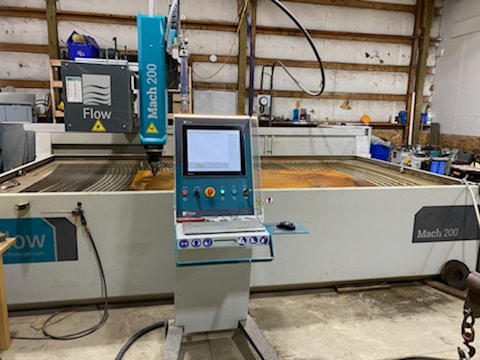

Used Flow Mach 200 4020 (2020) CNC Waterjet for Sale.  This pre-owned Flow CNC waterjet is located in The United States.  If you have any questions regarding this Flow Waterjet, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Table Width

6'

Table Length

13.1'

Control

FlowExpert

Pump

30 HP

Max Cutting Pressure

60,000 PSI

Power Requirement

480/3/60

Features

15" Color Monitor with USB Port/Keyboard and Mouse

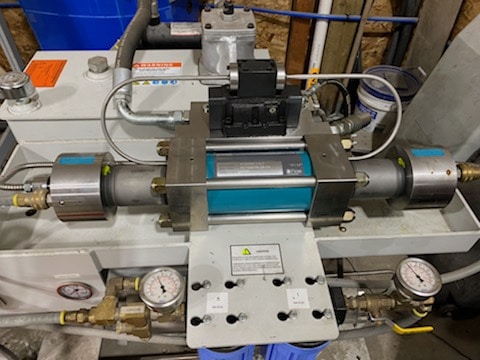

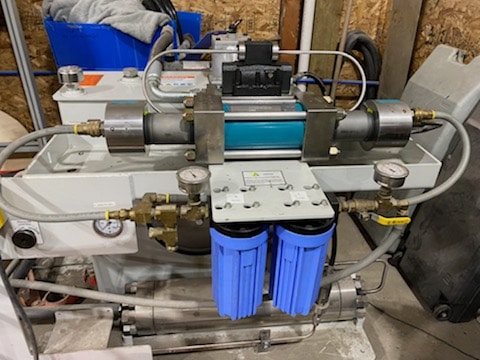

30SA-60ESL Intensifier Pump

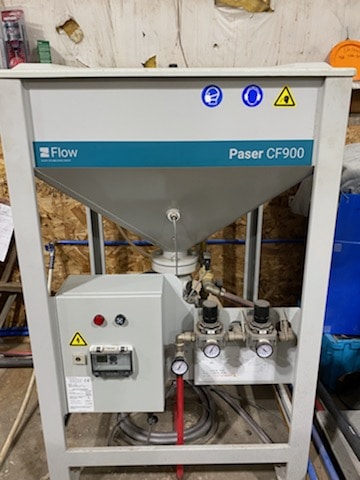

900 Lbs Abrasive Hopper with Low-Level Shutoff Sensor

Able To Generate Solid Models

Advanced Beveling and 3D 5-Axis Capability

Almost New - Low Hours

Automatic Collision Detection

Automatic Cost per Part Generation Based On User Defined Parameters

Automatic Part Time Estimation

Easy-To-Use 2d And 3d Cad Drawing and Editing Tools

Integrated Water Level Control Underwater or Above Water Cutting

Laser Calibrated At Factory and Dynamically Ball Bar Tested

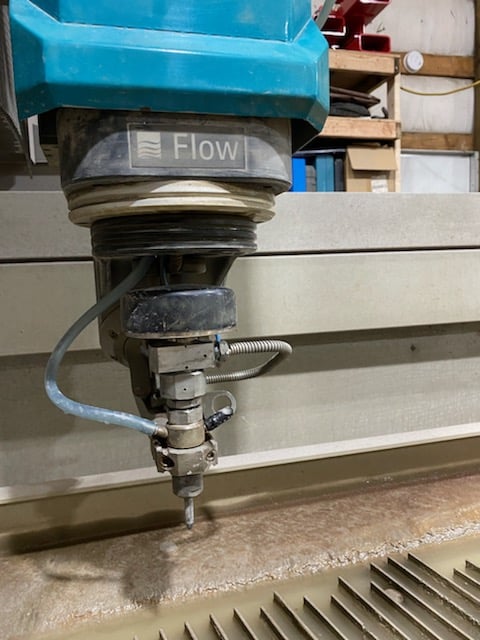

Paser 4 Cutting Head System

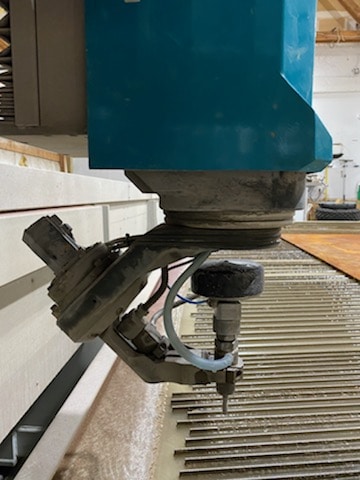

Pivot + Is Flow 5 Axis Head for 3d Cutting and Taper Comp

Roll-Around Control with Touch Screen Control Console

Z Axis 8" Fully Programmable Servo Driven

Automatic Taper Compensation

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
