| Year | 2020 |
|---|---|
| Make | Sodick |
| Model | AG60L |
Description |
EDM Sinker |
| Reference # | 8072673 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

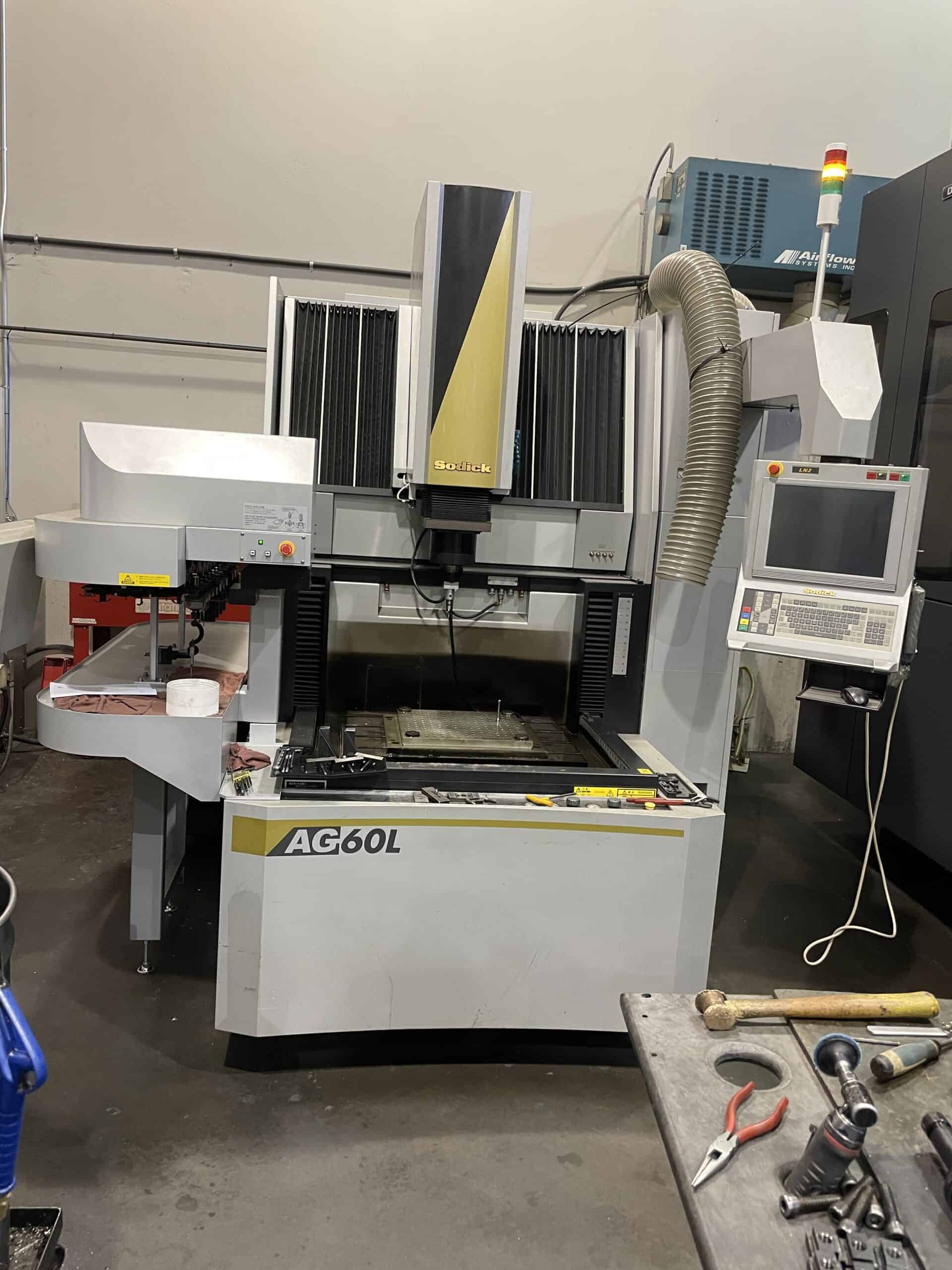

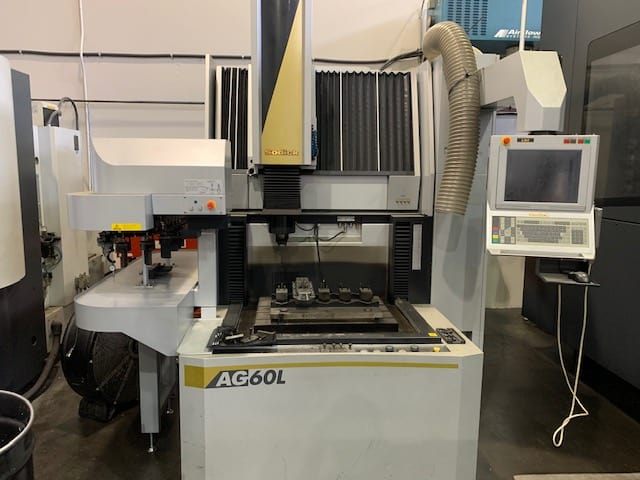

Used Sodick AG60L (2020) CNC EDM for Sale. This pre-owned Sodick CNC EDM sinker is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Sodick EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
23.62" |
|---|---|
| Y-Axis Travel |
16.54" |
| Z-Axis Travel |
14.57" |
| Control |
LN20W |
| Tool Changer |

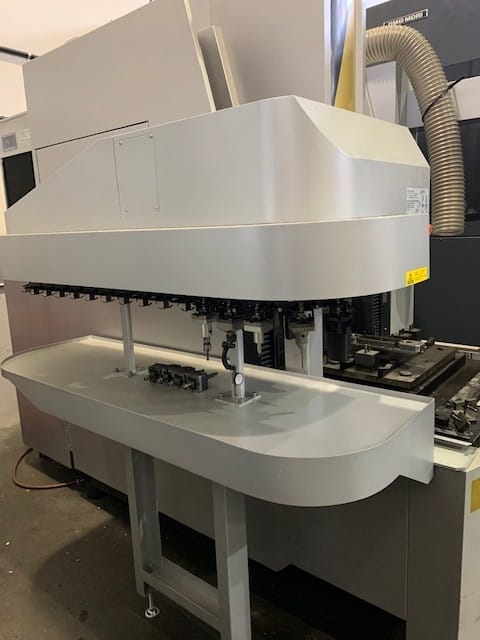

32 Position Macro Side Mount |
| Power Source |
80 Amp Peak Power |
| C-Axis |
Yes |
| Chuck |

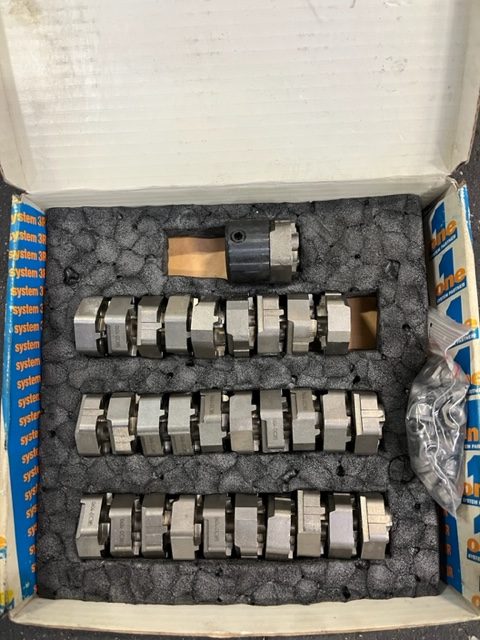

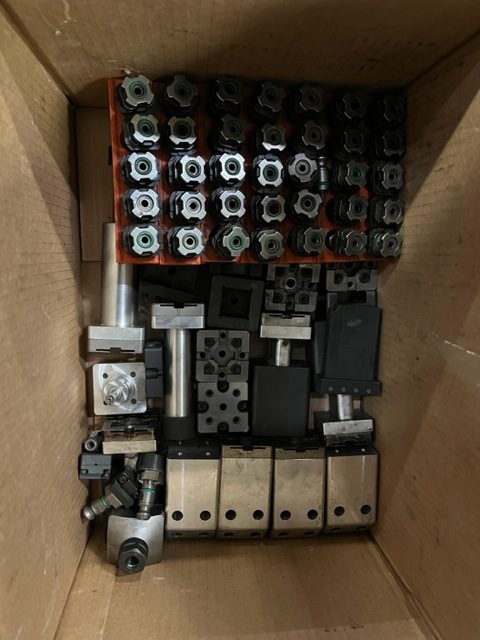

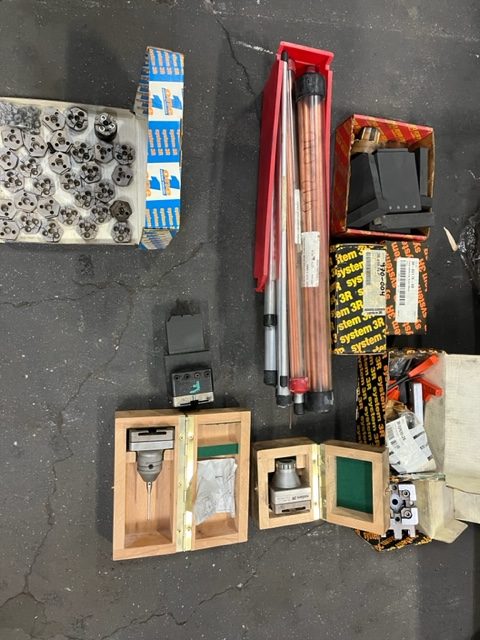

3R |
| Power Requirement |
200-220/3/60, 10KVA |
| Work Table Size |
29.53” X 21.65” |
| Work Tank Dims |
37.40” X 29.13” X 18.11” |
| Max Workpiece Weight |
3,307 Lbs |
| Work Tank Cap |
87 Gallons |
| Dielectric Cap |
150 Gallons |
| Machine Dims |
68.50” X 109.65” X 101.18” |
| Machine Weight |
11,000 Lbs |
Features
|
Ceramic Table |
Chiller |
|
Drive System All Linear Motors with Closed Loop Feedback |
Remote Pendant Control |
|
SEC 10 C Axis Fully Programmable Max 20 RPM |
SVC & SGF2 Circuits |
|

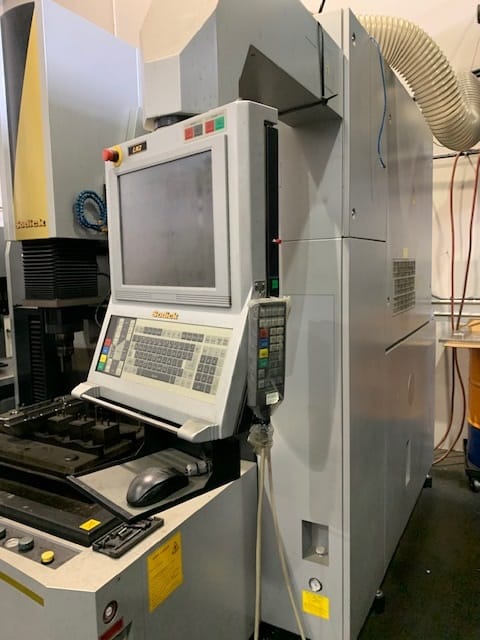

Windows Operating 15" Touch Screen |
Fire Extinguisher |
