| Year | 2020 |
|---|---|
| Make | Tsugami |
| Model | B0125-III |
Description |

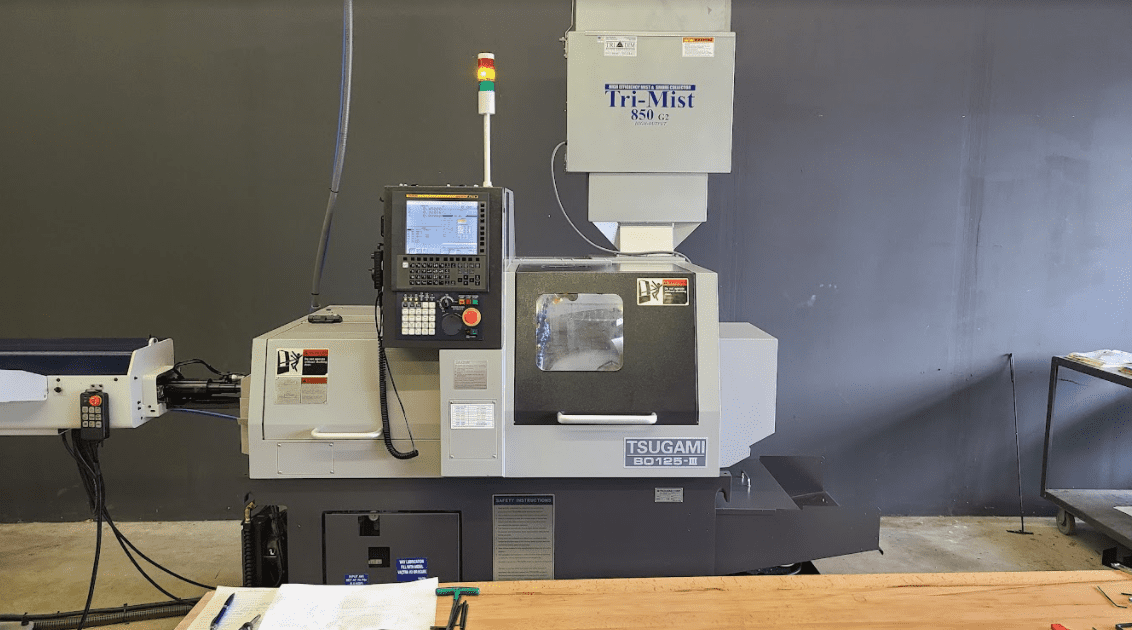

CNC Swiss Lathe |
| Reference # | 8071110 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used 2020 Tsugami B0125-III (2020) CNC Swiss Lathe for Sale. This pre-owned Tsugami CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Tsugami Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Front Drilling |
4 |
|---|---|
| Back Drilling Min/Max |
4/8 |
| Coolant |
0.36 HP (.25 kW) |
| Axes Motors |
.67 HP (.5 kW) |
| Coolant Tank Capacity |
180L (47 Gal.) |
| Compressed Air Requirements |
60PSI |
| Input Power |
11.0 KVA |
| Rapid Traverse Rate |
32 M/Min |
| Max Tool Spindle Slotting Cutter Diameter |
1.18” (30mm) |
| Sub Spindle Front Ejection Max Length |
3.9" (100mm) |
| Sub Spindle Maximum Machining Diameter |
.5” (12.7mm) |
| Maximum Headstock Stroke |
8.26" (210mm) |
| Maximum Machining Diameter |
.5” (12.7mm) |
| Live Milling |
8000 RPM (Max) |
| Spindle Speeds |
12,000 RPM |
| Turning Tools Tooling Size |
1/2" Square |
| Main/Sub Spindle ER Collet Holders |
20mm Dia. |
| Control |

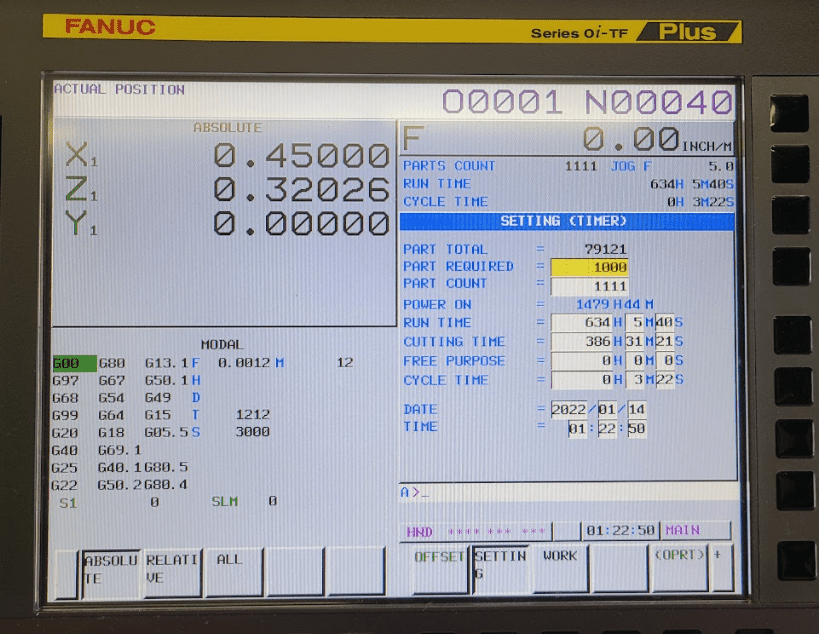

Fanuc 0i-TF |
| Chip Removal |
Chip Conveyor |
Features
|
Polar Interpolation |
Programmable Data Input |
|
Red/Yellow/Green Patrol System |
High Pressure Coolant |
|
Manual Pulse Generator |
Rigid Tapping |
|
2K High Pressure Oil Pump |
Spindle Speed Fluctuation Detection |
|
Spindle Synchronous Control (Rotation/Phase) |
Tool Geometry/Wear Offsets |
|
Tool Nose Radius Compensation |

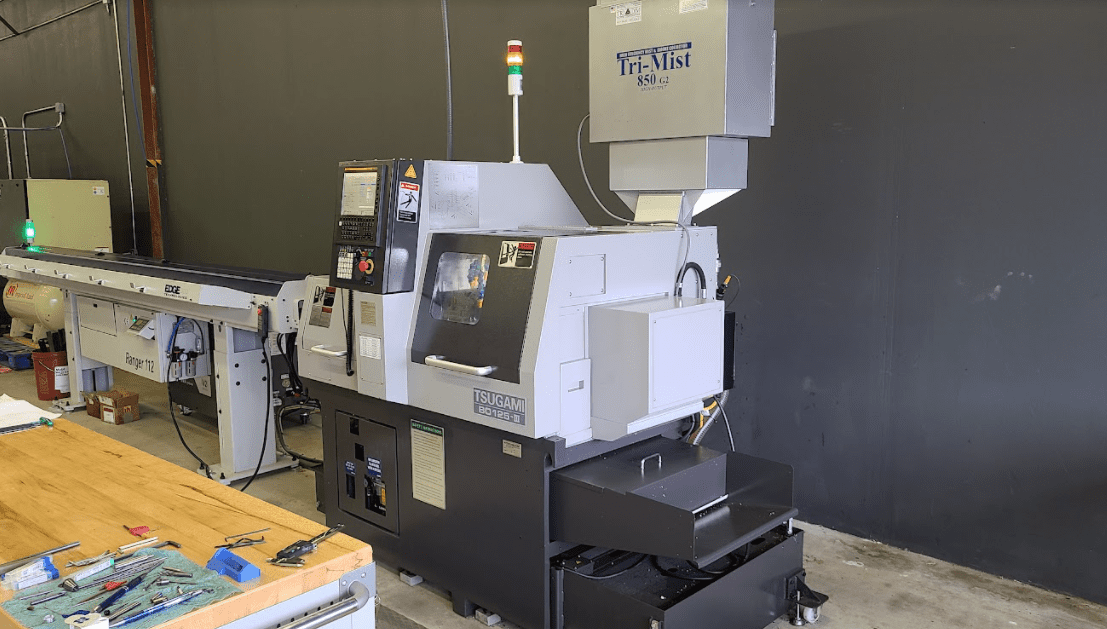

Trimist Mist Collector System |
|
Collets / Bushings Main Spindle Collet TF 24 |

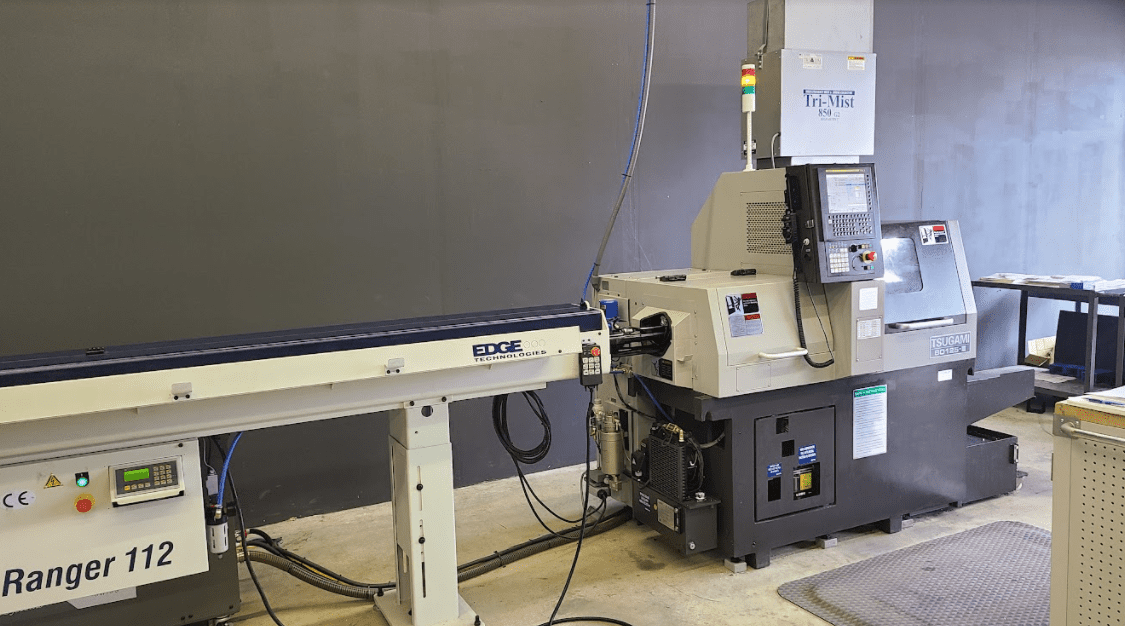

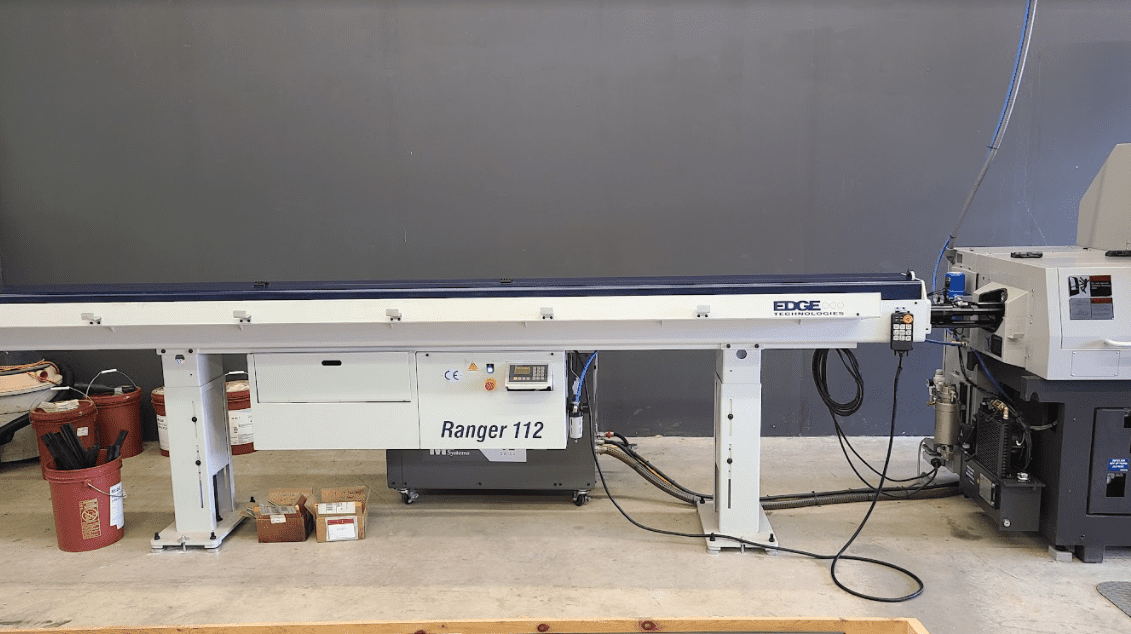

Edge Ranger 112 (12' Barfeeder) |
|

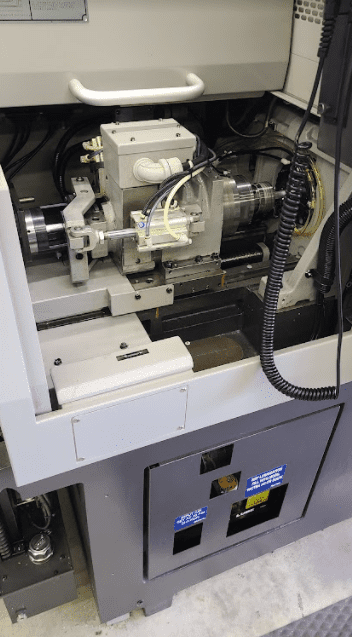

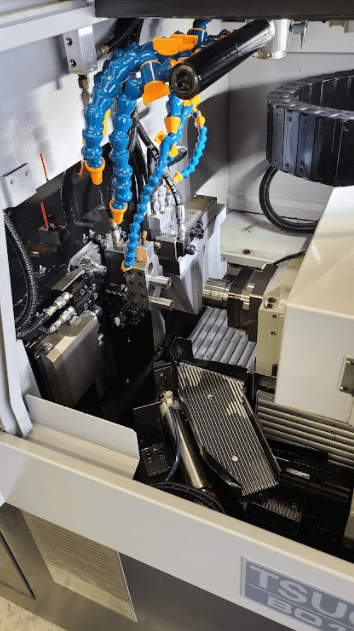

Gang Tool Post (Live) 4 |
Guide Bushing TSG20R |
|
HEPA Filter |
Live Tool Collet ER16/ER11 |
|
Mountable Tools Gang Tool Post (Turning) 5 |

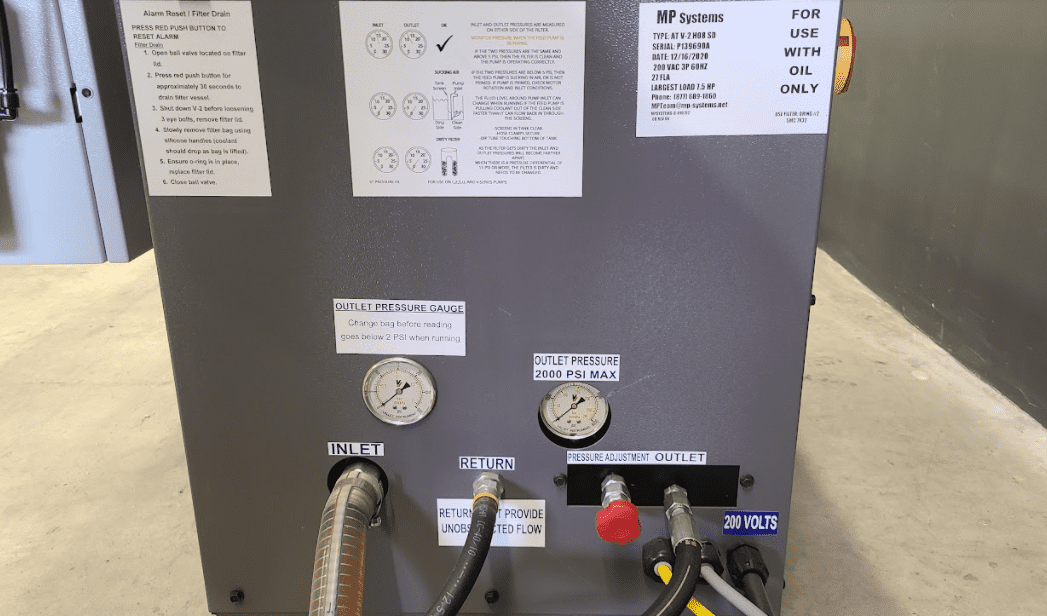

MP Systems High Pressure Coolant Pump |
|
Multiple Repetitive Cycles |
Oscillation Cutting Function |
|
Part Program Storage Size 1 MB Total |
