| Year | 2021 |
|---|---|
| Make | Eurotech |
| Model | Rapido B438-SY2 |
Description |
CNC Lathe |
| Reference # | 8073565 |
Price |
Activate PricingInquire Now |

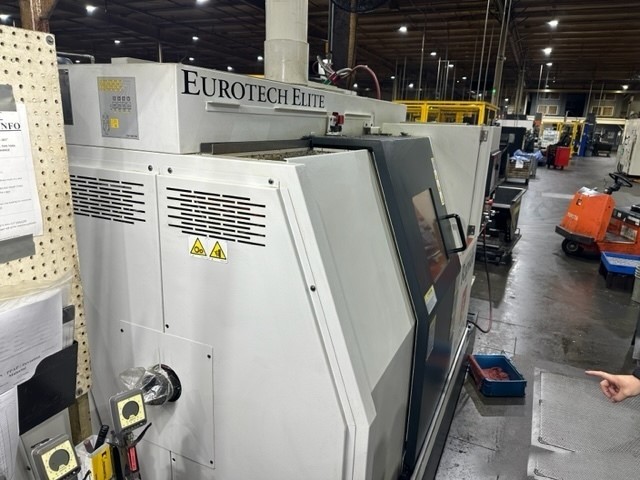

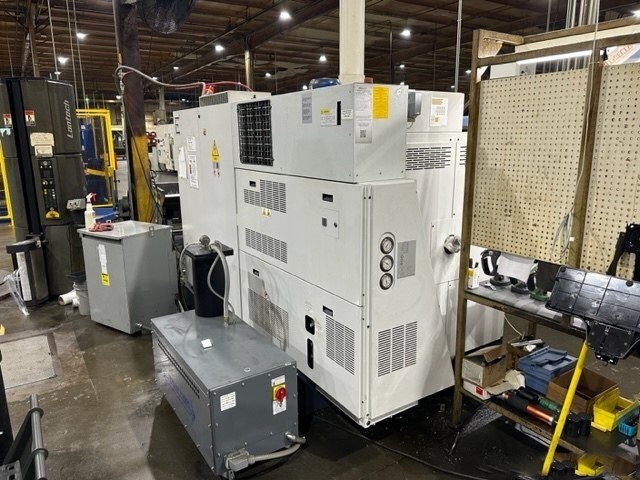

Used Eurotech Rapido B438-SY2 (2021) CNC Lathe for Sale. This pre-owned Eurotech CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Eurotech Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications

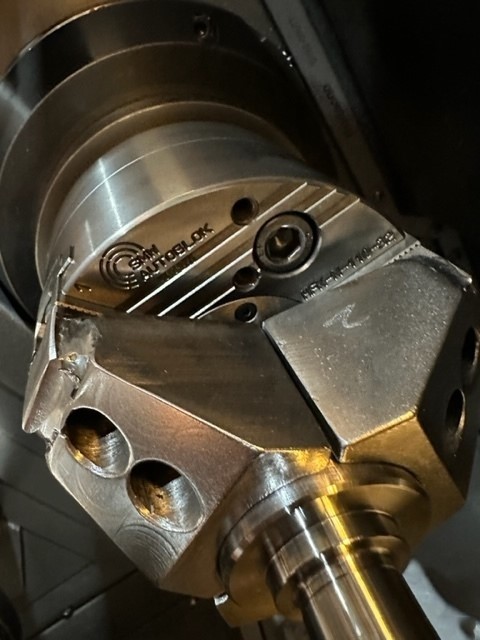

| Chuck Size |
6" |
|---|---|
| Bar Capacity |
1.5" |
| Swing |
5.51" |
| Turning Diameter |
3.94" |
| Spindle Speed |
7,000 RPM |

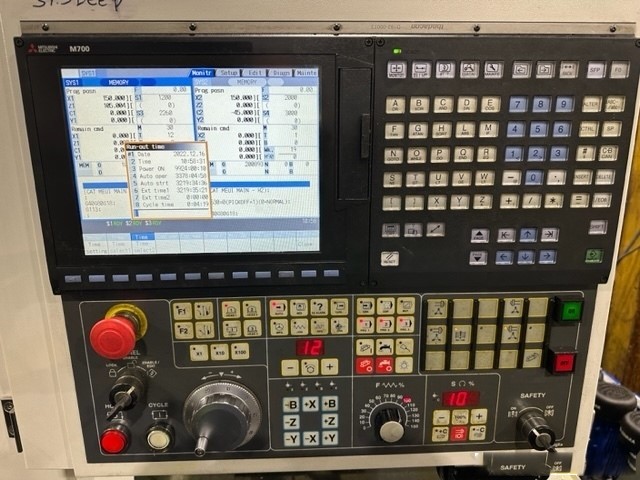

| Control |
Mitsubishi M730 |

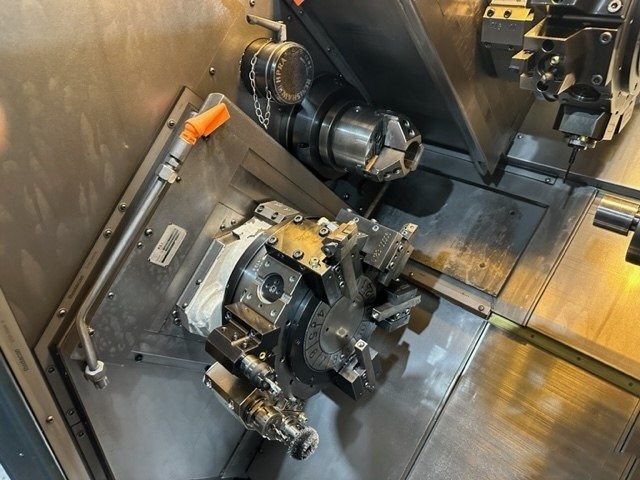

| Turret |
12/12 Dual Turret |
| Full Y-Axis Stroke |
-0.98"/+0.98" (+25/-25 mm) - 1.97" Total - Both Turrets |
| Main Spindle Motor |
15 HP |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |

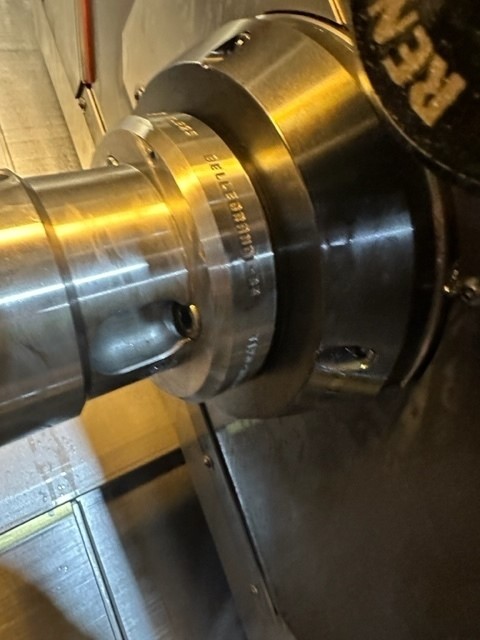

| Sub-Spindle |
15 HP, 7,000 RPM |
| Chip Removal |
Chip Conveyor |
Features
|

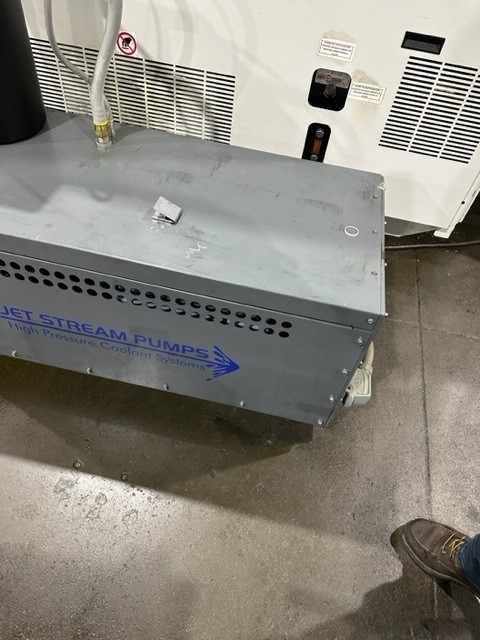

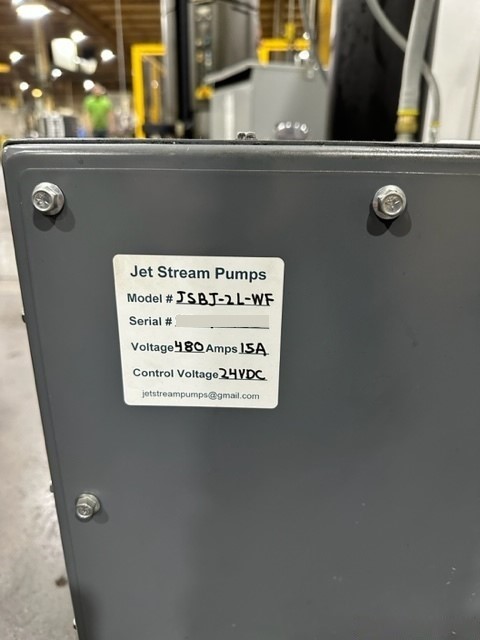

1000 PSI JetStream HP System |
51 KVA Transformer |
|

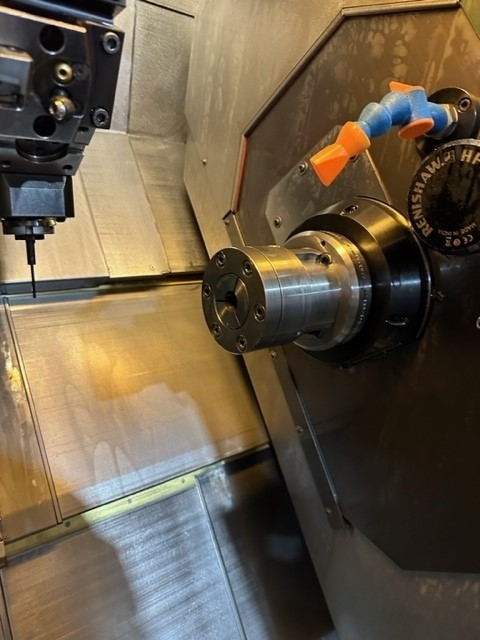

Double Tool Probe |
Eurotech Tool Monitoring System |
|
Flash Ladder Software |
Programmable Part Conveyor |
|
Rigid Tapping on Main and Sub Spindle and All 24 Turret Stations |
Sub-Spindle Ejector |
|
Toolholder Package |
Auto Tool Presetter |
|
Parts Catcher |
