| Year | 2021 |
|---|---|
| Make | Mitsubishi |
| Model | ML3015GX-F100D |
Description |

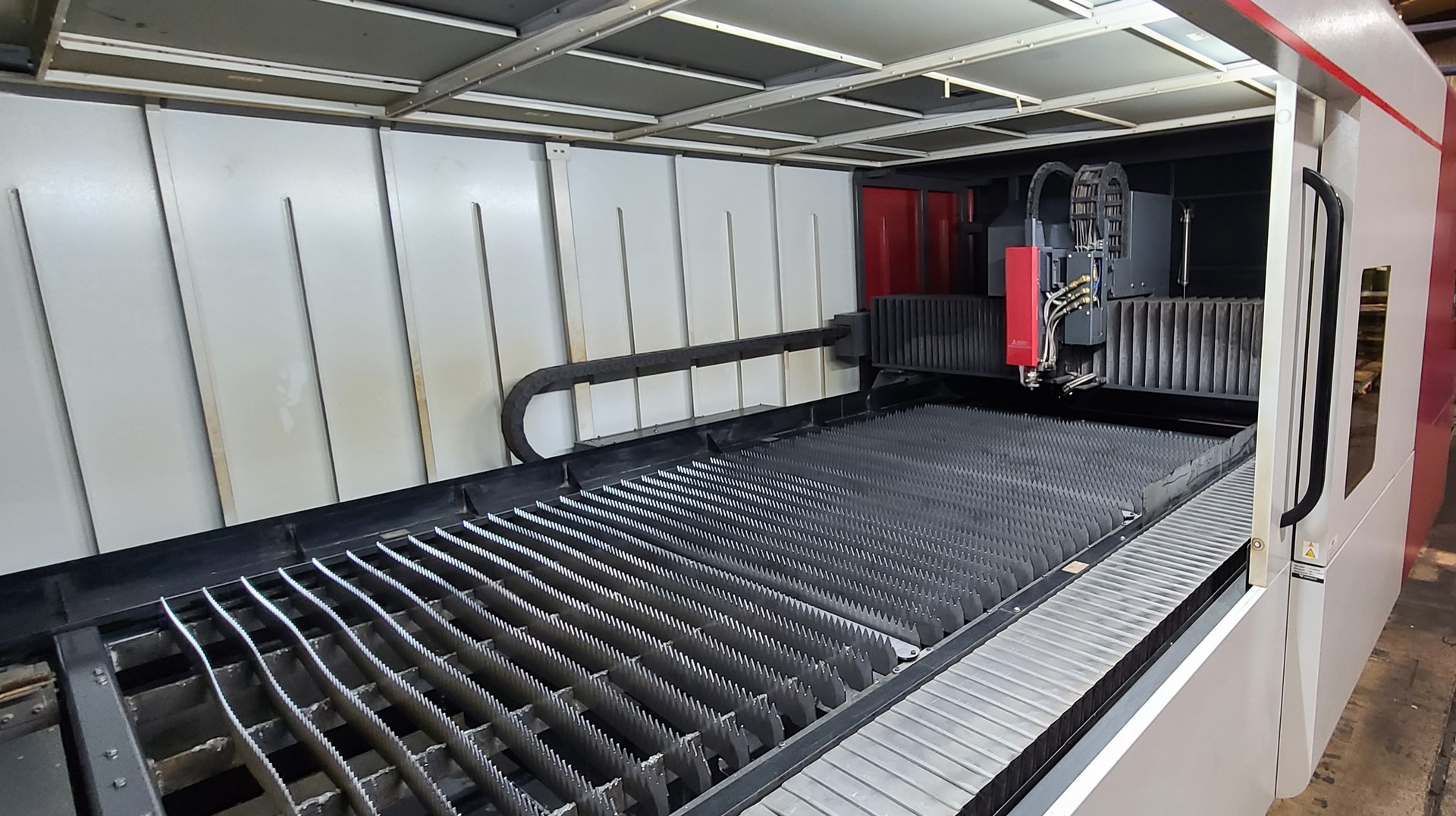

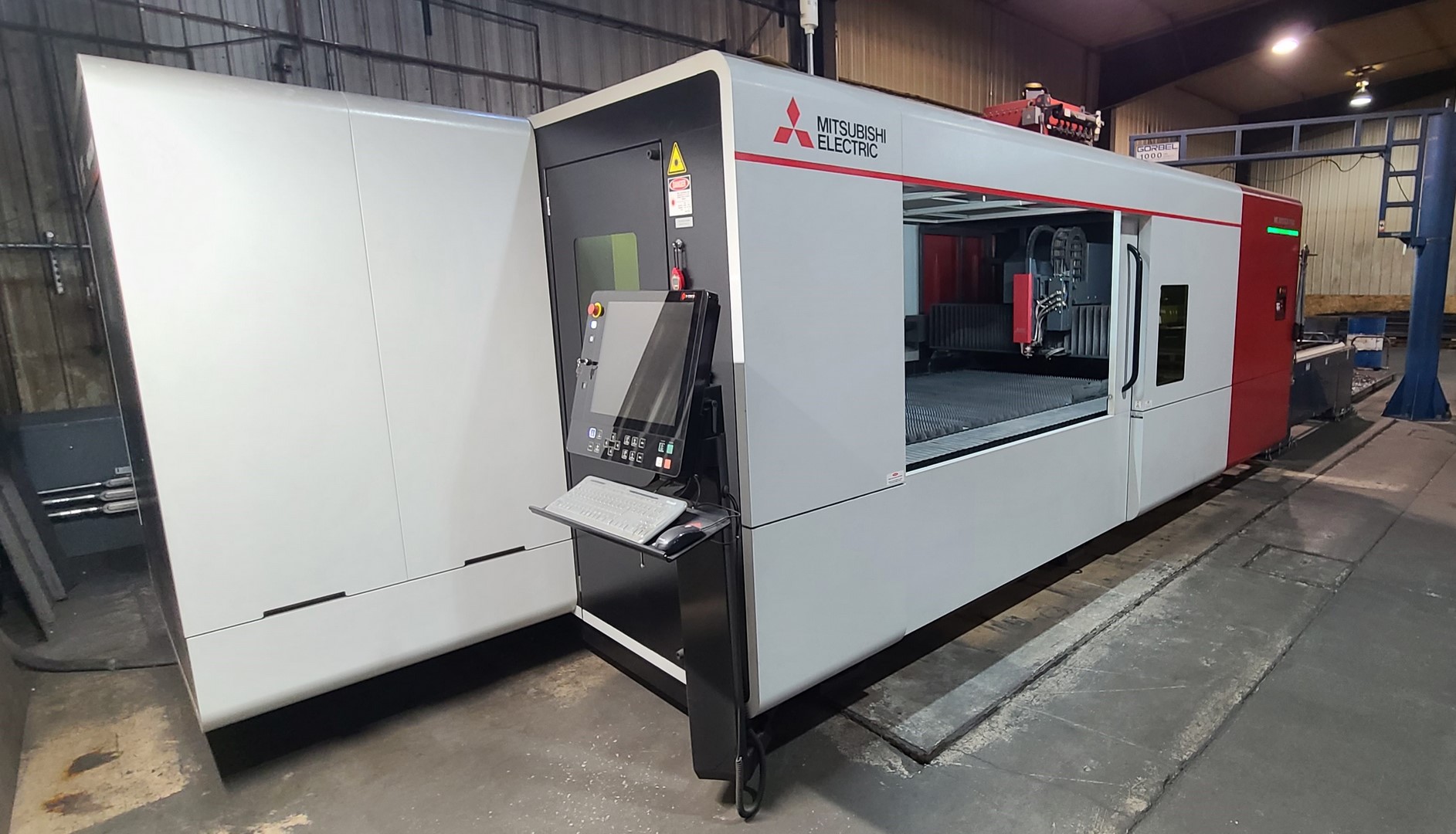

5' x 10' 10kW CNC Fiber Laser |
| Reference # | 8074326 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used Mitsubishi ML3015GX-F100D (2021) CNC Laser for Sale. This pre-owned Mitsubishi CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
10,000 |
| X-Axis Travel |
122" |
| Y-Axis Travel |
61.61" |
| Z-Axis Travel |
4.72" |
| Control |
Mitsubishi M800 |
| Max Processing Feed Rate |
3,937 IPM |
| Max Workpiece Weight |
2,094 Lbs |
| Rapid Travel Speed |
6,700 IPM Simultaneous |
| Positioning Accuracy |
0.0019" / 20" |
| Repeatability |
+/- 0.00039 |
| Machine Weight |
20,723 Lbs |
Features
|
19" User Interface |
Advanced Help and Maintenance Screens |
|
Auto Pallet Shuttle |
Auto Sheet Detection |
|
Customizable Home Screen |
Intelligent Cutting Assist |
|
Micro-Tabbing on the Fly |
Online Job Scheduling and Runtime Estimator |
|
Real-Time Condition Adjustment and Correction |
Real-Time Tracking of Electric and Assist Gas Consumption |
|
Scrap Cutting |
Simple Multi Part Nesting |
|
Zoom Processing Head |
Chiller Unit |
|
Dual Pallet Shuttle Tables |
Dust Collector |
|
Remote Monitoring |
