| Year | 2021 |
|---|---|
| Make | Modern Machinery |

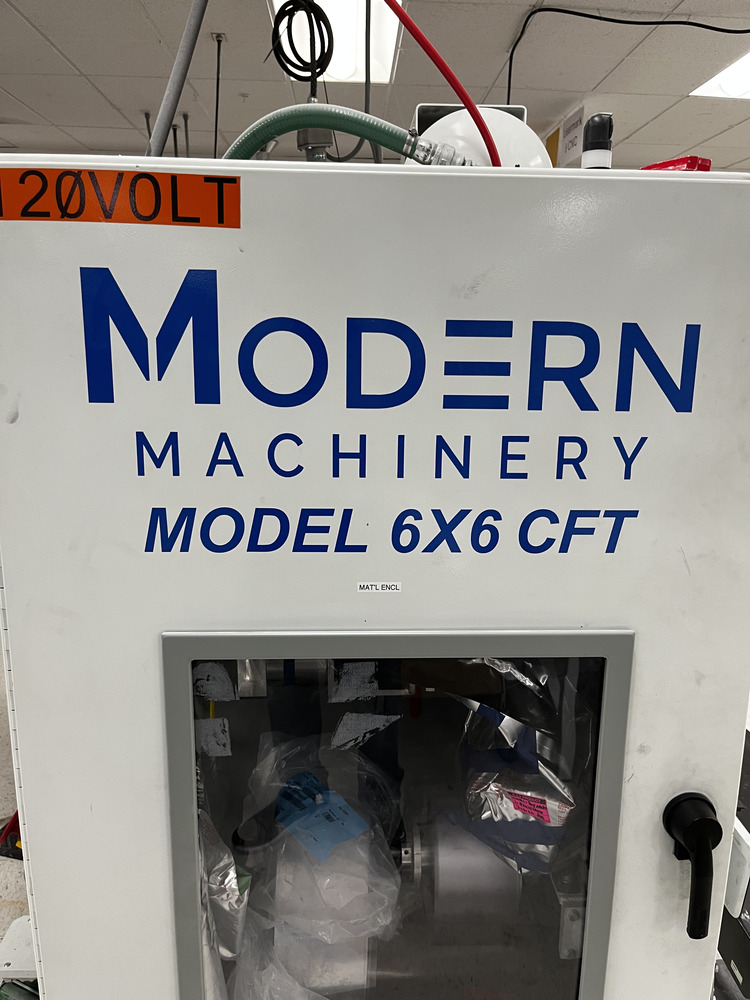

| Model | 0606CFT |
Description |
Lab Size Inline Style |
| Reference # | 8077380 |

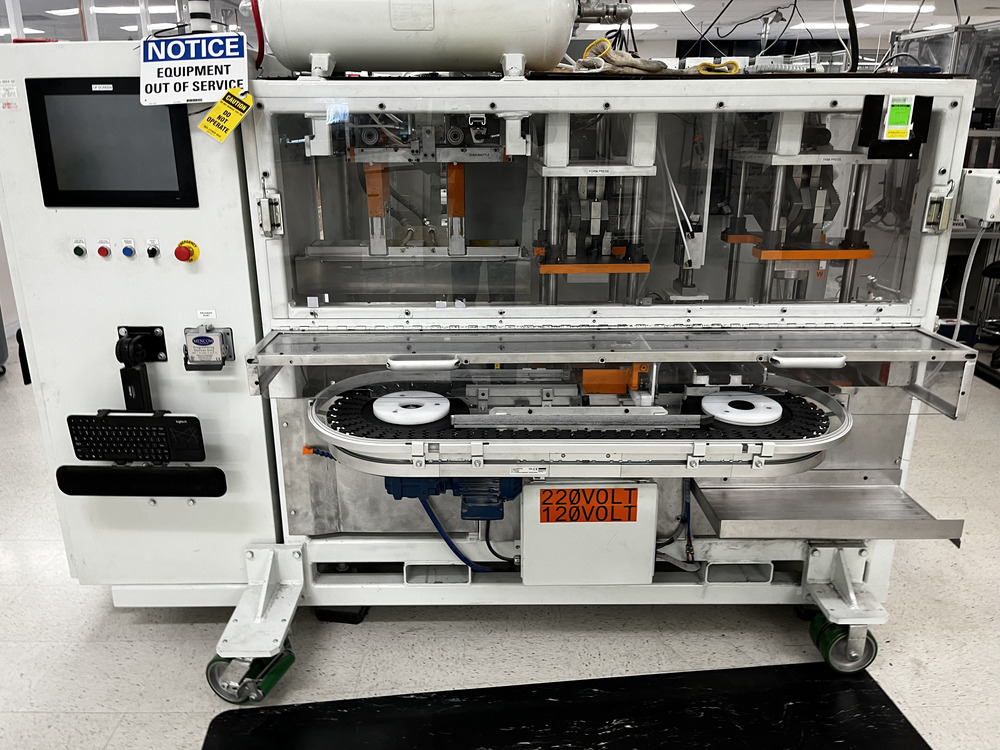

Used Modern Machinery 0606CFT (2021) Thermoformer for Sale. This pre-owned Modern Machinery thermoformer machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Modern Machinery Thermoformer, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Forming Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Max Tool Size |
6" x 6" |
|---|---|
| Max Draw Depth |
4" (Above & Below Sheeline) |
| Sheet Width (Max & Min) |
8" & 4" |
| Unwind Stand |
Free Standing (18" Dia Roll x 3" Cores) |
| Indexing |
Servo Indexing (Digitally Controlled) |
| Sheet Conveying |
#40 Pin Chain - 1" Centers on Points (Sprocketless Design) |
| Oven (Panel IR Heaters - Top Only) |
30" Long / 5-Stop |
| Oven Elements |
Solar "F" Series Panel |
| Number of Zones |
(5) Zone |
| Oven Contol System |
Hetronik PID Oven Control System (Elec. Photo Sag Eye) |
| Bottom Mounted IR Sensor |
Monitors Sheet Temperature |

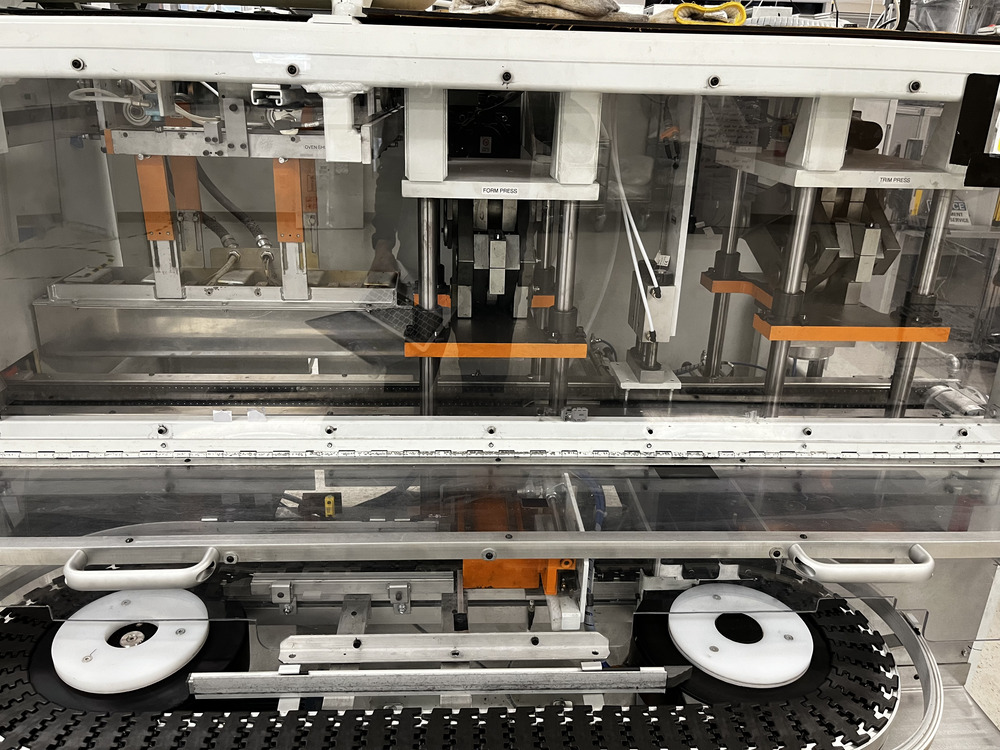

| Platens |
(4) Post Guiding |
| Platen Drives |
Servo Toggle Design (80 PSI) w/ Digital Encoder (For Positioning) |
| Top - Open/Closed (Daylight)/Stroke |
7" / 3" / 4" |
| Bottom - Open/Closed (Daylight)/Stroke |
7" / 3" / 4" |
| Trim Station |
(4) Post Trim Station (Servo w/ Encoders) |
| Trim Station Tonnage |
10 Ton |
| Max Tool Weight |
100 Lbs (Top & Bottom) |
| Index Length |
6" |
| Trim Tool Stroke Dimensions |
Refer to Platen Top & Bottom Daylights Details |
| Control |
Allen Bradley Controller |
Features
|
A Motorized Scrap Winder |
Semi-Auto Tool Loading Mechanism |
|
Vacuum Pump & Tank Reservoir |
